Hatco S-54 Imperial High Temp & Low Temp Dishwashers
Description

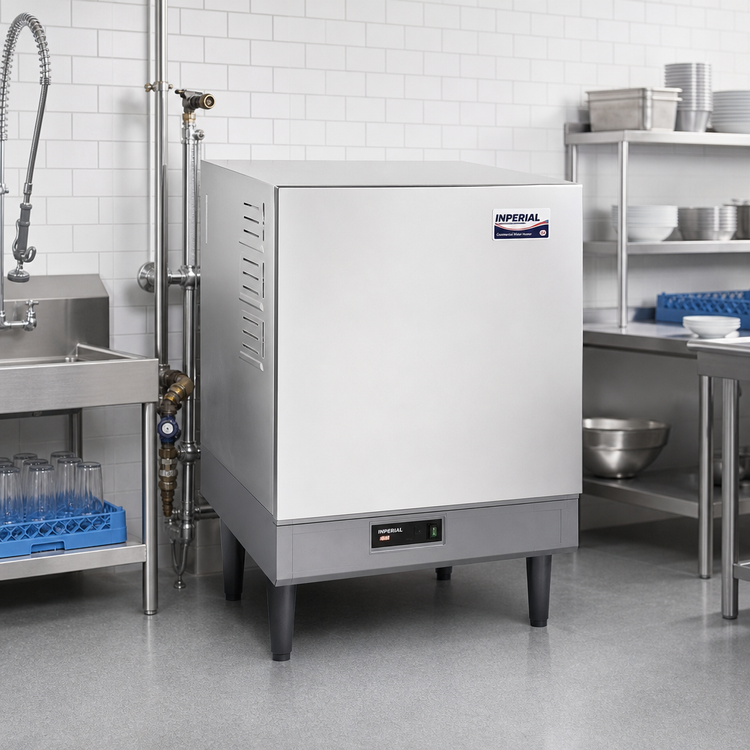

Hatco Imperial 54 kW Electric Booster Heater
Model S-54 | 16 gal. storage | 180 °F final-rinse performanceDeliver consistent 180 °F (82 °C) rinse water to your high-volume dish machine and watch dishes air-dry in seconds. Hatco’s American-made Imperial S-54 combines rugged construction, rapid recovery and built-in protection features to keep your warewashing operation running at peak efficiency shift after shift.
Key features
- 54 kW heating power – recovers 542 GPH at a 40 °F rise.
- 16 gal. Castone®-lined steel tank with a 10-year limited warranty.
- Factory-set 180 °F thermostat (adjustable down to 140 °F for low-temp machines).
- Low-water cut-off prevents element burnout; high-temperature limit adds extra safety.
- Built-in heat trap & fiberglass insulation minimize standby heat loss.
- Stainless-steel front panel and powder-coated silver-gray hammertone cabinet.
- Front-accessible controls, pilot & power indicator lights, and On/Off toggle switch.
- Ships pre-plumbed & pre-wired with pressure-reducing valve, T&P relief valve and dual pressure/temperature gauges.
- NSF-listed, cULus certified and proudly Made in the USA.
Technical specifications
| Storage capacity | 16 gal | 60 L |
|---|---|
| Heating capacity | 54 kW (electric) |
| Voltage / Phase | 480 V 3-phase (other voltages not available for 54 kW) |
| Amperage draw | 65 A |
| Recommended breaker | 90 A |
| Recovery rate* | 542 GPH @ 40 °F rise | 310 GPH @ 70 °F rise |
| Working pressure | 150 psi (1034 kPa) |
| Exterior | Stainless front, powder-coated hammertone sides/top |
| Legs | 6 in. (152 mm) non-adjustable plastic |
| Overall dimensions | 23.53"W × 22.75"D × 31.03"H (598 × 578 × 788 mm) |
| Ship weight | 224 lb (102 kg) |
| Certifications | NSF, cULus |
| Country of origin | USA |
*Recovery figures are based on incoming water at 40 °F (4 °C). Incoming water harder than 3.0 GPG must be softened to maintain efficiency and warranty coverage.
Factory options (select at time of order)
- Full stainless-steel body & base
- Security package with tamper-resistant Torx® screws & control cover
Popular accessories
- Blended phosphate injection system (non-potable)
- Stainless-steel adjustable legs (6"–7")
- Shock absorber & back-pressure relief valve to reduce water hammer
Peace-of-mind coverage
- 10-year limited warranty on Castone® tank lining
- 24/7 parts & service assistance (USA & Canada)
