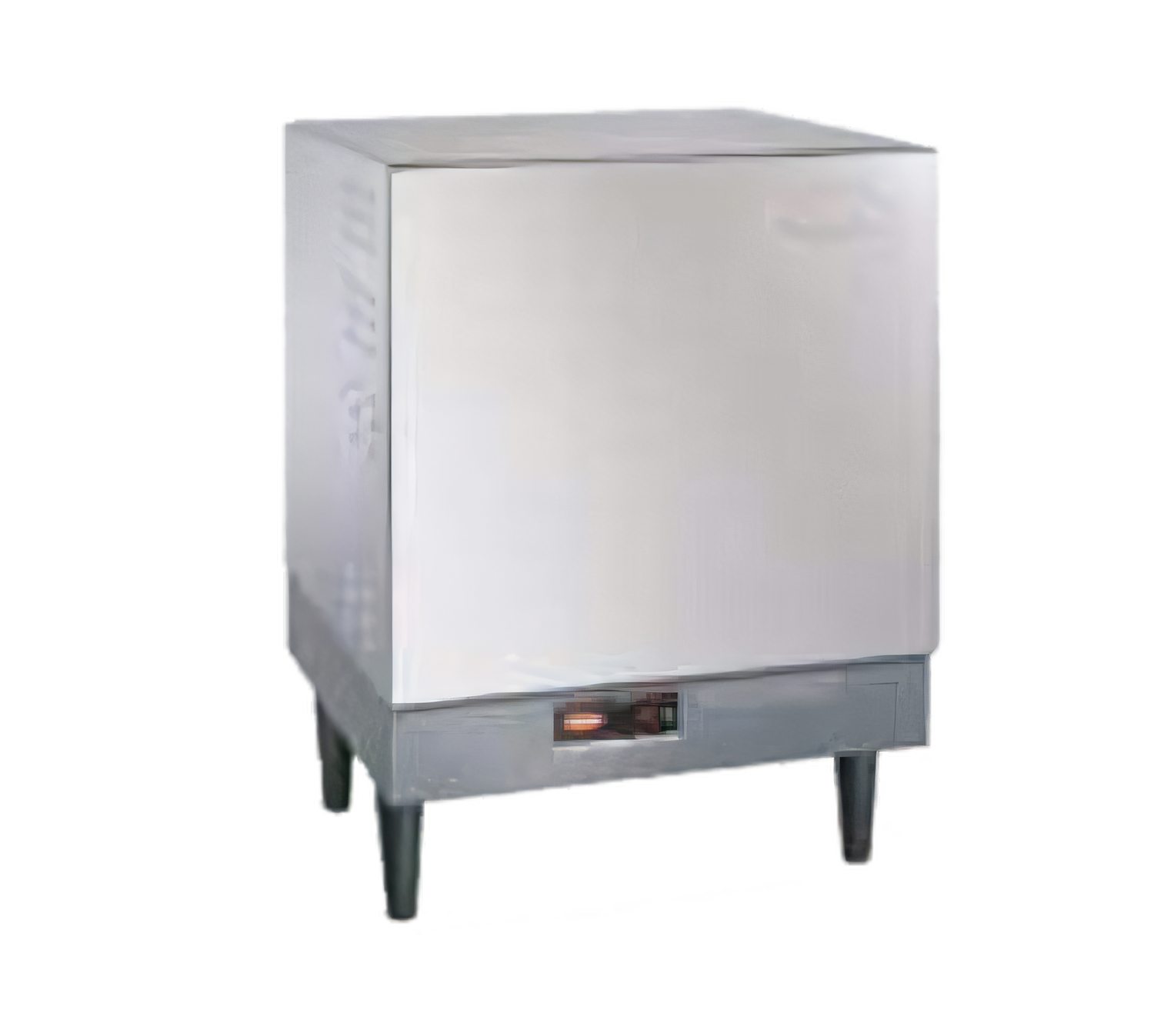

Hatco Imperial Electric Booster Heater, 16 Gallon, 54 kW, 480V, 3-Phase
Quick Ship Model with Stainless Steel Front Panel and 6-Inch Legs
Built for high-volume dish rooms, this 16-gallon electric booster heater delivers powerful sanitizing rinse performance with factory pre-plumbed, front-access construction for easier installation.
- 16-gallon storage capacity supports demanding sanitizing rinse needs.
- 54 kW output with 480V, 60Hz, 3-phase operation.
- Castone® lined tank is built for long-term durability.
- Factory pre-plumbed and pre-wired design helps speed installation.
- Front service access makes it easier to install beside other equipment.
- Includes multiple safety controls such as low-water cut-off and high-temperature limit protection.
- Stainless steel front panel with powder-coated silver-gray hammertone body and 6-inch legs.
Overall Dimensions:
23.63"W x 22.75"D x 31.13"HProduct Weight:

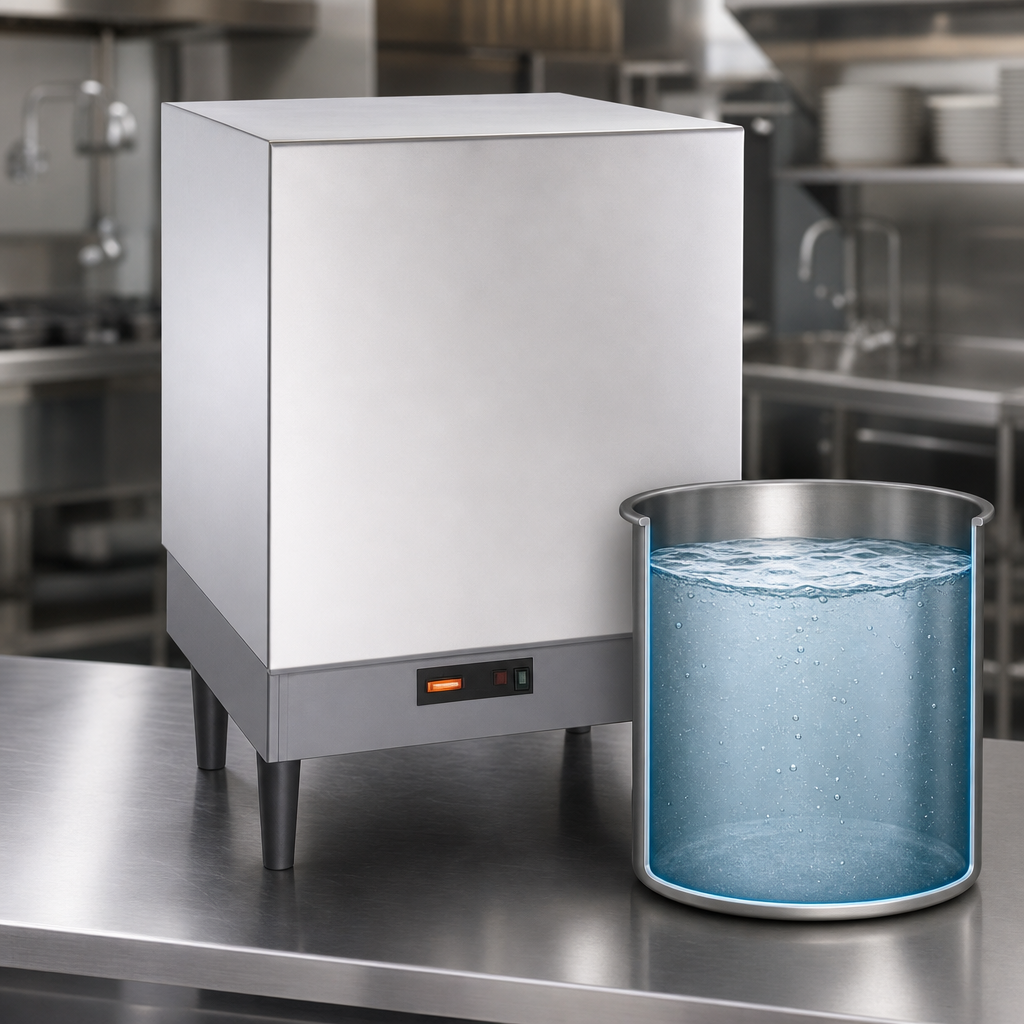

224.0 lb16-Gallon Storage Capacity
Provides 16 gallons (60 liters) of hot water for sanitizing rinse applications.

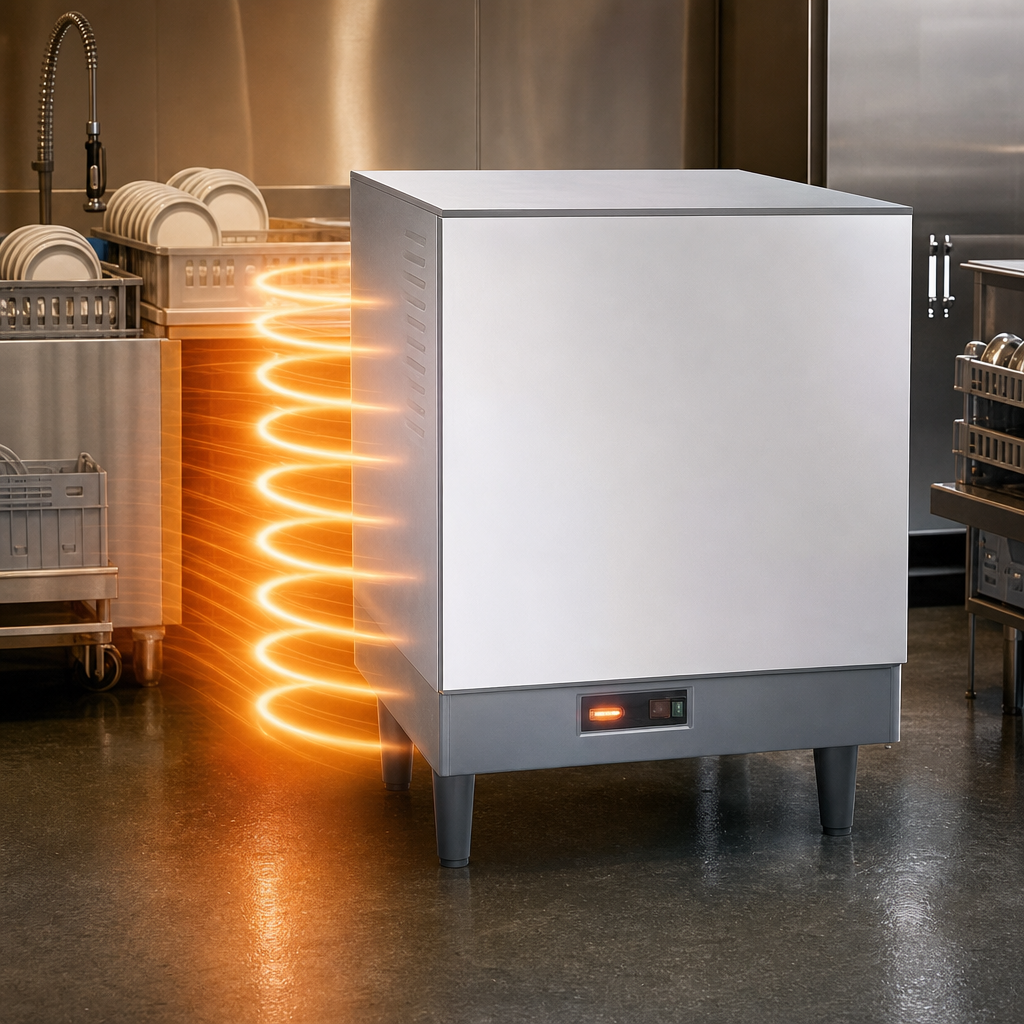

High-Output Electric Heating
Delivers 54.0 kW of heating power for high-volume commercial dish room use.
Castone® Lined Tank
Non-toxic, non-corrosive tank lining designed for durability; includes a 10-year limited tank warranty.
Factory Pre-Plumbed and Pre-Wired
Arrives with calibrated immersion thermostats and a high-temperature limit switch already installed to simplify setup.
Front Service Access
Service area is accessible from the front for easier installation, even when placed next to other equipment.
Built-In Safety Controls
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on/off switch, and low-water cut-off.
Heat Retention Construction
Built-in heat trap and fiberglass insulation help reduce heat loss.
Durable Exterior Construction
Standard stainless steel front panel with a powder-coated silver-gray hammertone body.
6-Inch Non-Adjustable Legs
Supplied with 6-inch plastic legs for floor placement.
Low-Temperature Dishmachine Support
Thermostats can be lowered to 140°F (60°C) for use with low-temperature dishmachines.
Custom Fittings
Includes custom fittings to support installation requirements.
High-Volume Sanitizing Performance
Designed to provide up to 573 GPH (2169 LPH) of sanitizing rinse water.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on the Castone® lined tank.
Documents
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
