Hatco S-54-208-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

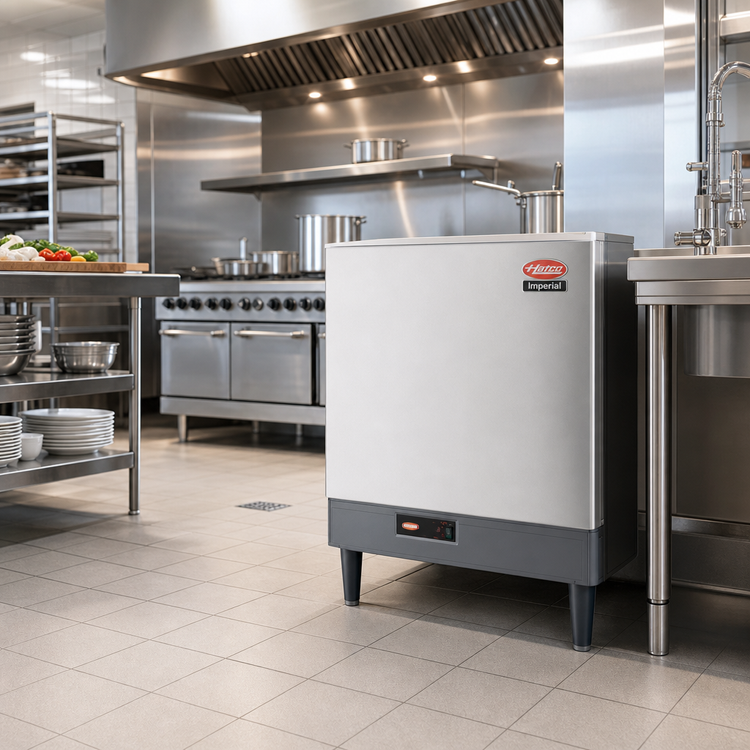

Hatco S-54 Imperial Electric Booster Water Heater – Quick-Ship
54 kW • 16 gal storage • 208 V / 60 Hz / 3-phase • NSF & cULus ListedGet dishroom rinse water up to 180 °F in seconds and keep service moving at full speed. The Hatco S-54 Imperial Booster Heater delivers high-volume sanitation with the rock-solid reliability operators have trusted for more than 70 years – and this Quick-Ship model leaves our dock the same business day when your order is received before noon CT*.
Built for Busy Dishrooms

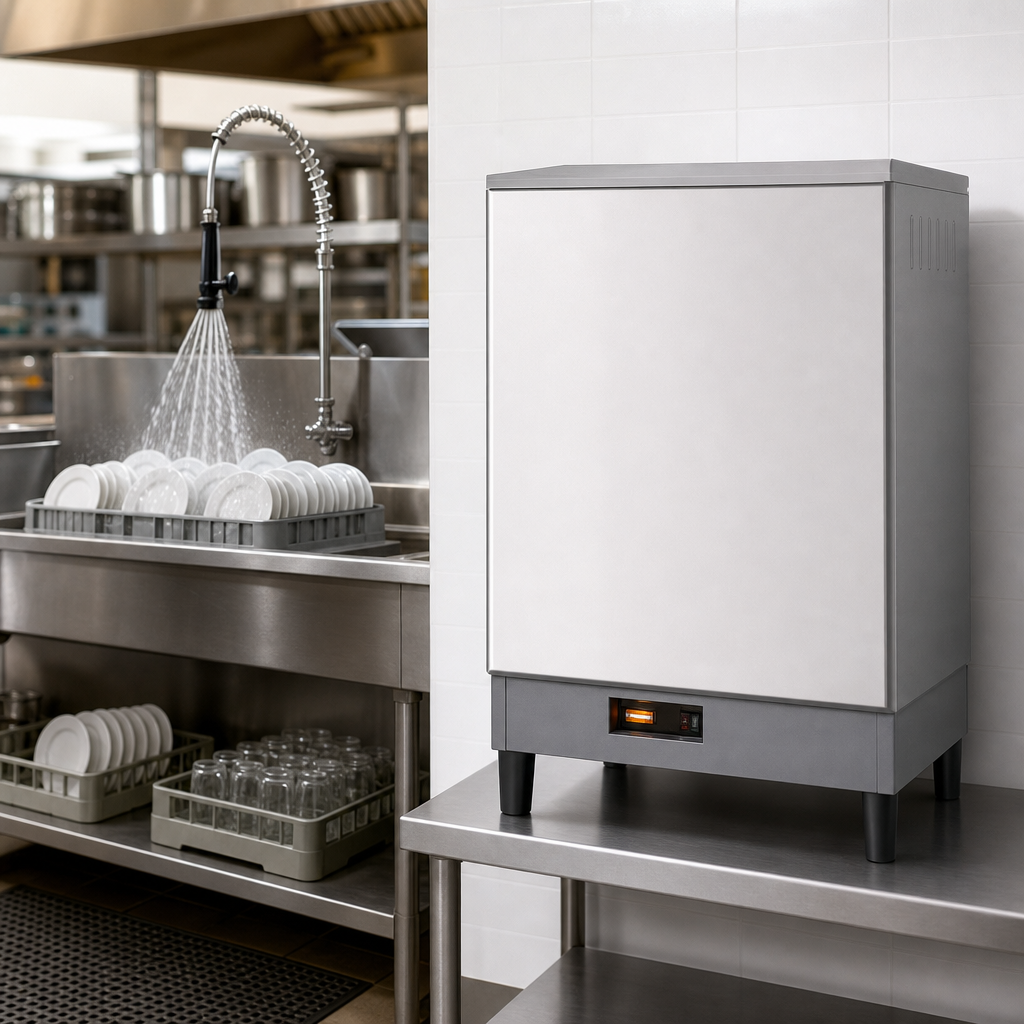

- Powerful 54 kW heating package produces up to 542 GPH of 180 °F rinse water (40 °F rise).
- 16 gal Castone® lined tank is non-corrosive, non-toxic and carries a 10-year limited warranty.
- Factory pre-plumbed & pre-wired with calibrated immersion thermostats for plug-and-play installation.
- Low-water cut-off, high-temperature limit switch and over-current protection safeguard the heating elements.
- Stainless steel front panel plus powder-coated silver-gray hammertone body stand up to the toughest kitchen environments.
- Fiberglass insulation and built-in heat trap keep standby heat loss to a minimum – saving energy every hour of the day.
- Standard 6" non-adjustable legs raise the unit for easy cleaning and service access.
- Proudly Made in the USA and backed by Hatco’s 24/7 parts & service assistance (US & Canada).
At-a-Glance Specifications
| Model | S-54 Quick-Ship |
|---|---|
| Electrical Rating | 54 kW, 208 V, 60 Hz, 3-phase |
| Approx. Amperage | 150 A (breaker size 175 A) |
| Recovery Capacity | 542 GPH @ 40 °F rise 310 GPH @ 70 °F rise |

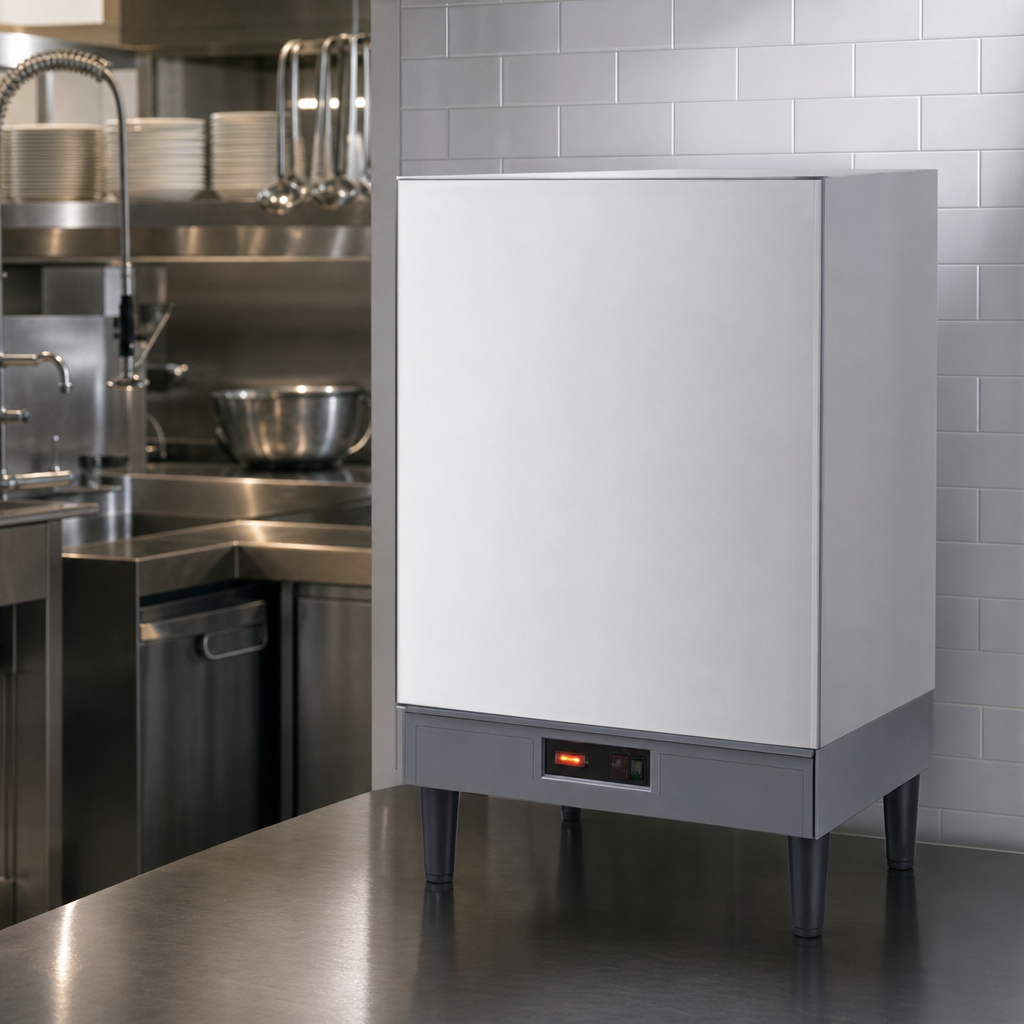

| Storage Capacity | 16 gal (Castone® lined) |
| Water Connections | ¾" NPT inlet & outlet |
| Working Pressure | 150 psi maximum |
| Dimensions (W × D × H) | 23.53" × 22.75" × 31.03" (with 6" legs) |
| Shipping Weight | ≈ 224 lb |
| Certifications | NSF, cULus |
| Country of Origin | USA |
Need It Now?
- Order before 12 PM (Noon) CT and it ships the same business day*.
- Standard Hatco pricing & discounts apply – no rush fees.
- Ships via Hatco’s preferred LTL carriers or your specified carrier.
*Quick-Ship commitments are based on inventory availability and credit approval.
All watt ratings are nominal; consult your electrician for local code compliance.
