Hatco S-45 Imperial High Temp & Low Temp Dishwashers
Hatco S-45 Imperial High Temp & Low Temp Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco S-45 Imperial High Temp & Low Temp Dishwashers
Description

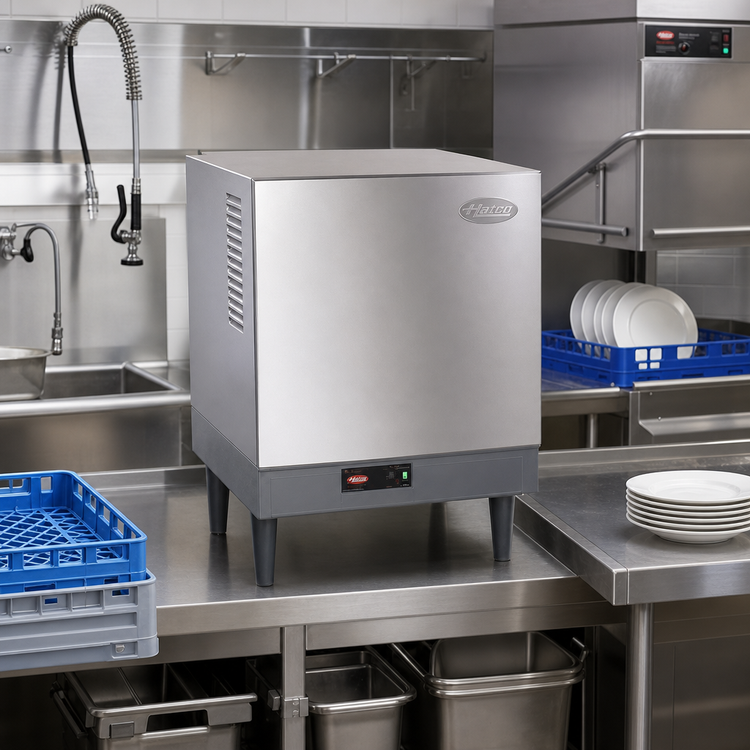

Hatco Imperial S-45 Electric Booster Water Heater
45 kW • 16 gal Castone®-lined tank • NSF & cULus • Made in USADeliver a constant 180 °F (82 °C) sanitizing rinse and keep your dish machine running at peak performance. The Hatco Imperial S-45 heats up to 452 gallons per hour (40 °F rise) in a compact, service-friendly footprint, giving you sparkling dishes and flatware that air-dry instantly.
Key advantages
- High-output 45 kW elements quickly recover rinse-water temperature for high-volume operations.
- 16 gal (60 L) Castone®-lined tank is non-toxic, non-corrosive and backed by a 10-year limited warranty.
- Low-water cut-off automatically protects elements from burnout.
- Built-in heat trap & fiberglass insulation minimize standby energy loss.
- Factory pre-plumbed & pre-wired for faster, cleaner installations.
- All controls—On/Off toggle switch, pilot & error lights, thermostats and reset—are accessed from the stainless steel front panel for easy service.
- High-temperature limit safety and over-current circuit protection meet UL 1453 requirements.
- NSF, cULus listed and proudly Made in the USA.
Performance & utilities
| Storage capacity | 16 gal (60 L) |
|---|---|
| Power rating | 45 kW |
| Recovery @ 40 °F rise | 452 GPH (1711 LPH) |
| Recovery @ 70 °F rise | 258 GPH (977 LPH) |
| Voltage / Phase options |
240 V 1-ph (188 A) 240 V 3-ph (108 A) 480 V 3-ph (54 A) 600 V 3-ph (43.4 A) |
| Dimensions (W×D×H) | 23.53 × 22.75 × 31.03 in. (598 × 578 × 788 mm) incl. 6 in. legs |
| Shipping weight | Approx. 224 lb (102 kg) |
| Connections | ¾ in. NPT water inlet & outlet; bottom electrical knockouts (1½ in. & 2 in.) |
| Certifications | NSF 5, cULus E45291 |
Built to last in demanding dishrooms
From hotels and healthcare to high-volume restaurants, Hatco’s Imperial series is engineered for operators who can’t afford downtime. Every unit is burned-in, performance-tested and supported by 24/7 parts & service assistance throughout the US and Canada.
Ideal for
- Conveyor and flight-type dishmachines
- High-volume glass washers
- Central commissaries and banquet facilities
- Any operation that must guarantee a 180 °F final rinse
Need a different output? Imperial boosters are also available from 6–57 kW. Contact us for sizing assistance.
