Hatco  |  Quick Ship  |  SKU: S-45-480-3-QS  |  UPC: 61570000432

Hatco S-45-480-3-QS Quick Ship High Temp & Low Temp Dishwashers

$5,181.46
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cafeteria & buffet solutions Catalog brochure Parts list Super market & in-store solutions Restaurant solutions Owner's manual Stadium & concession solutions Hotel & lodging solutions Quick ship
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

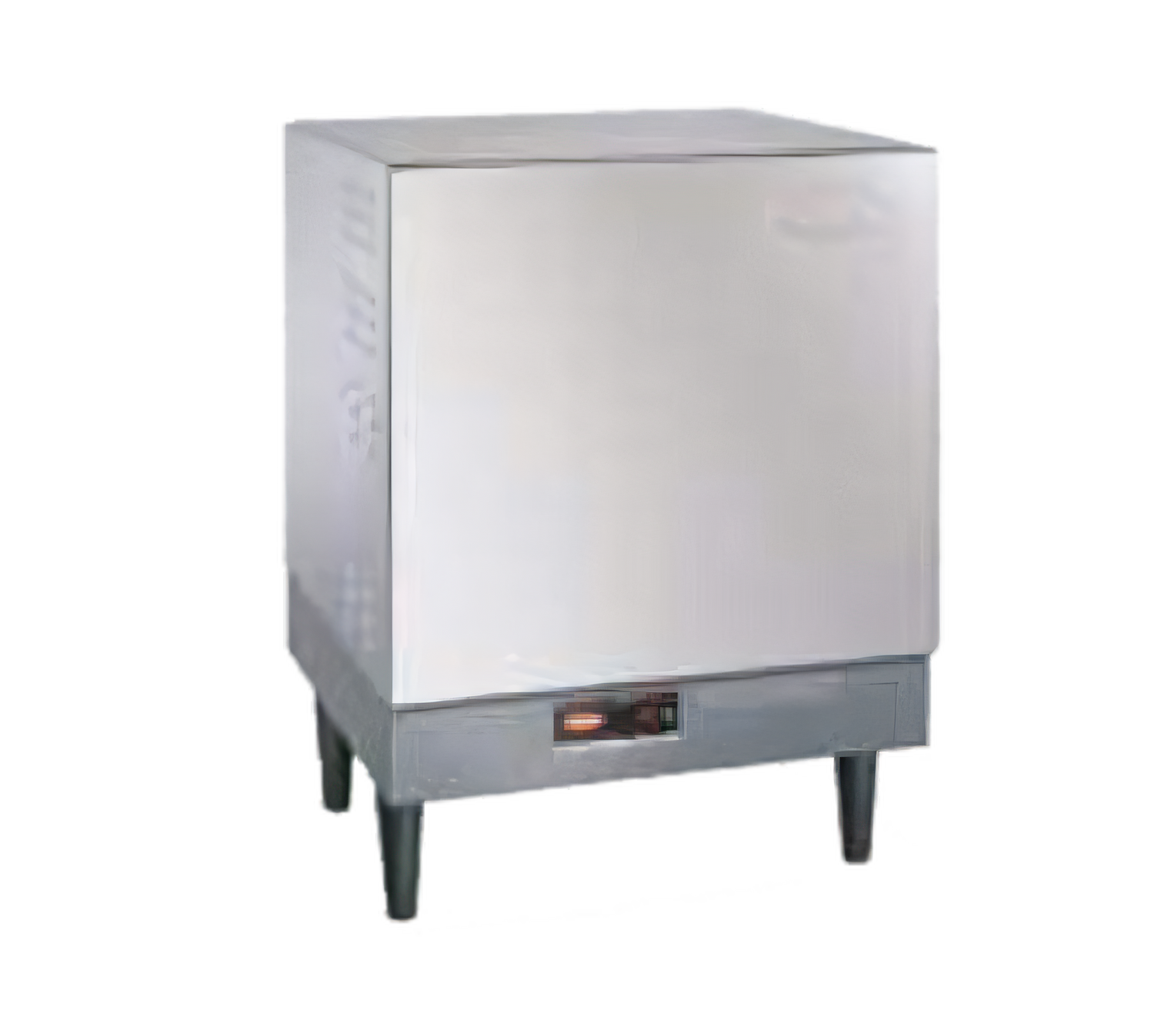

Hatco Quick Ship S-45 Imperial Electric Booster Heater

45 kW • 16 gal storage • 480 V / 60 Hz / 3-phase

Deliver a steady 180 °F (82 °C) sanitizing rinse—no waiting. The Hatco Quick Ship S-45 packs 45 kW of power into a compact, 16-gallon Castone® tank, supplying up to 452 GPH of 180 °F water so your dish machine meets NSF requirements and your warewashing line never slows down.

Key Features

  • Quick Ship: stocked and ready to leave the factory fast.

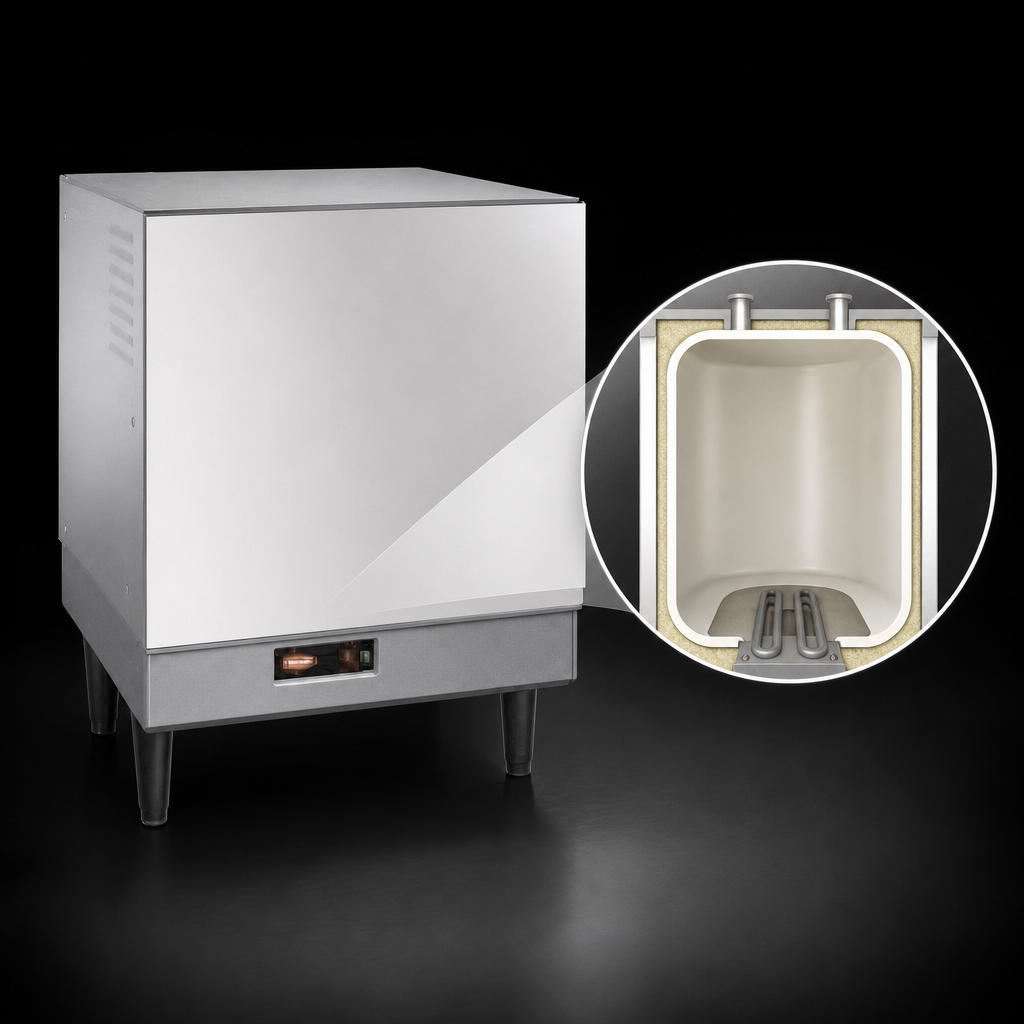

  • 16 gal Castone® lined tank (10-year limited warranty) rated to 150 psi.
  • High-output, metal-sheathed elements heat
    • 452 GPH @ 40 °F rise
    • 258 GPH @ 70 °F rise.

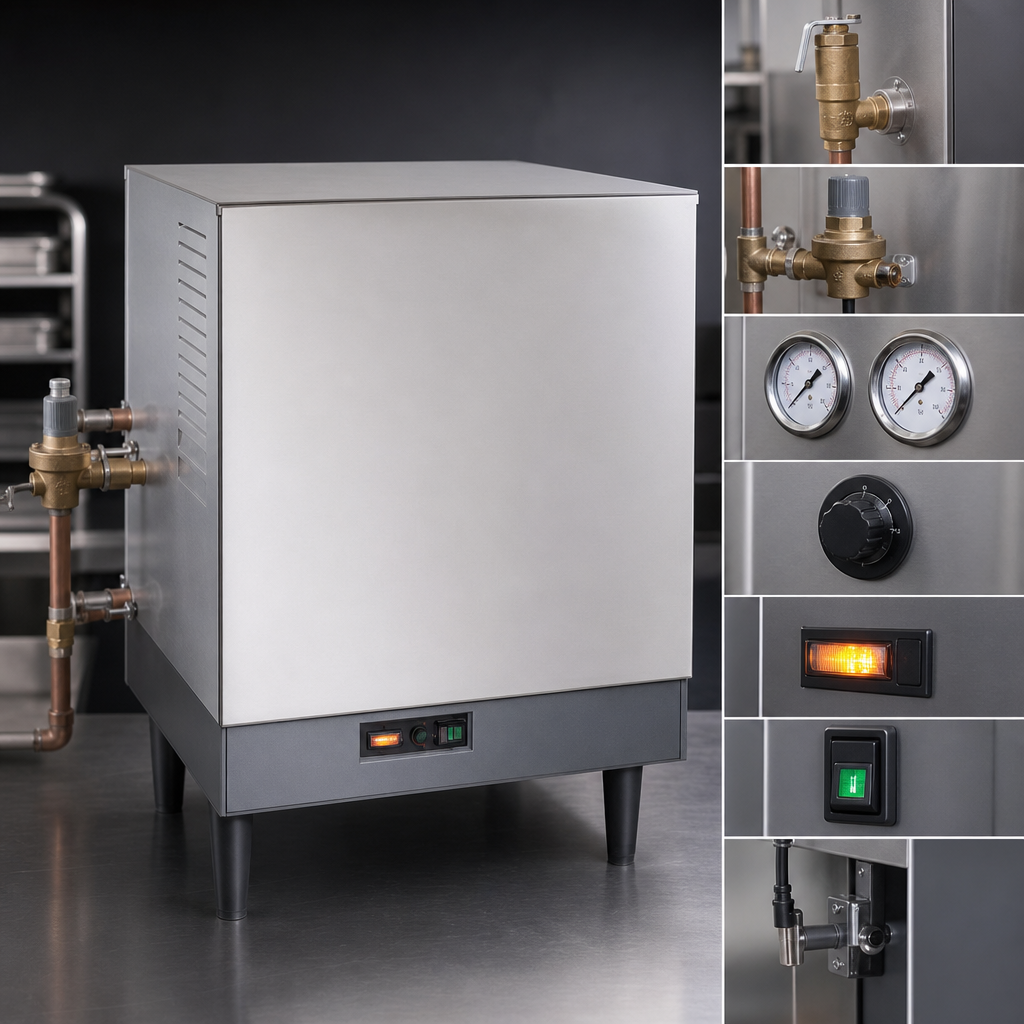

  • Low-water cut-off & high-temp limit prevent costly element burnout.
  • Factory pre-plumbed & pre-wired with pressure-reducing valve, T&P relief valve, dual temp/pressure gauges and contactors.
  • Built-in heat trap & thick fiberglass insulation slash standby losses.
  • Durable stainless-steel front and powder-coated hammertone body.
  • 6" adjustable legs for easy cleaning and perfect leveling.
  • NSF & cULus listed; proudly Made in the USA.

At-a-Glance Specs

Model S-45 (Quick Ship)
Storage Capacity 16 gal (60 L)
Power 45 kW, 480 V / 60 Hz / 3-phase
Amperage (480 V) 54 A
Recommended Breaker / Fuse 70 A
Recovery @ 40 °F Rise 452 GPH (1711 LPH)
Recovery @ 70 °F Rise 258 GPH (977 LPH)
Tank Lining Castone® cement (non-corrosive)
Working Pressure 150 psi (1034 kPa)
Exterior Stainless steel front, powder-coated body
Dimensions (W × D × H) 23.53" × 22.75" × 31.03"
Add 5" clearance for T&P relief valve.
Shipping Weight 224 lb (102 kg)
Certifications NSF, cULus
Country of Origin USA
Water Quality Matters: Incoming water harder than 3.0 grains per gallon must be softened before entering the booster. Mineral build-up is not covered under warranty.

Looking for different voltages, security screws or stainless-steel body options? Ask us—other Imperial models and accessories ship just as fast.

Features & Specs

Manufacturer

Hatco

Brand_name

Quick Ship

Certifications

NSF, cULus, Made in USA

Height

31.13in

Width

23.63in

Depth

22.75in

Shipping Weight

224.0lbs

Width

20" - 29"

Wattage

41 - 60 kilowatts

Tank Capacity

16 gallon

Specifications

(QUICK SHIP MODEL) Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front, custom fitting & Castone® lined tank, 6" legs, 45.0kW, 480v/60/3-ph, NSF, cULus, Made in USA
