Hatco S-45-208-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

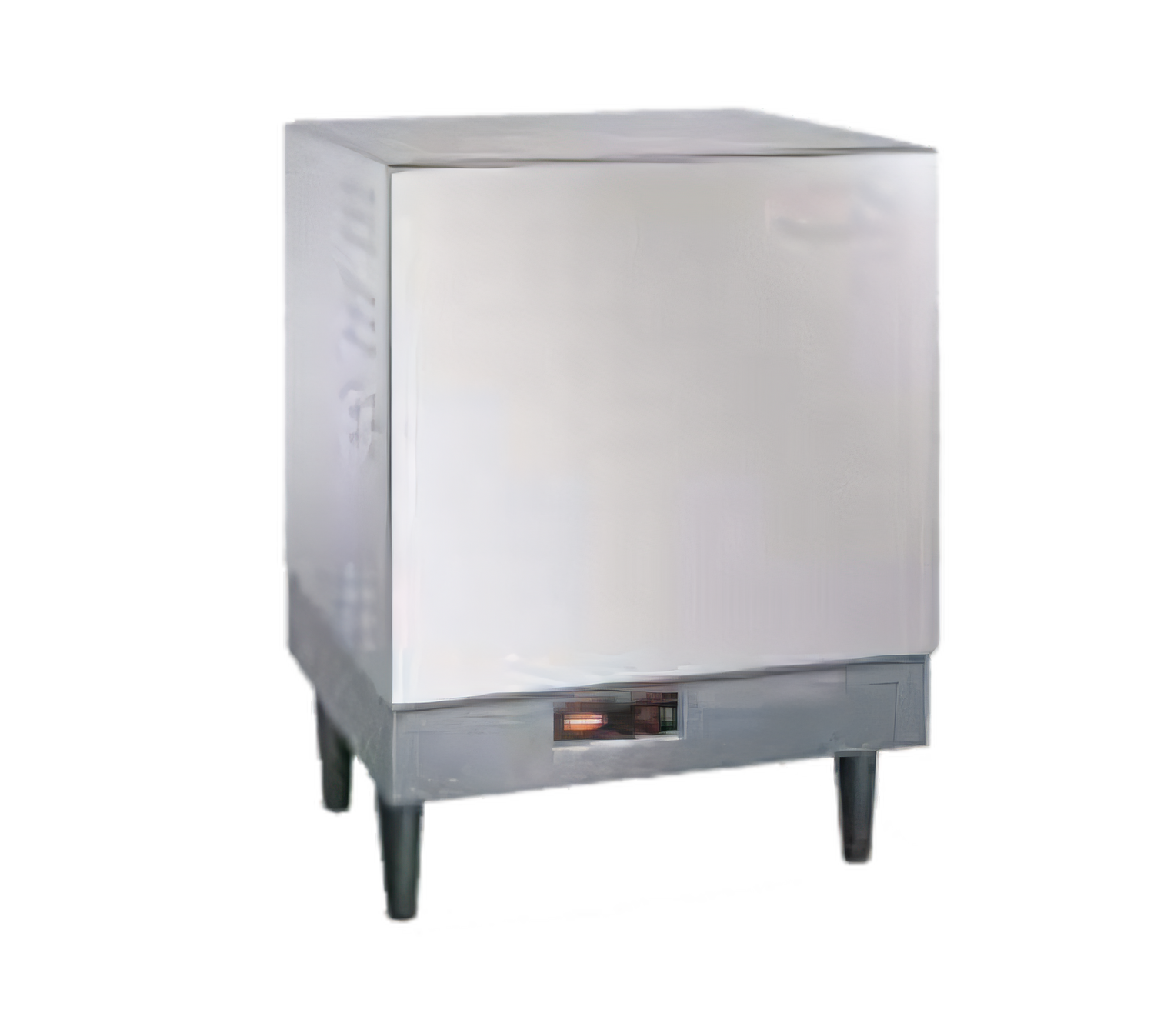

Hatco Imperial S-45 Quick Ship Electric Booster Heater – 45 kW, 208 V, 3-Phase, 16 gal
High-volume 180 °F rinse water on demand for commercial dishmachinesGet dishware spotless, sanitized, and instantly air-dried—even during peak service—with Hatco’s Quick Ship Imperial S-45 Booster Heater. Stocked in the USA for rapid turnaround, this 45 kW powerhouse cranks out a steady flow of 180 °F (82 °C) rinse water to keep high-temperature conveyor, door-type, and flight-type machines running at full speed.
Key advantages
- Unmatched output: Up to 452 GPH (1711 LPH) at a 40 °F rise—enough for the busiest kitchens.

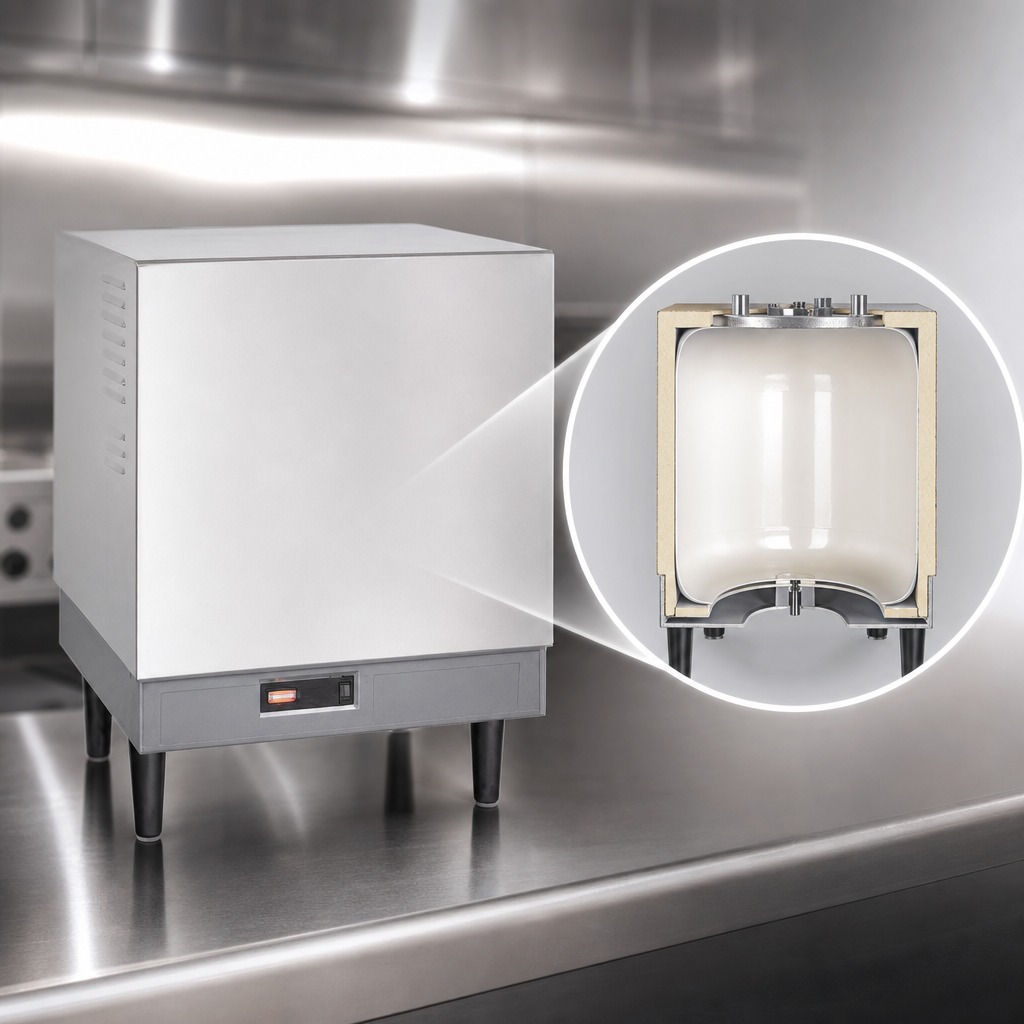

- Castone® lined tank: Non-corrosive, non-toxic cement lining carries a 10-year limited warranty.
- Energy smart: Built-in heat trap & thick fiberglass insulation slash standby heat loss.
- Operator-friendly: Front-mounted controls, status lights, and stainless panel for quick checks and easy cleaning.
- Total protection: Low-water cut-off, high-limit safety, and over-current circuit protection safeguard elements and staff.

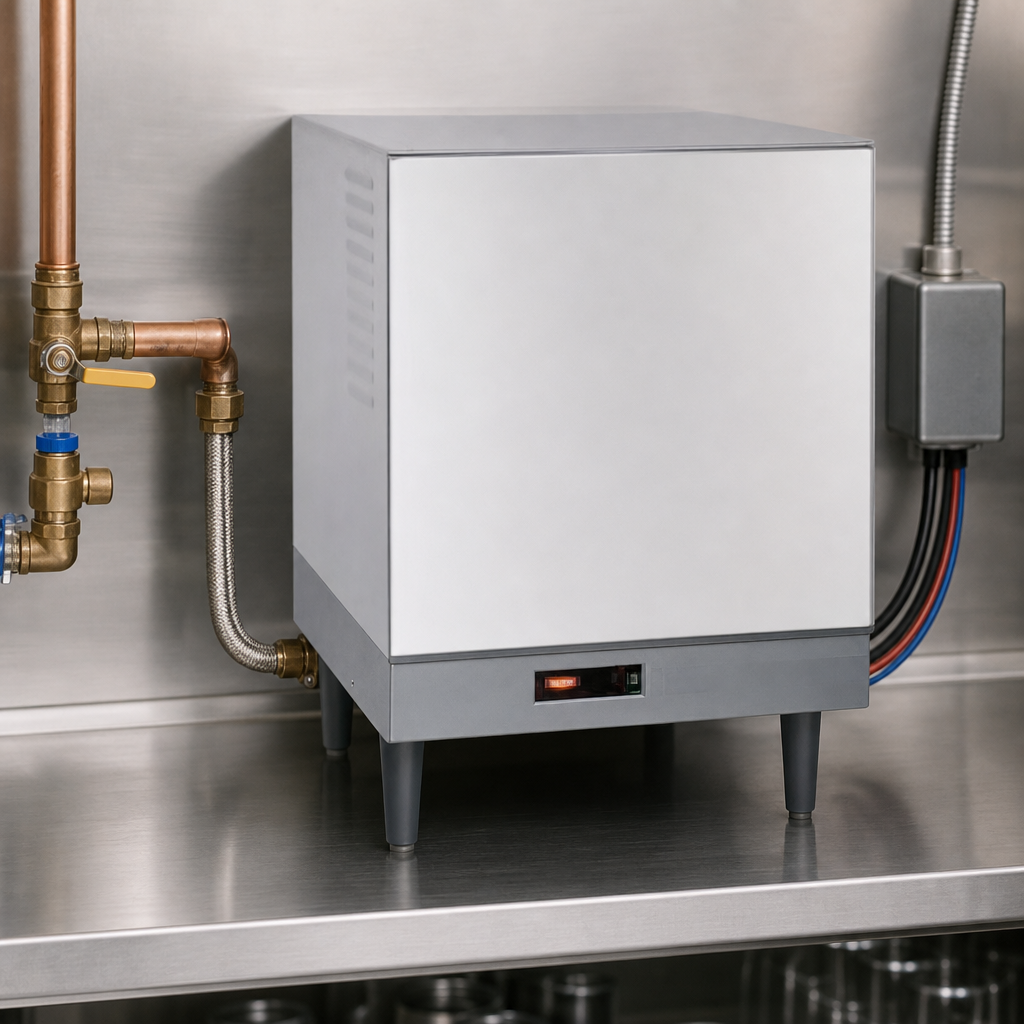

- Ships complete with pressure-reducing valve, T&P relief valve, dual temperature/pressure gauges & 6" adjustable legs.
- NSF & cULus listed. Made in the USA.
Quick-specs
| Model | S-45 (Quick Ship) |
|---|---|
| Storage capacity | 16 gal / 60 L |
| Wattage | 45 kW |
| Voltage / Phase | 208 V, 60 Hz, 3-Phase |
| Amps @ 208 V/3-ph | 125 A (175 A breaker) |
| Water recovery | 452 GPH @ 40 °F rise | 258 GPH @ 70 °F rise |
| Temp. range | 140 – 190 °F (factory set 180 °F) |
| Working pressure | 150 psi / 1034 kPa |
| Overall size | 23.53" W × 22.75" D × 31.03" H (with 6" legs) |
| Shipping weight | 224 lb / 102 kg |
| Front panel | Stainless steel |
| Body finish | Silver-gray hammertone powder coat with antimicrobial additive |
| Certifications | NSF, cULus |
| Country of origin | USA |
Built-in safety & control features
- Low-water cut-off prevents dry-firing.
- Manual-reset high-temperature limit (ECO).
- Pilot & error indicator lights for instant status checks.
- Heavy-duty On/Off toggle switch in enclosed panel.
- Factory-calibrated immersion thermostat for precise temperature control.
Part of Hatco’s Quick Ship program—typically leaves the warehouse in 5 business days or less. Contact us for today’s availability.
