Hatco  |  Imperial  |  SKU: S-40

Hatco S-40 Imperial High Temp & Low Temp Dishwashers

$5,127.01
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Stadium & concession solutions Restaurant solutions Owner's manual Parts list Cafeteria & buffet solutions Catalog brochure Super market & in-store solutions Hotel & lodging solutions
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

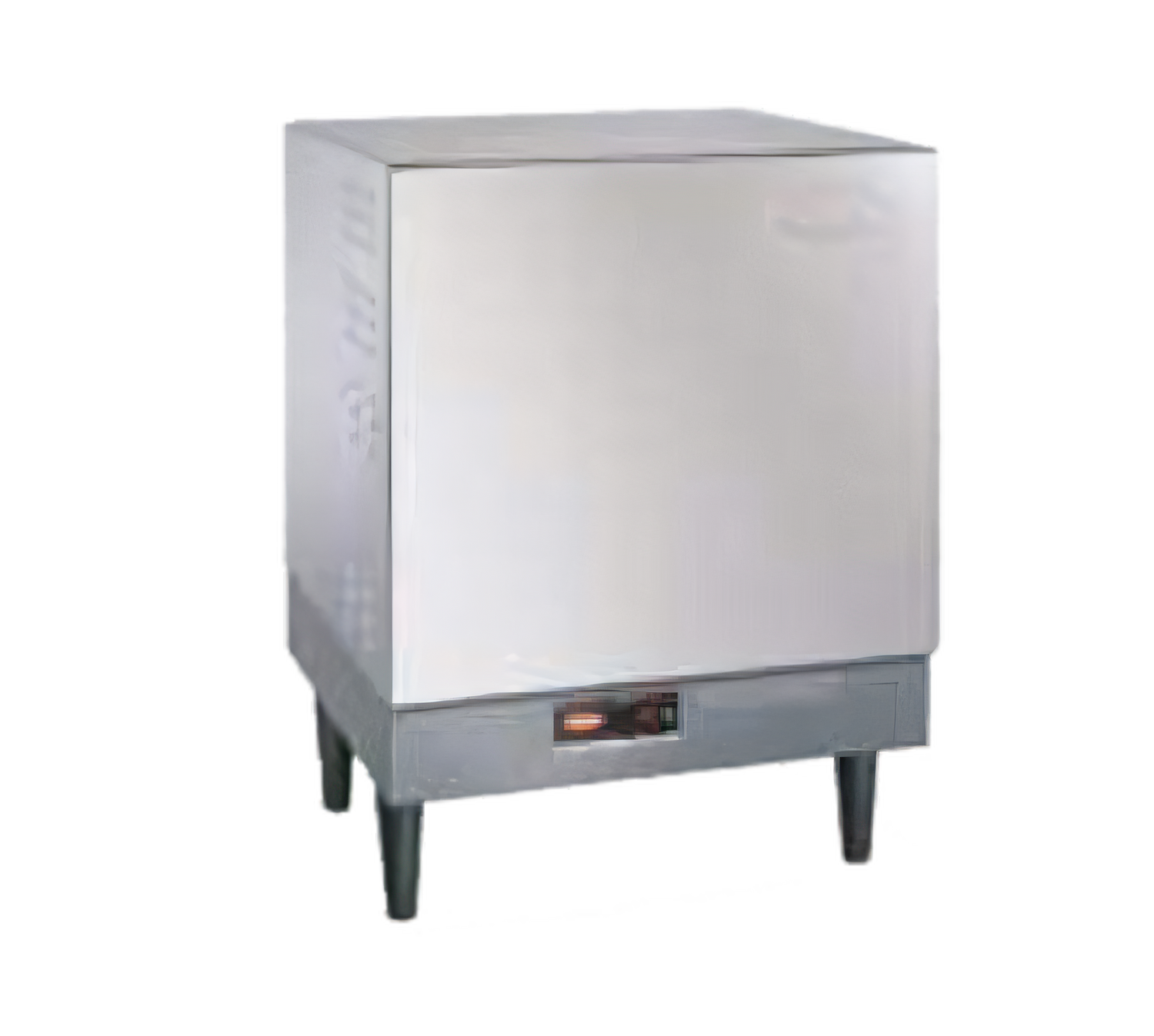

Hatco Imperial S-40 Electric Booster Water Heater

40.5 kW • 16 gal Castone® Tank • NSF & cULus Listed

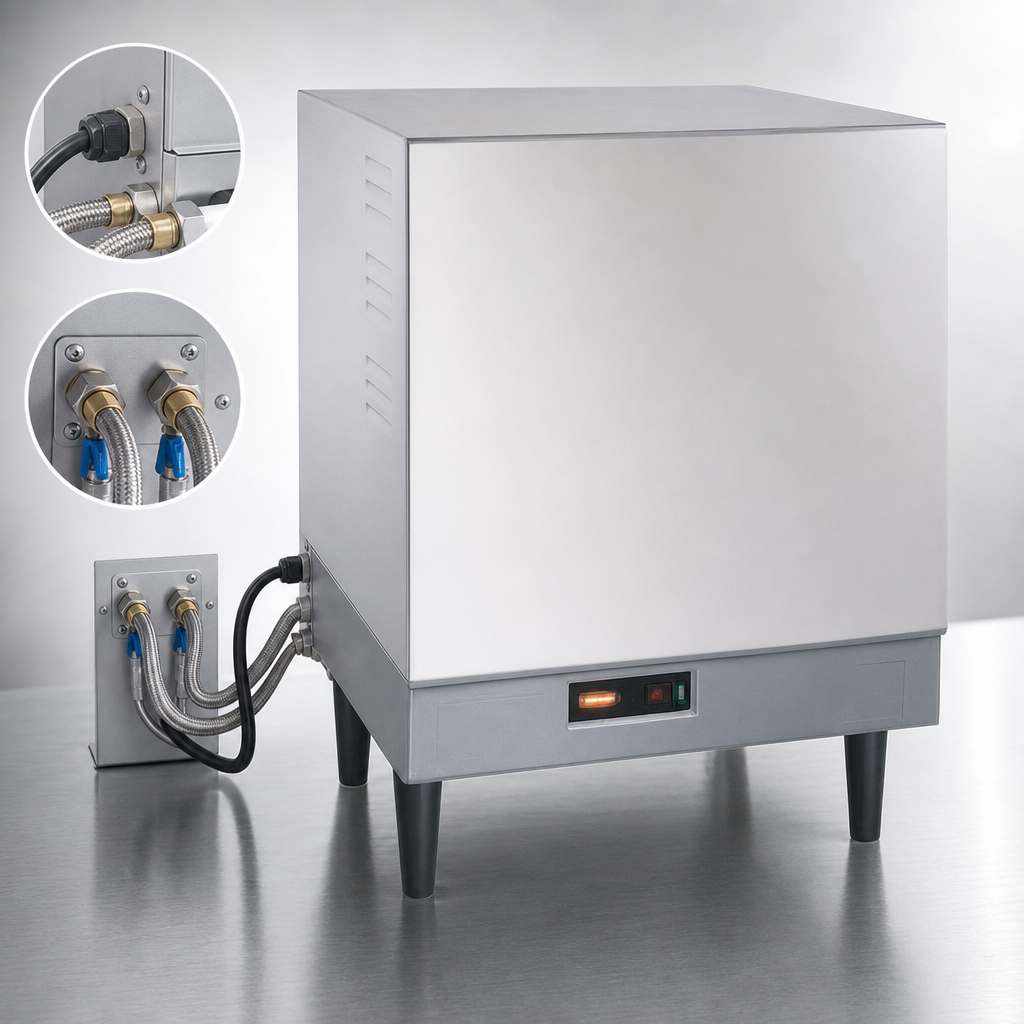

Deliver a constant 180 °F (82 °C) sanitizing rinse and slash turn-around time in your dishroom with the Hatco Imperial S-40 booster heater. Built for demanding, high-volume operations, this Made-in-USA workhorse heats up to 407 gph (1541 lph) while its 16-gallon Castone®-lined tank stands up to corrosive water conditions longer than stainless steel alone. Pre-plumbed, pre-wired and serviceable from the front, installation and maintenance couldn’t be easier.

Why You’ll Love It

  • Serious Power – 40.5 kW rapidly recovers 232 gph at a 70 °F rise, perfect for conveyor & high-temp door dishmachines.

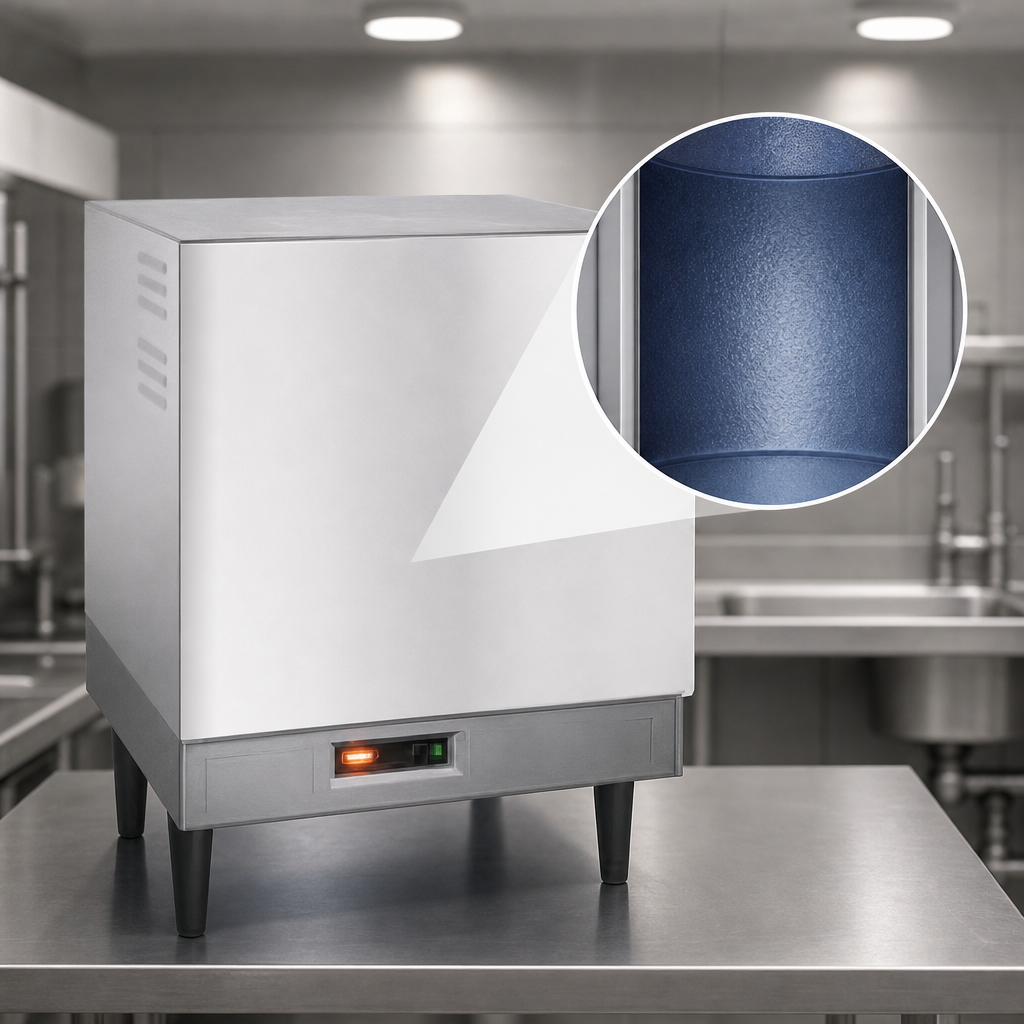

  • Castone® Lined Tank with 10-year limited warranty resists liming, pitting and pin-hole leaks far better than glass-lined tanks.
  • Low-Water Cut-Off & High-Temp Limit protect elements from burnout for longer life and fewer service calls.
  • Integrated Heat-Trap & Fiberglass Insulation minimize stand-by heat loss and trim your utility bill.
  • Front-Access Panel puts contactors, thermostats and indicator lights at your fingertips for lightning-fast diagnostics.
  • Rugged Enclosure – 18-ga stainless front plus powder-coated silver-gray hammertone body look sharp and shrug off scrapes and chemicals.
  • Factory-Installed Fittings include ¾" NPT inlet/outlet, pressure-reducing valve, and T/P relief valve to speed set-up.

High-Performance Recovery

Recovery @ 40 °F (22 °C) rise 407 gph • 1541 lph
Recovery @ 70 °F (39 °C) rise 232 gph • 878 lph
Factory thermostat setting 180 °F (adjustable down to 140 °F for low-temp machines)

At-A-Glance Specs

Model Imperial S-40
Storage Capacity 16 gal / 60 L
Heating Output 40.5 kW
Voltage (3-ph) 208 V 112.5 A, 240 V 97.5 A, 480 V 48.8 A, 600 V 39 A
Dimensions 23.53 W × 22.75 D × 31.03 H in. (Add 5 in. for T/P valve)
Legs 6 in. non-adjustable plastic (optional stainless adjustable legs)
Shipping Weight 224 lb • 102 kg
Working Pressure 150 psi / 1034 kPa
Certifications NSF, cULus, Made in USA
Warranty 10 yr tank • 1 yr parts & labor • 24⁄7 US/CA service hotline

Ideal Applications

  • High-volume conveyor or rack dishmachines
  • Hotel, resort & banquet facilities
  • Universities, hospitals & corporate cafeterias
  • Stadium, theme-park & casino dishrooms
Important: Incoming water harder than 3.0 grains / gal must be softened. Lime or sediment damage is not covered under warranty.

Need help sizing or specifying? Our equipment specialists are only a click away.

Features & Specs

Manufacturer

Hatco

Brand_name

Imperial

Certifications

NSF, cULus, Made in USA

Height

31.13in

Width

23.63in

Depth

22.75in

Shipping Weight

224.0lbs

Wattage

20 - 40 kilowatts

Tank Capacity

16 gallon

Width

20" - 29"

Specifications

Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, custom fittings, Castone® lined tank, 40.5kW, NSF, cULus, Made in USA
