Hatco  |  Imperial  |  SKU: S-39

Hatco S-39 Imperial High Temp & Low Temp Dishwashers

$4,963.66
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cafeteria & buffet solutions Owner's manual Restaurant solutions Parts list Super market & in-store solutions Catalog brochure Stadium & concession solutions Hotel & lodging solutions
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

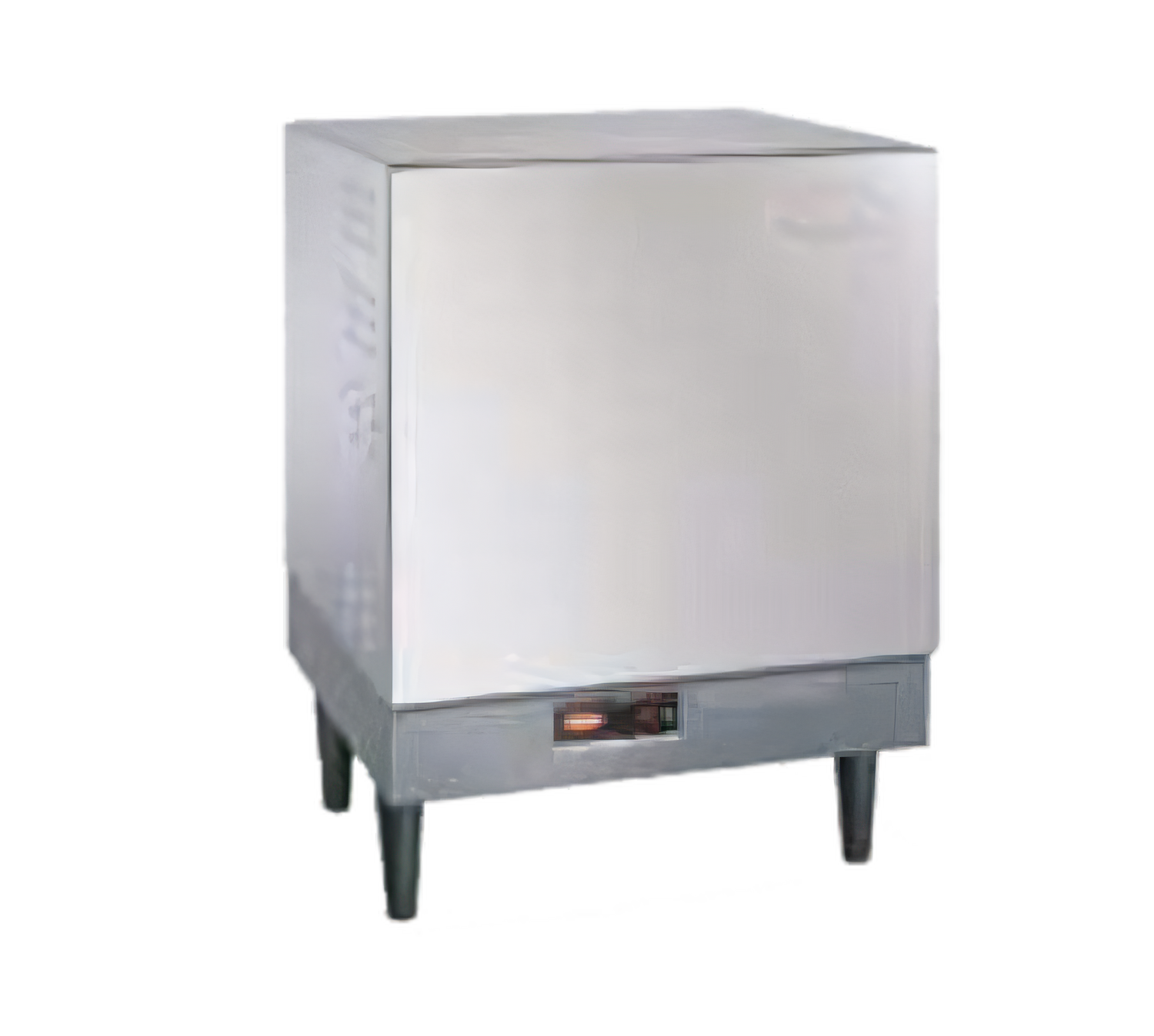

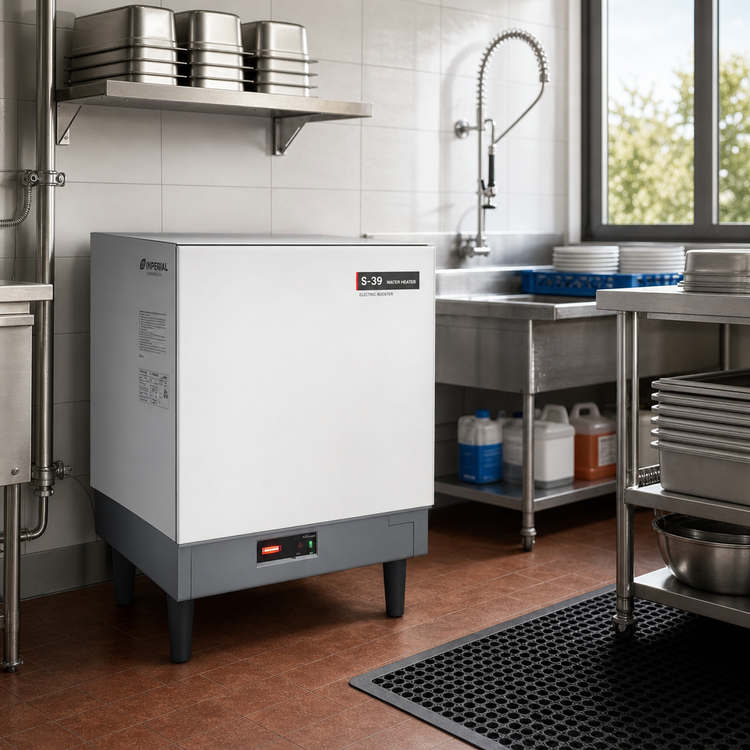

Hatco Imperial S-39 Electric Booster Water Heater

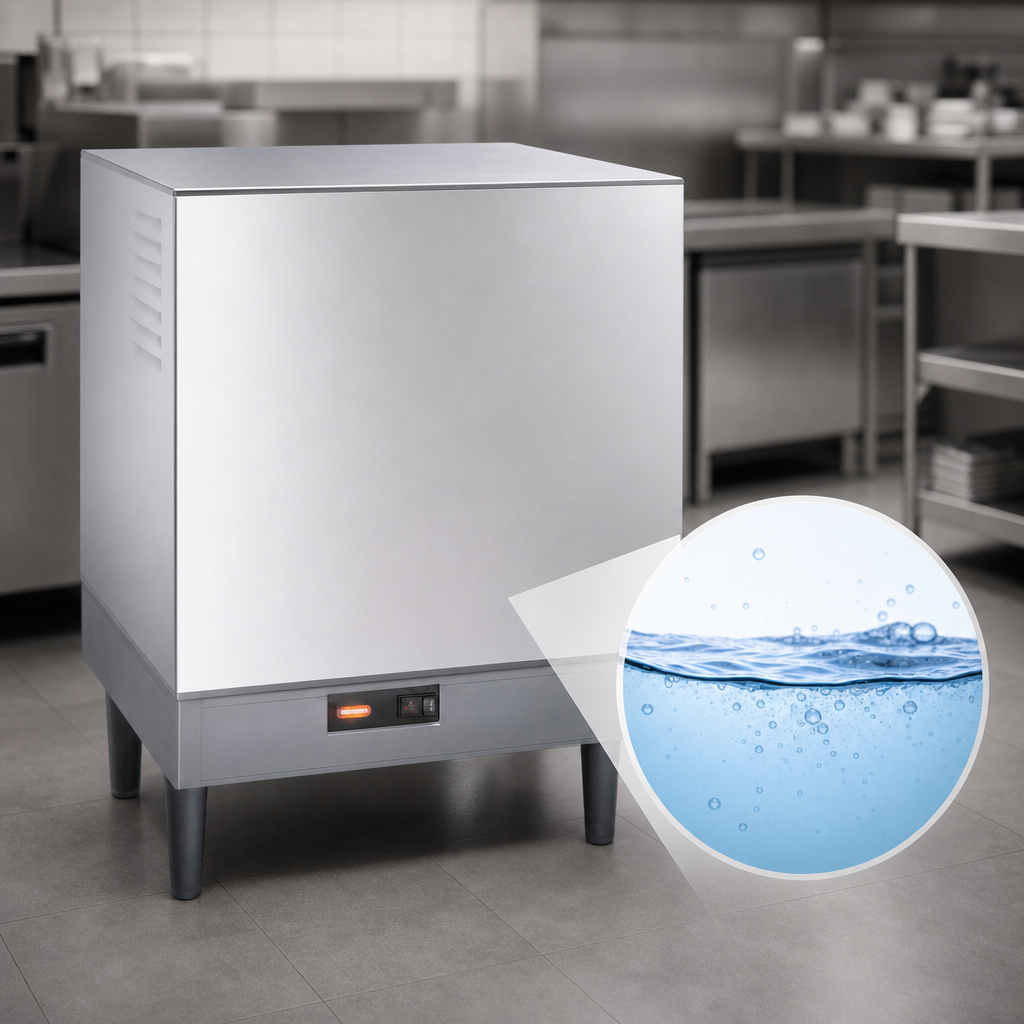

39 kW • 16 gal storage • Castone® lined tank

Engineered for high-volume dishrooms, the Imperial S-39 elevates incoming water to a 180 °F (82 °C) sanitizing rinse—fast. Its powerful 39 kW element package keeps pace with the busiest conveyor or flight-type machines, delivering up to 391 gph at a 40 °F rise so racks come out sparkling and air-dry instantly.

Key advantages

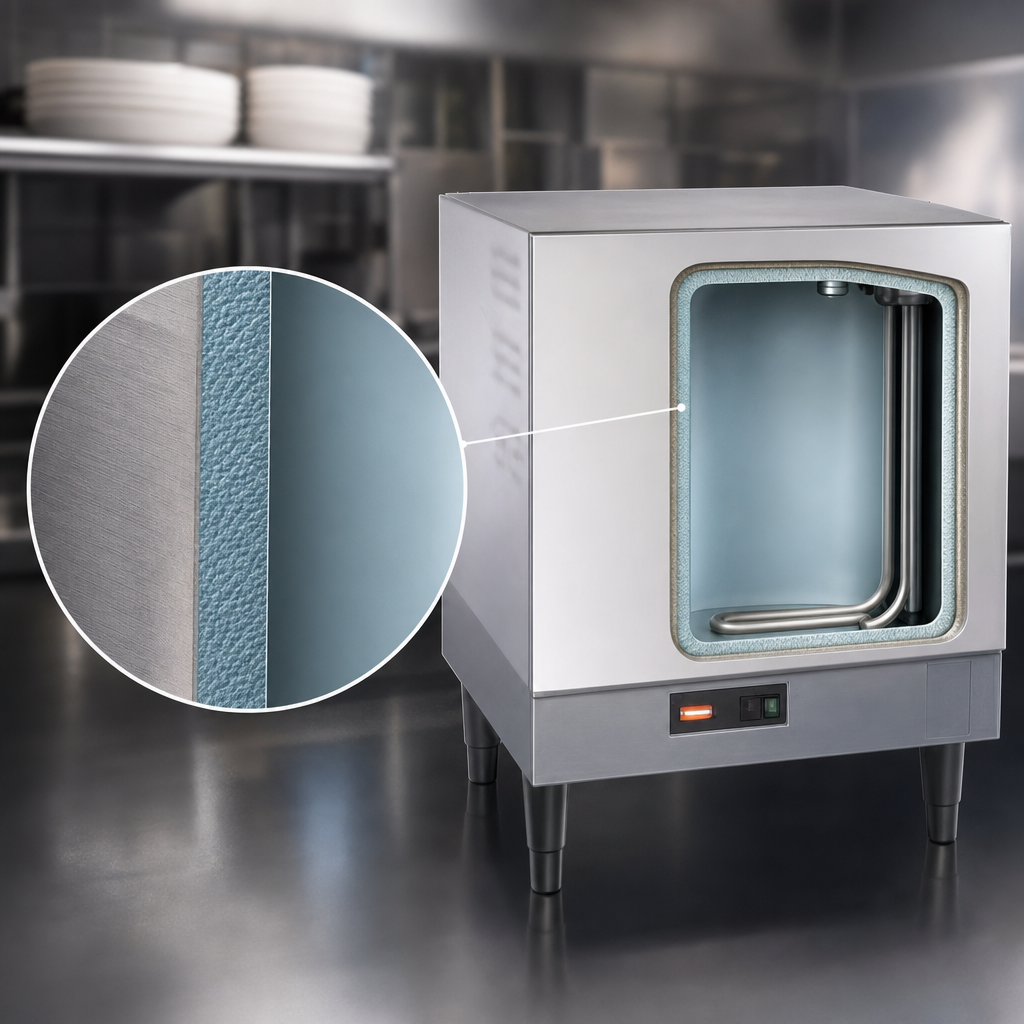

  • Proven Castone® lined tank (non-corrosive) with 10-year limited warranty.
  • Factory pre-plumbed & pre-wired for quick, hassle-free installation.
  • Low-water cut-off, high-temp limit & over-current protection safeguard elements.
  • Integrated heat trap and thick fiberglass insulation reduce standby heat loss.
  • Stainless-steel front panel with antimicrobial, powder-coated silver-gray body.
  • Front-mounted service panel with pilot, error indicator lights and on/off toggle.
  • NSF & cULus listed; proudly Made in the USA.
Quick specs
Storage capacity 16 gal (60 L)
Rated power 39 kW
Recovery  (40 °F rise) 391 gph (1 480 lph)
Recovery  (70 °F rise) 224 gph (848 lph)
Voltage options 208 V, 240 V, 480 V, 600 V
Phase 1-phase or 3-phase *
Working pressure 150 psi (1 034 kPa) max
Overall size 23.53"W × 22.75"D × 31.03"H
(plus 6" legs)
Legs 6" (152 mm) plastic, non-adjustable
Certifications NSF, cULus
Origin Made in USA
Electrical data
Voltage Phase Full-load amps Recommended fuse
208 V 1-ph 187.5 A 250 A
208 V 3-ph 108 A 150 A
240 V 1-ph 163.5 A 225 A
240 V 3-ph 94 A 125 A
480 V 3-ph 47 A 60 A
600 V 3-ph 37.6 A 50 A
* 39 kW models are not offered in 480 V or 600 V single-phase.
Included components
  • Temperature/pressure relief valve
  • 3/4" NPT inlet & outlet fittings
  • Pressure-reducing valve with bypass
  • (2) Temperature/pressure gauges
Warranty & support

10-year limited tank warranty plus 24/7 parts & service assistance (U.S. & Canada).

Water quality notice: Incoming water ≥ 3 grains hardness per gallon must be softened. Damage from liming or sediment is not covered under warranty.

Features & Specs

Manufacturer

Hatco

Brand_name

Imperial

Certifications

NSF, cULus, Made in USA

Height

31.13in

Width

23.63in

Depth

22.75in

Shipping Weight

214.0lbs

Wattage

20 - 40 kilowatts

Tank Capacity

16 gallon

Width

20" - 29"

Specifications

Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, custom fittings, Castone® lined tank, 39.0kW, NSF, cULus, Made in USA
