Hatco S-36 Imperial High Temp & Low Temp Dishwashers
Description

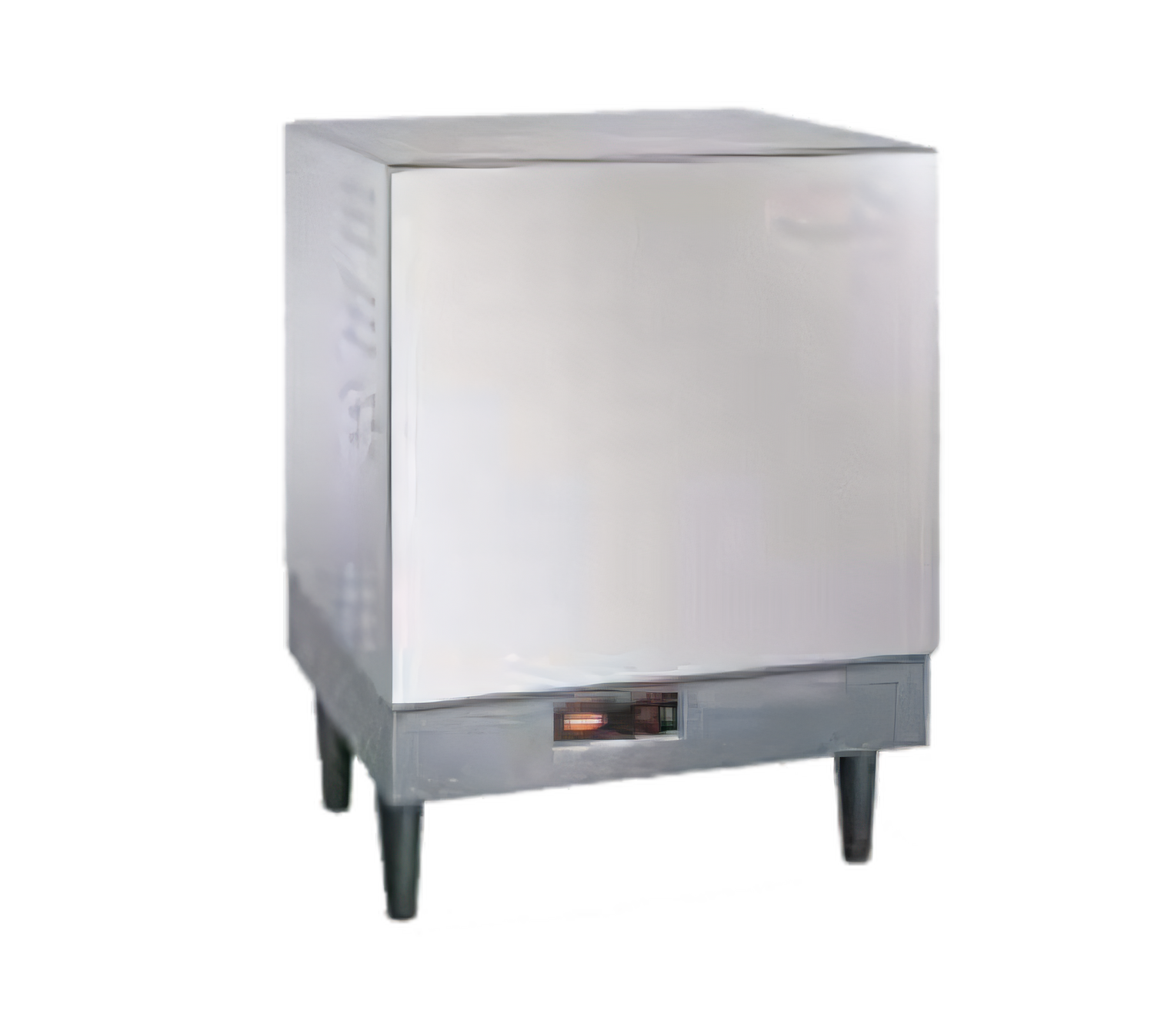

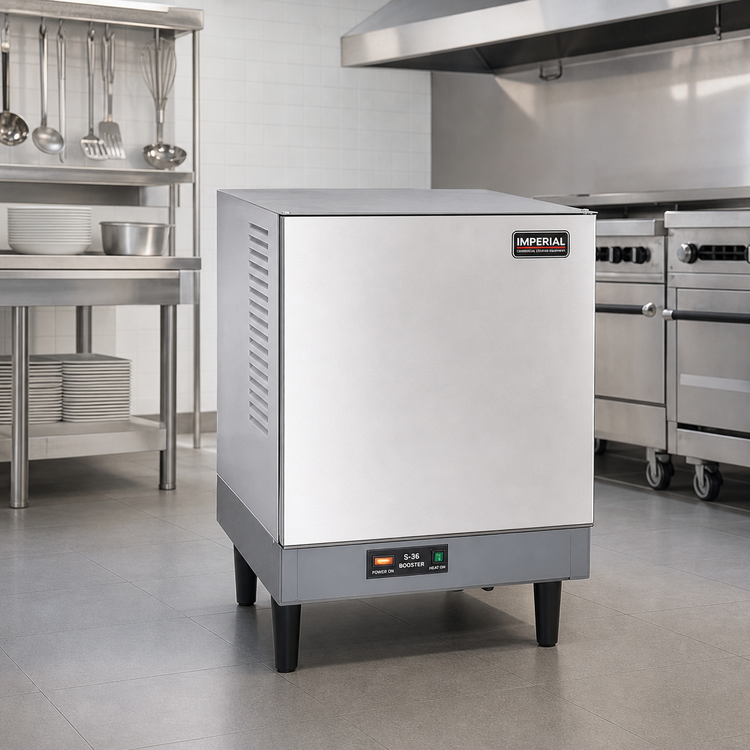

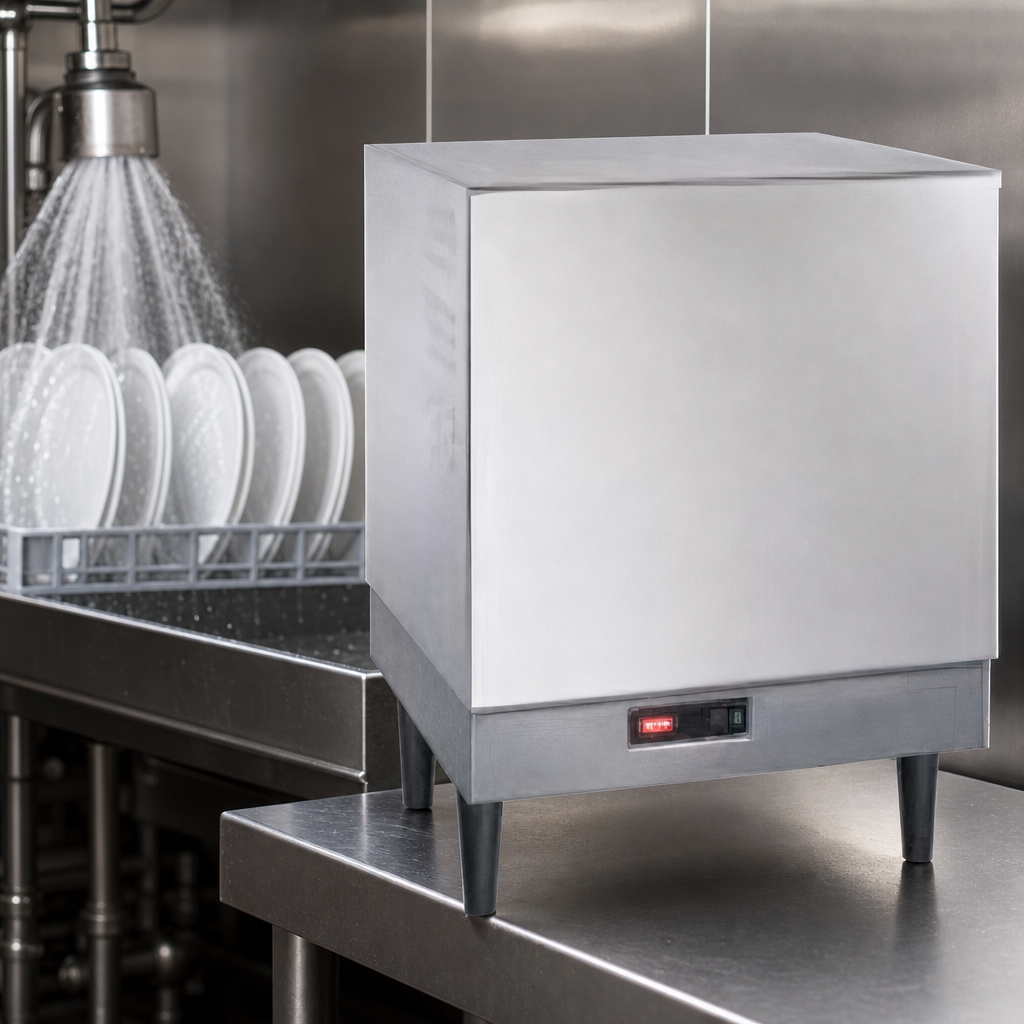

Hatco Imperial Electric Booster Water Heater – 36 kW
Model S-36 | 16 gal Castone® TankGet fast, dependable 180 °F (82 °C) sanitizing rinse water for your high–volume dishmachine with the Hatco Imperial 36 kW Booster Heater. Its rugged Castone-lined tank delivers up to 361 GPH (1367 LPH) while a host of built-in safety controls keep your operation protected and compliant.
Key advantages

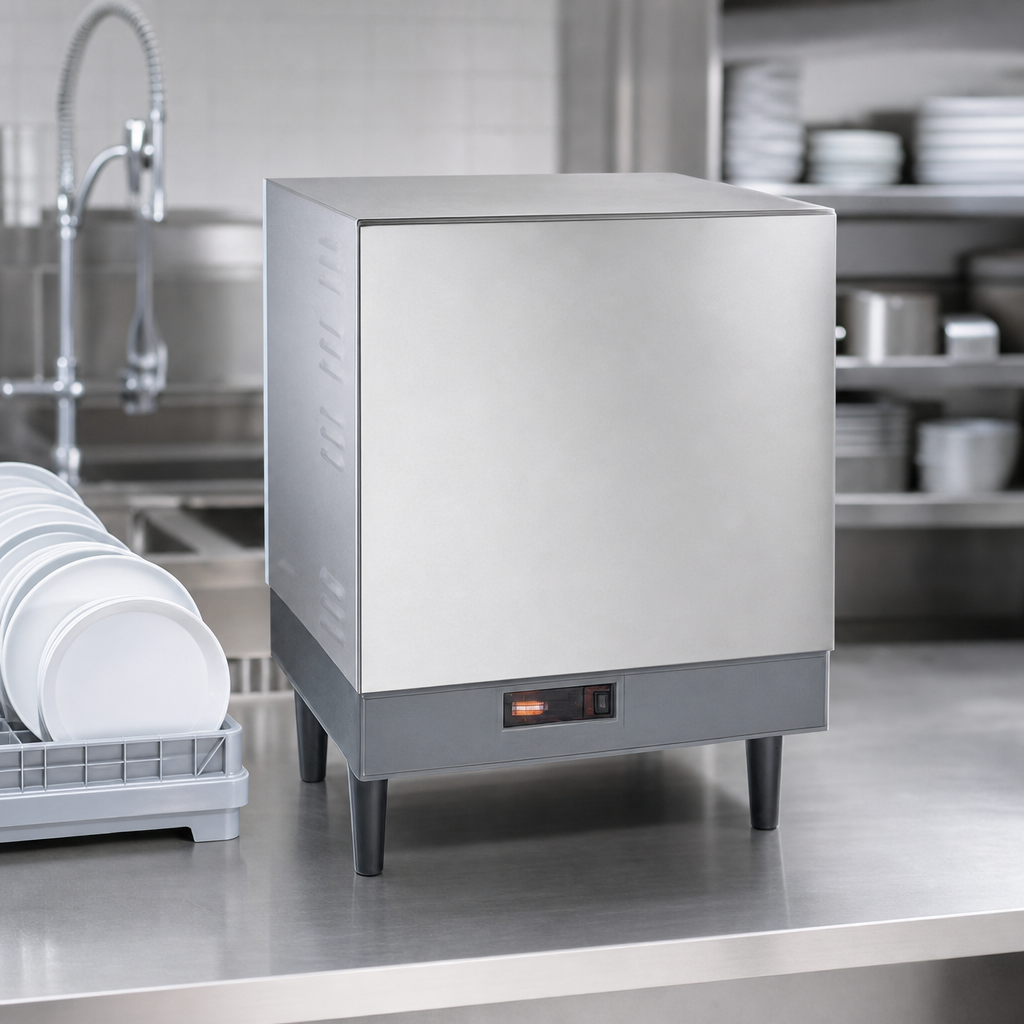

- 16 gal (60 L) Castone® lined storage tank – non-corrosive & backed by a 10-year limited warranty
- Stainless-steel front panel with powder-coated silver-gray hammertone body for easy cleaning and long life
- Low-water cut-off, high-temperature limit & over-current protection to prevent element burnout
- Factory-preset immersion thermostats; can be lowered to 140 °F (60 °C) for low-temp systems
- Built-in heat trap plus fiberglass insulation to minimize standby heat loss
- Completely pre-plumbed & pre-wired – installs quickly, even in tight dishroom layouts
- cULus & NSF listed; proudly Made in the USA
Performance & capacities
| Storage capacity | 16 gal (60 L) |
|---|---|
| Recovery @ 40 °F rise | 361 GPH (1367 LPH) |
| Recovery @ 70 °F rise | 206 GPH (780 LPH) |
| Working pressure | 150 psi (1034 kPa) max |
| Water outlet temperature | Factory set to 180 °F (82 °C) |
Electrical data – 36 kW
| Voltage | Phase | Amps | Breaker/Fuse |
|---|---|---|---|
| 208 V | 3-ph | 100 A | 125 A |
| 240 V | 3-ph | 86.7 A | 125 A |
| 480 V | 3-ph | 43.3 A | 60 A |
| 600 V | 3-ph | 34.7 A | 50 A |
| 240 V | 1-ph | 150 A | 200 A |
| 208 V | 1-ph | 173 A | 225 A |
Units ship 3-phase factory-wired; single-phase configurations require factory ordering.
Built-in safety & controls
- Temperature/pressure relief valve
- Pressure-reducing valve with bypass
- Dual temperature/pressure gauges – easy at-a-glance monitoring
- Pilot & error indicator lights plus lighted On/Off toggle switch
Construction details
- 23.53 W × 22.75 D × 31.03 H in. (598 × 578 × 788 mm) overall
- 6 in (152 mm) non-adjustable plastic legs standard
- Bottom electrical knockouts: 1½ in & 2 in
Options & accessories
- Stainless-steel body, base & adjustable legs (6–7 in)
- Security package with Torx® screws & control cover
- Blended phosphate injection system (non-potable)
- Shock absorber to reduce water hammer
- Back-pressure relief valve
Ideal for
- High-volume warewashing operations
- Catering kitchens & banquet facilities
- Stadium, casino & convention-center dishrooms
- Any foodservice operation requiring reliable 180 °F final-rinse water
Warranty & support
- 10-year limited warranty on Castone® tank lining
- 24/7 parts & service assistance in the U.S. & Canada
