Hatco S-36-480-3-QS Quick Ship High Temp & Low Temp Dishwashers
Description

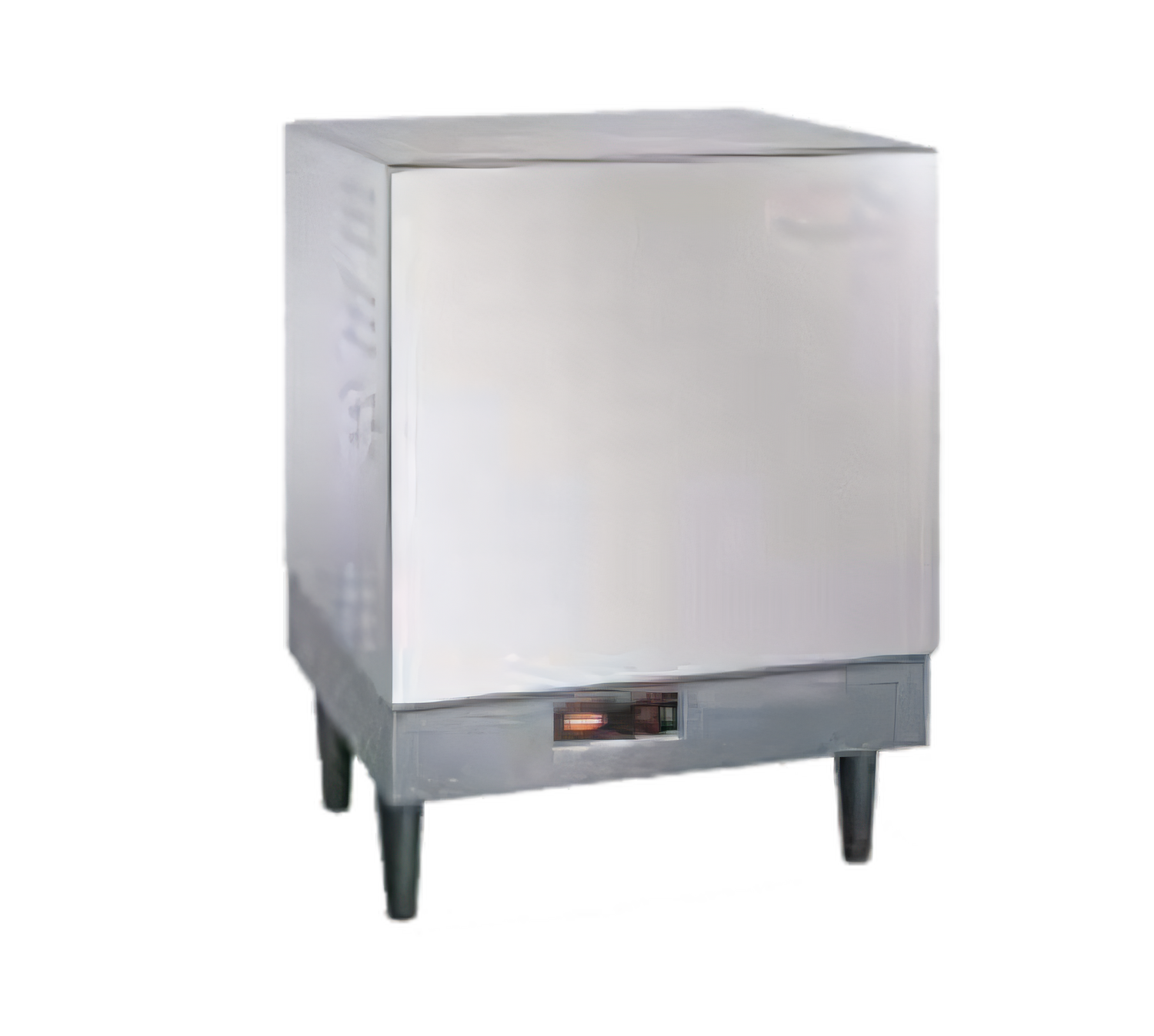

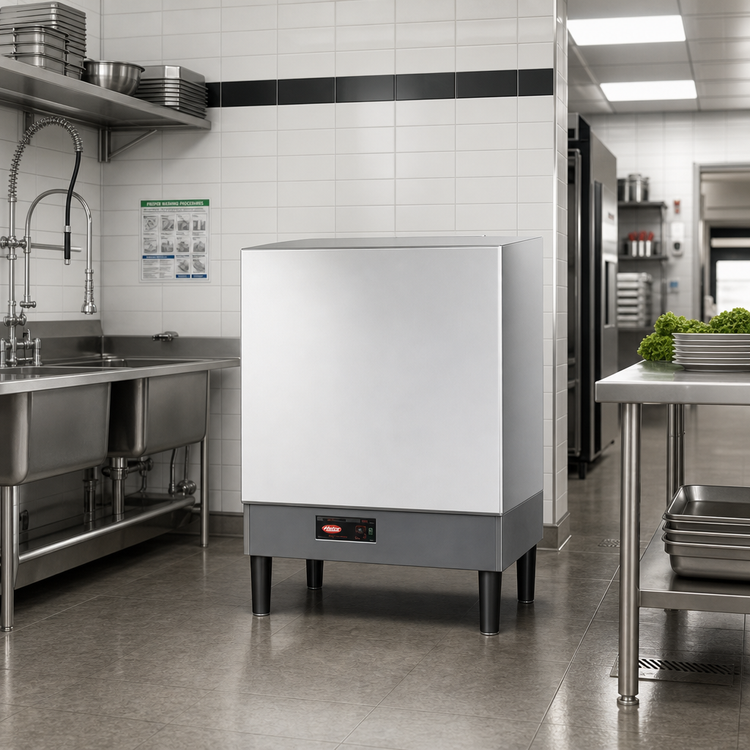

Hatco Imperial Electric Booster Heater – Quick Ship S-36
36 kW • 480 V / 3-Phase • 16 gal Castone® TankGet 180 °F (82 °C) rinse water on demand and keep your dishroom moving. The Quick Ship S-36 Booster Heater delivers high-volume sanitizing power in a compact, service-friendly package that’s ready to leave the factory fast.
Why You’ll Love It
- Rapid recovery: 361 GPH at a 40 °F rise (206 GPH at 70 °F) keeps up with high-capacity dishmachines.
- Durable Castone® lined tank carries a 10-year limited warranty and resists corrosion & liming.
- Energy-smart design: built-in heat trap and thick fiberglass insulation minimize standby heat loss.
- Stainless steel front panel with silver-gray hammertone powder coat and antimicrobial additive for long-lasting good looks.
- Safety first: low-water cut-off, high-temperature limit switch, pressure/temperature relief valve, and over-current protection.
- Plug-and-play installation: factory pre-plumbed & pre-wired with calibrated immersion thermostats (preset to 180 °F; adjustable down to 140 °F).
- Front-mounted On/Off toggle, pilot & error indicator lights, plus tool-free front cover for easy service access.
- Includes 6" (152 mm) non-adjustable plastic legs; optional stainless legs and mounting kits available.
- NSF listed, cULus certified and proudly Made in the USA.
Key Specifications

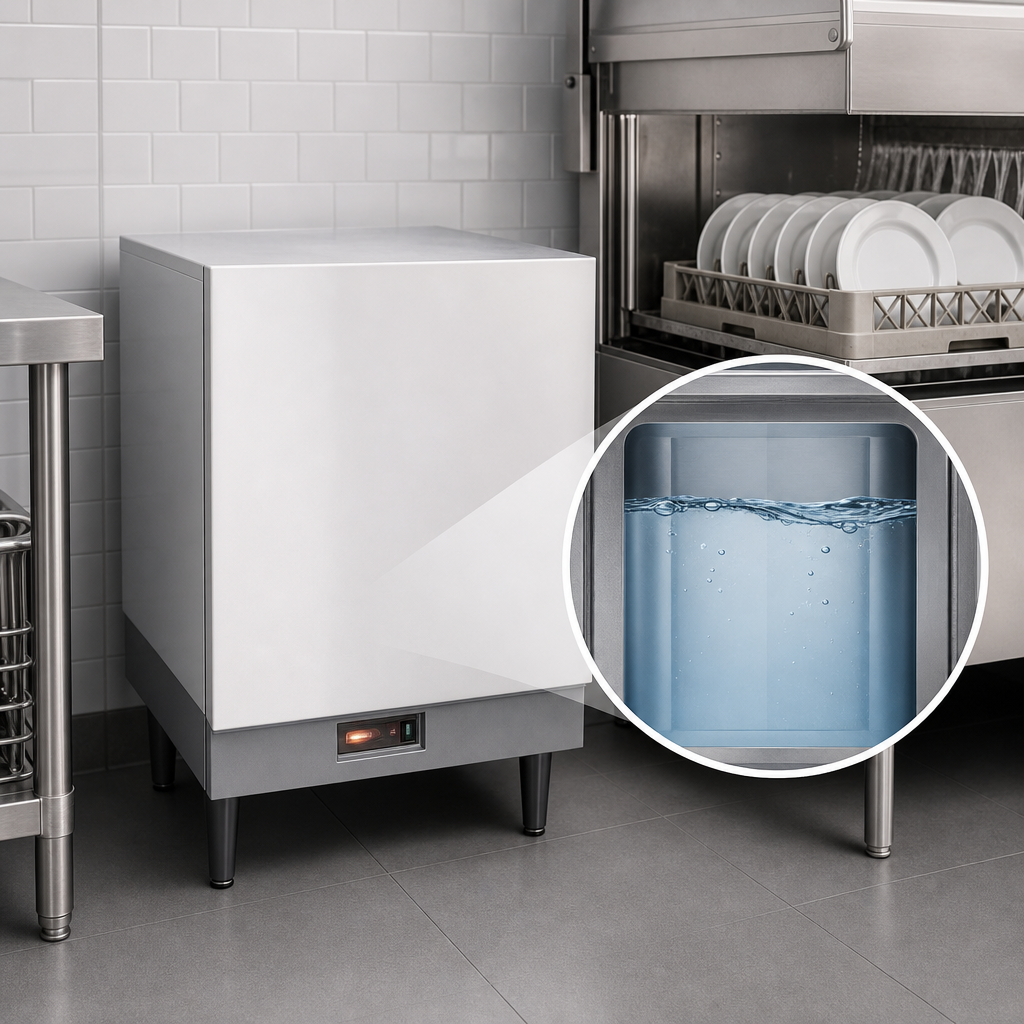

| Storage Capacity | 16 gal (60 L) |
|---|---|

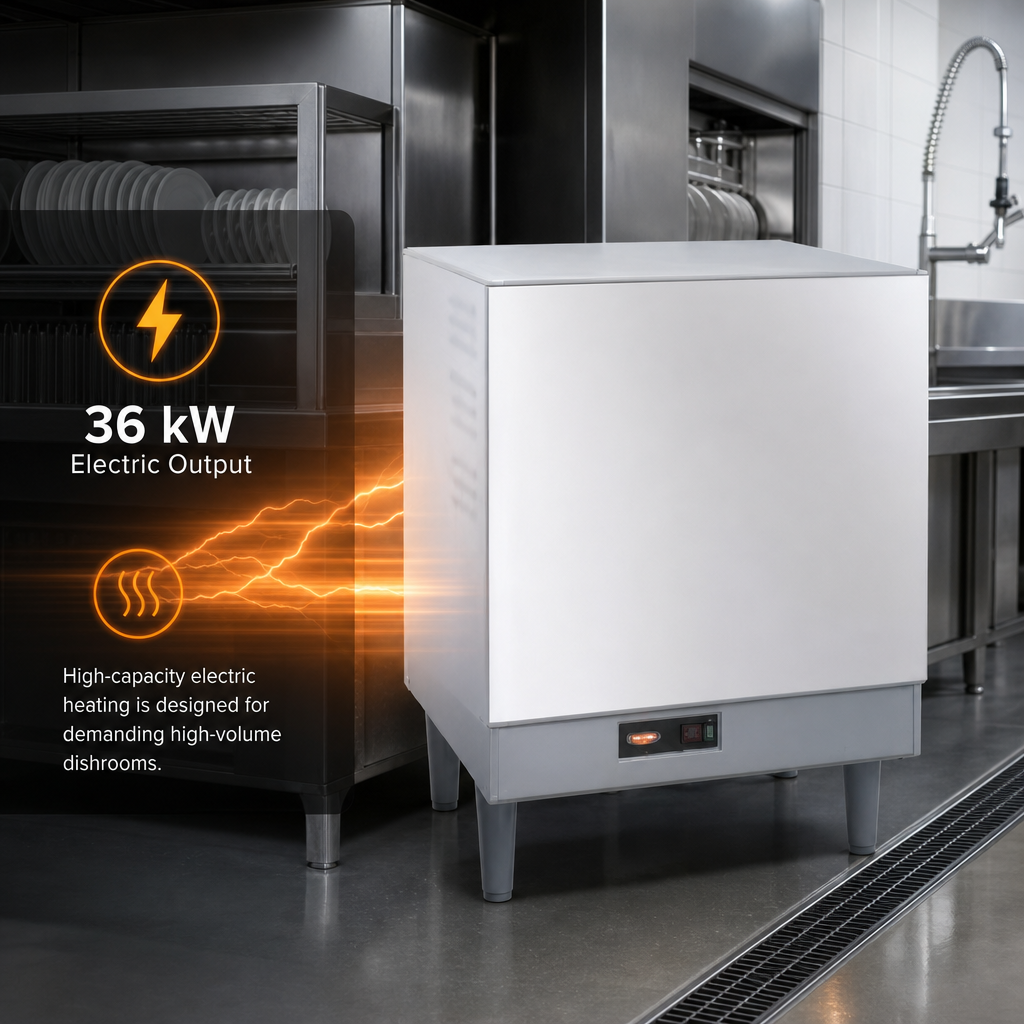

| Output | 36 kW |
| Electrical | 480 V / 60 Hz / 3-Phase |
| Full-Load Amps | 43.3 A |
| Recommended Breaker / Fuse | 60 A |
| Water Recovery |
361 GPH (1 367 LPH) @ 40 °F rise 206 GPH (780 LPH) @ 70 °F rise |
| Tank Lining | Castone® (non-toxic, non-corrosive) |
| Connections | 3/4" NPT inlet & outlet (bottom) |
| Dimensions (w × d × h) | 23.53" × 22.75" × 31.03" (598 × 578 × 788 mm) incl. 6" legs Add 5" (127 mm) for T/P Relief Valve clearance |
| Ship Weight | 214 lb (97 kg) |
| Certifications | NSF, cULus |
| Country of Origin | USA |
Quick Ship Advantage
Need it in a hurry? This model is part of Hatco’s Quick Ship program, meaning it leaves the factory faster than standard production units when ordered in its stocked configuration.
Water hardness above 3.0 GPG must be treated to maintain efficiency and protect your warranty.
24/7 parts & service assistance available in the U.S. and Canada.
