Hatco

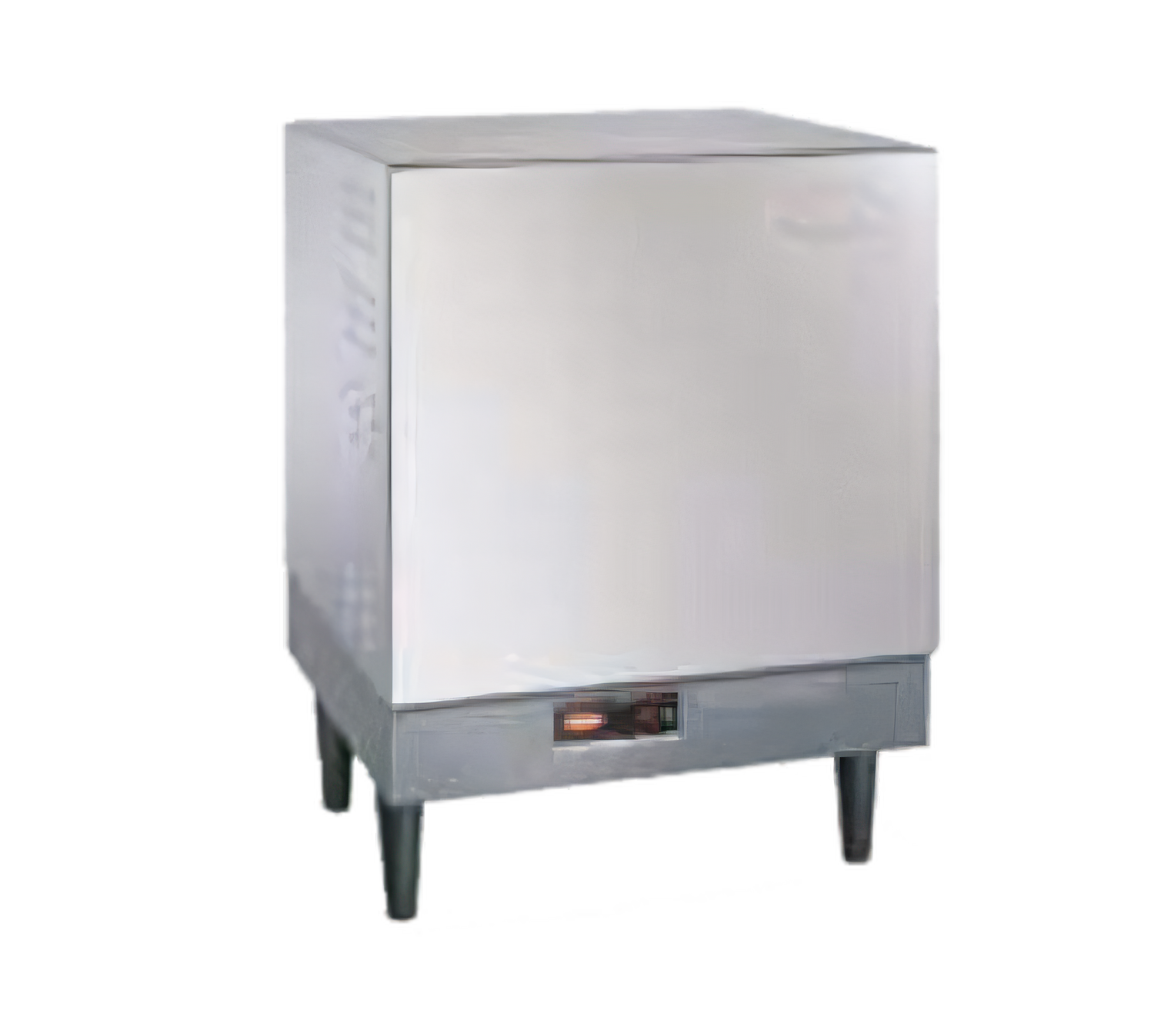

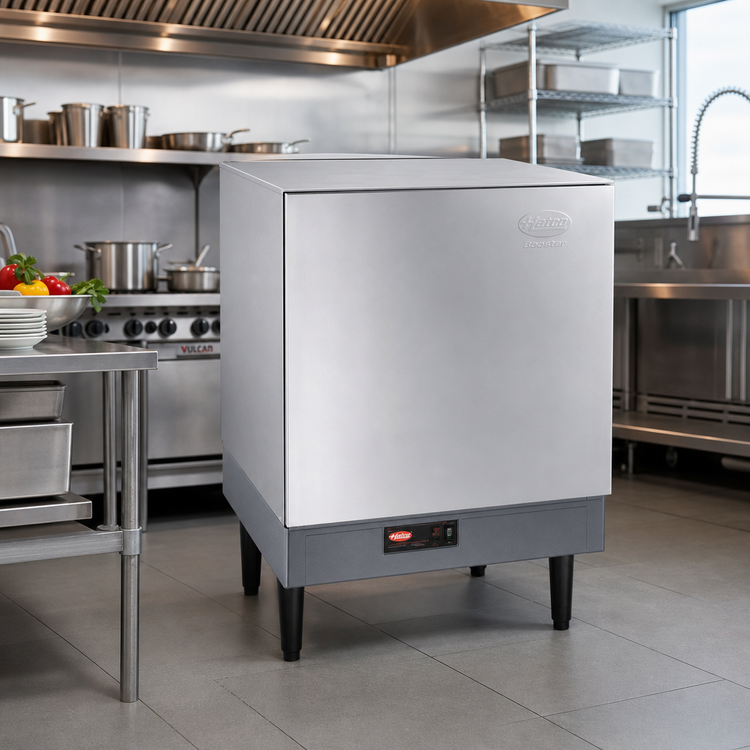

Hatco Imperial Electric Booster Heater, 16-Gallon Storage, 36 kW, 208V, 3-Phase

SKU: S-36-208-3-QS
GTIN: 61570000428
$4,953.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Imperial Electric Booster Heater, 16-Gallon Storage, 36 kW, 208V, 3-Phase

Stainless Steel Front Panel, Powder-Coated Hammertone Body, 6-Inch Legs

Built for busy dish rooms, this 16-gallon electric booster heater delivers high-volume sanitizing rinse water with front-access service and factory pre-plumbed installation.

  • 16-gallon storage capacity supports high-volume sanitizing rinse water production up to 573 GPH.
  • 36.0 kW electric design runs on 208V/60Hz/3-phase power.
  • Factory pre-plumbed and pre-wired construction helps simplify installation.
  • Built-in safety package includes relief valves, gauges, high-temperature limit control, and low-water cut-off.
  • Stainless steel front panel and powder-coated silver-gray body provide durable, commercial-grade construction.
  • 6-inch non-adjustable legs elevate the unit for floor installation.

Overall Dimensions:

23.63"W x 22.75"D x 31.13"H

Product Weight:

214.0 lb

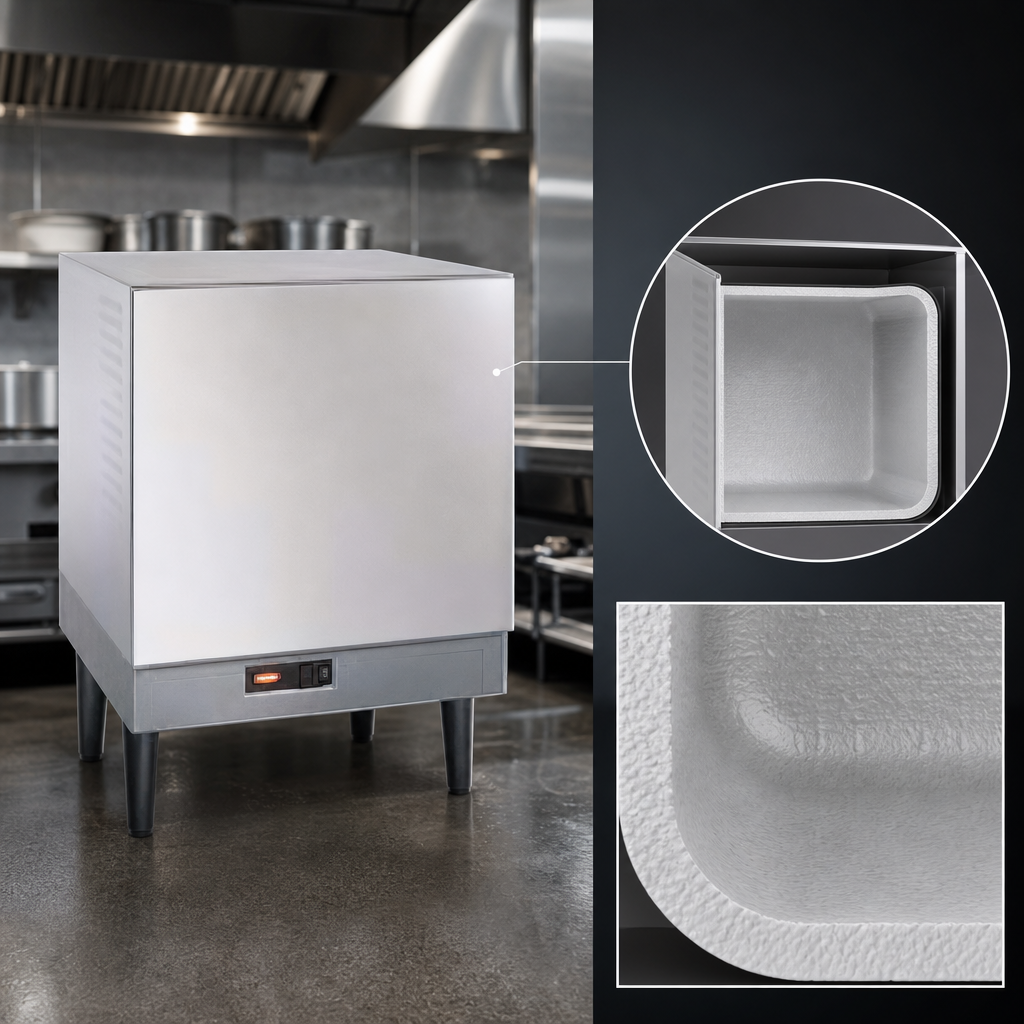

Castone Lined Tank

Non-toxic, non-corrosive tank lining designed for durability and backed by a 10-year limited warranty.

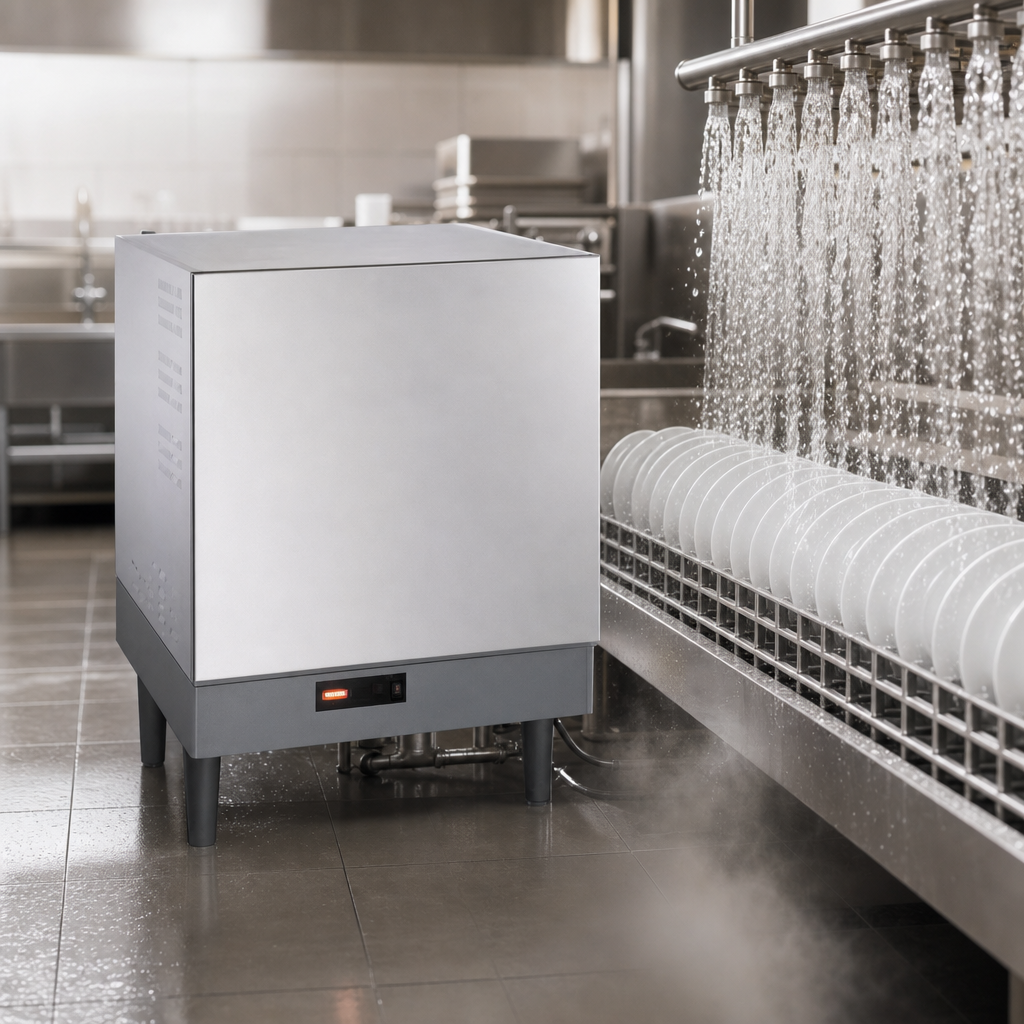

High-Volume Sanitizing Output

Provides up to 573 gallons per hour of sanitizing rinse water.

Factory Pre-Plumbed and Pre-Wired

Arrives ready for installation with calibrated immersion thermostats and a high-temperature limit switch.

Built-In Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on/off switch, and low-water cut-off.

Heat Retention Design

Built-in heat trap and fiberglass insulation help minimize heat loss during operation.

Front-Access Service Area

Front-access design makes installation and service easier, even when placed near other equipment.

Durable Exterior Finish

Features a stainless steel front panel with a powder-coated silver-gray hammertone body.

6-Inch Plastic Legs

Non-adjustable legs raise the unit for stable floor-mounted installation.

Low-Temperature Dishmachine Ready

Thermostats can be lowered to 140°F (60°C) for compatibility with low-temp dishmachines.

Type Booster Heater
Style Storage
Installation Type Floor Model
Capacity 16 Gallons
Voltage 208 Volts
Hertz 60 Hz
Phase 3-Phase
Watts 36 kW
Controls Thermostatic
Color Silver-Gray
Finish Powder-Coated Hammertone
Water Inlet Size 3/4 Inch
Shipping Width 24 Inches
Shipping Depth 23 Inches
Shipping Height 32 Inches
Shipping Weight 214 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone lined tank.

Documents

PDF Cutsheet PDF Download PDF Cafeteria & buffet solutions PDF Download PDF Owner's manual PDF Download PDF Stadium & concession solutions PDF Download PDF Parts list PDF Download PDF Hotel & lodging solutions PDF Download PDF Quick ship PDF Download PDF Restaurant solutions PDF Download PDF Catalog brochure PDF Download PDF Super market & in-store solutions PDF Download

Frequently Asked Questions

It has a 16-gallon (60 liter) storage capacity.
It operates on 208V, 60 Hz, 3-phase power and is rated at 36.0 kW.
Standard safety features include a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on/off switch, and low-water cut-off.
Yes. The unit is factory pre-plumbed and pre-wired for easier installation.
Yes. The thermostats can be lowered to a 140°F (60°C) setting for low-temp dishmachines.
The Castone lined tank includes a 10-year limited warranty.
