Hatco S-30 Imperial High Temp & Low Temp Dishwashers
Description

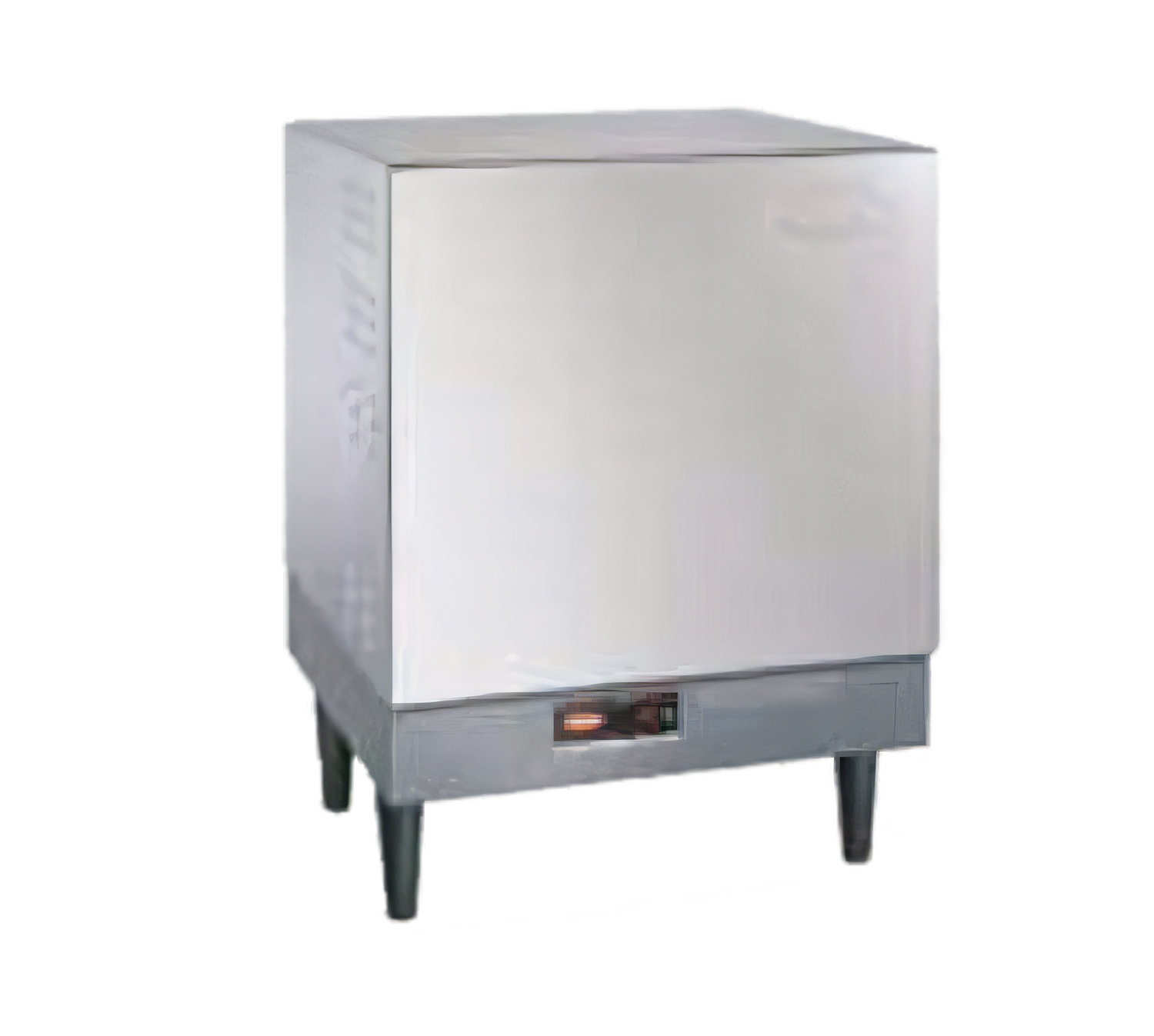

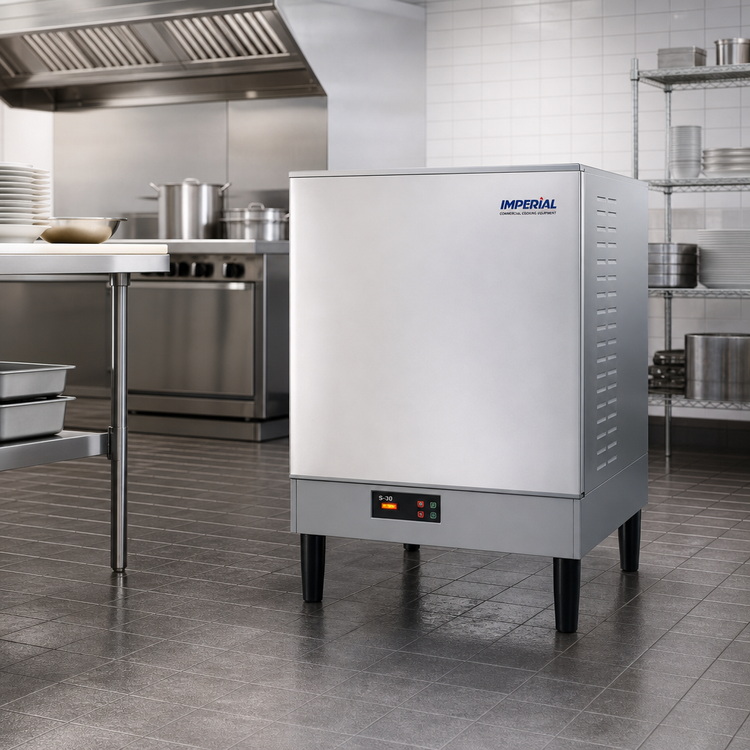

Hatco Imperial S-30 Electric Booster Heater – 30 kW, 16 Gal

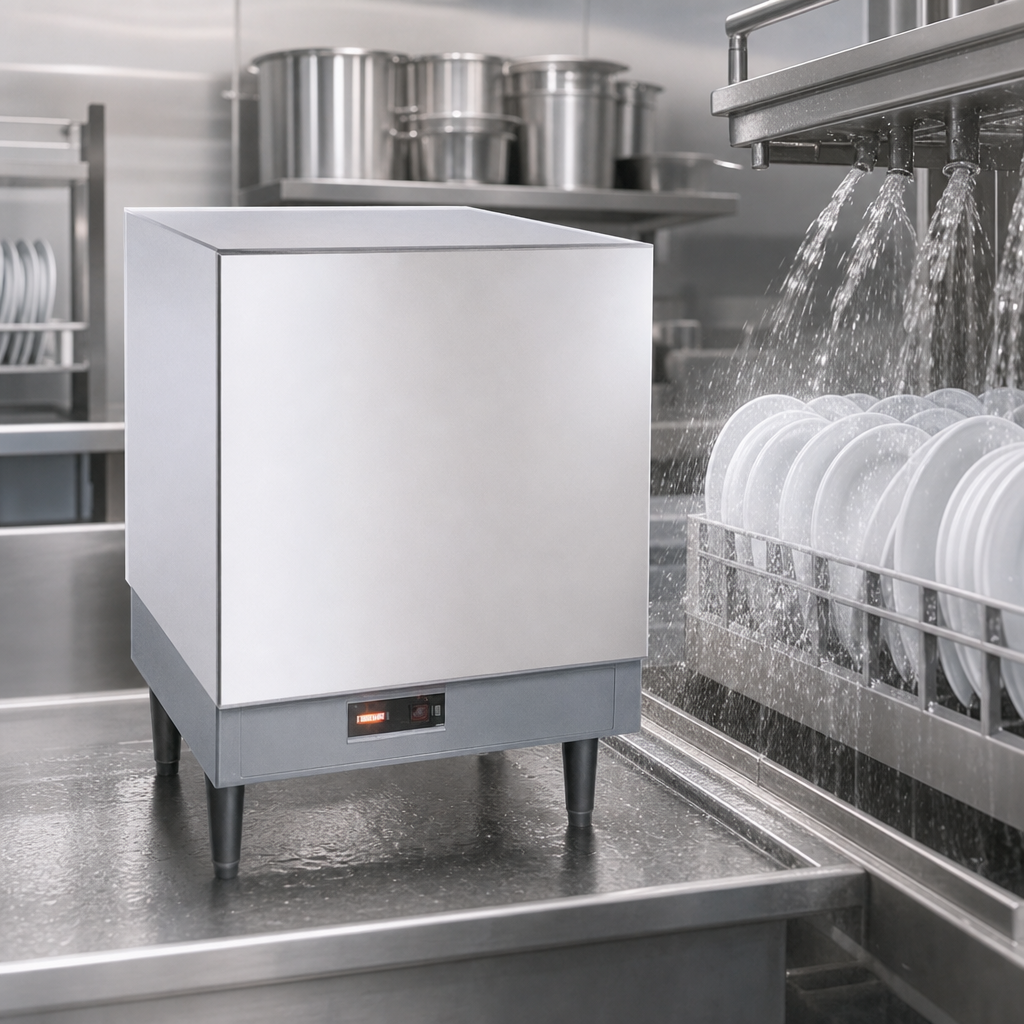

High-performance rinse water up to 180 °F for conveyor, flight and door-type dish machinesEngineered for today’s high-volume kitchens, the Hatco Imperial S-30 delivers a continuous supply of 180 °F (82 °C) sanitizing rinse water—helping dishes and flatware air-dry instantly so you can turn tables faster, save labor, and meet NSF sanitation standards with ease.
Standard Features & Benefits

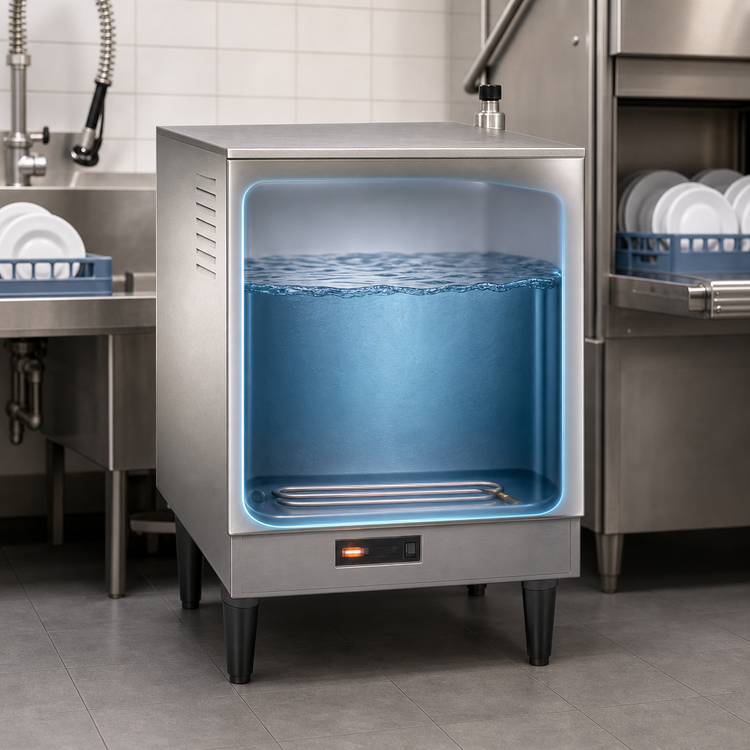

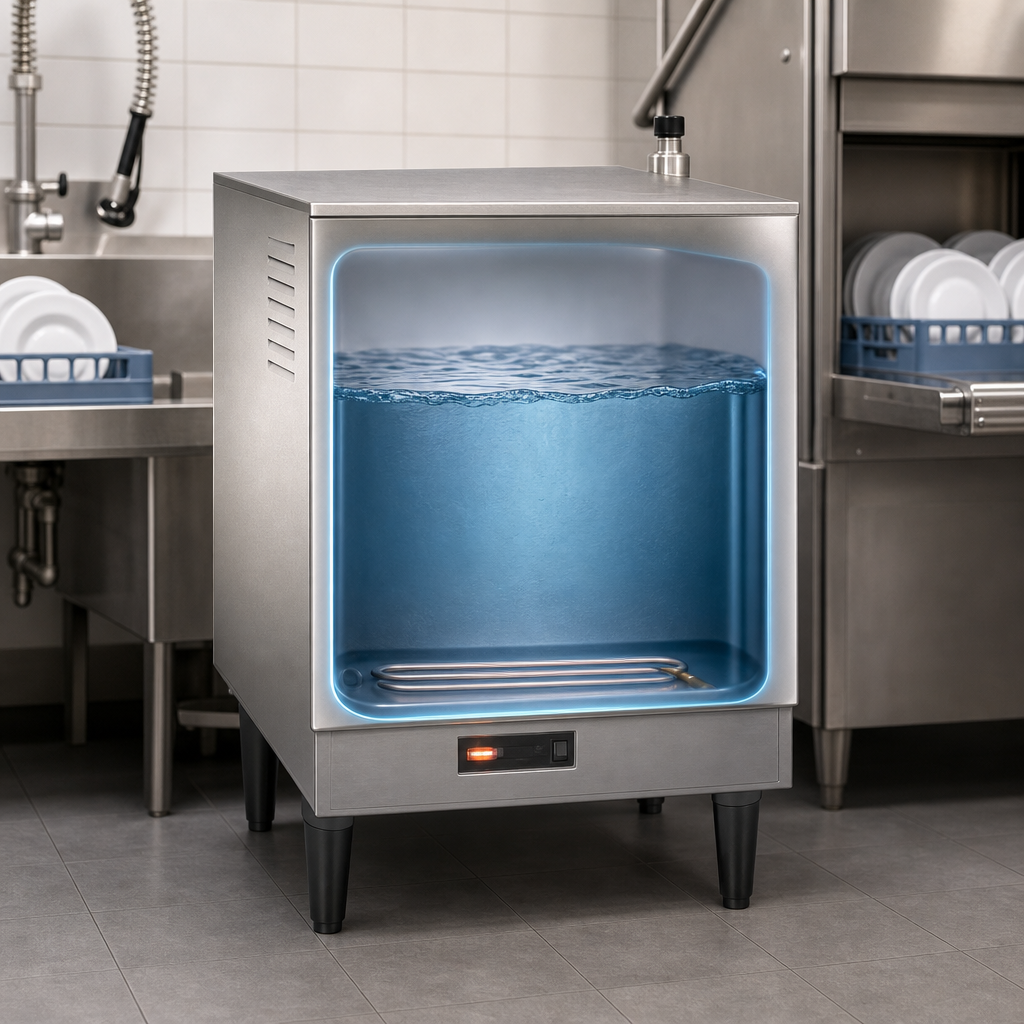

- 16 gal (60 L) Castone®-lined storage tank with a 10-year limited warranty – non-toxic, non-corrosive and built to last.
- Powerful 30 kW heating package recovers 301 GPH @ 40 °F rise / 172 GPH @ 70 °F rise, keeping pace with high-demand dishrooms.
- Factory-preset immersion thermostats (adjustable down to 140 °F for low-temp machines) plus high-temperature limit safety.
- Low-water cut-off protects elements from burnout; pilot & error indicator lights provide at-a-glance status.
- Built-in heat trap and thick fiberglass insulation minimize stand-by heat loss for lower utility costs.
- Stainless steel front panel with durable, silver-gray hammertone powder-coated body—resists dents, scratches and microbial growth*
- Front-mounted toggle On/Off switch and easily accessible service panel speed up installation and maintenance.
- 6" (152 mm) non-adjustable plastic legs included for quick, sanitary floor mounting.
- Factory pre-plumbed & pre-wired with: temperature/pressure relief valve, pressure-reducing valve with bypass, dual temperature/pressure gauges and over-current circuit protection.
- cULus & NSF listed; proudly Made in the USA.
Key Specifications
| Model | Imperial S-30 |
|---|---|
| Storage Capacity | 16 gal (60 L) |
| Heating Capacity | 30 kW | 180 °F (82 °C) rinse water |
| Recovery Rate | 301 GPH @ 40 °F rise | 172 GPH @ 70 °F rise |
| Voltage / Phase Options |
208 V 1 ɸ 144 A | 240 V 1 ɸ 125 A 208 V 3 ɸ 88.3 A | 240 V 3 ɸ 72.3 A 480 V 3 ɸ 36 A | 600 V 3 ɸ 28.9 A |
| Recommended Breaker† |
200 A (208 V 1 ɸ) | 175 A (240 V 1 ɸ) 125 A (208 V 3 ɸ) | 100 A (240 V 3 ɸ) 50 A (480 V 3 ɸ) | 40 A (600 V 3 ɸ) |
| Dimensions | 23.53" W × 22.75" D × 31.03" H (+5" for T/P valve clearance) |
| Shipping Weight | ≈ 214 lb (97 kg) |
| Certifications | NSF • cULus |
† Always consult a qualified electrician to size and install the proper branch-circuit protection for your voltage/phase.
Factory Options & Accessories
- All-stainless body & base
- Security package with Torx® tamper-resistant screws
- Blended phosphate injection system (non-potable)
- Back-pressure relief & shock-absorber valves
- Stainless steel adjustable legs (6"–7")
*Hatco’s antimicrobial powder-coat uses environmentally sustainable silver ions to help inhibit microbial growth on painted surfaces.
