Hatco  |  Imperial  |  SKU: S-24

Hatco S-24 Imperial High Temp & Low Temp Dishwashers

$4,481.78
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Stadium & concession solutions Super market & in-store solutions Restaurant solutions Parts list Catalog brochure Hotel & lodging solutions Cafeteria & buffet solutions
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

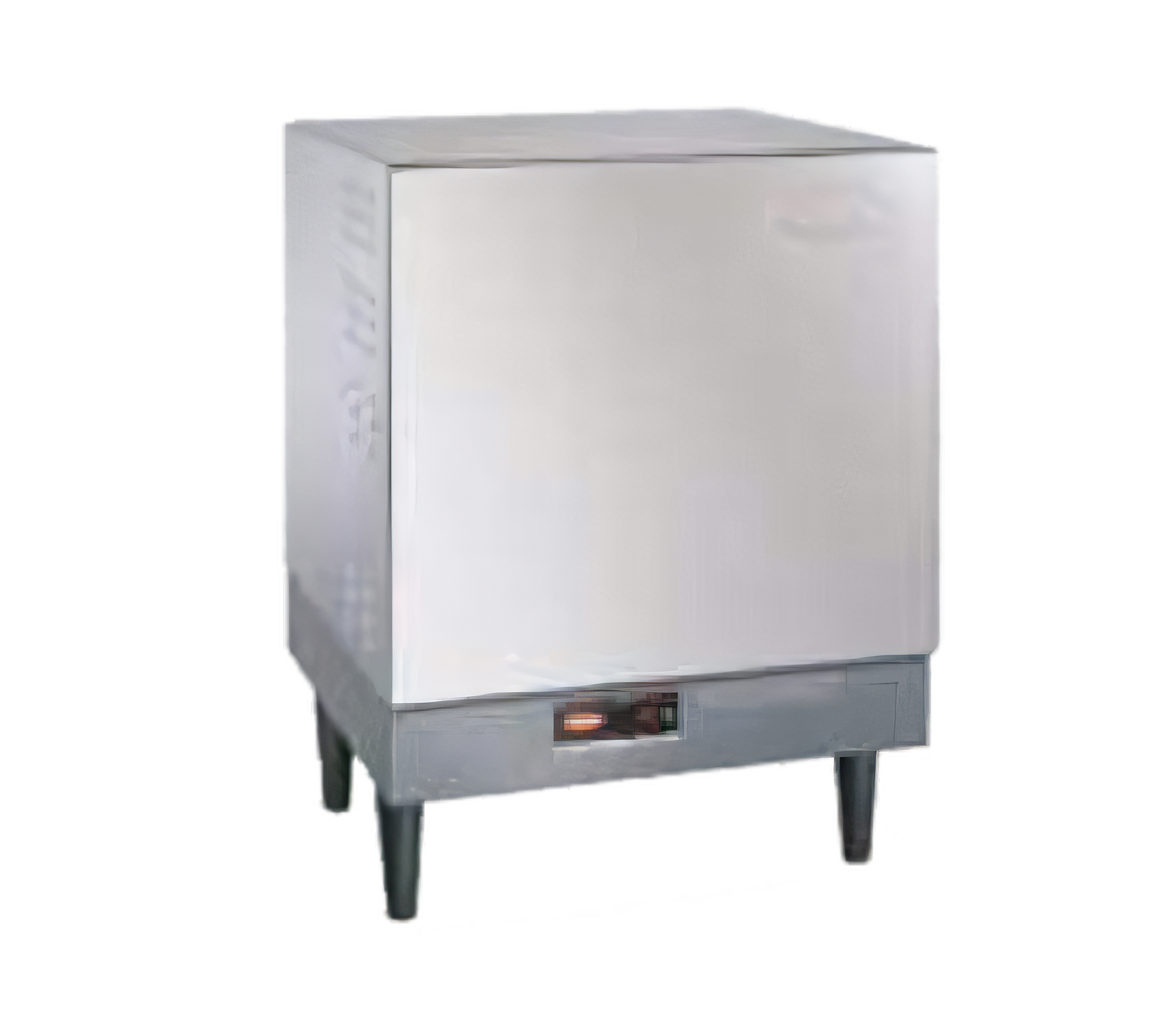

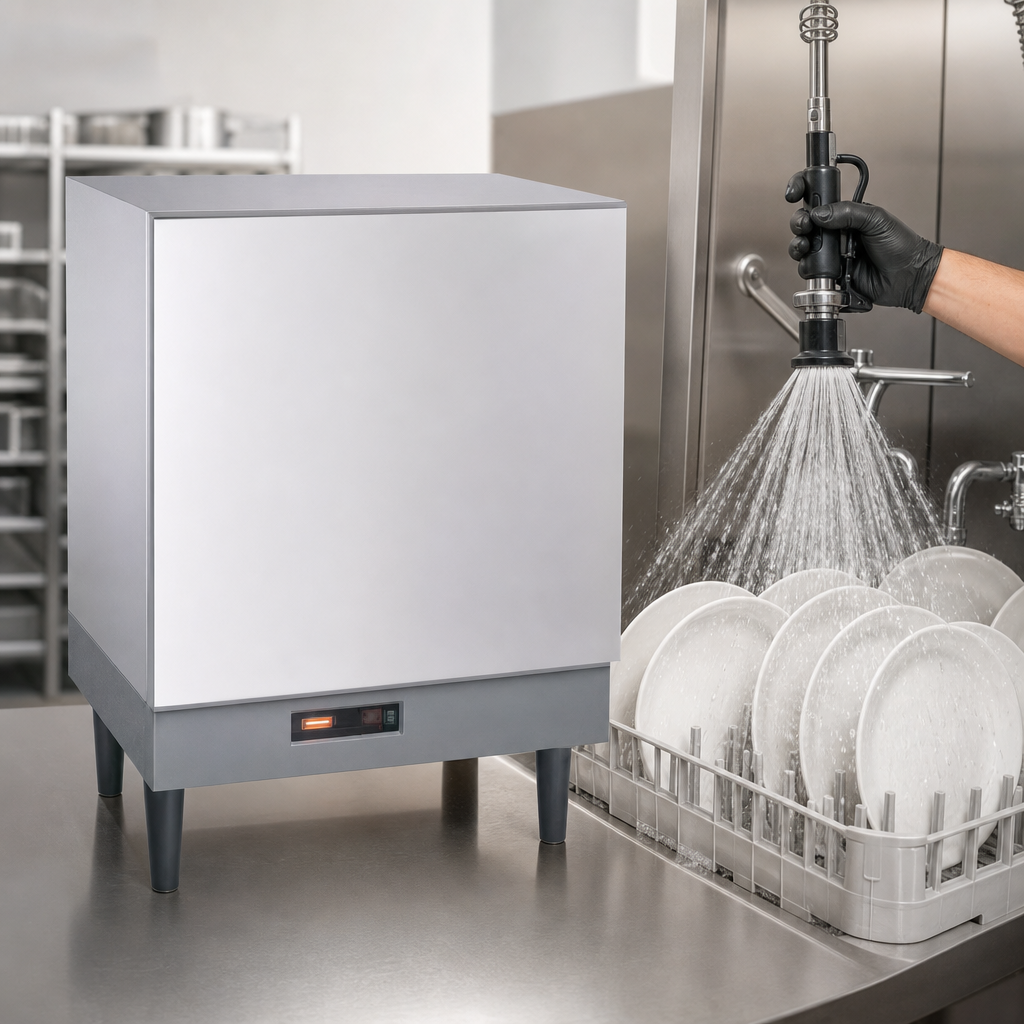

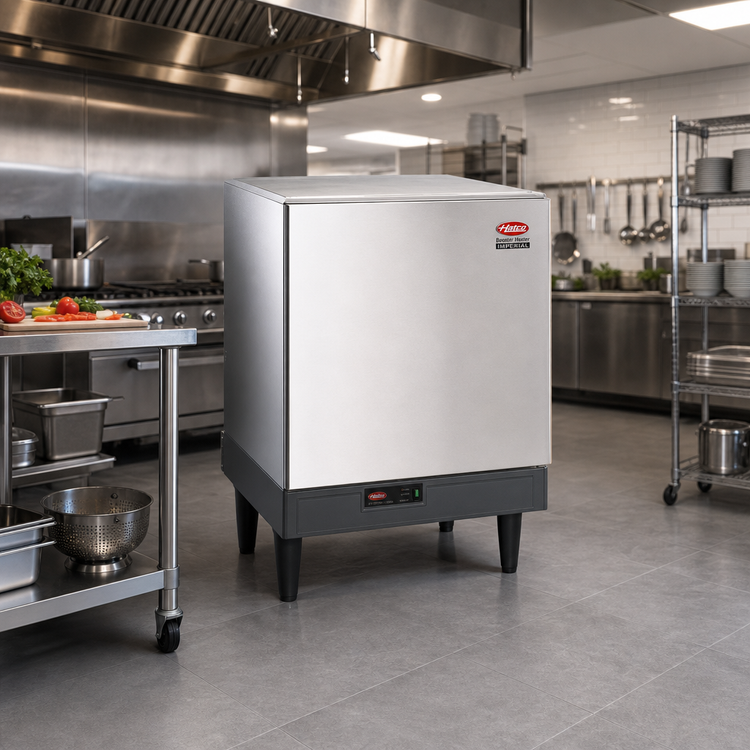

Hatco Imperial Electric Booster Heater – 24 kW, 16 Gal

Model S-24 | Up to 241 GPH of 180 °F sanitizing rinse water

Dependable hot-water sanitation, built for the busiest dishrooms. Hatco’s 24 kW Imperial Booster Heater delivers a continuous 180 °F (82 °C) rinse that meets NSF requirements, dries dishes fast and keeps service moving.

Why you’ll love it

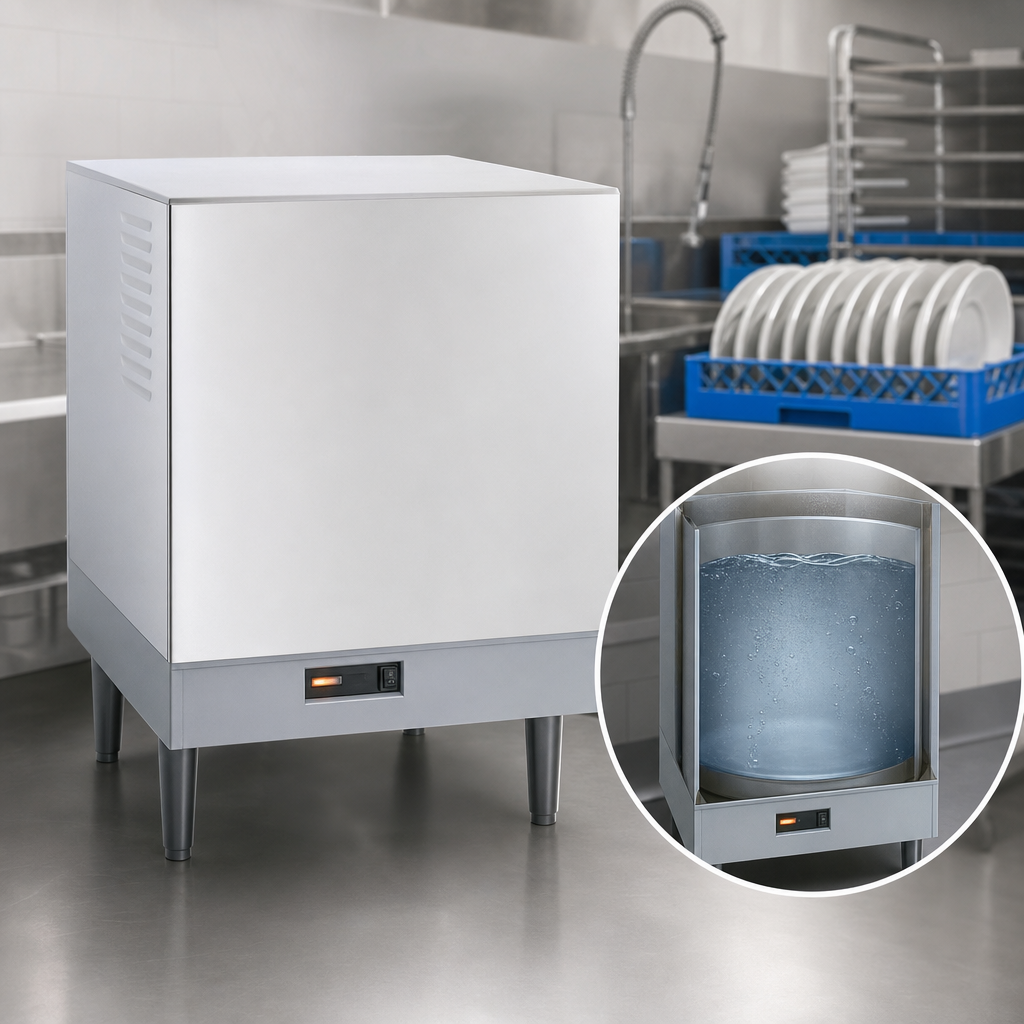

  • 16 gal (60 L) Castone® lined tank – non-corrosive, non-toxic and backed by a 10-year limited warranty.
  • Serious throughput – recovers up to 241 GPH (912 LPH) at a 40 °F rise; perfect for high-volume warehouses, cafeterias and restaurants.
  • Pre-plumbed & pre-wired – arrives ready to connect with ¾" NPT inlet/outlet, calibrated immersion thermostat and factory-set temperature/pressure controls.
  • Space-saving front access – all service points are reachable from the stainless-steel front panel for quick maintenance.
  • Energy-smart design – built-in heat trap and fiberglass insulation reduce standby losses.
  • Rugged exterior – powder-coated silver-gray hammertone body on 6" non-adjustable legs stands up to dishroom abuse and daily wash-downs.

Safety & sanitation built-in

  • Low-water cut-off prevents element burnout.
  • High-temperature limit control and pilot indicator lights provide 24/7 peace of mind.
  • Temperature/pressure relief valve plus pressure-reducing valve with bypass are factory installed.
  • NSF & cULus certified; Made in the USA.

Performance specs

Storage capacity 16 gal | 60 L
Heating capacity 24 kW
Recovery @ 40 °F rise 241 GPH | 912 LPH
Recovery @ 70 °F rise 138 GPH | 522 LPH
Voltage options (3-phase) 208 V / 75 A  •  240 V / 65 A  •  480 V / 29.9 A  •  600 V / 23 A
Dimensions (W×D×H) 23.53 × 22.75 × 31.03 in  (598 × 578 × 788 mm) incl. 6" legs
Shipping weight ≈214 lb | 97 kg

Simple operation

  • Front-mounted On/Off toggle switch, power & error indicator lights.
  • Factory-preset to 180 °F; thermostat adjustable down to 140 °F for low-temp warewashers.
  • Metal-sheathed elements for long life and easy replacement.
Water quality notice: Incoming water exceeding 3.0 grains per gallon (0.75 g/L) of hardness must be softened. Mineral buildup is not covered under warranty.

Warranty & support

  • 10-year limited warranty on Castone tank.
  • 24/7 parts & service assistance (USA & Canada).
  • Comprehensive Hatco technical support for the life of the unit.

Need a different kW or voltage? Ask us about additional Imperial models ranging from 6 kW to 57 kW.

Features & Specs

Manufacturer

Hatco

Brand_name

Imperial

Certifications

NSF, cULus, Made in USA

Height

31.13in

Width

23.63in

Depth

22.75in

Shipping Weight

214.0lbs

Wattage

20 - 40 kilowatts

Tank Capacity

16 gallon

Width

20" - 29"

Specifications

Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 24.0kW, NSF, cULus, Made in USA
