Hatco S-18 Imperial High Temp & Low Temp Dishwashers
Description

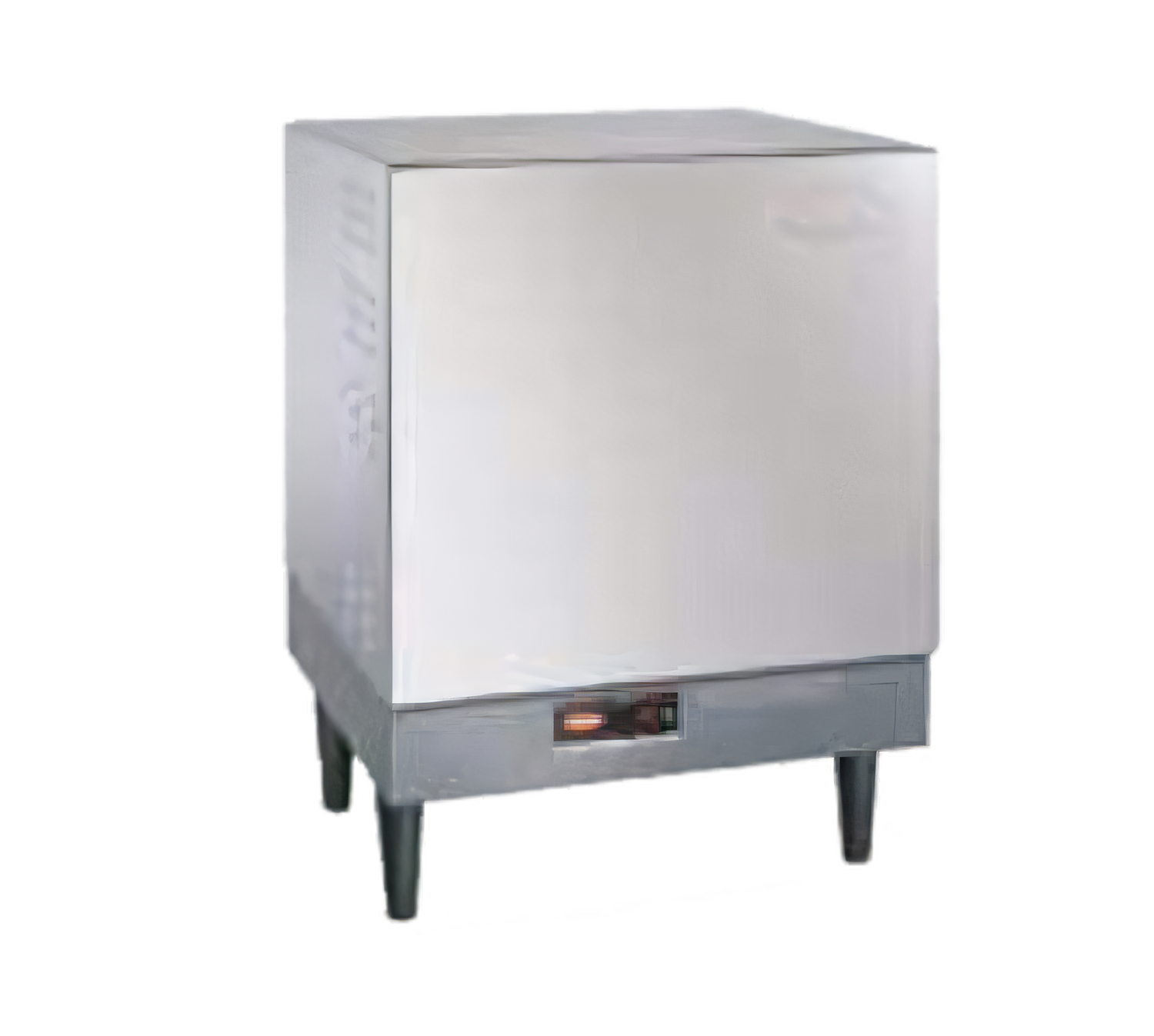

Hatco Imperial S-18 Electric Booster Water Heater | 18 kW · 16 gal

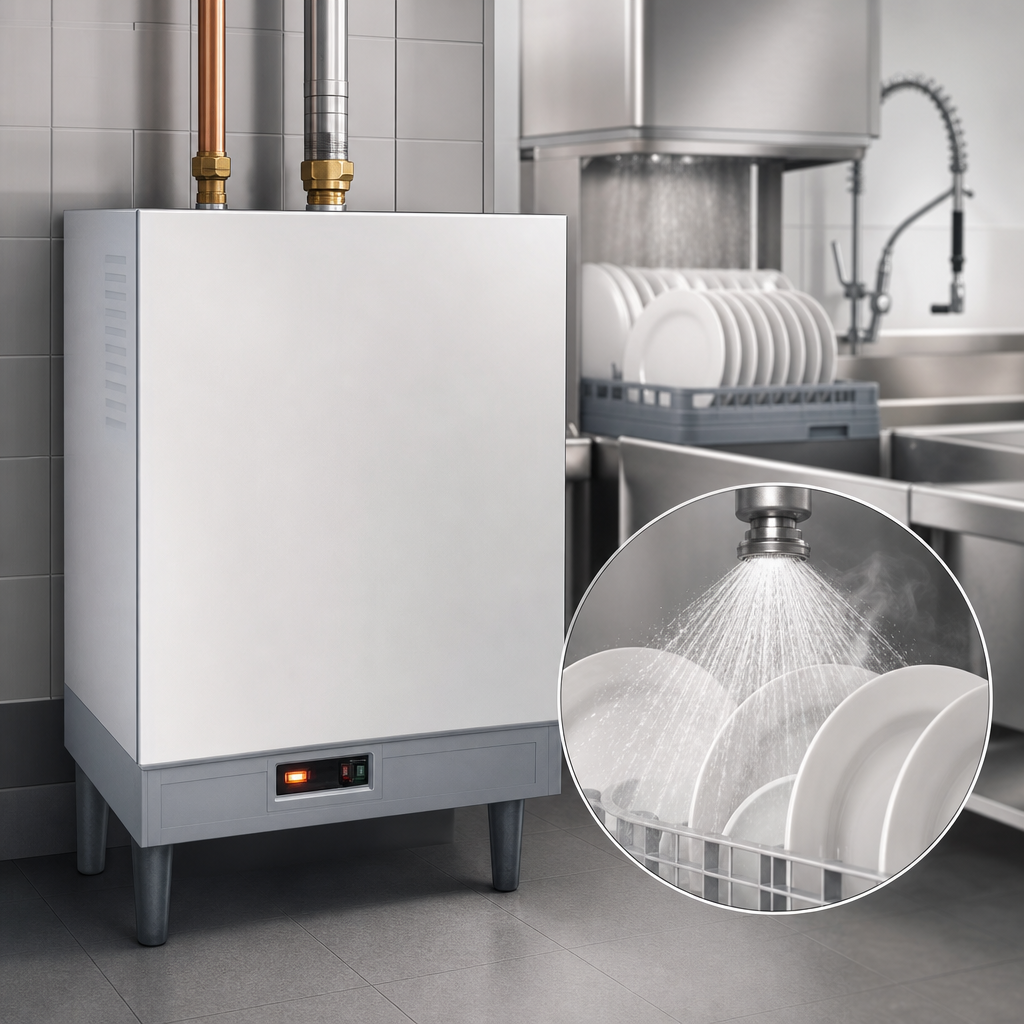

Rapid 180 °F sanitizing rinse water for high-volume dishroomsBuilt for the busiest commercial kitchens, the Hatco Imperial S-18 delivers up to 181 gallons (685 L) of 180 °F rinse water per hour—so dishes, glasses and flatware air-dry instantly, keeping service flowing and health inspectors happy.
Key benefits

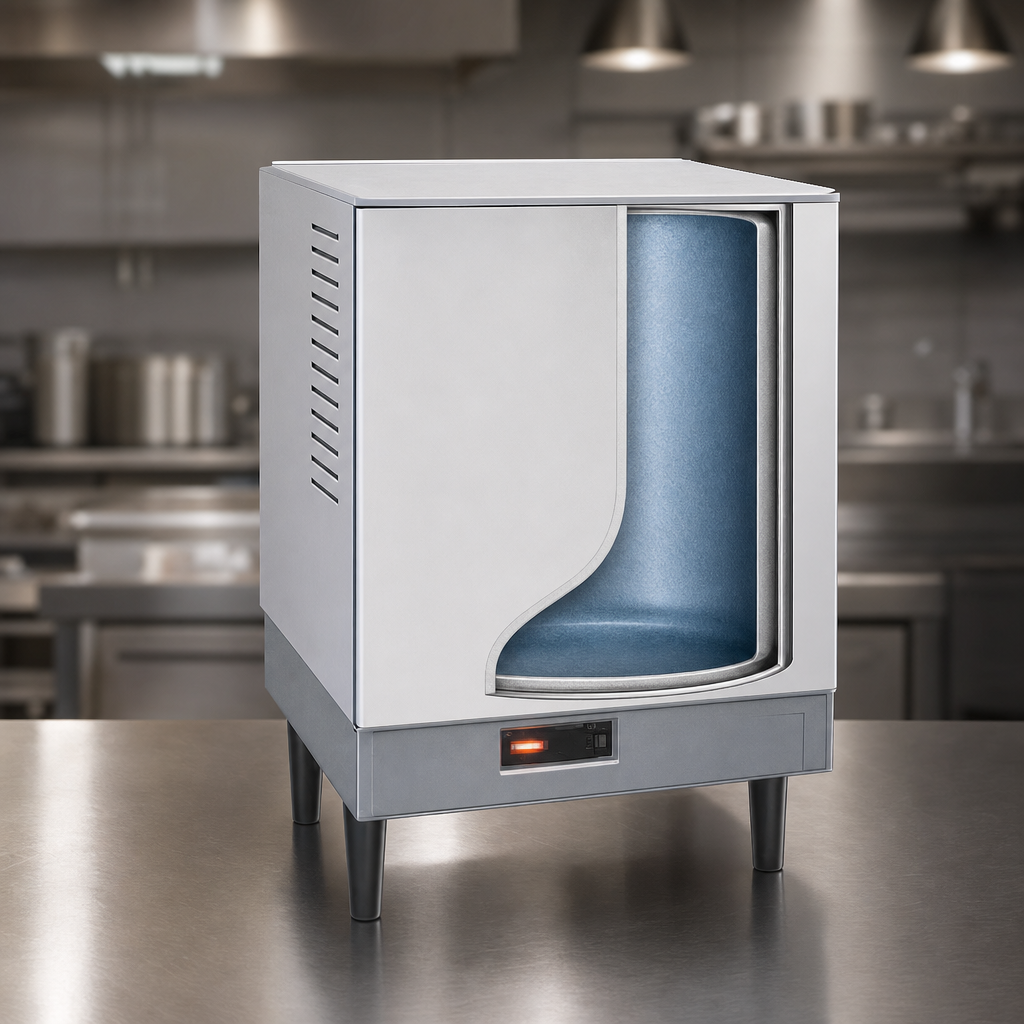

- 16 gal Castone®-lined tank resists corrosion and carries a 10-year limited warranty.
- 18 kW electric elements recover heat fast for continuous high-temp sanitizing.
- Energy-saving design – built-in heat trap and thick fiberglass insulation minimize standby loss.
- All-in-one control package – factory pre-plumbed & pre-wired with calibrated thermostat, high-limit safety, pressure-reducing valve, temperature/pressure gauges, pilot & error lights, and On/Off toggle switch.
- Low-water cut-off protects elements from burnout and extends equipment life.
- Durable exterior – stainless-steel front panel with antimicrobial, powder-coated silver-gray hammertone body.
- 6" non-adjustable plastic legs provide clearance for cleaning and service.
- cULus & NSF listed; Made in the USA.
Performance
| Storage capacity | 16 gal | 60 L |
|---|---|
| Recovery (40 °F / 22 °C rise) | 181 gph | 685 lph |
| Recovery (70 °F / 39 °C rise) | 103 gph | 390 lph |
| Factory set temperature | 180 °F | 82 °C (adjustable down to 140 °F for low-temp machines) |
Electrical options
| Voltage | Phase | Amps | Recommended breaker/fuse |
|---|---|---|---|
| 240 V | 1-phase | 75 A | 100 A |
| 240 V | 3-phase | 43.4 A | 60 A |
| 480 V | 3-phase | 21.7 A | 30 A |
| 600 V | 3-phase | 17 A | 30 A |
Dimensions & weight
| Width | 23.53" (598 mm) |
|---|---|
| Depth | 22.75" (578 mm) |
| Height (incl. 6" legs) | 31.03" (788 mm) Add 5" for temperature/pressure relief valve clearance. |
| Shipping weight | 200 lb | 91 kg |
Optional upgrades & accessories
- Stainless-steel body & base
- Security package with Torx® tamper-resistant screws
- Blended phosphate injection system (non-potable)
- Stainless-steel adjustable legs (6"–7")
- Shock absorber or back-pressure relief valve
Backed by Hatco’s 24/7 parts & service support (U.S. & Canada).
Tank carries a 10-year limited warranty.
