Hatco S-17 Imperial High Temp & Low Temp Dishwashers
Hatco S-17 Imperial High Temp & Low Temp Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco S-17 Imperial High Temp & Low Temp Dishwashers
Description

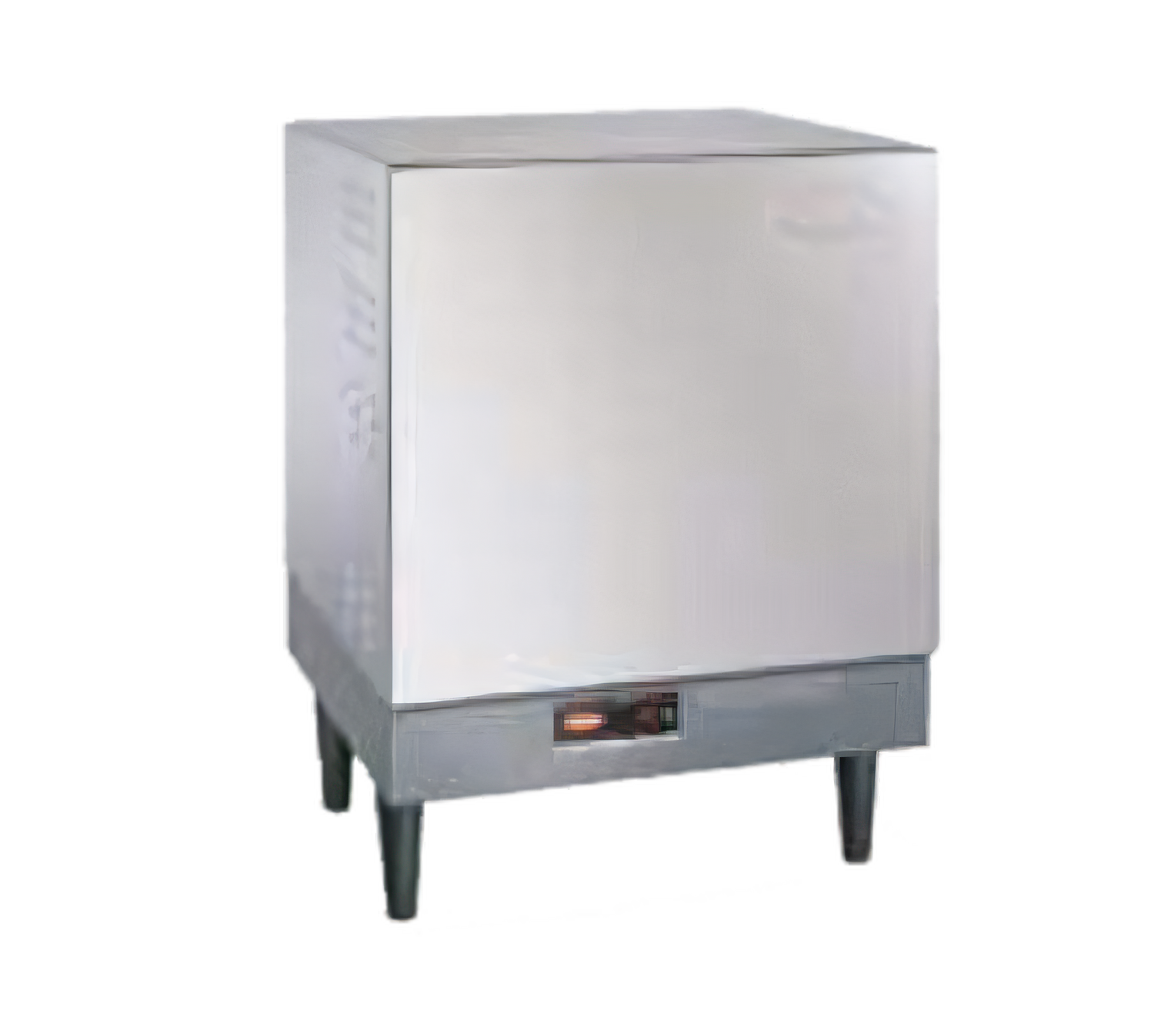

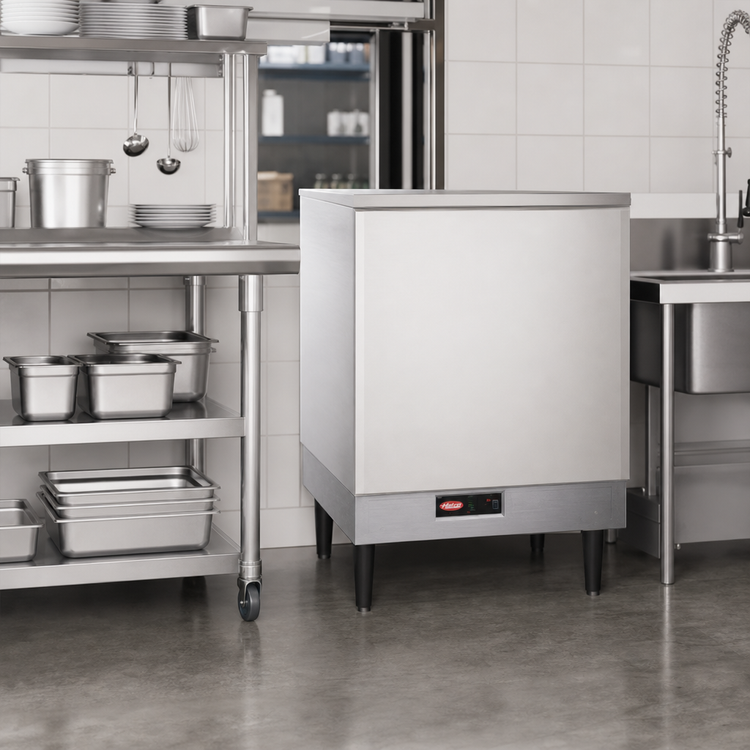

Hatco S-17 Imperial Electric Booster Water Heater
17.25 kW • 16 gal storage • 208 V / 3-PhaseDeliver a consistent 180 °F (82 °C) sanitizing rinse and keep dishes moving with the Hatco S-17 Imperial booster. Engineered for medium-volume dishrooms, this USA-made unit combines rugged construction with smart safety controls, all wrapped in a stainless steel front and powder-coated hammertone body.
Key advantages
- Up to 173 GPH recovery at a 40 °F rise (99 GPH @ 70 °F rise).

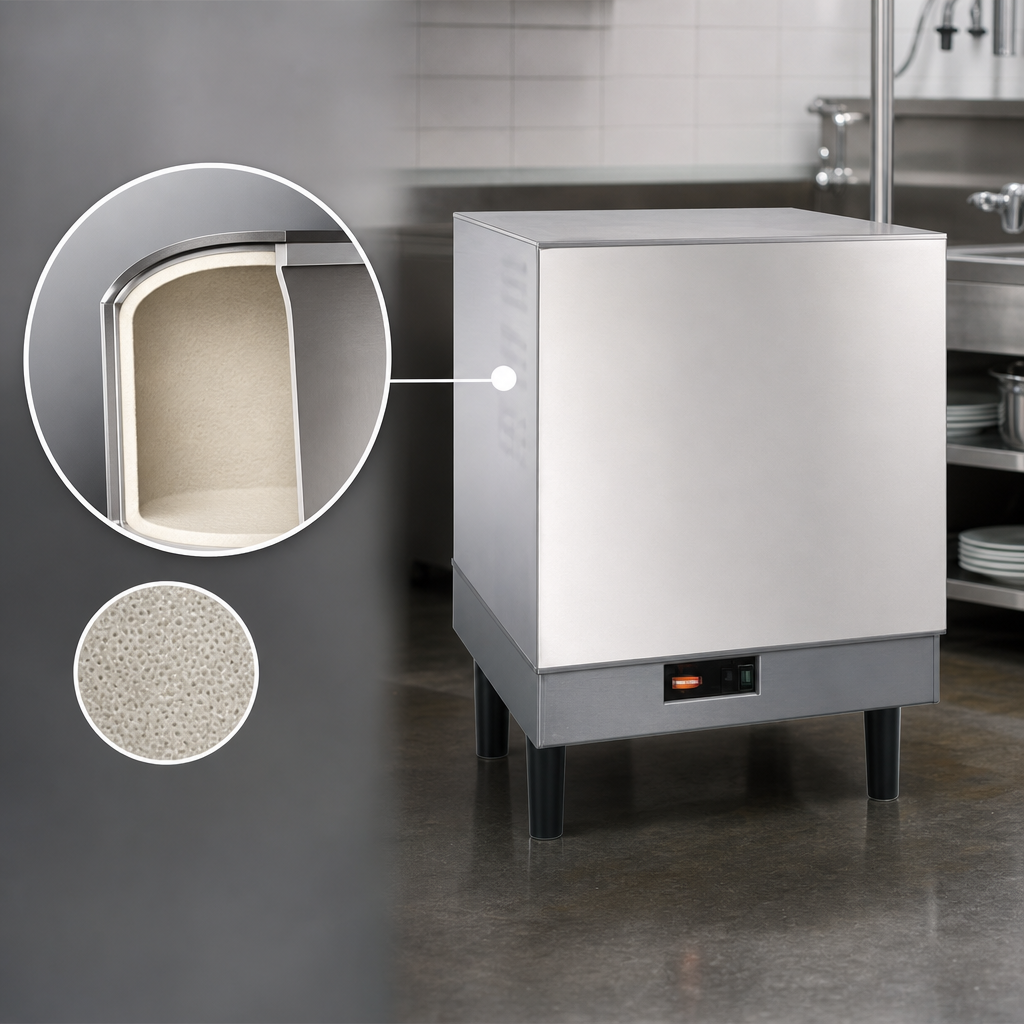

- Castone® lined 16-gal tank resists corrosion; backed by a 10-year limited warranty.
- Low-water cut-off, high-temperature limit and error indicator help prevent element burnout.
- Built-in heat trap & dense fiberglass insulation reduce standby losses.
- Factory-installed T/P relief valve, pressure-reducing valve with bypass and dual temp/pressure gauges—no field kits required.
- Front-serviceable design for quick access even when installed beside other equipment.
- 6" plastic non-adjustable legs satisfy sanitation clearance requirements.
- NSF & cULus listed for foodservice; fully assembled and tested in the USA.
What’s included
- Metal-sheathed immersion elements (17.25 kW)
- Factory-calibrated immersion thermostat (preset 180 °F; adjustable to 140 °F)
- On/Off toggle switch with power & error lights
- Temperature / pressure relief valve
- Pressure-reducing valve with bypass
- Dual temperature/pressure gauges
At-a-glance specs
| Model | S-17 Imperial |
|---|---|
| Storage capacity | 16 gal (60 L) |
| Heating input | 17.25 kW |
| Electrical | 208 V / 3-Phase • 47.9 A |
| Recommended breaker | 60 A |
| Recovery @ 40 °F rise | 173 GPH (655 LPH) |
| Recovery @ 70 °F rise | 99 GPH (375 LPH) |
| Dimensions (W×D×H) | 23.53" × 22.75" × 31.03" with 6" legs (add 5" for T/P valve) |
| Shipping weight | 200 lb (91 kg) |

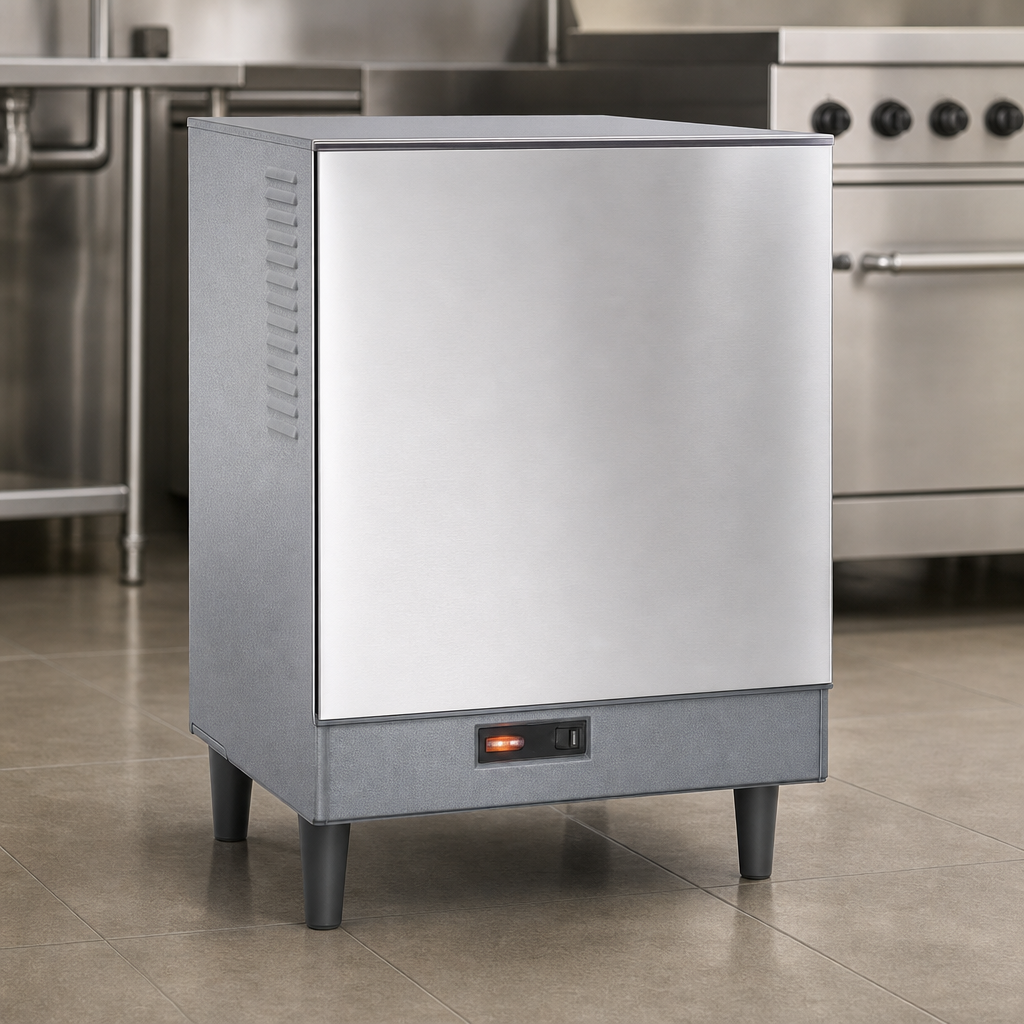

| Housing | Stainless front • Powder-coated silver-gray sides/back |
| Certifications | NSF, cULus, UL EPH |
| Country of origin | Made in USA |
Installation notes
- Connect to 3/4" NPT inlet & outlet; provide a properly sized electrical disconnect.
- Maintain 6" leg clearance for cleaning and ventilation.
- Factory-preset to 180 °F; adjust thermostat if using a low-temp dishmachine.
Warranty & support
• 10-year limited warranty on Castone® tank
• 1-year parts & labor on entire unit
• 24/7 parts & service assistance (U.S. & Canada)
For full installation and operation details, refer to the Hatco manual or visit the manufacturer’s site.
