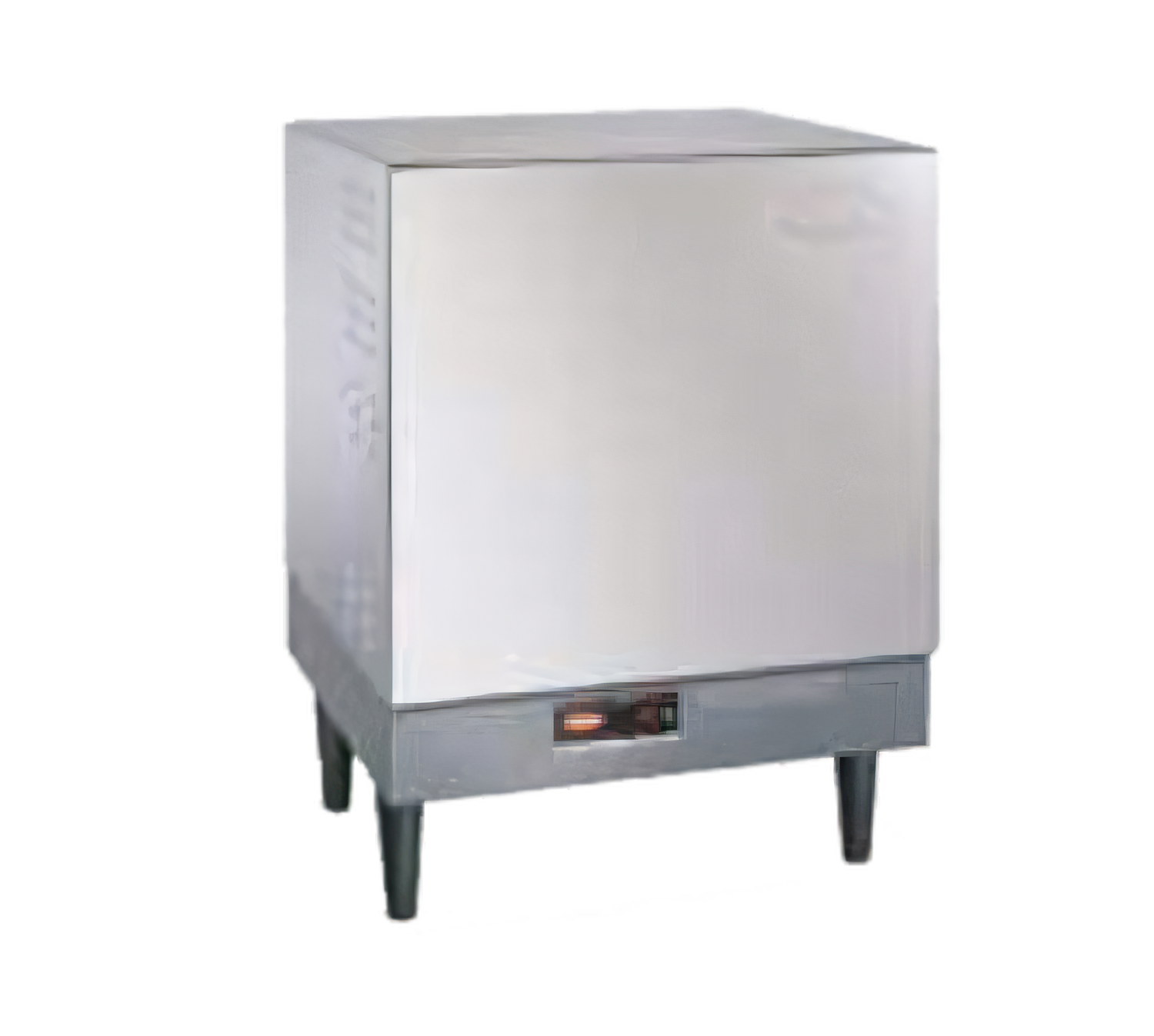

Imperial S-15 Electric Booster Water Heater, 16-Gallon, 15 kW
Stainless Steel Front Panel, Powder-Coated Silver-Gray Hammertone Body, 6" Plastic Non-Adjustable Legs
Built for dependable dishroom performance, this 16-gallon electric booster heater combines a factory pre-plumbed/pre-wired design with multiple safety controls and front-access serviceability.
- 16-gallon storage capacity supports sanitizing rinse demand in busy dish rooms.
- 15.0 kW electric heating delivers reliable booster performance.
- Factory pre-plumbed and pre-wired with calibrated immersion thermostats and a high-temperature limit switch.
- Thermostats can be lowered to 140°F (60°C) for low-temp dishmachines.
- Built-in safety components include a temperature/pressure relief valve, pressure reducing valve, gauges, high-temp limit control, pilot light, on/off switch, and low-water cut-off.
- Castone lined tank construction helps resist corrosion and includes a 10-year limited warranty.
- Stainless steel front panel, powder-coated silver-gray hammertone body, and 6-inch non-adjustable legs support durable installation.
Overall Dimensions:
23.63"W x 22.75"D x 31.13"HProduct Weight:

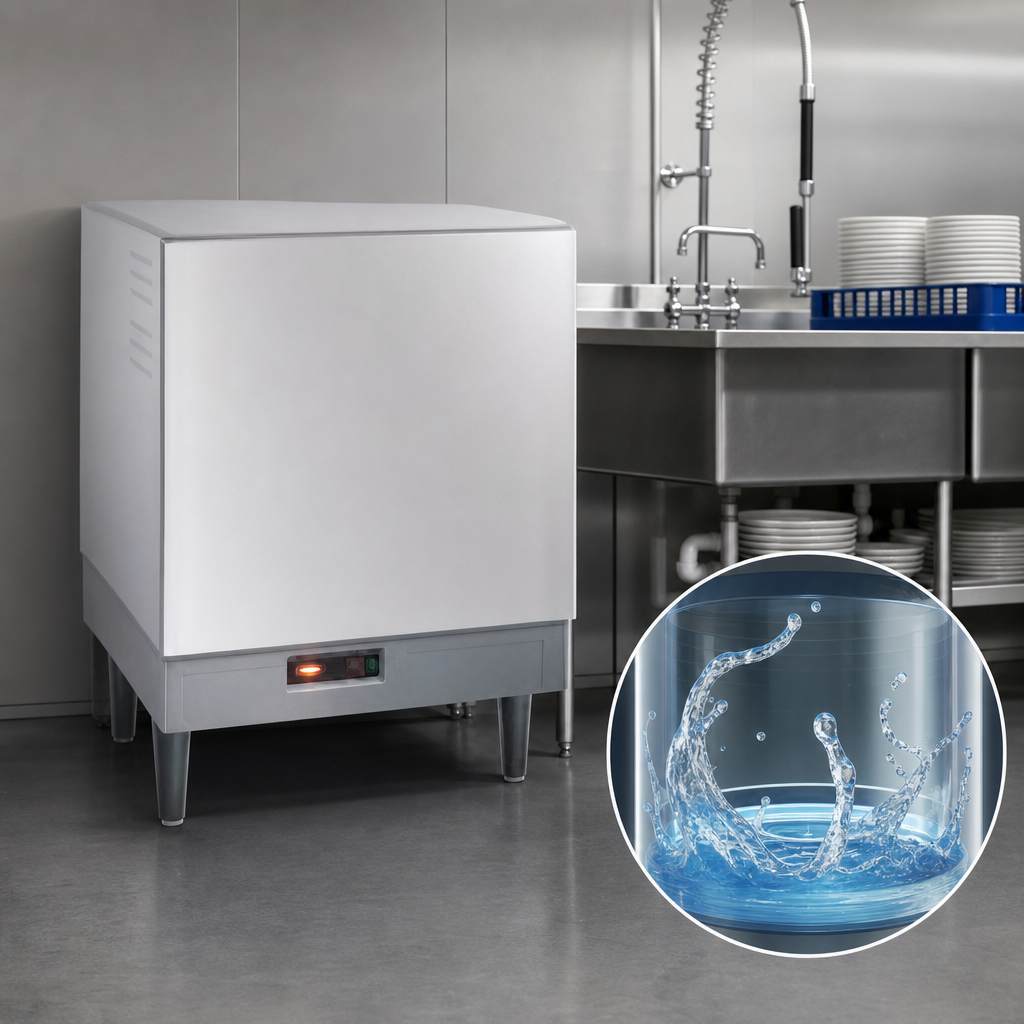

200.0 lb16-Gallon Storage Capacity
Provides 16 gallons of stored hot water for booster heater applications.

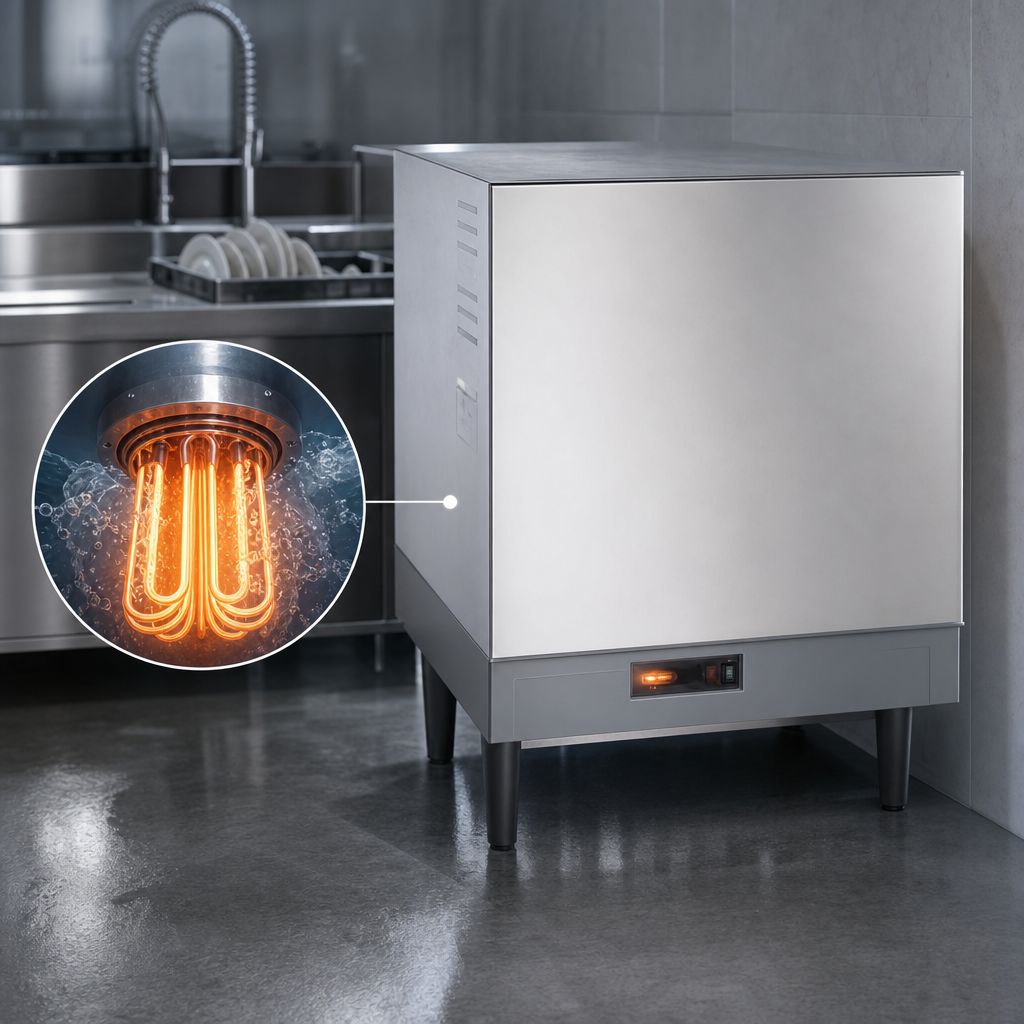

15.0 kW Electric Output
Electric heating output is sized for dependable sanitizing rinse water production.
Factory Pre-Plumbed And Pre-Wired
Arrives ready for installation with calibrated immersion thermostats and a high-temperature limit switch already in place.
Built-In Safety Controls
Includes a temperature/pressure relief valve, pressure reducing valve, two temperature/pressure gauges, high-temperature limit control, pilot indicator light, on/off switch, and low-water cut-off.
Castone Lined Tank
Non-toxic, non-corrosive tank lining is designed for durability and is covered by a 10-year limited warranty.
Heat Trap And Fiberglass Insulation
Built-in heat trap and insulation help minimize heat loss and improve operating efficiency.
Stainless Steel Front Panel And Powder-Coated Body
Features a stainless steel front panel with a powder-coated silver-gray hammertone body for a professional, durable finish.
Front-Access Service Area
Front access helps simplify installation and service, even when placed next to other equipment.
Low-Temp Dishmachine Compatibility
Thermostats can be lowered to a 140°F (60°C) setting for low-temperature dishmachines.
Certifications & Compliance
Warranty & Protection
10-year limited warranty on Castone lined tank.
Documents
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
