Hatco  |  Imperial  |  SKU: S-13

Hatco S-13 Imperial High Temp & Low Temp Dishwashers

$3,844.71
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Restaurant solutions Owner's manual Hotel & lodging solutions Stadium & concession solutions Parts list Catalog brochure Super market & in-store solutions Cafeteria & buffet solutions
Related Searches
Dishwashers High Temp & Low Temp Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

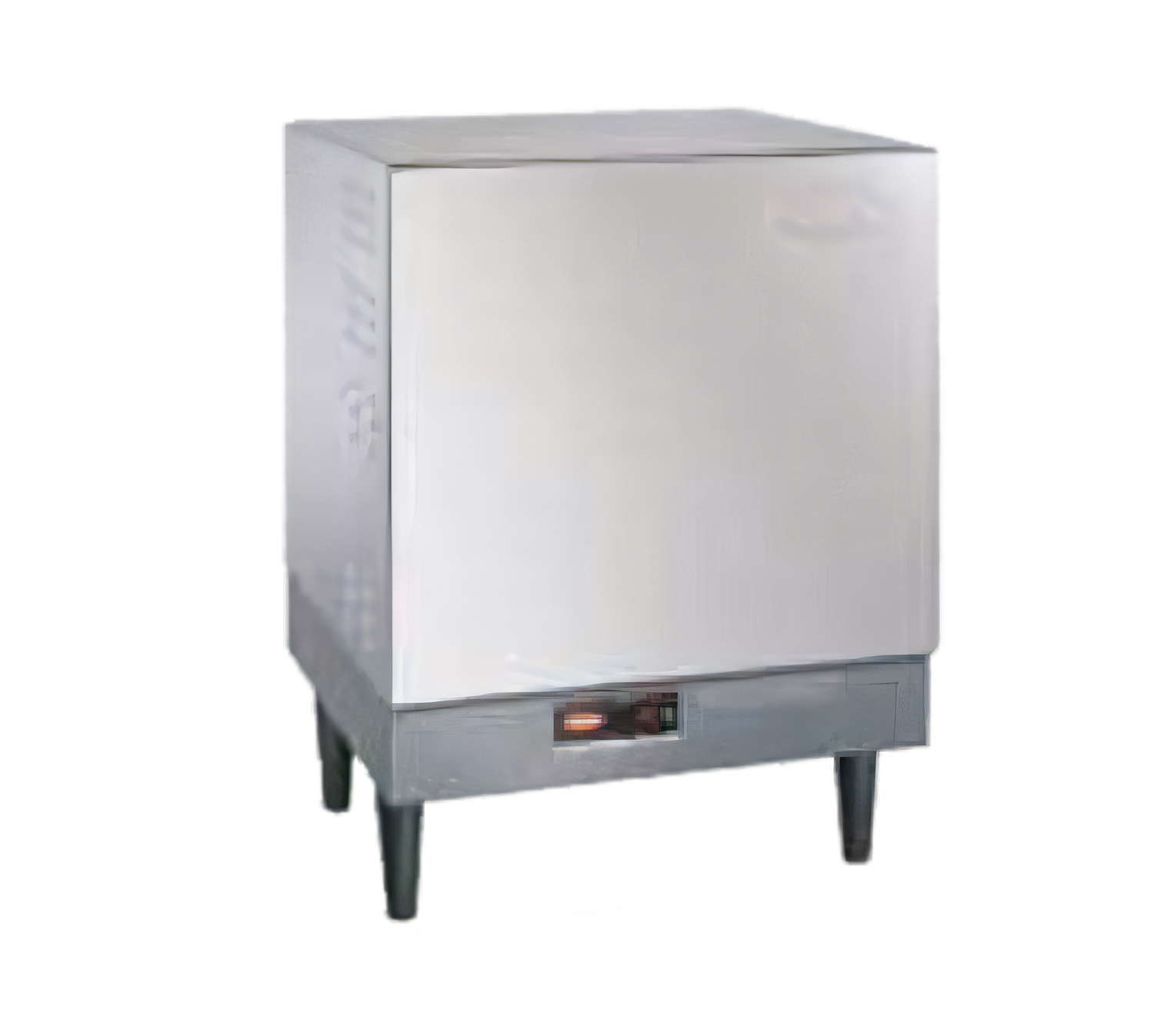

Hatco Imperial™ Electric Booster Water Heater – Model S-13

13.5 kW | 16 gal Castone® tank | cULus & NSF Listed

Deliver a steady 180 °F (82 °C) sanitizing rinse to your high-temp dishmachine with the rugged, front-serviceable Hatco Imperial S-13 Booster Heater. Engineered for demanding kitchens, it pairs rapid recovery with a space-saving footprint and the legendary durability operators have trusted since 1950.

Key advantages

  • Heats up to 135 GPH (511 LPH) at a 40 °F rise – plates and flatware air-dry instantly.

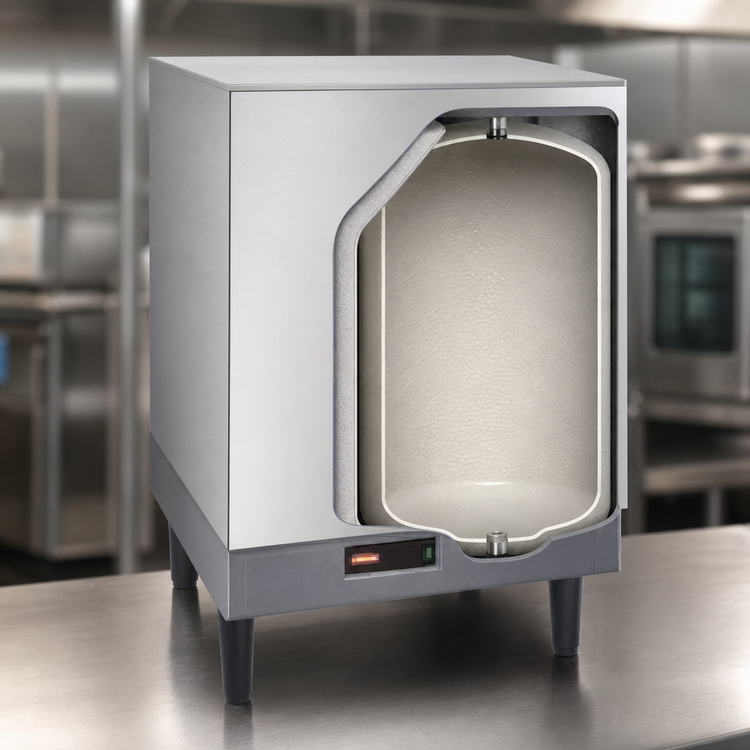

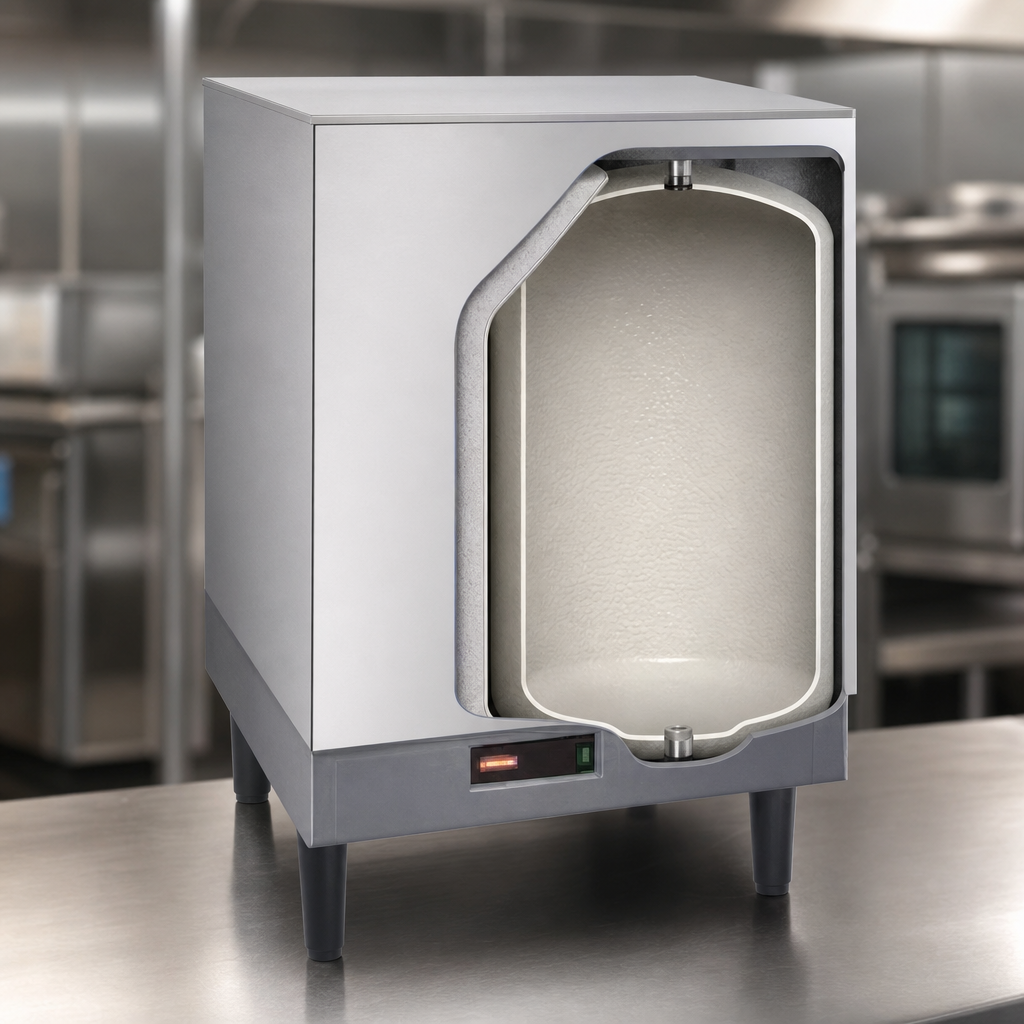

  • Castone® lined 16 gal tank with 10-year limited warranty resists corrosion and liming.
  • Stainless-steel front plus powder-coated silver-gray hammertone body for unbeatable durability.

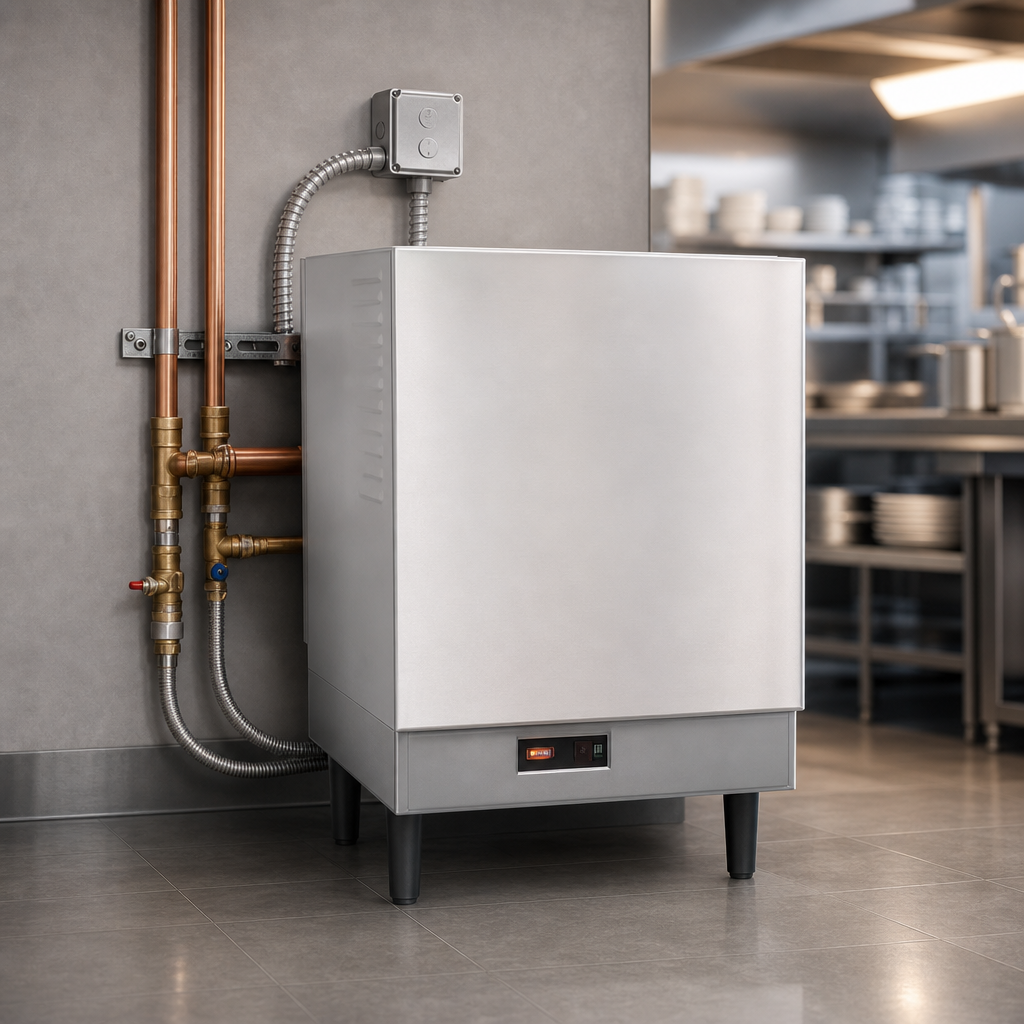

  • Factory pre-plumbed & pre-wired; installs fast with 3/4″ NPT connections.
  • Low-water cut-off, high-temp limit and front power/indicator lights protect your investment.
  • Thick fiberglass insulation and built-in heat trap minimize standby heat loss.
  • Proudly Made in the USA; backed by Hatco’s 24/7 parts & service network.

Performance

Storage capacity 16 gal (60 L)
Recovery @ 40 °F rise 135 GPH (511 LPH)
Recovery @ 70 °F rise 77 GPH (292 LPH)
Factory thermostat Pre-set 180 °F (adjustable down to 140 °F for low-temp machines)

Electrical data (13.5 kW)

Voltage Phase Total Amps Recommended Breaker/Fuse
208 V 1-phase 65 A 90 A
240 V 1-phase 56.3 A 90 A
208 V 3-phase 38 A 50 A
240 V 3-phase 29 A 40 A
480 V 3-phase 16.3 A 30 A
600 V 3-phase 13 A 20 A

208 V & 240 V models can be field-converted between 3-phase and single-phase.

Dimensions & weight

Width 23.53 in (598 mm)
Depth 22.75 in (578 mm)
Height (incl. 6″ legs) 31.03 in (788 mm)
Shipping weight 200 lb (91 kg)

Add 5 in (127 mm) clearance for the temperature/pressure relief valve.

Built-in plumbing & safety

  • Pressure-reducing valve with bypass
  • Temperature/pressure relief valve
  • Dual temp/pressure gauges
  • On/Off toggle plus pilot & power lights
Water quality notice: Incoming water harder than 3 GPG (0.75 GPG L) must be softened. Lime or sediment damage is not covered under warranty.

Optional factory upgrades

  • Stainless-steel body & base
  • Security package (Torx® screws & control cover)
  • 6″-7″ stainless-steel adjustable legs

Ideal applications

  • Conveyor, flight-type & under-counter dishmachines
  • Pot & pan sinks requiring 180 °F rinse
  • Catering, banquet, hotel, healthcare and institutional kitchens

What’s in the box

  • Hatco Imperial S-13 Booster Heater
  • 6″ non-adjustable plastic legs (installed)
  • Installation & Operation Manual
  • 10-year Castone® tank warranty + 24/7 parts & service support

Features & Specs

Manufacturer

Hatco

Brand_name

Imperial

Certifications

NSF, cULus, Made in USA

Height

31.13in

Width

23.63in

Depth

22.75in

Shipping Weight

200.0lbs

Wattage

12 - 19 kilowatts

Tank Capacity

16 gallon

Width

20" - 29"

Specifications

Imperial Booster Heater, electric, 16 gallon storage capacity, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone® lined tank, 13.5kW, NSF, cULus, Made in USA
