Hatco S-12 Imperial High Temp & Low Temp Dishwashers
Description

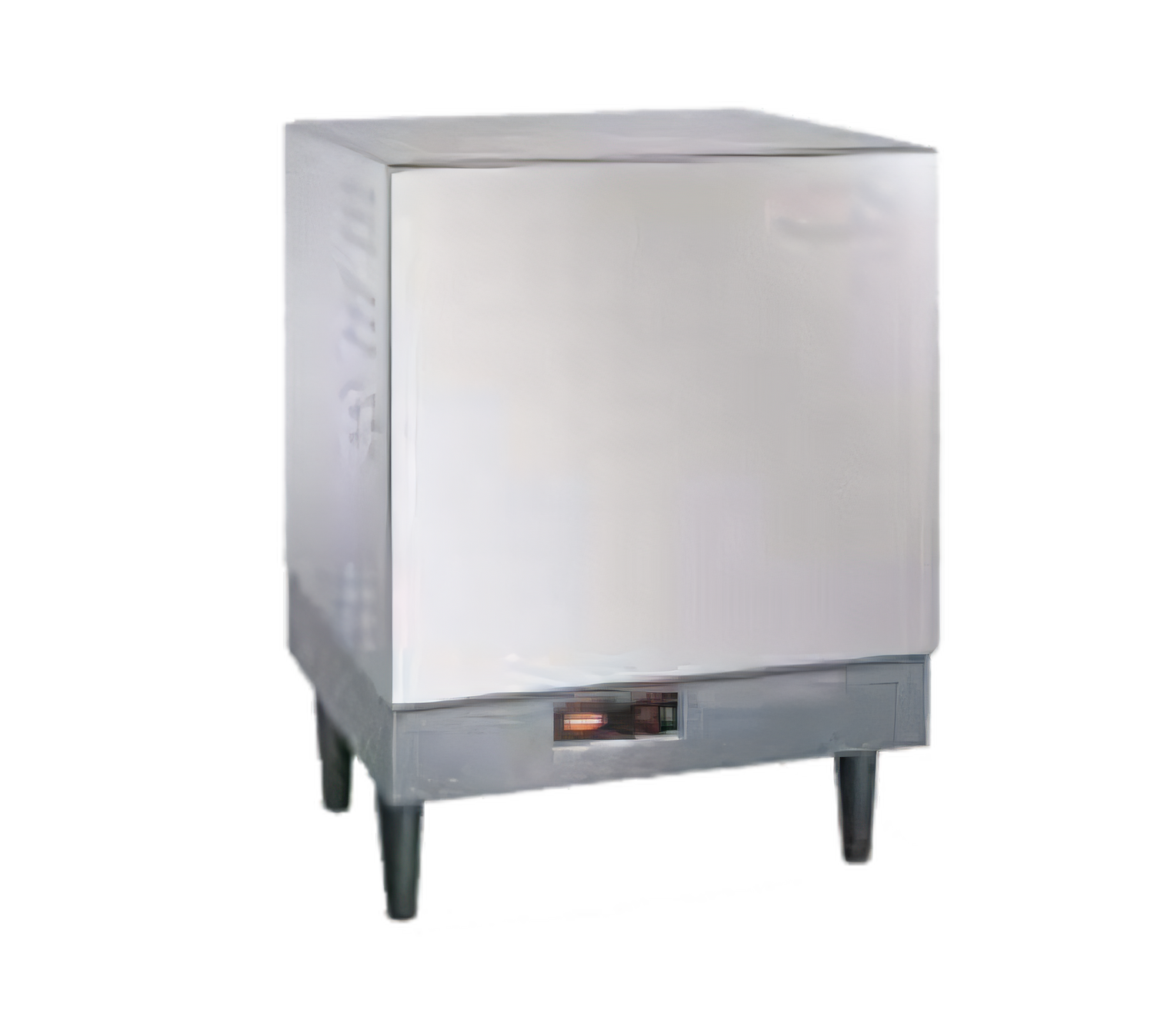

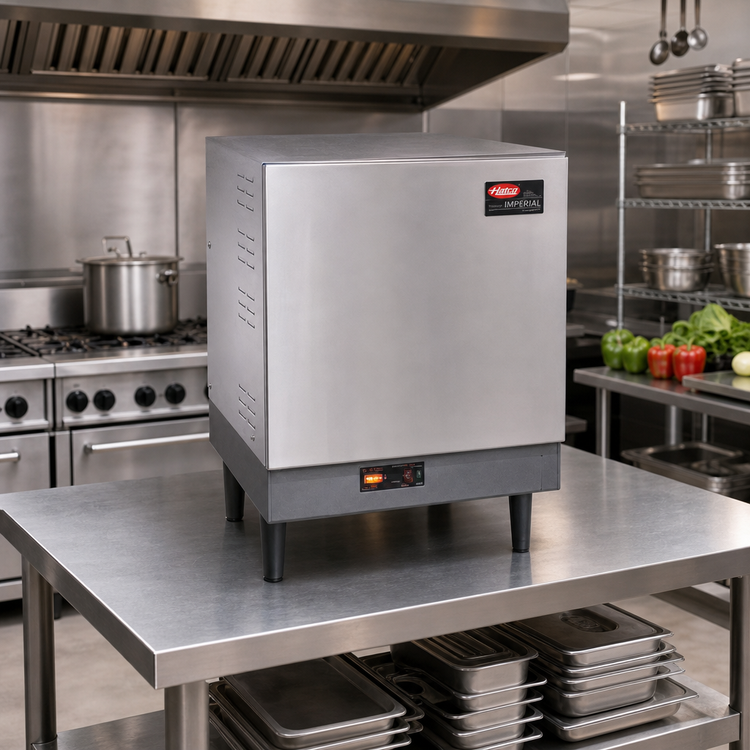

Hatco Imperial™ Electric Booster Water Heater – 12 kW, 16 gal (Model S-12)
High-performance final-rinse heater for low- or high-temp commercial dishmachinesGive your ware-washing operation a constant supply of 180 °F (82 °C) sanitizing rinse water with the Hatco Imperial S-12. Built in the USA for demanding food-service kitchens, this 12 kW booster heats up to 120 GPH (454 LPH) at a 40 °F rise, letting plates and flatware air-dry fast so you can turn tables, save labor and keep guests happy.
Key benefits

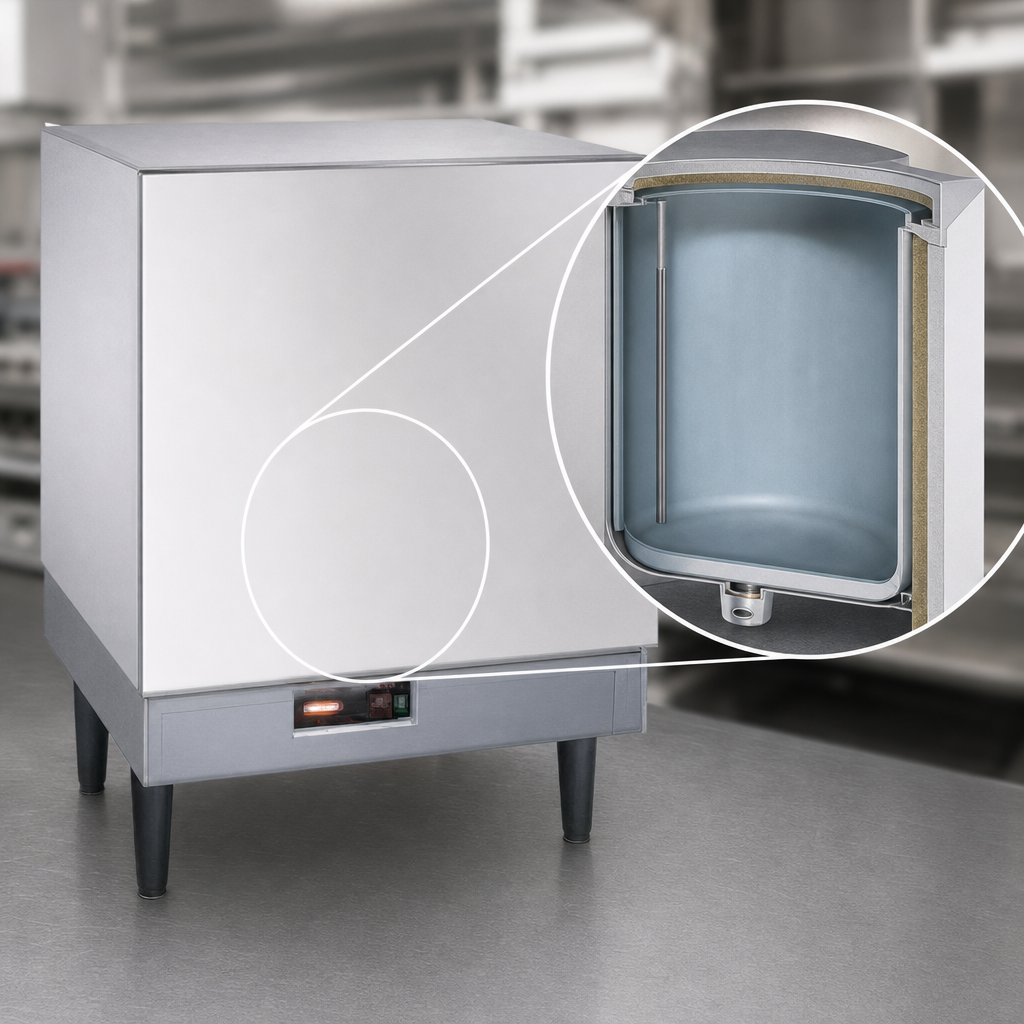

- 16 gal Castone® lined tank – non-corrosive, non-toxic lining with a 10-year limited warranty.
- Rugged construction – stainless-steel front panel and powder-coated silver-gray hammertone body.
- Energy-saving design – built-in heat trap & fiberglass insulation minimize stand-by heat loss.
- Smart protection – low-water cut-off, high-temperature limit and over-current circuitry guard the elements.
- Plug-and-play installation – factory pre-plumbed/wired with ¾" NPT connections and front service access.
- Field-adjustable thermostat – shipped at 180 °F; can be lowered to 140 °F for low-temp machines.
- 6" (152 mm) non-adjustable legs keep the heater off the floor for easy cleaning.
- NSF & cULus listed; proudly Made in the USA.
Technical specifications

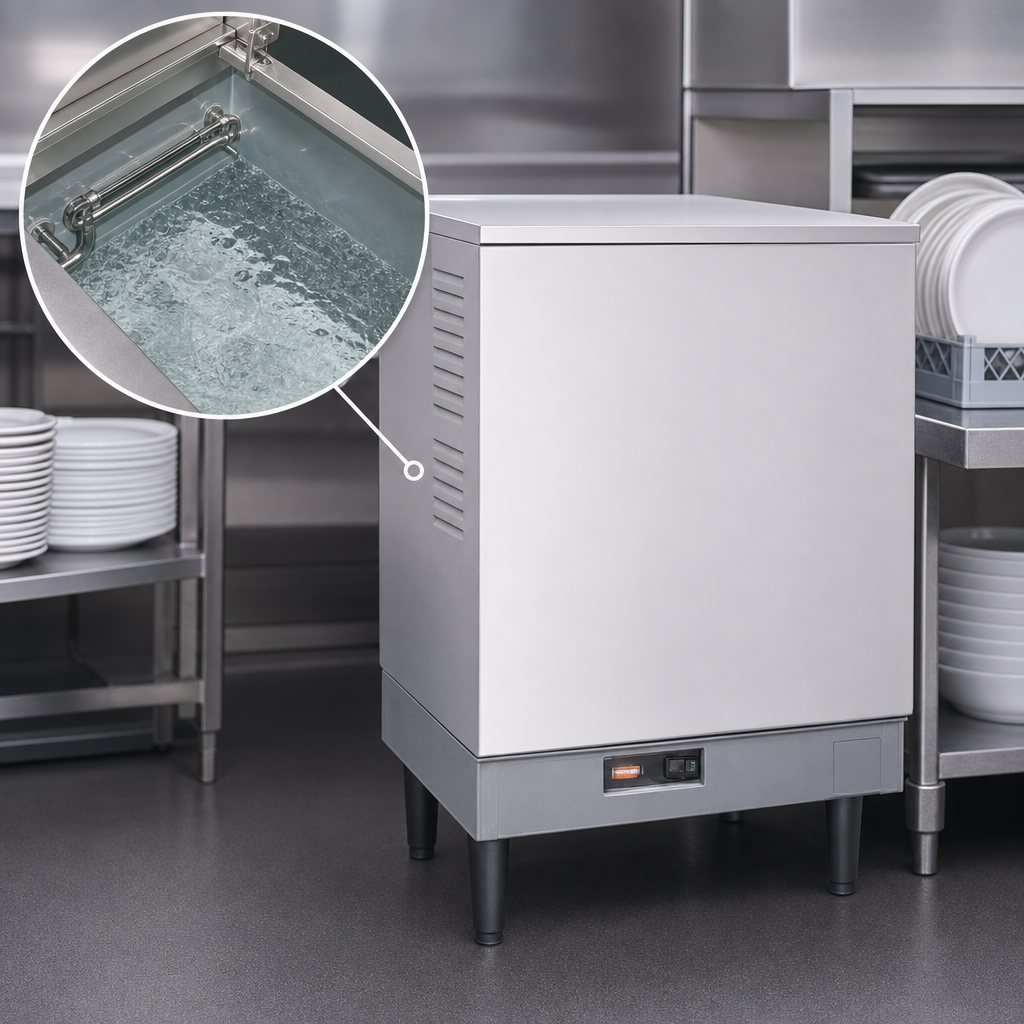

| Storage capacity | 16 gal (60 L) |
|---|---|
| Power rating | 12 kW electric |
| Water recovery | 120 GPH @ 40 °F rise • 69 GPH @ 70 °F rise |
| Voltage / Phase options |
208 V 1-ph 58 A (90 A breaker) 208 V 3-ph 33 A (50 A breaker) 240 V 1-ph 50 A (70 A breaker) 240 V 3-ph 29 A (40 A breaker) 480 V 3-ph 14.5 A (20 A breaker) 600 V 3-ph 11.6 A (20 A breaker) |
| Working pressure | 150 psi (1034 kPa) max |
| Connections | ¾" NPT inlet & outlet • electrical knockouts 1½" & 2" |
| Dimensions (w × d × h) | 23.53" × 22.75" × 31.03" (add 5" for T/P valve) |
| Shipping weight | ≈ 200 lb (91 kg) |
| Warranty | 10-yr tank • 1-yr parts & labor • 24/7 service hotline (US/CA) |
Ideal for
- High-volume restaurants and hotels
- School, healthcare & institutional dishrooms
- Catering and banquet operations requiring rapid turn-around of wares
Need a different kW or voltage? Ask us about the full Hatco Imperial range (6–57 kW).
