Hatco

Hatco Imperial Electric Booster Heater, 16 Gallon, 12 kW, 208V, 3-Phase

SKU: S-12-208-3-QS
GTIN: 61570000426
$3,875.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

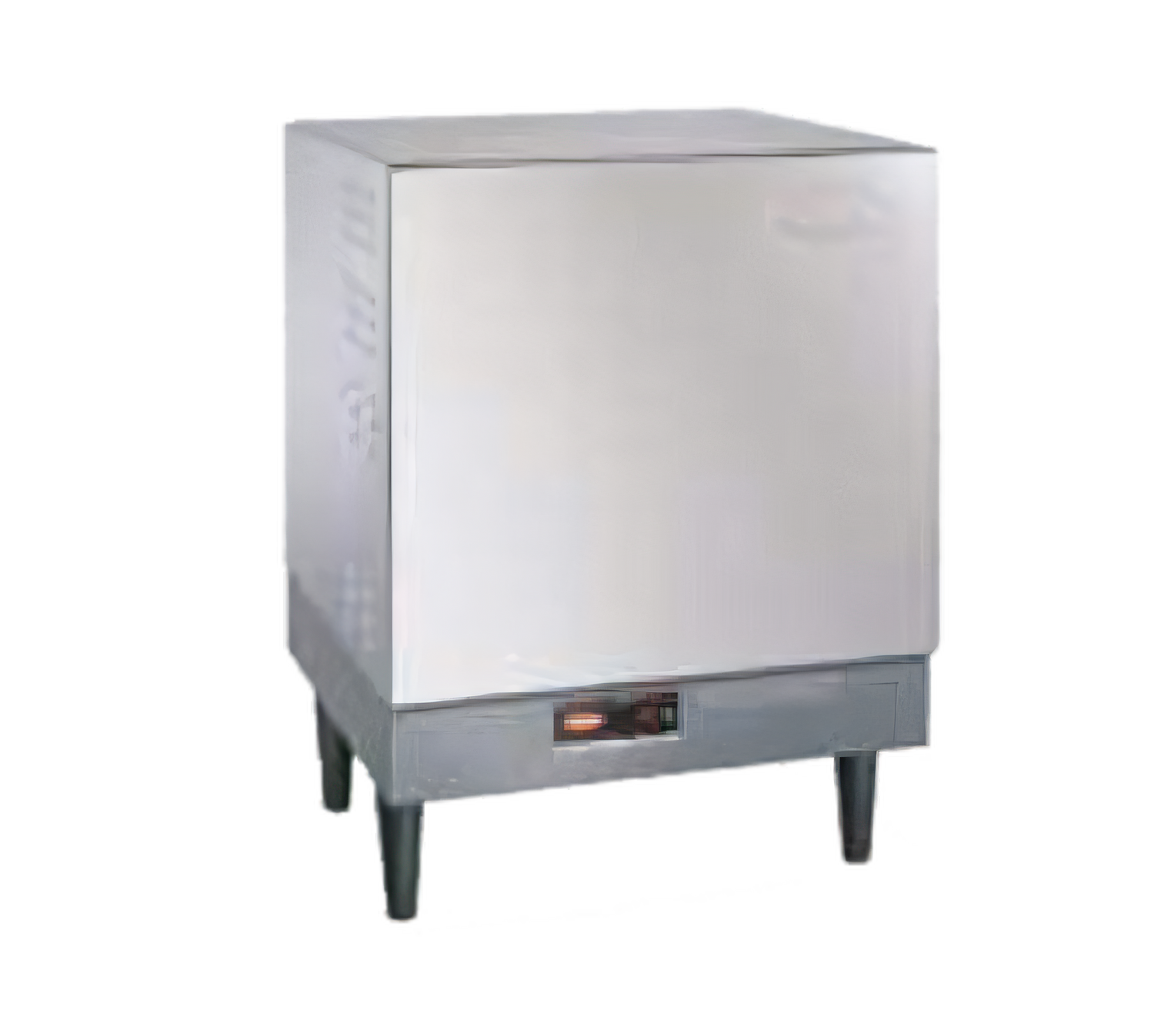

Hatco Imperial Electric Booster Heater, 16 Gallon, 12 kW, 208V, 3-Phase

Quick Ship Model with Castone® Lined Tank and Stainless Steel Front Panel

Built for busy dishrooms, this high-capacity electric booster heater delivers reliable sanitizing performance with easy front-service access and strong heat retention.

  • 16-gallon storage capacity supports high-volume dishroom sanitizing demands.
  • Delivers up to 573 GPH of sanitizing rinse water for fast turnover.
  • 12.0 kW, 208V, 3-phase electric service for commercial dishwasher applications.
  • Castone® lined tank with fiberglass insulation and a built-in heat trap helps reduce heat loss.
  • Factory pre-plumbed/pre-wired design and front-access service area simplify installation and maintenance.
  • Stainless steel front panel and powder-coated silver-gray hammertone body add durability.

Overall Dimensions:

23.63"W x 22.75"D x 31.13"H

Product Weight:

200.0 lb

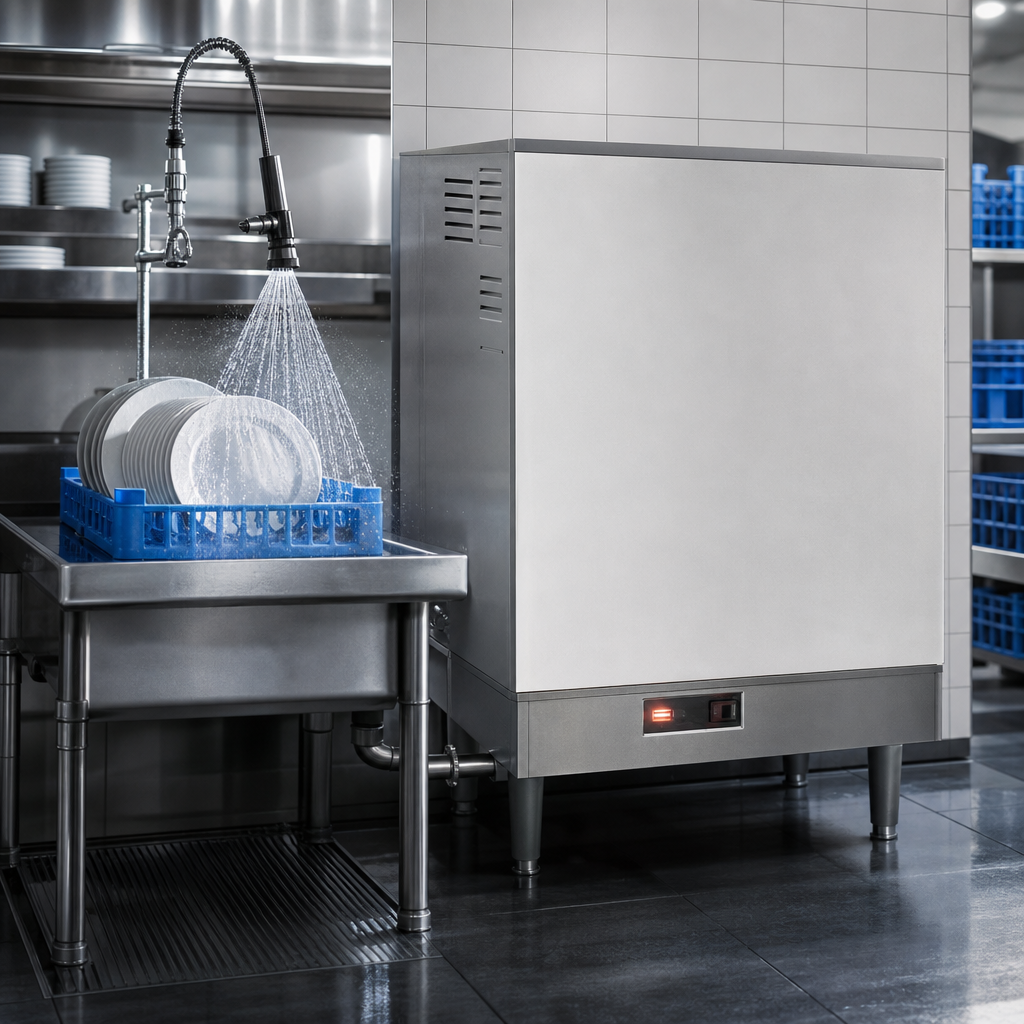

High Sanitizing Output

Provides up to 573 GPH of sanitizing rinse water for demanding dishroom operations.

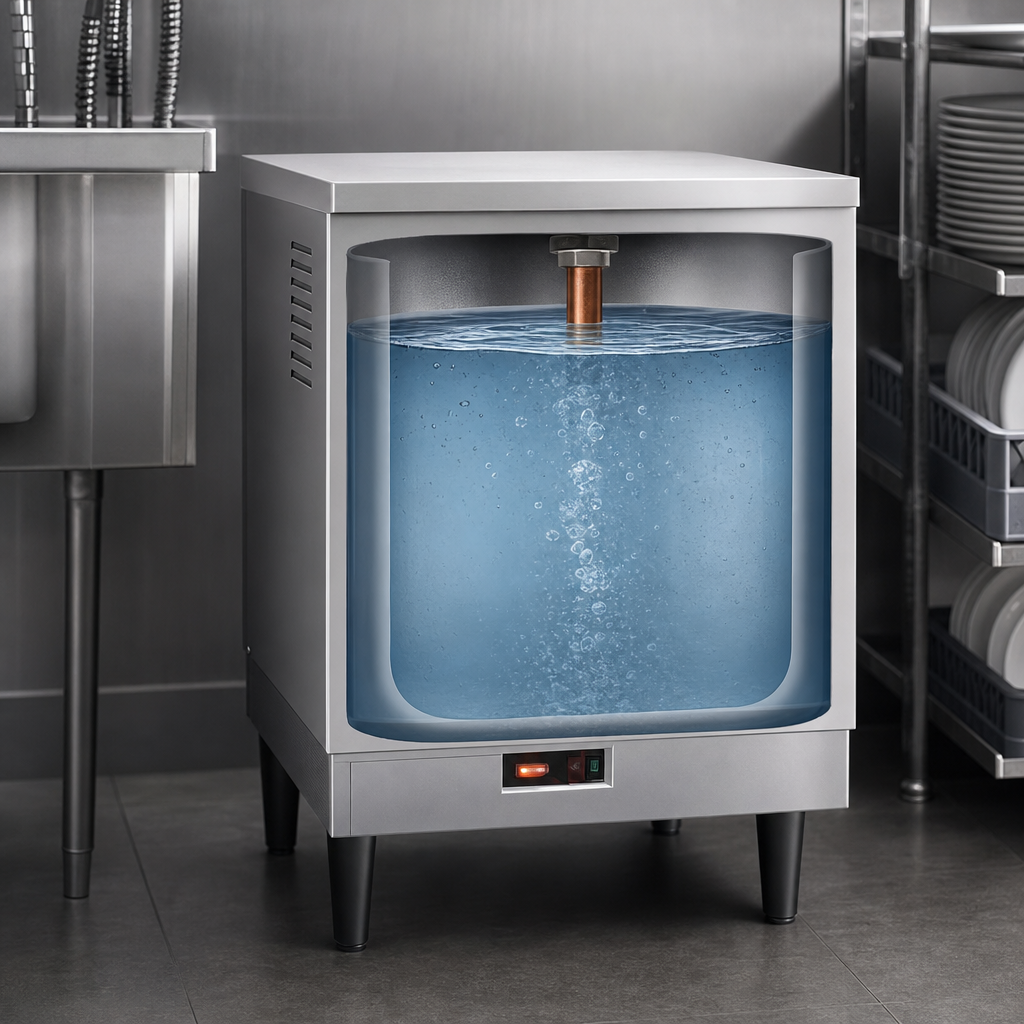

16-Gallon Storage Capacity

Built-in storage helps maintain a ready supply of hot water for rinse cycles.

Castone® Lined Tank

Non-toxic, non-corrosive tank lining includes a 10-year limited warranty.

Heat Retention Design

Built-in heat trap and fiberglass insulation help minimize heat loss.

Factory Pre-Plumbed and Pre-Wired

Arrives with calibrated immersion thermostats and a high-temperature limit switch for easier installation.

Safety Controls

Includes a temperature/pressure relief valve, pressure reducing valve, gauges, high-temperature limit control, pilot indicator light, on/off switch, and low-water cut-off.

Front-Service Access

Front-access service area helps simplify installation and maintenance, even beside other equipment.

Durable Exterior

Features a stainless steel front panel with a powder-coated silver-gray hammertone body.

Floor-Mounted Design

Supplied with 6-inch plastic non-adjustable legs for floor installation.

Type Electric Booster Heater
Style Imperial
Installation Type Floor Model
Capacity 16 Gallons
Controls Thermostatic
Watts 12 kW
Voltage 208 Volts
Hertz 60 Hz
Phase 3-Phase
Finish Powder-Coated Silver-Gray Hammertone
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 23 Inches
Shipping Height 32 Inches
Shipping Weight 200 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

10-year limited warranty on the Castone® lined tank.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Quick ship PDF Download PDF Restaurant solutions PDF Download PDF Cafeteria & buffet solutions PDF Download PDF Stadium & concession solutions PDF Download PDF Hotel & lodging solutions PDF Download PDF Super market & in-store solutions PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It can provide up to 573 GPH of sanitizing rinse water.
It requires 208V, 60Hz, 3-phase power and is rated at 12.0 kW.
The storage capacity is 16 gallons (60 liters).
Yes. The thermostats can be lowered to a 140°F (60°C) setting for low-temp dishmachines.
It includes a temperature/pressure relief valve, pressure reducing valve, two gauges, a high-temperature limit control, a pilot indicator light, an on/off switch, and a low-water cut-off.
Yes. The unit is factory pre-plumbed and pre-wired, and the service area is accessible from the front.
