Hatco

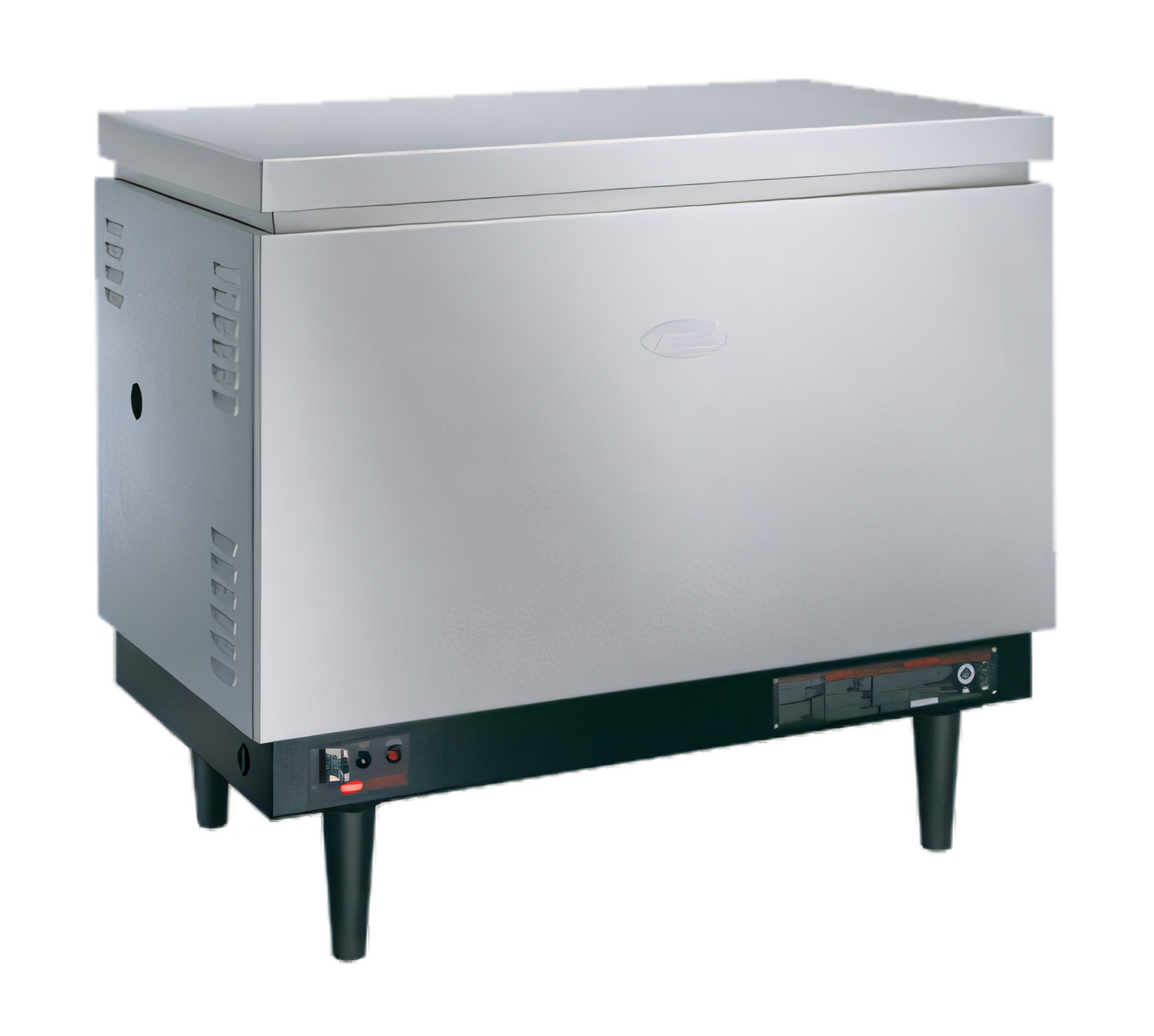

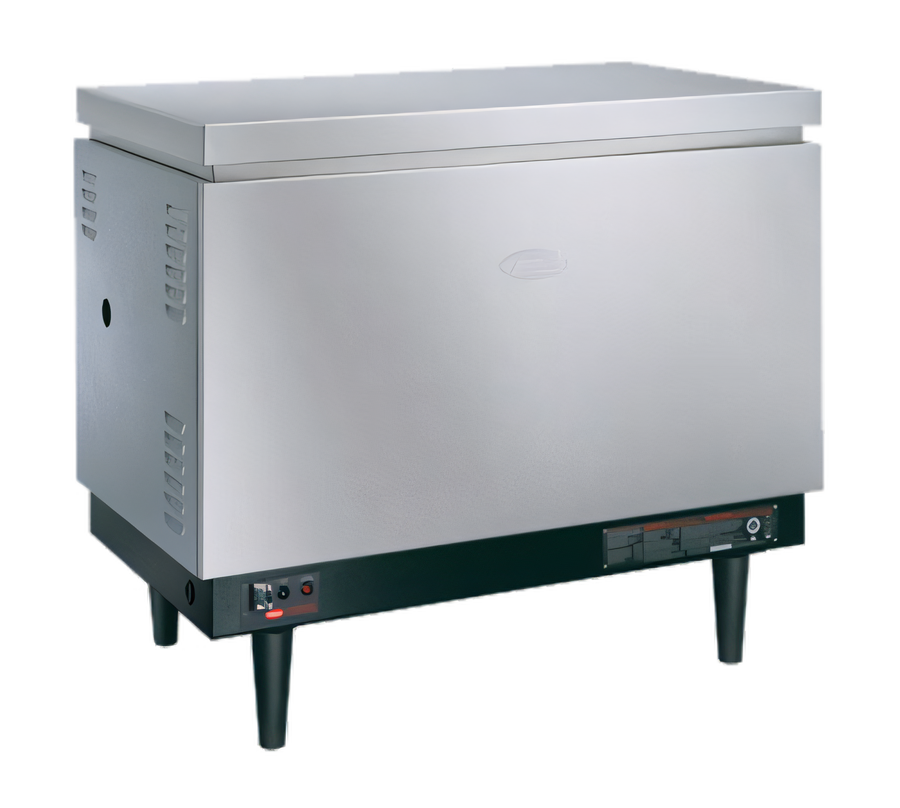

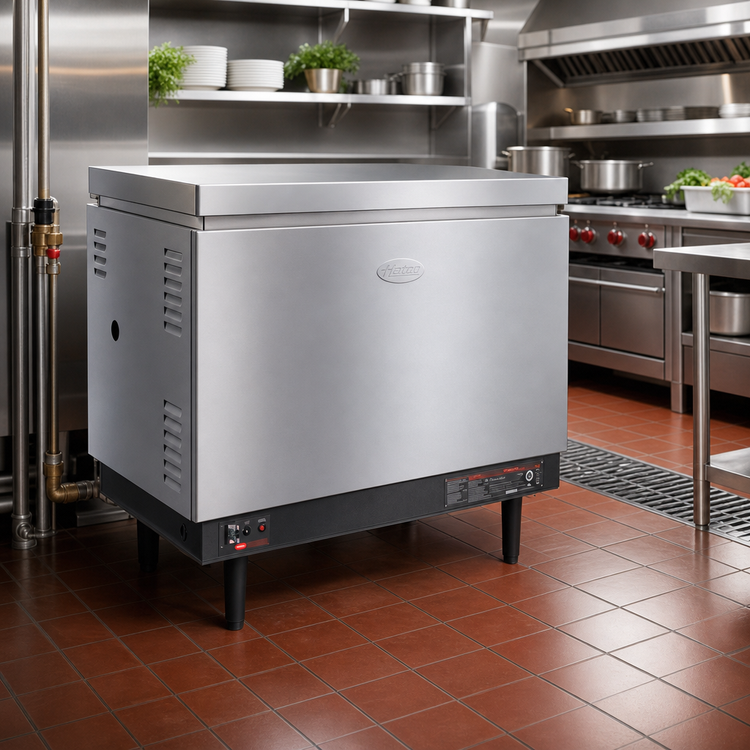

Hatco Powermite PMG-200 Full-Size Gas Booster Water Heater

SKU: PMG-200
$12,848.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Powermite PMG-200 Full-Size Gas Booster Water Heater

4.75 Gallon Storage, 195,000 BTU, Natural Gas or Propane

Designed for efficiency and reliability, the Hatco Powermite PMG-200 ensures a consistent supply of 180°F sanitizing hot water right where you need it, under the dishtable.

  • Delivers 180°F (82°C) sanitizing hot water for dishwashing applications.
  • Operates on either natural gas or propane for flexible installation.
  • Compact design fits under dishtables, minimizing heat loss and maximizing space.
  • Equipped with a blended phosphate water treatment system to combat scale buildup.
  • Features a robust stainless steel tank and front for long-lasting durability.
  • Powerful 195,000 BTU input ensures rapid water temperature recovery.
  • UL EPH Classified and CSA certified, meeting strict safety and sanitation standards.

Overall Dimensions:

35.95"W x 24.64"D x 31.0"H

Product Weight:

228.0 lb

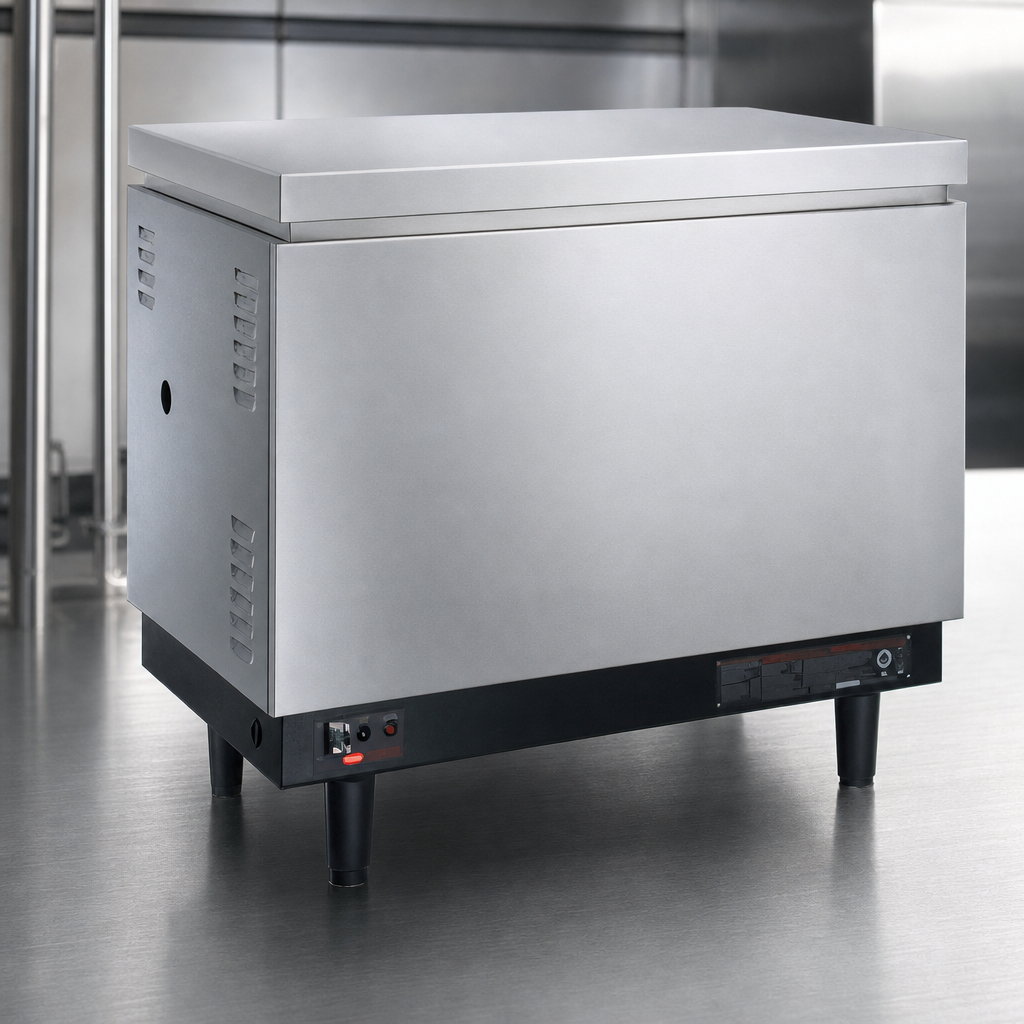

Stainless Steel Tank

Provides exceptional durability and corrosion resistance for prolonged product life.

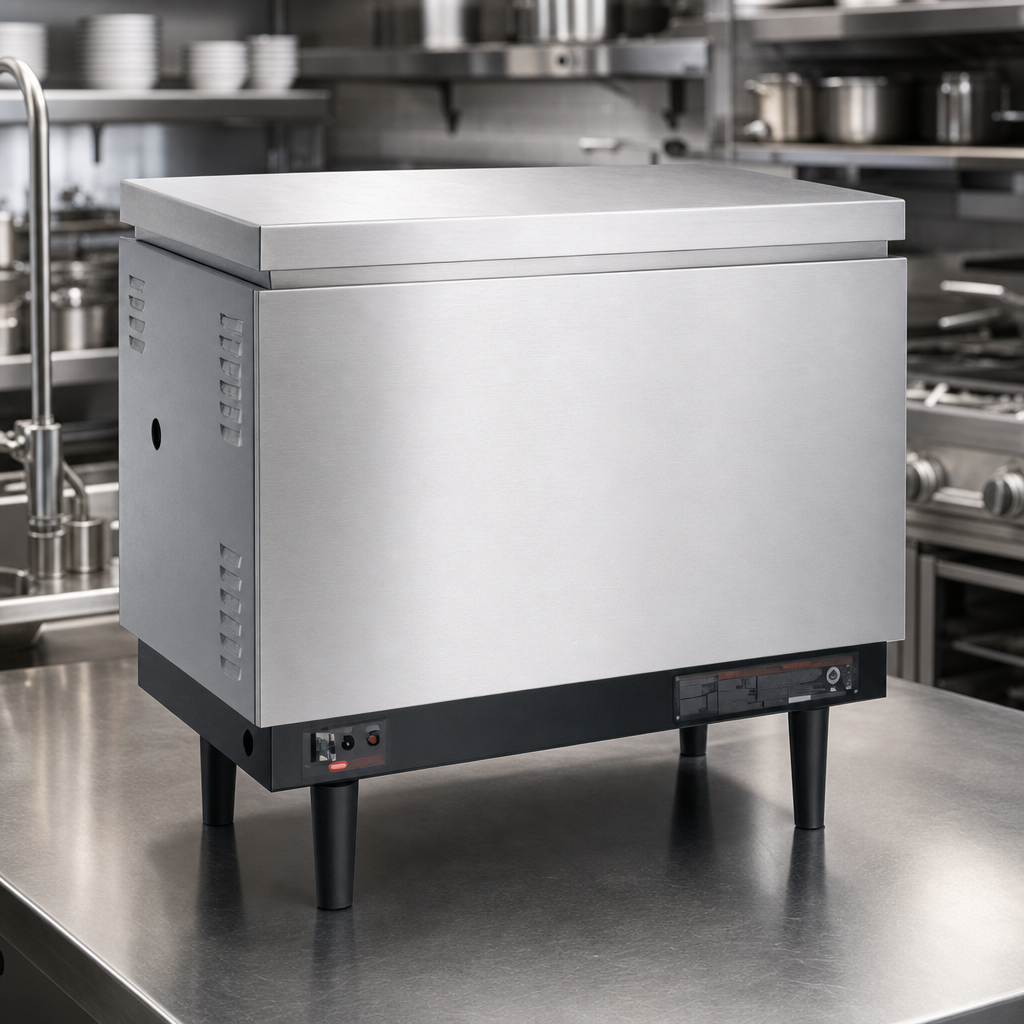

Stainless Steel Front and Top

Offers a sleek, durable, and easy-to-clean exterior that withstands demanding commercial environments.

Finned Tube Copper Heat Exchanger

Maximizes heat transfer efficiency, ensuring rapid and consistent water heating performance.

Spark to Light with Standing Pilot

Ensures reliable ignition for consistent operation and readily available hot water.

Six Tube Type Burners

Specifically designed for the PMG-200 to deliver powerful and even heat distribution for optimal performance.

Temperature/Pressure Relief Valve

Enhances operational safety by preventing conditions of excessive temperature or pressure.

Pressure Reducing Valve

Regulates incoming water pressure to maintain stable and safe operating conditions.

Two Temperature/Pressure Gauges

Allows operators to easily monitor critical system parameters at a glance.

Low-Water Cut-Off

Automatically protects the heating system from damage in the event of insufficient water levels.

Blended Phosphate Water Treatment System

Helps to inhibit mineral and sediment buildup, improving the unit's efficiency and extending its operational lifespan.

Shock Absorber

Reduces operational vibrations, contributing to quieter operation and increased component longevity.

Type Booster Water Heater
Style Gas Booster
Installation Type Floor Model (With 6" Legs)
BTU 195,000 BTU/Hour (Input)
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" NPT
Gas Inlet Pressure (Natural Gas) 5 - 10.5 Inches W.C.
Gas Inlet Pressure (Propane) 11 - 13 Inches W.C.
Water Connection Size 3/4" NPT
Operating Water Pressure 150 PSI (Maximum)
Capacity 4.75 Gallons (Storage)
Material Stainless Steel
Interior Finish Stainless Steel
Color Silver-Gray Hammertone (Sides and Back), Stainless Steel (Front and Top)
Controls Immersion Thermostats
Voltage 120 Volts
Amps 3.00 Amps
Watts 360 Watts
Phase 1-Phase
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 25 Inches
Shipping Height 31 Inches
Shipping Weight 228 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

24/7 parts and service assistance (US and Canada only).

Documents

PDF Cutsheet PDF Download PDF Installation & operation. PDF Download

Frequently Asked Questions

The Hatco Powermite PMG-200 is a gas booster water heater specifically designed to provide a consistent supply of 180°F (82°C) sanitizing hot water, essential for commercial dishwashing operations.
Yes, the PMG-200 is designed for versatility and can operate on either natural gas or propane, making it adaptable to various kitchen setups and utility connections.
The PMG-200 features a powerful 195,000 BTUs per hour input, ensuring rapid water temperature recovery to meet high-demand requirements.
The unit includes a blended phosphate water treatment system that helps inhibit mineral and sediment buildup. However, for water exceeding 3.0 grains of hardness per gallon, pre-treatment and softening are still recommended to prevent product failure not covered by warranty.
The PMG-200 requires a 120 VAC, 3.00 Amp, single-phase electrical connection.
Yes, the PMG-200 utilizes a forced draft system with a 4-inch (102 mm) diameter vent pipe adapter. All installations must be made by a qualified installer in accordance with the National Fuel Gas Code and local codes.
