Hatco PMG-200-120-QS Quick Ship High Temp & Low Temp Dishwashers
Description

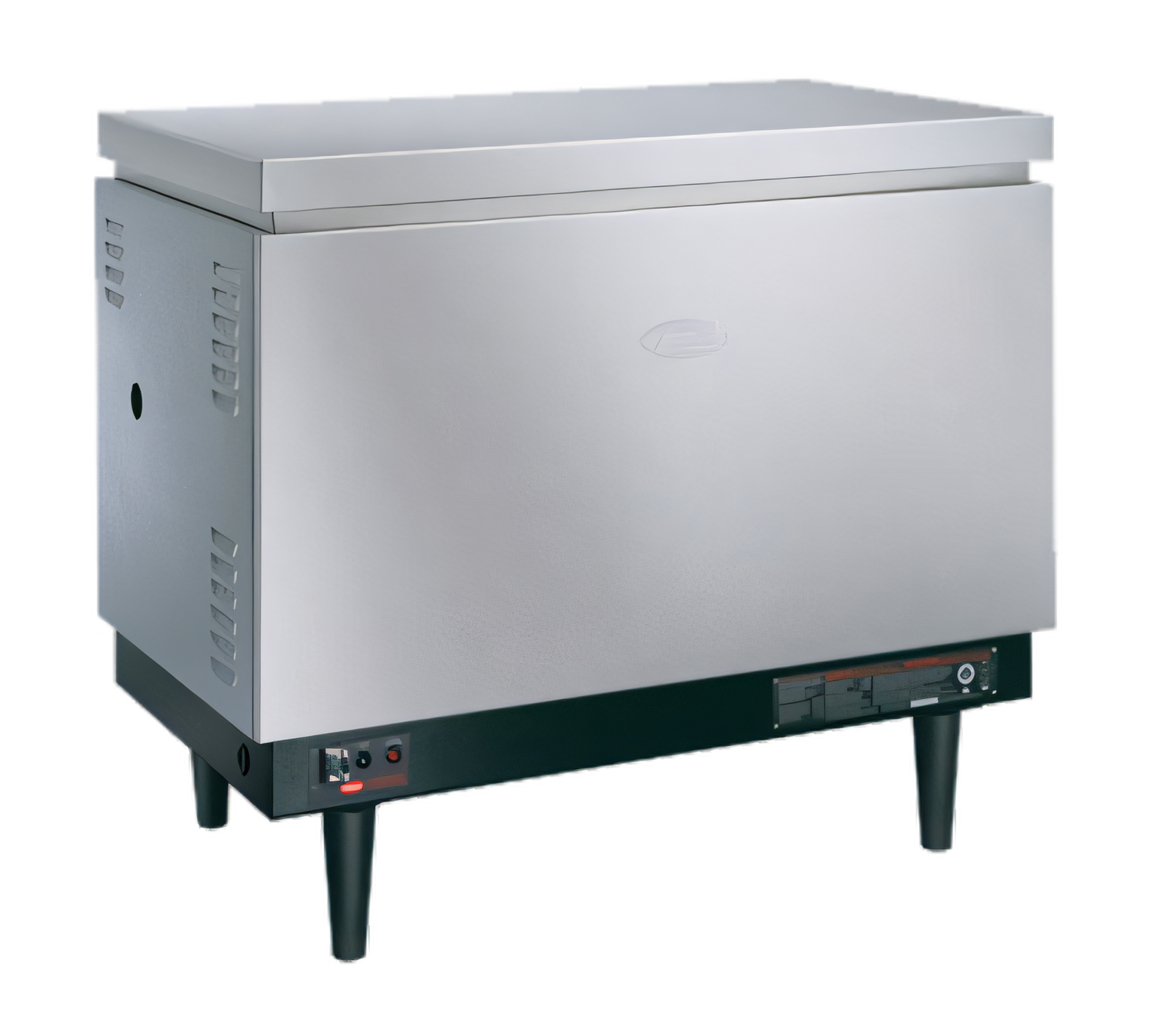

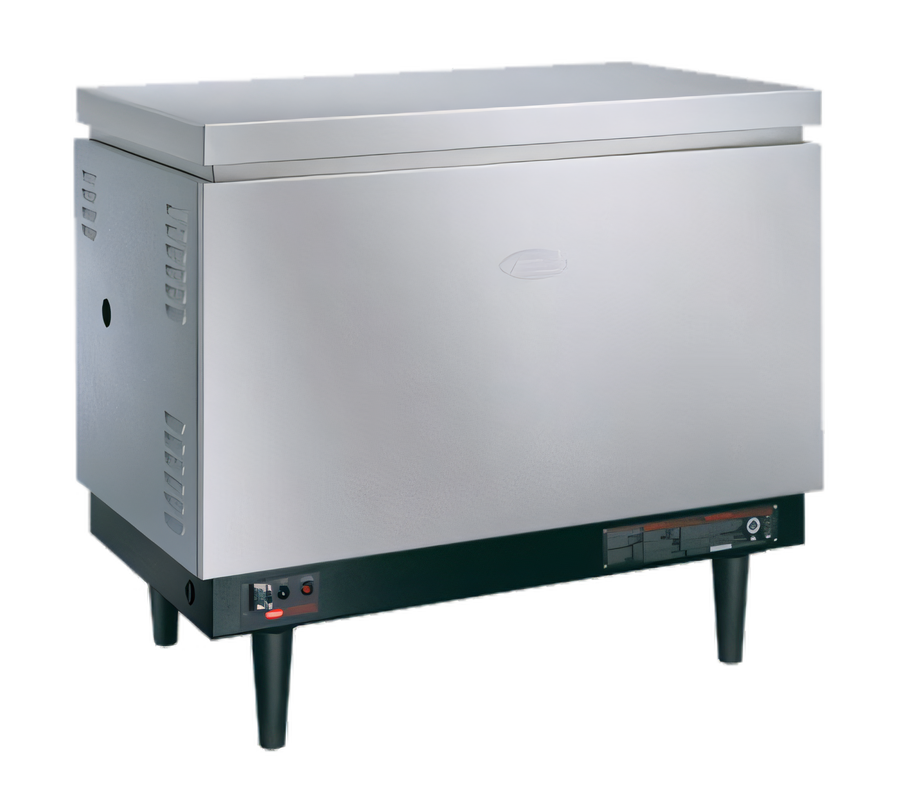

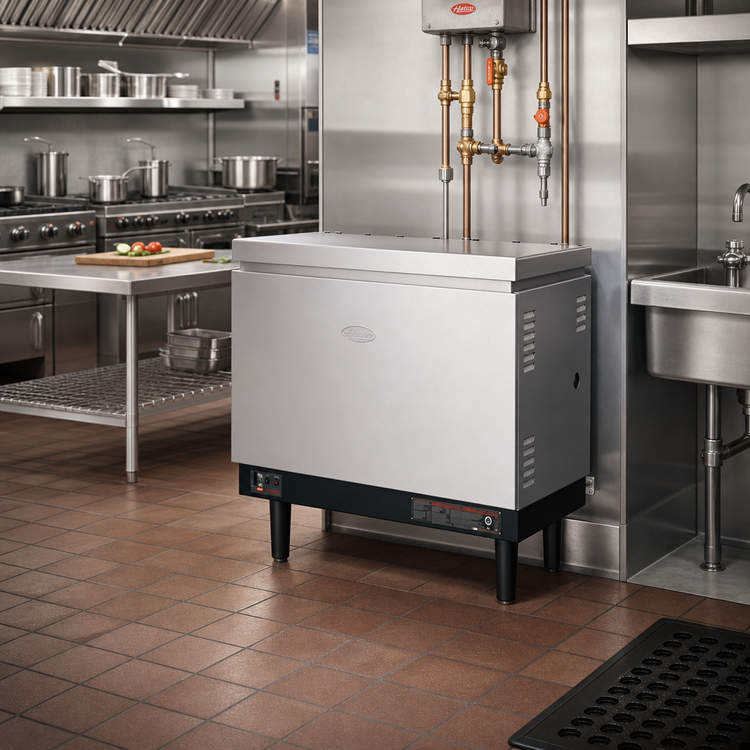

Hatco Powermite® PMG-200 Gas Booster Heater — Quick Ship
4.75 gal • 195,000 BTU • 120 V / 1-phGet a constant supply of 180 °F (82 °C) sanitizing rinse water without long lead-times or remote piping losses. The Quick Ship Powermite® PMG-200 tucks neatly beneath the dishtable, super-charging any high-temp warewasher with heavy-duty, American-made performance.
Why you’ll love it
- Powerful 195,000 BTU/h natural-gas burner with six tube-type burners and a finned-tube copper heat exchanger.
- 4.75 gal stainless-steel storage tank recovers up to 602 GPH at a 30 °F rise.

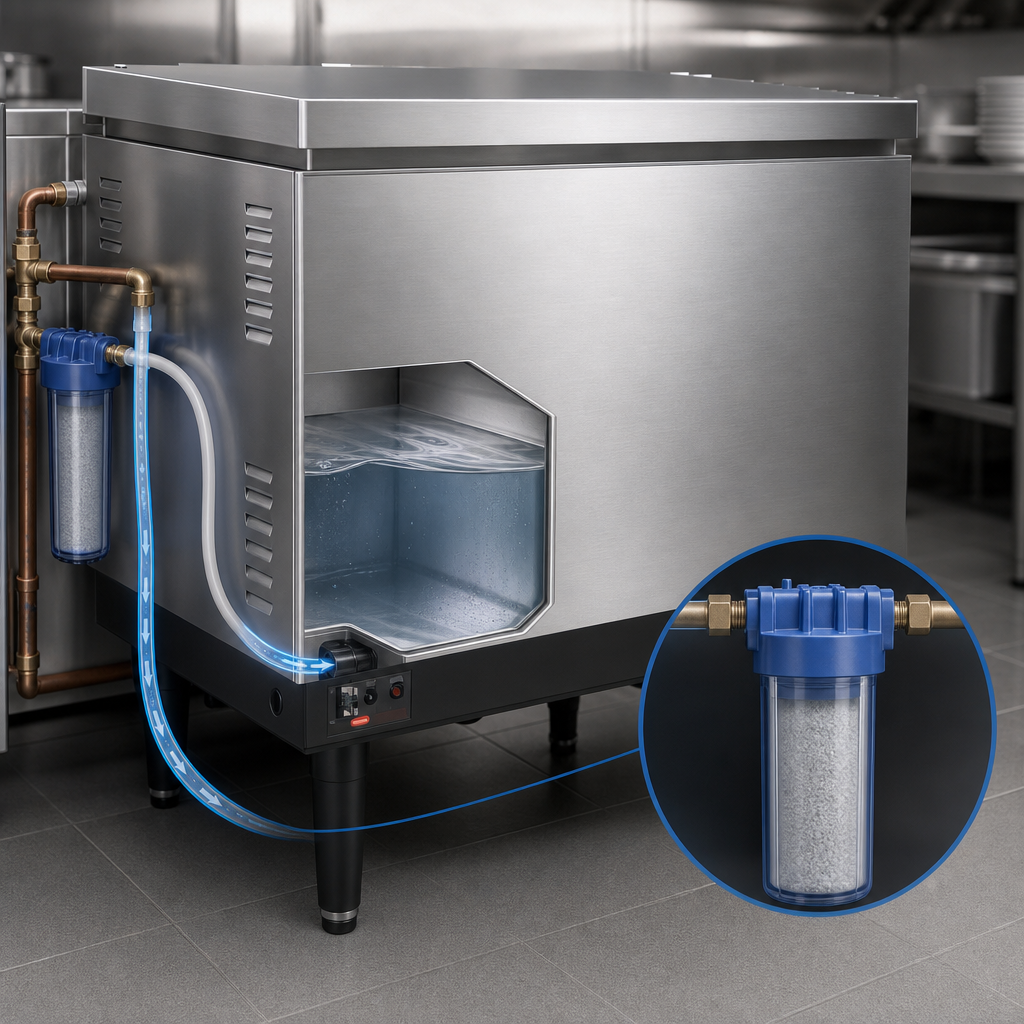

- Factory-installed blended-phosphate water treatment system extends component life.

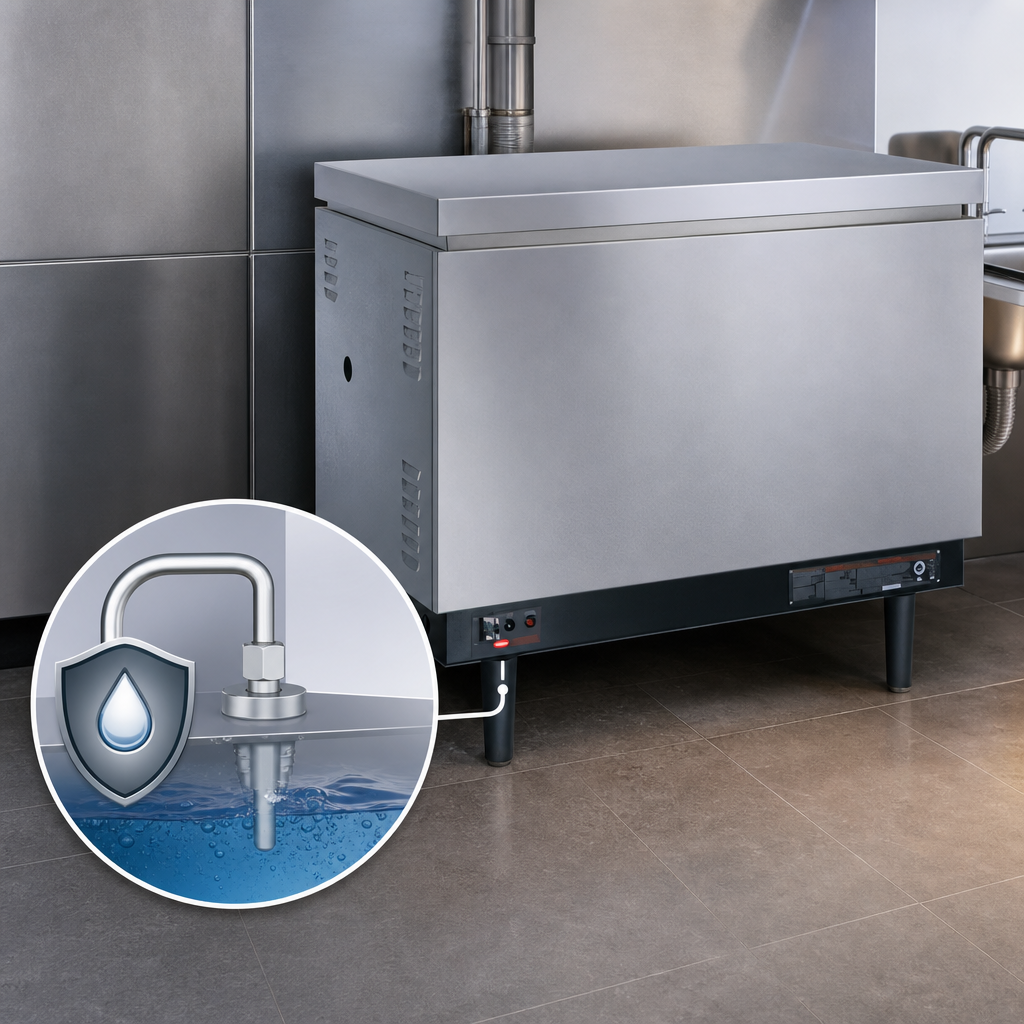

- Comprehensive safety package: low-water cut-off, high-temp limit, and T&P relief valve.
- Front-mounted on/off switch and indicator light plus two easy-read temp/pressure gauges.
- Pressure reducing valve with bypass and built-in shock absorber protect downstream equipment.
- Stainless tank & front panel; painted sides, back, and legs for durability and easy cleaning.
- Compact footprint (35.95 ″ W × 24.64 ″ D × 31 ″ H) fits under most dishtables.
- UL EPH Classified, NSF/ANSI 5, CSA-approved, and proudly Made in the USA.
At-a-glance specs
| Fuel / Input | Natural gas, 195,000 BTU/h (57 kW) |
|---|---|
| Heat output | 156,000 BTU/h (45.7 kW) |
| Storage capacity | 4.75 gal (18 L) |
| Electrical | 120 V, 60 Hz, 1 ph, 360 W, 3 A |
| Connections | ¾ ″ NPT gas & water |
| Max working pressure | 150 psi; relief valve set @ 150 psi / 210 °F |
| Vent | Forced-draft, 4 ″ round flue (adapter included) |
| Ship weight | 228 lb (103 kg) |
Recovery capacities
| Temperature rise | Hot water recovery |
|---|---|
| 30 °F (16 °C) | 602 GPH (2,279 LPH) |
| 40 °F (22 °C) | 452 GPH (1,711 LPH) |
| 50 °F (28 °C) | 361 GPH (1,367 LPH) |
| 60 °F (33 °C) | 301 GPH (1,139 LPH) |
| 70 °F (39 °C) | 258 GPH (977 LPH) |
Perfect for
- Door-type, conveyor, and flight-type high-temp dishmachines
- Pot & pan washers requiring a 180 °F final rinse
- Kitchens looking to minimize energy loss with an under-counter booster
Backed by Hatco’s 24/7 parts & service assistance (US & Canada) and a limited manufacturer’s warranty.
