Hatco PMG-100 Powermite® High Temp & Low Temp Dishwashers
Description

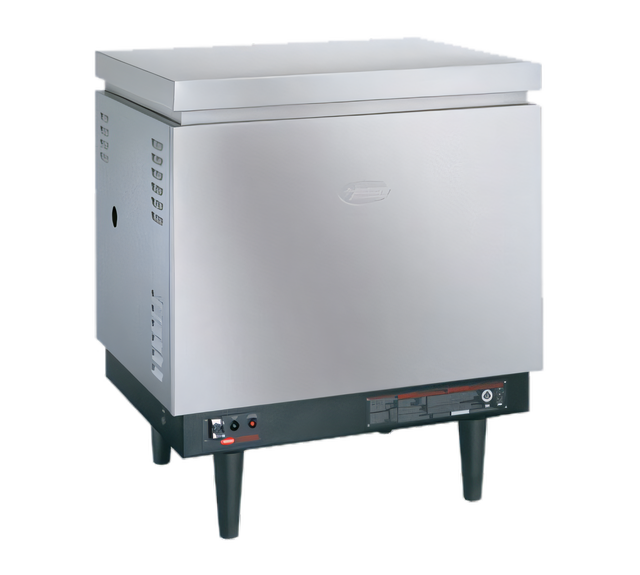

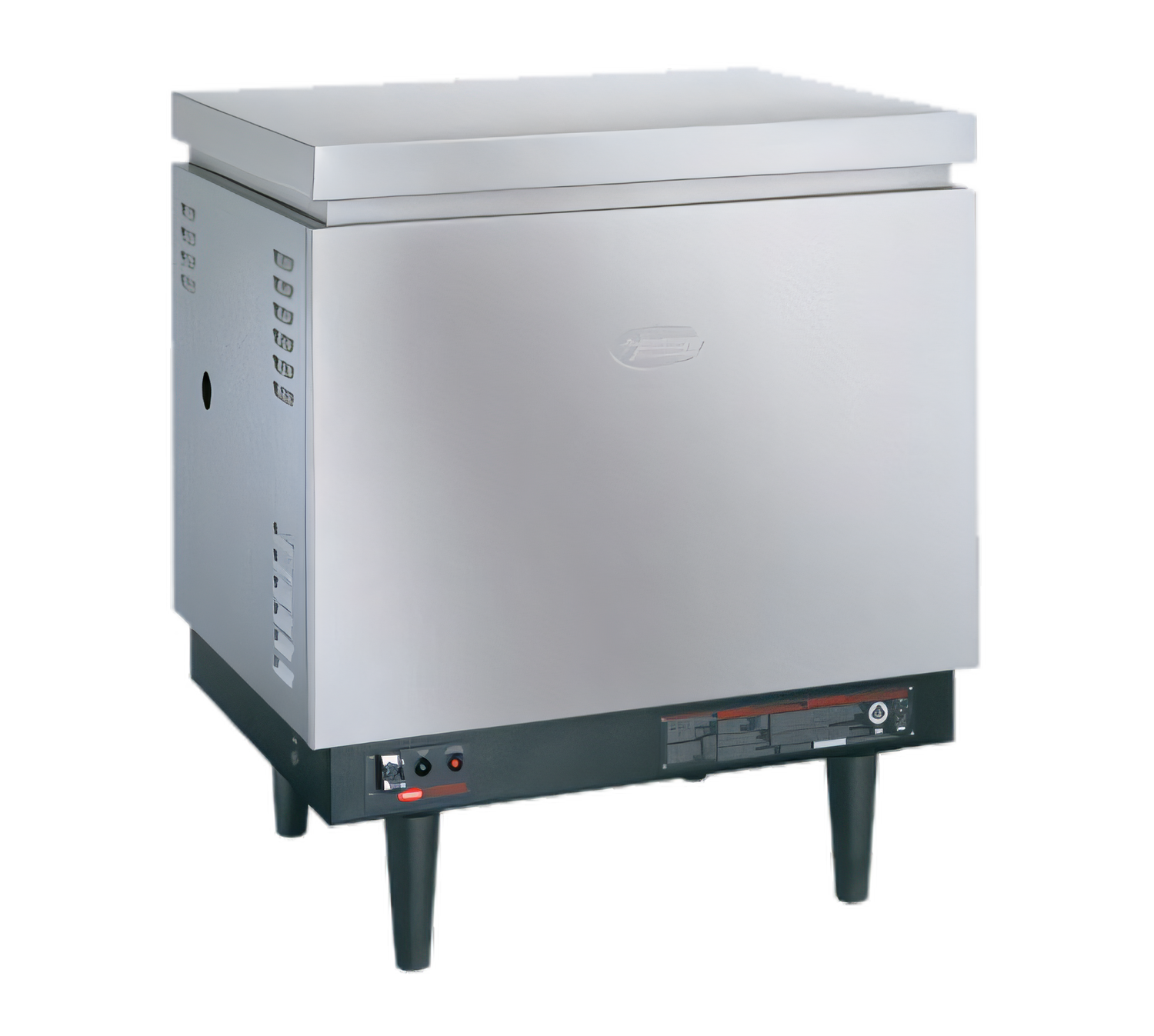

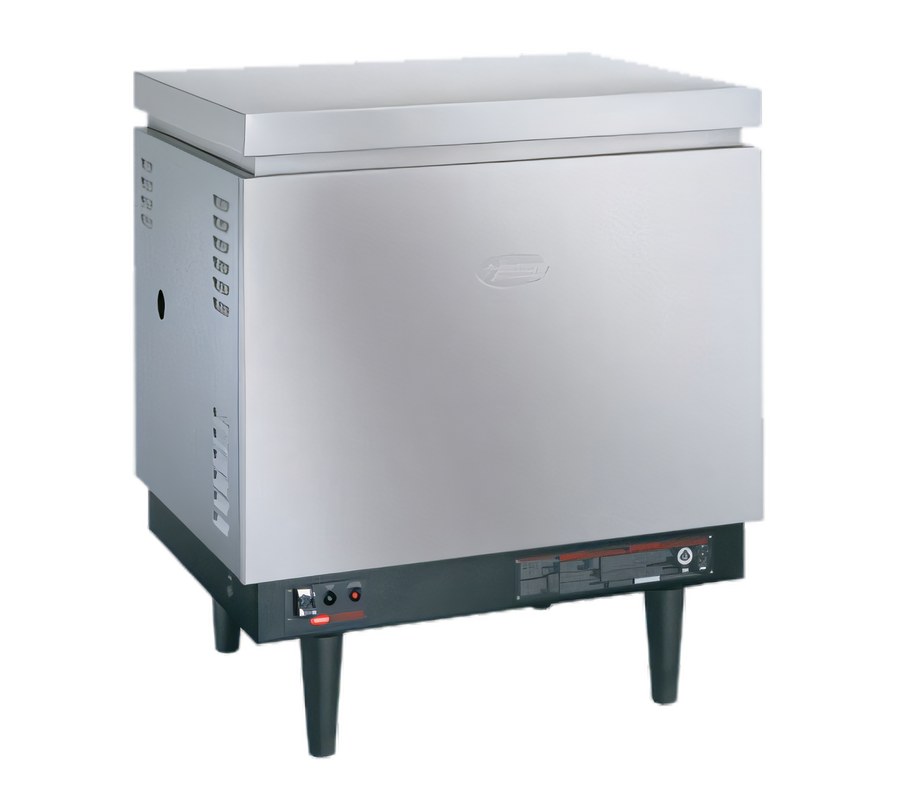

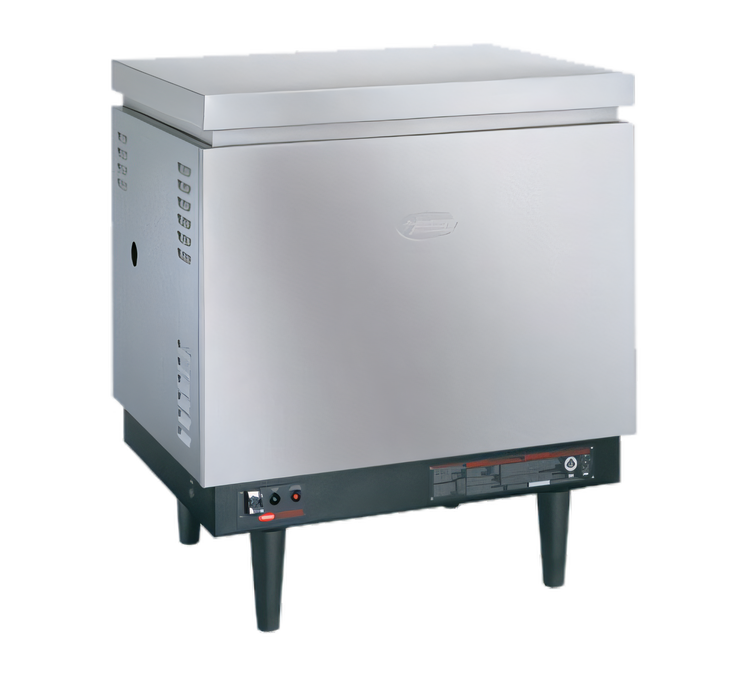

Hatco Powermite® PMG-100 Gas Booster Water Heater

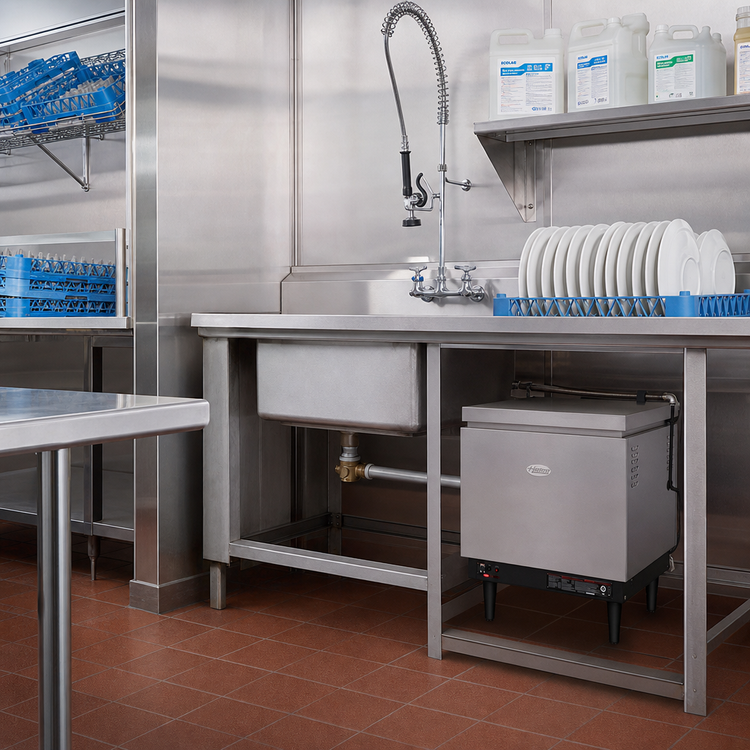

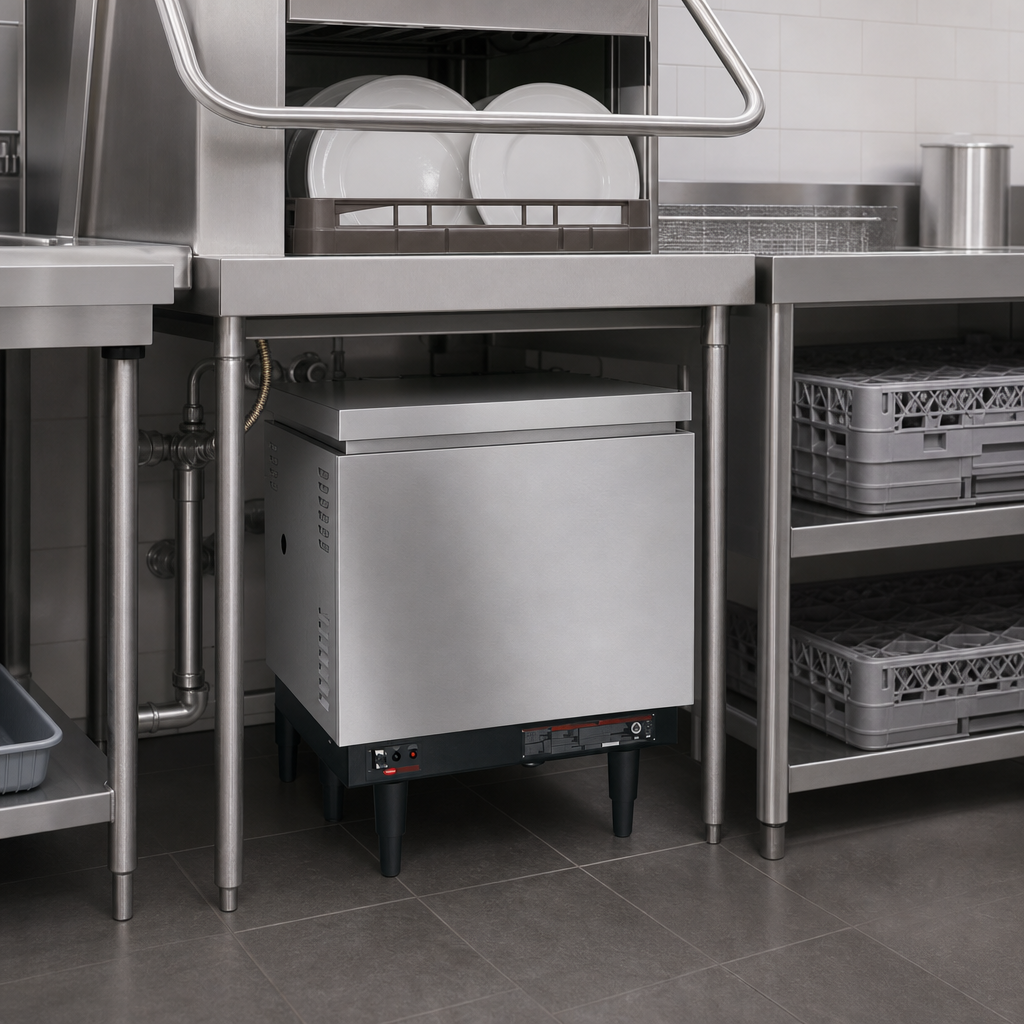

4.75 gal - 105,000 BTU - Made in USADeliver a consistent 180°F (82°C) sanitizing rinse right at the dishwasher while eliminating the heat loss of remote water heaters. Compact enough to slip beneath a dishtable yet powerful enough to keep up with high-volume kitchens, the Powermite® PMG-100 is the dependable, gas-fired booster that operators have trusted for decades.
Why you’ll love it
- Rapid recovery — 105,000 BTU forced-draft burner with three tube-type burners heats up to 321 gal/hr (1,215 L/hr) at a 30°F rise.

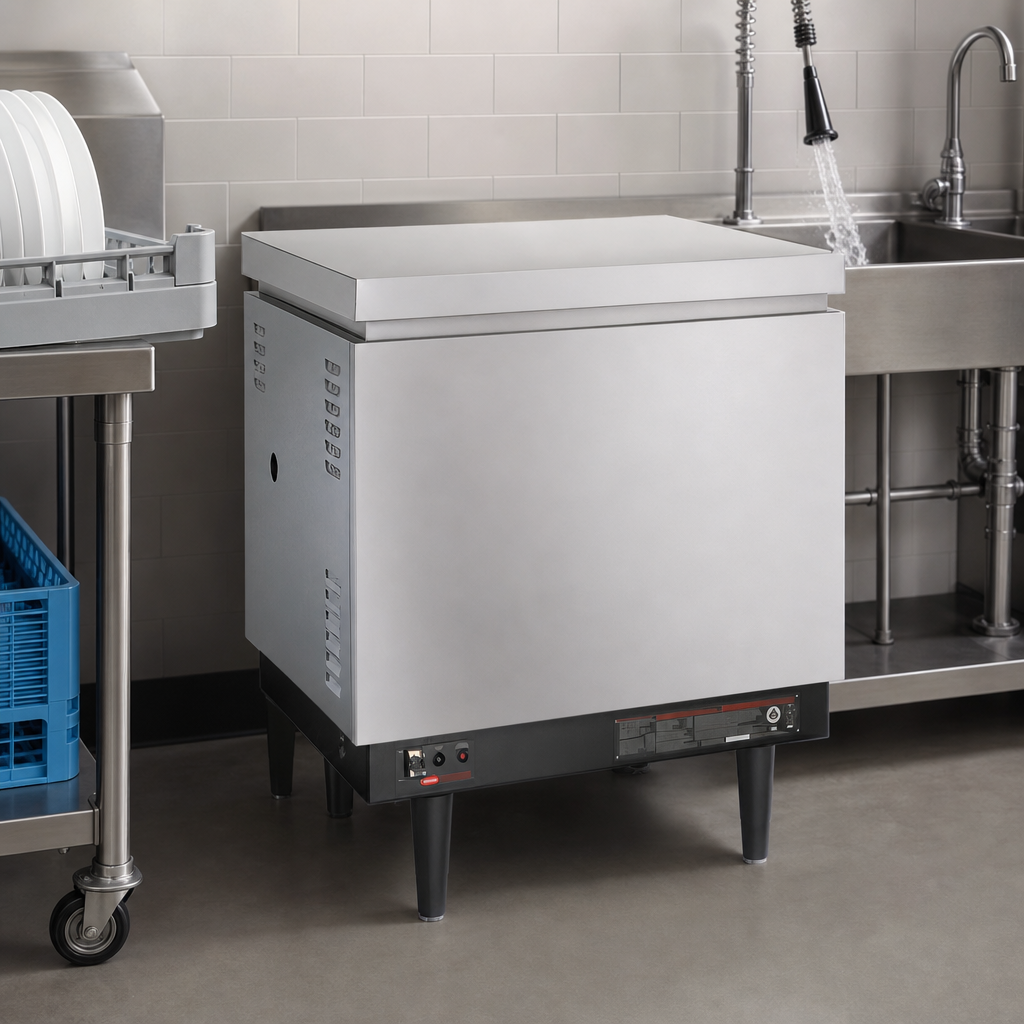

- Compact 4.75 gal (18 L) stainless-steel tank stores just the right amount of 180°F rinse water.
- Built-in blended phosphate water treatment system helps prevent scale and extend equipment life.
- Low-water cut-off, high-limit ECO and factory-installed T/P relief valve add multiple layers of safety.
- Front-mounted indicator light and on/off switch simplify daily operation.
- Stainless-steel front plus powder-coated, antimicrobial* sides & back resist scratches and microbes.
- Field-convertible for natural or LP gas; 120 V cord & plug supplied for controls.
- UL EPH Classified, CSA certified and proudly built in Milwaukee, Wisconsin.
Performance at a glance
| Storage capacity | 4.75 gal / 18 L |
|---|---|
| Input / output | 105,000 BTU/hr (30.8 kW) / 84,800 BTU/hr (24.8 kW) |
| Recovery @ 40°F rise | 241 gal/hr (912 L/hr) |
| Gas connection | ¾" NPT, natural or LP |
| Water connections | ¾" NPT inlet & outlet |
| Electrical | 120 VAC, 360 W, 3 A |
| Operating water pressure | 150 psi (1,034 kPa) max – relief set at 150 psi, 210°F |
| Exterior dimensions | 27.45" W × 20.73" D × 31" H (720 × 625 × 787 mm) incl. 6" legs |
| Ship weight | 193 lb (88 kg) |
Factory-installed safeguards
- Temperature/pressure relief valve
- Pressure reducing valve with bypass
- Dual temperature/pressure gauges
- Low-water cut-off
- High-temperature limit (ECO)
- Shock absorber to reduce water hammer
*IFS antimicrobial powder coating uses silver ions to inhibit microbe growth on the coated surface. Refer to the Powermite® PMG Installation & Operating Manual for complete installation, venting and altitude-adjustment guidelines.
