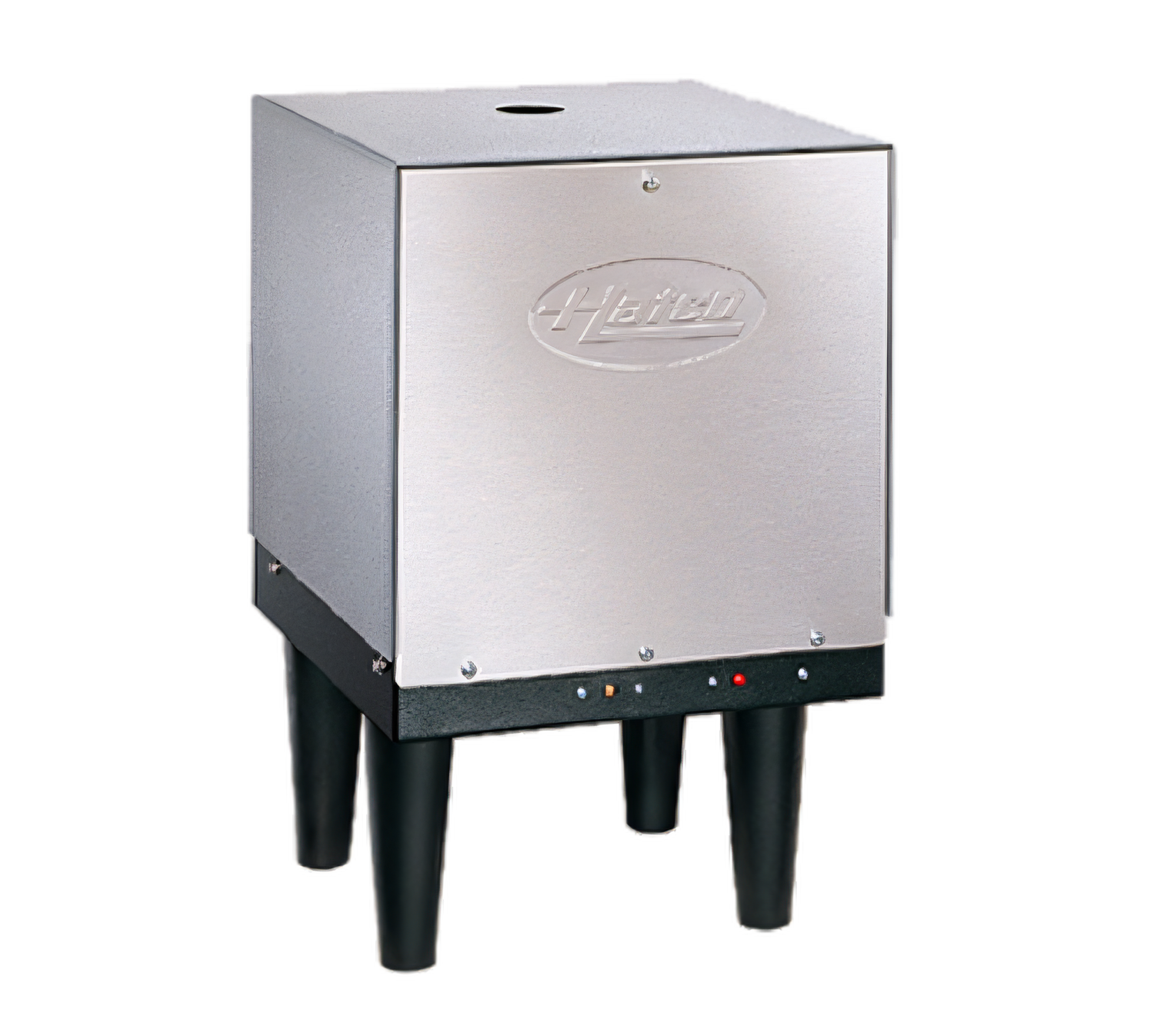

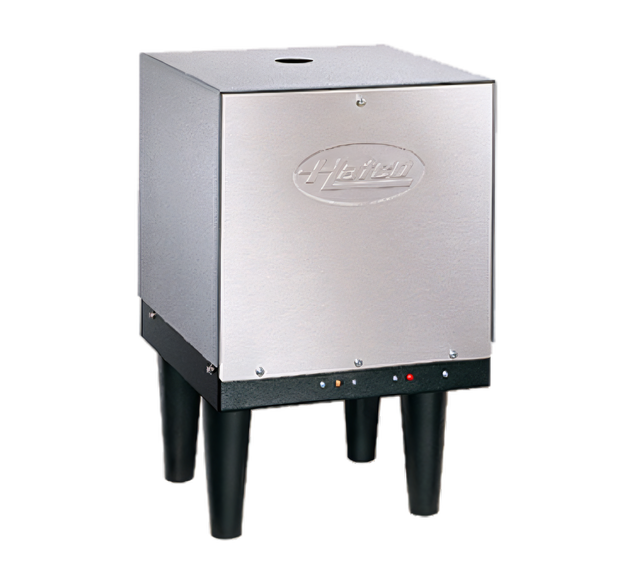

Hatco Mini-Compact Electric Booster Water Heater, 3.2 Gallon, 17.25 kW, 208V, 3-Phase

Stainless Steel Tank, Fast Recovery, 6-Inch Legs

Fast-recovery mini-compact booster heater delivers 180°F sanitizing water in a compact, freestanding design.

  • 3.2-gallon storage capacity with 17.25 kW heating power for commercial dishroom use.
  • Fast recovery helps keep up with busy hot water sanitizing cycles.
  • Stainless steel tank and front panel with a powder-coated body for durable construction.
  • Standard 6-inch legs and compact footprint help with flexible placement.
  • Built-in safety components and prewired controls support easier installation and operation.

Overall Dimensions:

11.75"W x 12.88"D x 18.5"H

Product Weight:

48.0 lb

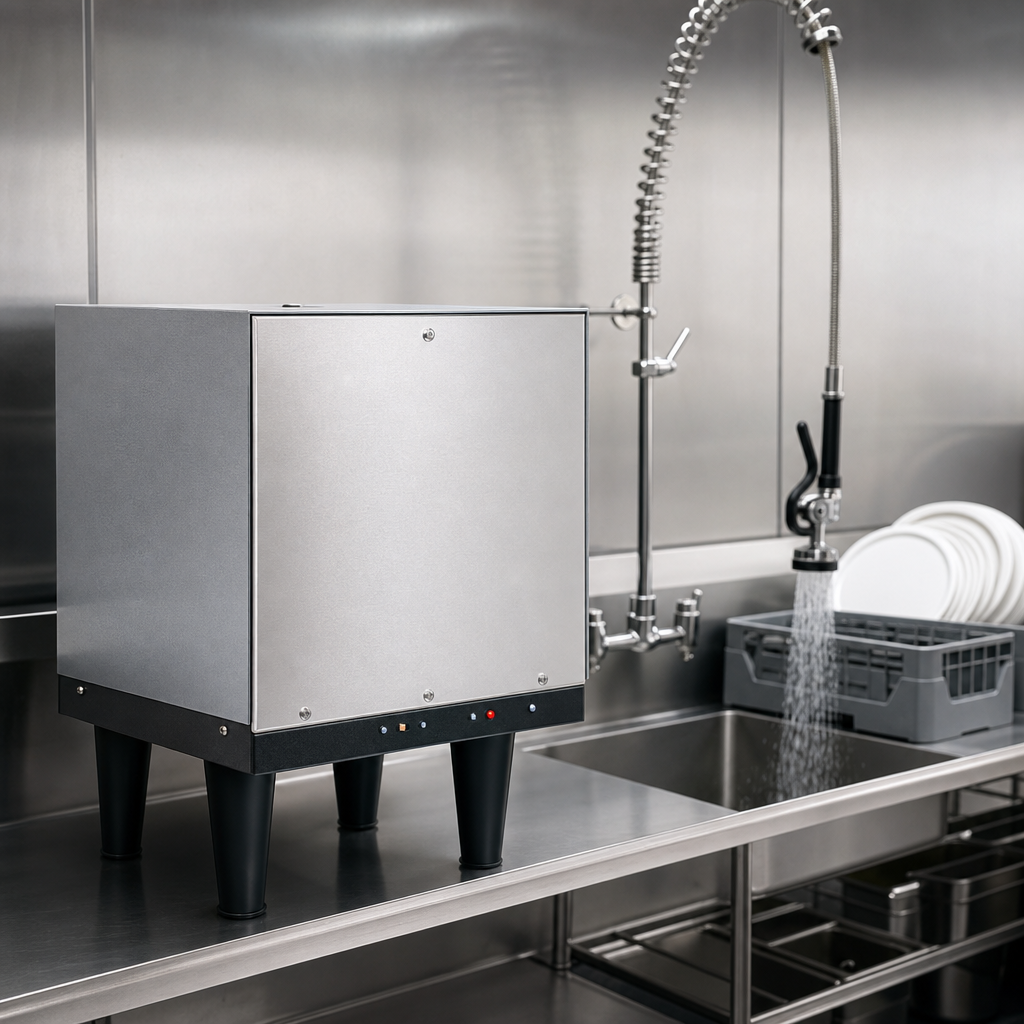

Fast Recovery

Designed to reheat water quickly so the unit can keep up with sanitizing demand.

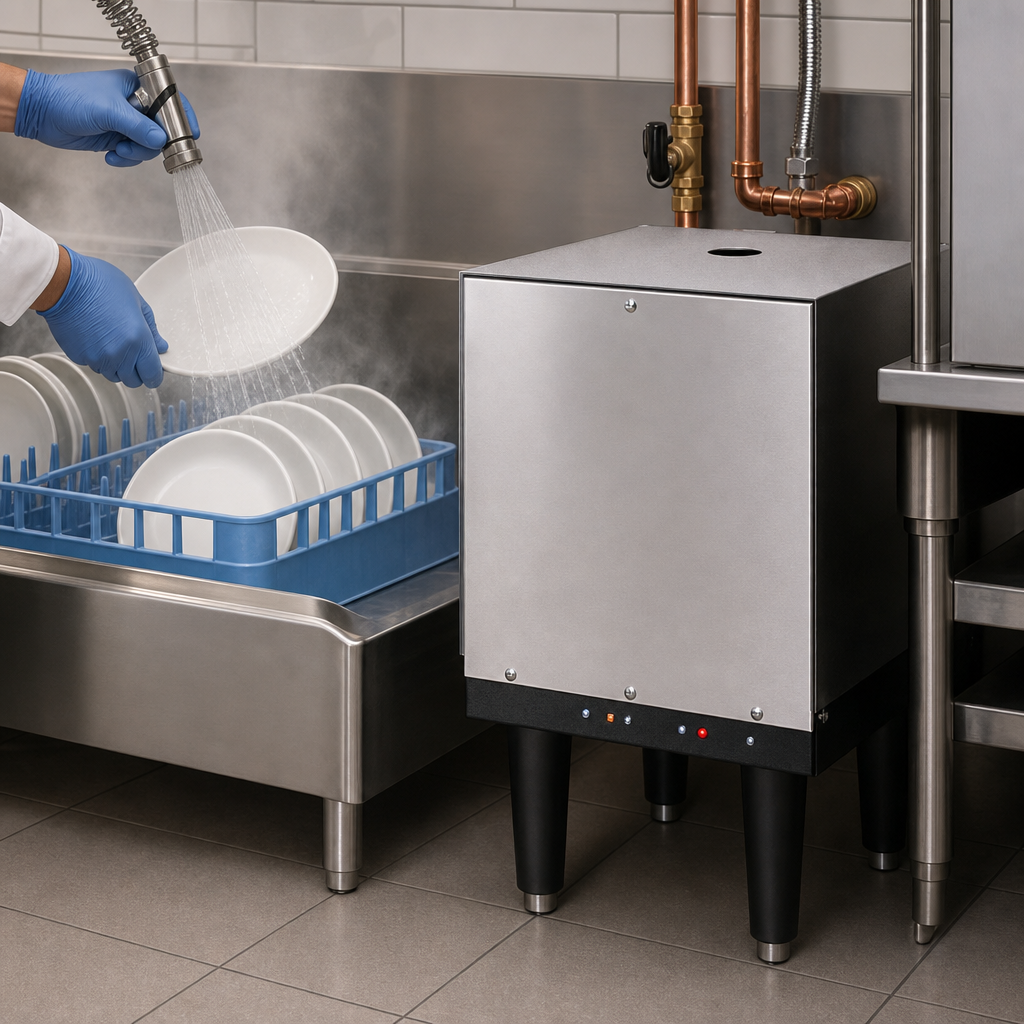

180°F Sanitizing Water

Provides 180°F (82°C) water for hot water sanitizing applications.

3.2-Gallon Storage Capacity

Compact storage capacity suitable for dishroom booster heater applications.

Stainless Steel Tank and Front Panel

Includes a stainless steel tank and front panel with a powder-coated silver-gray hammertone body and black base.

Built-In Safety Package

Standard low-water cut-off, temperature/pressure relief valve, pressure reducing valve, and two temperature/pressure gauges.

Fiberglass Insulation

Helps minimize heat loss to improve temperature retention.

Prewired Controls

Built-in controls and factory prewiring simplify installation.

6-Inch Legs and Compact Footprint

Standard 6-inch legs and a small footprint allow flexible placement in tight spaces.

Type Electric Booster Water Heater
Style Mini-Compact
Installation Type Floor Model
Capacity 3.2 Gallons
Temperature Range 120°F to 180°F (49°C to 82°C)
Voltage 208 Volts
Phase 3-Phase
Amps 47.9 Amps
Watts 17.25 kW
Breaker Size 60 Amps
Controls Built-In On/Off Toggle Switch
Material Stainless Steel
Finish Powder-Coated Silver-Gray Hammertone
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 13 Inches
Shipping Height 19 Inches
Shipping Weight 48 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F (82°C) water for hot water sanitizing.
The unit has a 3.2-gallon (12-liter) storage capacity.
The MC-17 is rated at 17.25 kW, 208 Volts, 3-Phase, and 47.9 Amps with a 60 Amp breaker/fuse size.
The recovery rate is 173 gph at a 40°F rise and 99 gph at a 70°F rise.
Standard features include a low-water cut-off, temperature/pressure relief valve, pressure reducing valve, and two temperature/pressure gauges.
Yes. Incoming water over 3.0 grains of hardness per gallon should be treated and softened before being supplied to the booster heater.
