Hatco

Hatco Mini-Compact Electric Booster Water Heater, 3.2-Gallon Storage, 15 kW, 208V, 3-Phase

SKU: MC-15
$2,538.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

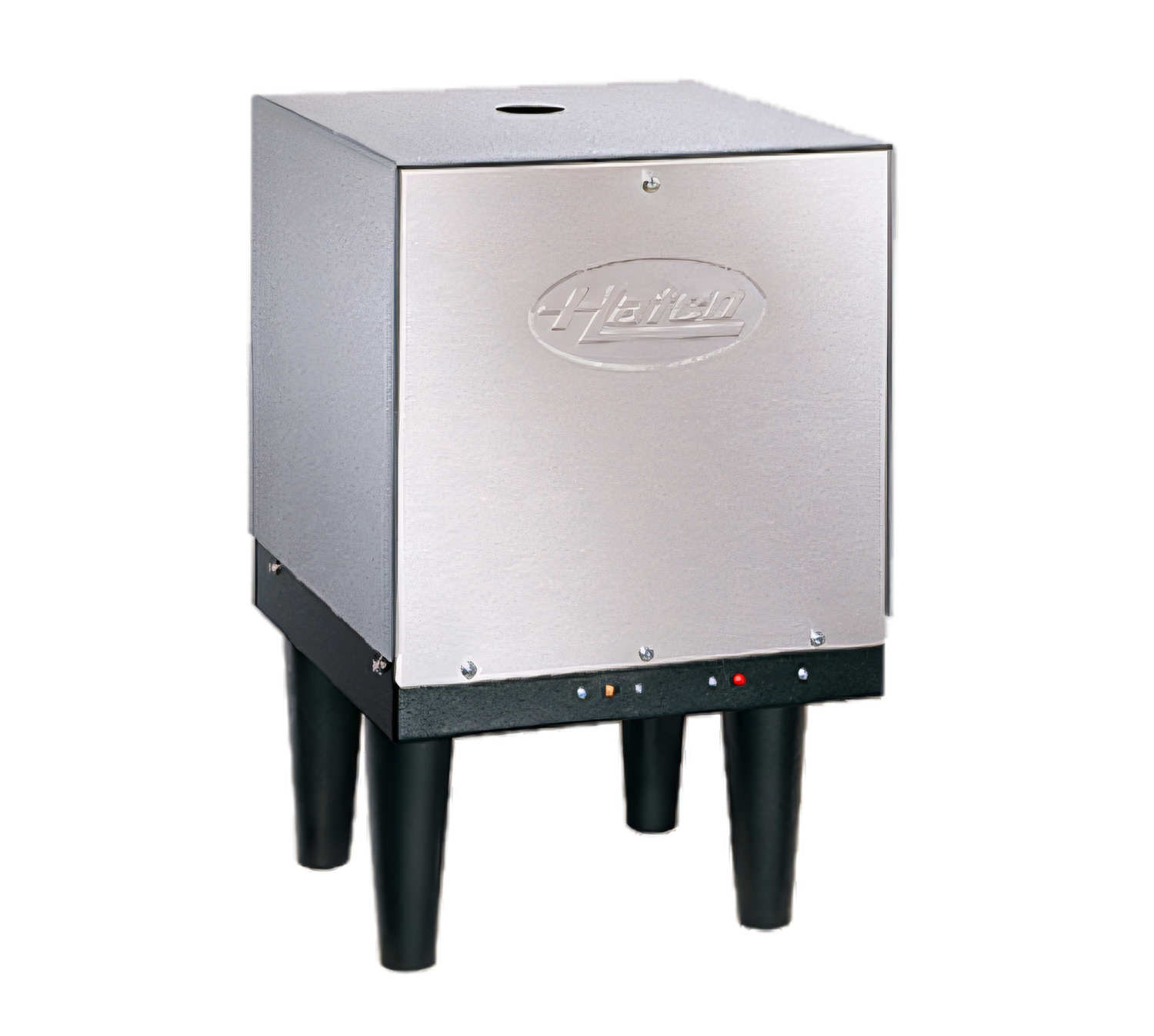

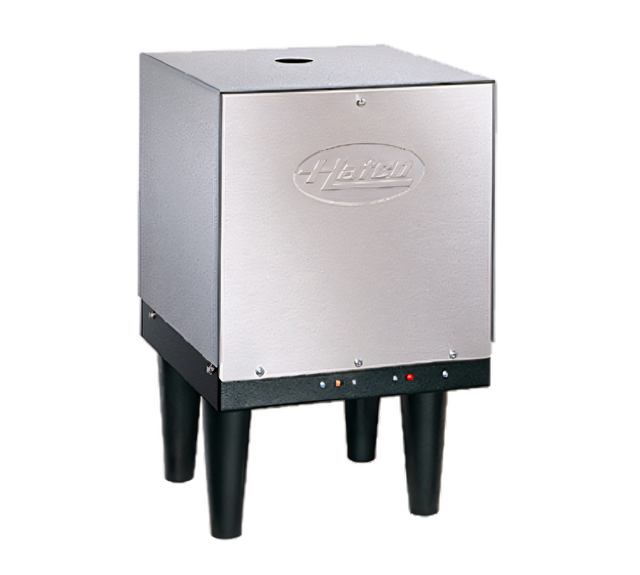

Hatco Mini-Compact Electric Booster Water Heater, 3.2-Gallon Storage, 15 kW, 208V, 3-Phase

Fast Recovery, Stainless Steel Tank, 6-Inch Legs

Compact 15 kW electric booster heater delivers 180°F sanitizing water for commercial dish rooms with fast recovery, a stainless steel tank, and built-in safety controls.

  • 3.2-gallon storage capacity supports high-demand dish room sanitizing applications.
  • 15 kW output with 208V, 3-phase power is built for commercial booster heater use.
  • Fast recovery helps maintain a steady supply of 180°F water during busy service periods.
  • Stainless steel tank and fiberglass insulation support durability and heat retention.
  • Standard safety package includes low-water cut-off, temperature/pressure relief valve, pressure reducing valve, and dual gauges.
  • Compact Mini-Compact cabinet includes standard 6-inch legs for easy placement.

Overall Dimensions:

11.75"W x 12.88"D x 18.5"H

Product Weight:

49.0 lb

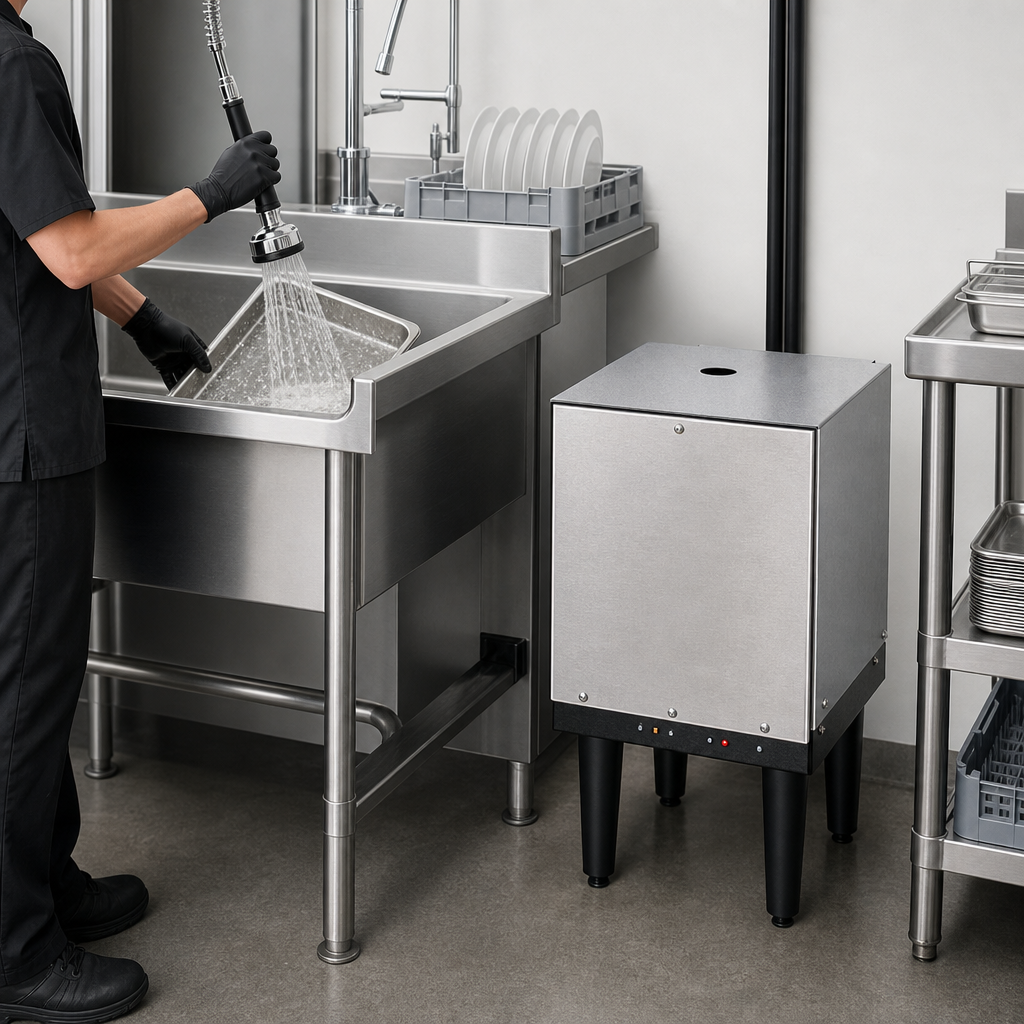

Fast Recovery

Helps replenish hot water quickly to keep up with sanitizing demand.

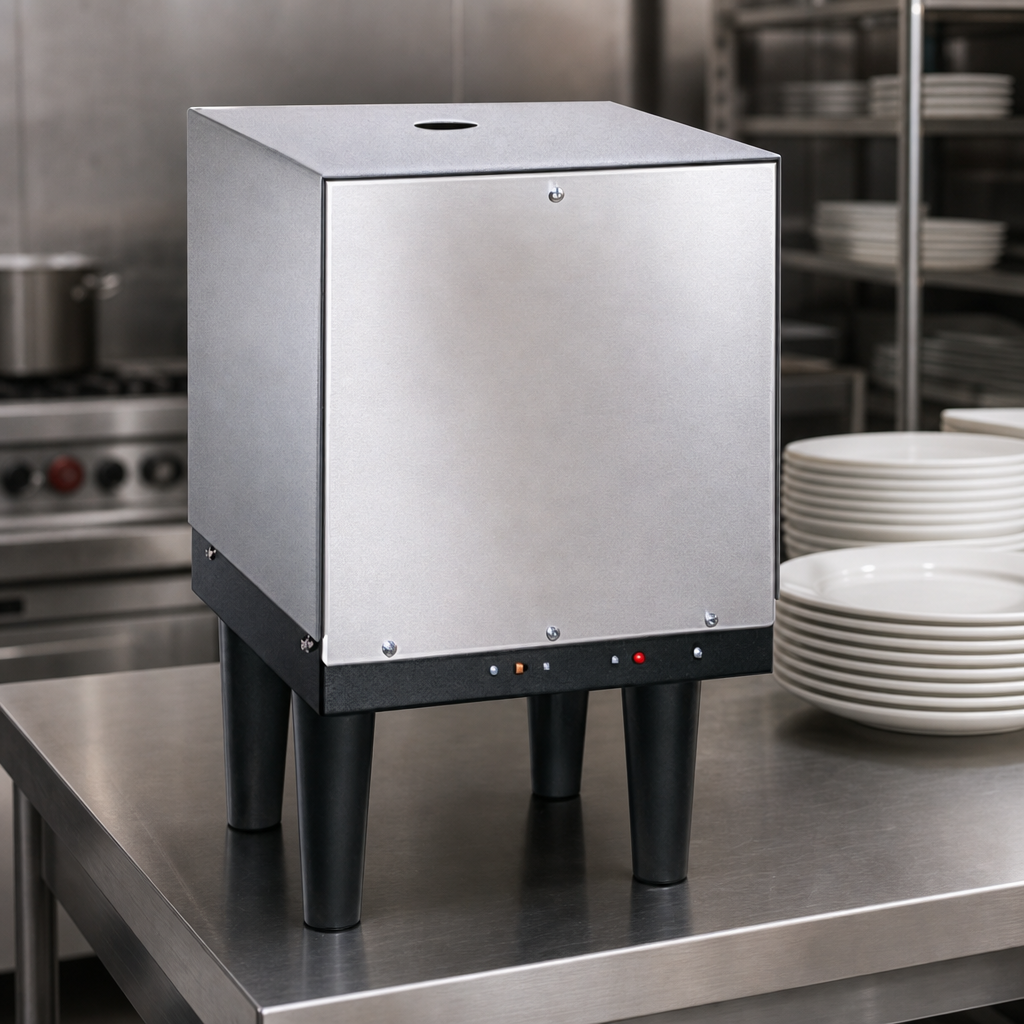

Stainless Steel Tank

Durable, corrosion-resistant tank construction designed for commercial use.

Built-In Safety Package

Includes a low-water cut-off, high-temperature limit switch, temperature/pressure relief valve, pressure reducing valve, and two temperature/pressure gauges.

Fiberglass Insulation

Helps minimize heat loss and improve thermal efficiency.

180°F Sanitizing Water

Provides hot water for dish room sanitizing applications.

6-Inch Legs

Standard legs elevate the unit for installation and clearance.

Built-In On/Off Toggle Switch

Simple manual control is integrated into the heater.

Durable Exterior

Features a stainless steel front with a powder-coated silver-gray hammertone body and black base.

Type Booster Water Heater
Style Mini-Compact
Installation Type Floor Model (With 6-Inch Legs)
Capacity 3.2 Gallons
Voltage 208 Volts
Watts 15 kW
Phase 3-Phase
Amps 41.7 Amps
Breaker Size 60 Amps
Temperature Range 120°F to 180°F
Controls Thermostatic
Material Stainless Steel
Finish Powder-Coated Silver-Gray Hammertone
Color Silver-Gray / Black
Water Inlet Size 3/4 Inch NPT
Country of Origin USA
Shipping Width 12 Inches
Shipping Depth 13 Inches
Shipping Height 19 Inches
Shipping Weight 49 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It has a 3.2-gallon storage capacity.
The document lists 208 volts, 3-phase power, 15 kW, 41.7 amps, and a 60-amp breaker/fuse size.
The recovery table lists 151 gph at a 40°F rise and 86 gph at a 70°F rise.
The unit measures 11.75 inches wide, 12.88 inches deep, and 18.5 inches high; the height includes the standard 6-inch legs.
Standard features include a low-water cut-off, high-temperature limit switch, temperature/pressure relief valve, pressure reducing valve, and two temperature/pressure gauges.
No. The document states that phase must be specified and the unit is not field-convertible.
