Hatco

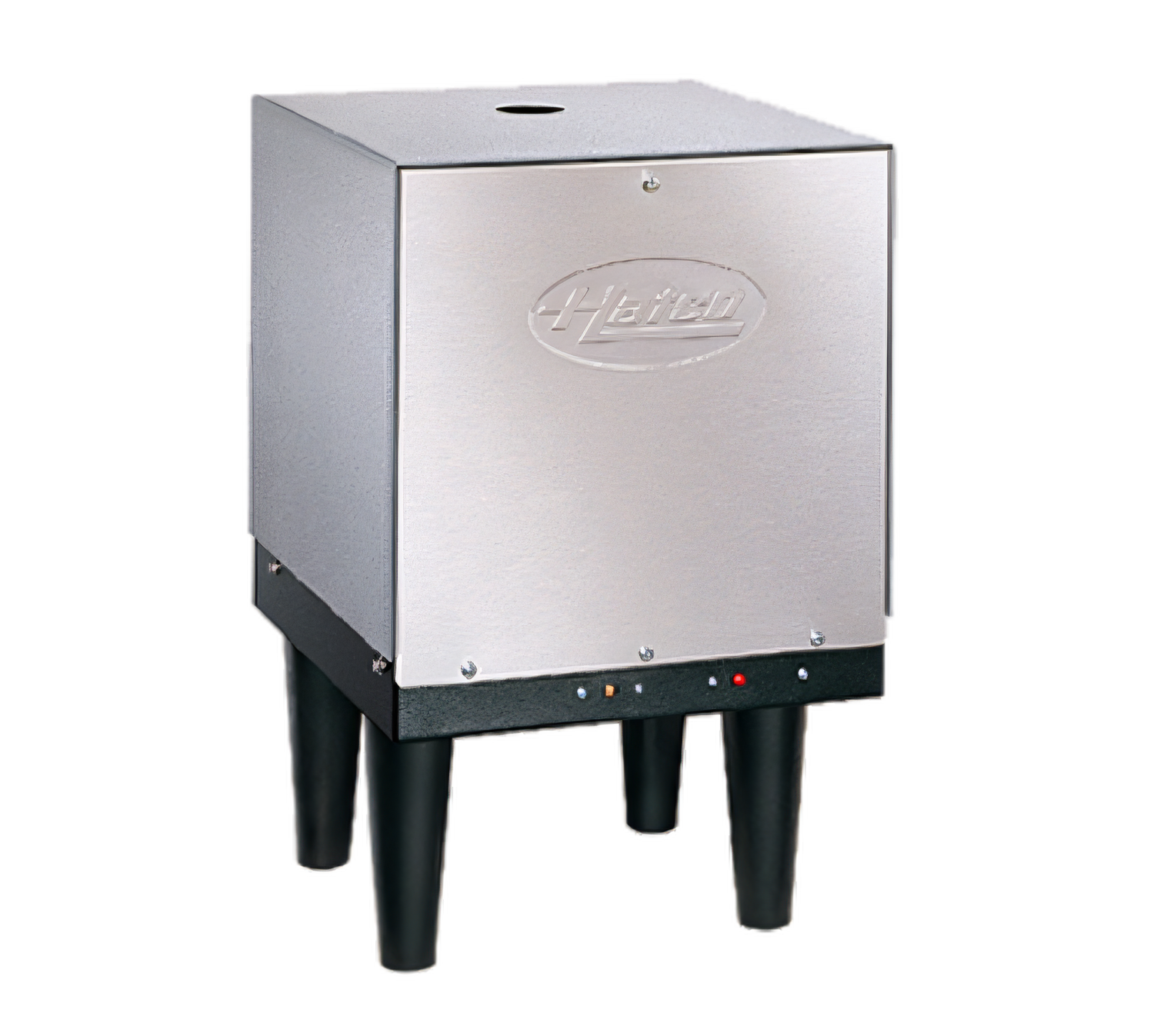

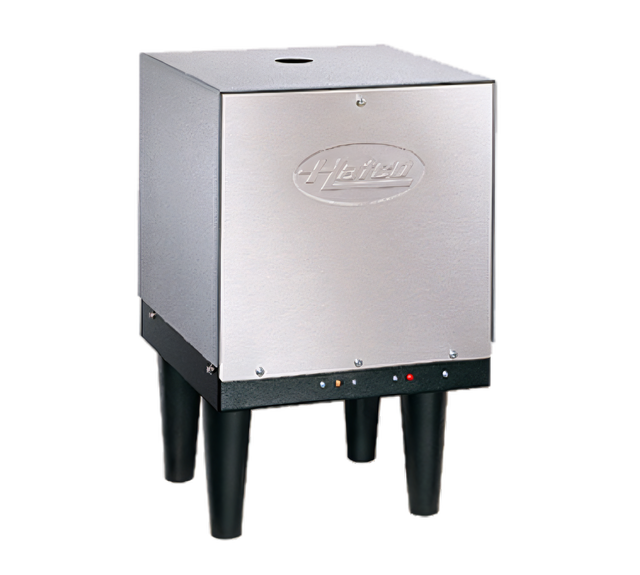

Hatco Mini-Compact Electric Booster Water Heater, 3.2 Gallons, 11.4 kW

SKU: MC-11
$2,346.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

Hatco Mini-Compact Electric Booster Water Heater, 3.2 Gallons, 11.4 kW

Fast Recovery, Stainless Steel Tank, 6-Inch Legs

Compact yet powerful, this electric booster heater delivers fast-recovery 180°F sanitizing water in a durable stainless steel package designed for tight dish room spaces.

  • 3.2-gallon storage capacity helps support dish room sanitizing demand.
  • Fast recovery helps maintain hot water supply during busy service periods.
  • Delivers 180°F (82°C) water for hot water sanitizing applications.
  • Stainless steel tank and front panel provide durable commercial construction.
  • Built-in safety package includes low-water cut-off, relief valve, pressure reducing valve, and dual gauges.
  • Standard 6-inch legs and built-in toggle switch simplify installation and operation.
  • Available in multiple electrical configurations, including 240V and 480V options.

Overall Dimensions:

11.75"W x 12.88"D x 18.5"H

Product Weight:

48.0 lb

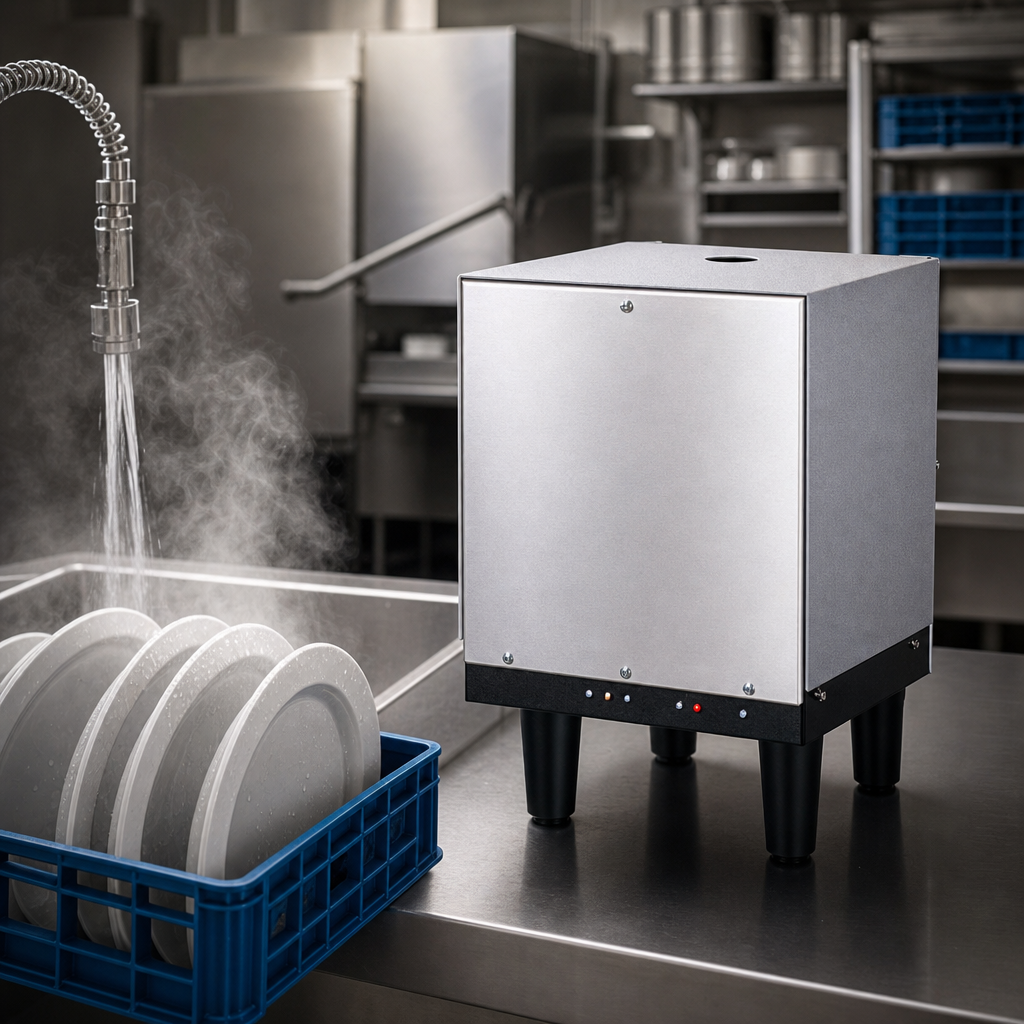

Fast Recovery

Helps the unit reheat quickly to keep up with demand in dish room applications.

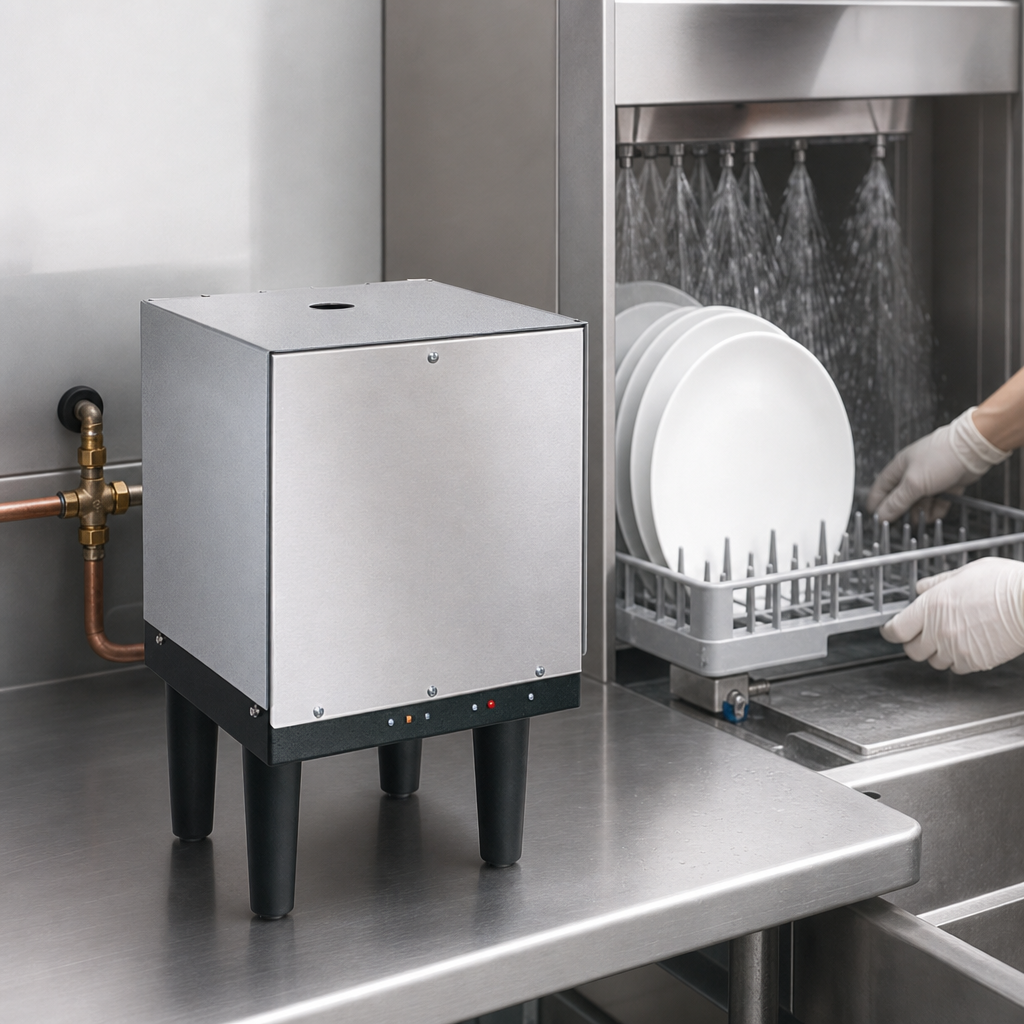

180°F Sanitizing Water

Provides hot water at sanitizing temperature for commercial warewashing.

3.2-Gallon Storage Capacity

Compact storage capacity supports a smaller footprint while maintaining usable hot water reserve.

Stainless Steel Tank and Front Panel

Durable stainless steel construction helps resist corrosion and stand up to commercial use.

Fiberglass Insulation

Helps minimize heat loss for better thermal retention.

Built-In Safety Package

Includes low-water cut-off, high-temperature limit switch, temperature/pressure relief valve, pressure reducing valve, and dual temperature/pressure gauges.

Built-In Toggle Switch

Simple on/off control is integrated into the unit.

Standard 6-Inch Legs

Raises the heater off the mounting surface for installation and service access.

3/4 Inch NPT Plumbing

Internal plumbing includes 3/4-inch NPT inlet and outlet fittings.

Type Electric Booster Water Heater
Style Mini-Compact
Installation Type Floor Model
Capacity 3.2 Gallons
Temperature Range 120°F to 180°F
Watts 11.4 kW
Voltage 240/480 Volts
Phase 1-Phase / 3-Phase
Controls Toggle Switch
Material Stainless Steel
Finish Powder-Coated Silver-Gray Hammertone
Water Inlet Size 3/4 Inch NPT
Country of Origin USA
Shipping Width 12 Inches
Shipping Depth 13 Inches
Shipping Height 19 Inches
Shipping Weight 48 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It provides 180°F (82°C) water for hot water sanitizing.
The unit has a 3.2-gallon (12-liter) storage capacity.
The document lists 240V and 480V configurations, and the phase must be specified when ordering. It is not field-convertible.
Standard safety features include a low-water cut-off, high-temperature limit switch, temperature/pressure relief valve, pressure reducing valve, and dual temperature/pressure gauges.
Yes, it comes standard with 6-inch legs.
