Hatco

Hatco Mini-Compact Electric Booster Water Heater, 3.2 Gallon, 9.9 kW, 208V

SKU: MC-10
$2,346.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Booster Heaters Commercial Dishwashers Dish Room Equipment Dishwashers Hatco High Temp & Low Temp Dishwashers New Arrivals Restaurant Equipment

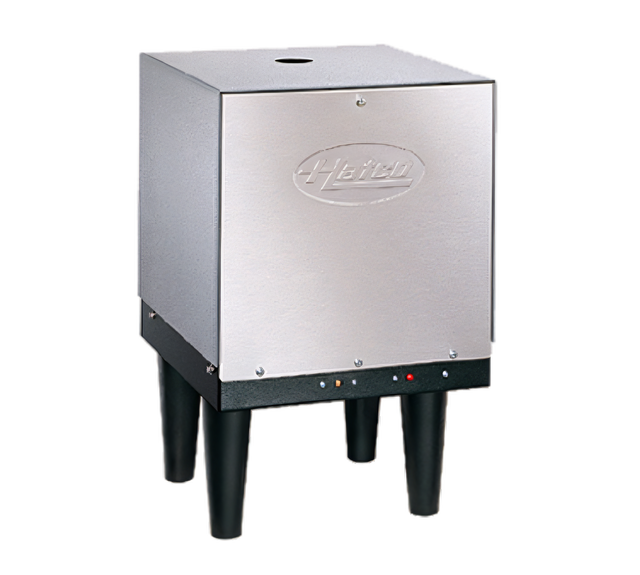

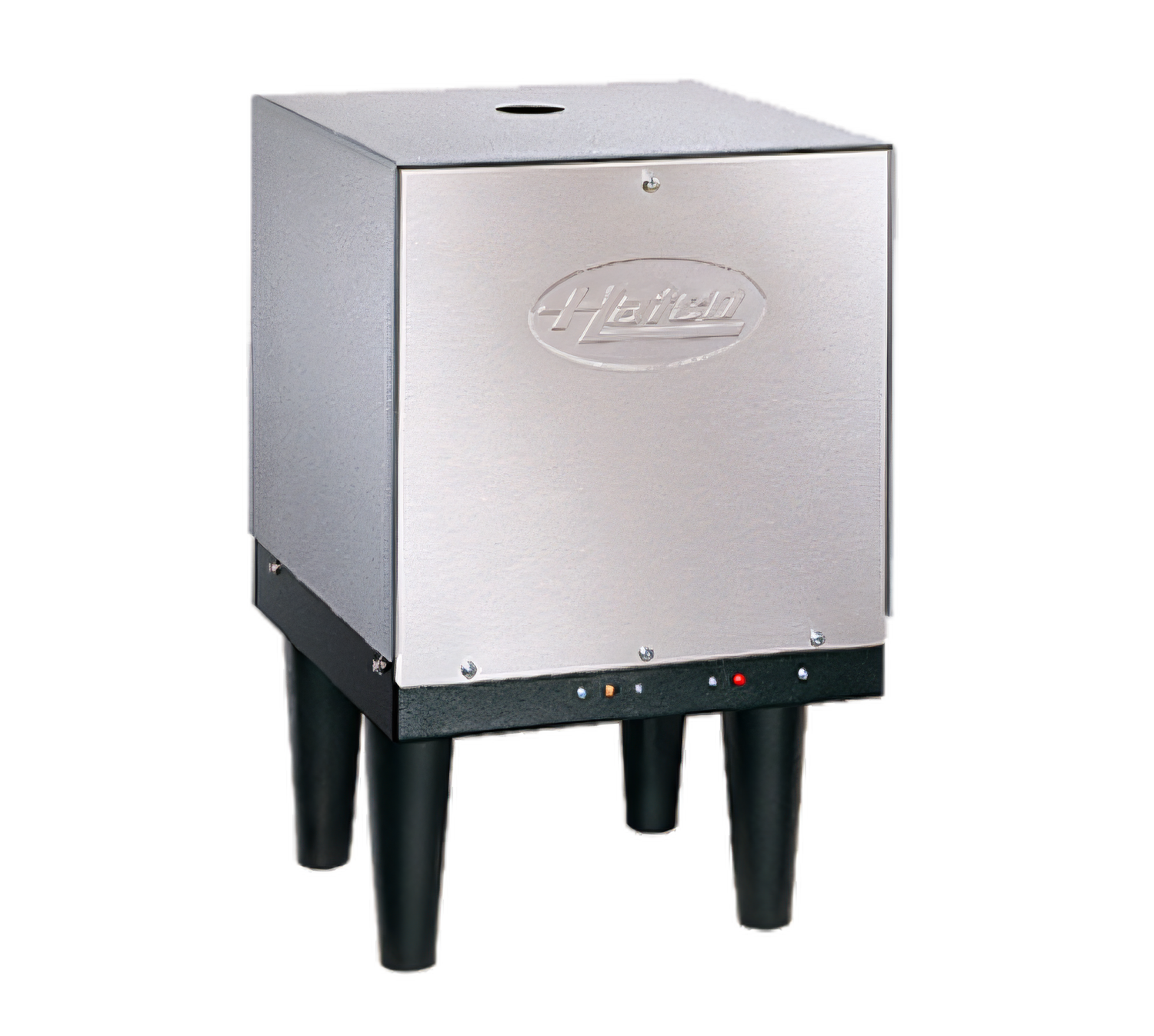

Hatco Mini-Compact Electric Booster Water Heater, 3.2 Gallon, 9.9 kW, 208V

Fast Recovery, Stainless Steel Tank, 6-Inch Legs

Compact electric booster heater delivers 180°F sanitizing water fast, with a stainless steel tank and standard 6-inch legs for flexible installation.

  • Provides 180°F (82°C) water for hot water sanitizing applications.
  • 3.2-gallon storage capacity fits tight dish room spaces.
  • Fast recovery helps keep up with peak warewashing demand.
  • Stainless steel tank and front panel with a powder-coated hammertone body for durability.
  • Includes built-in safety components such as low-water cut-off, relief valve, pressure reducing valve, and gauges.
  • Standard 6-inch legs and a built-in on/off switch simplify installation and operation.

Overall Dimensions:

11.75"W x 12.88"D x 18.5"H

Product Weight:

48.0 lb

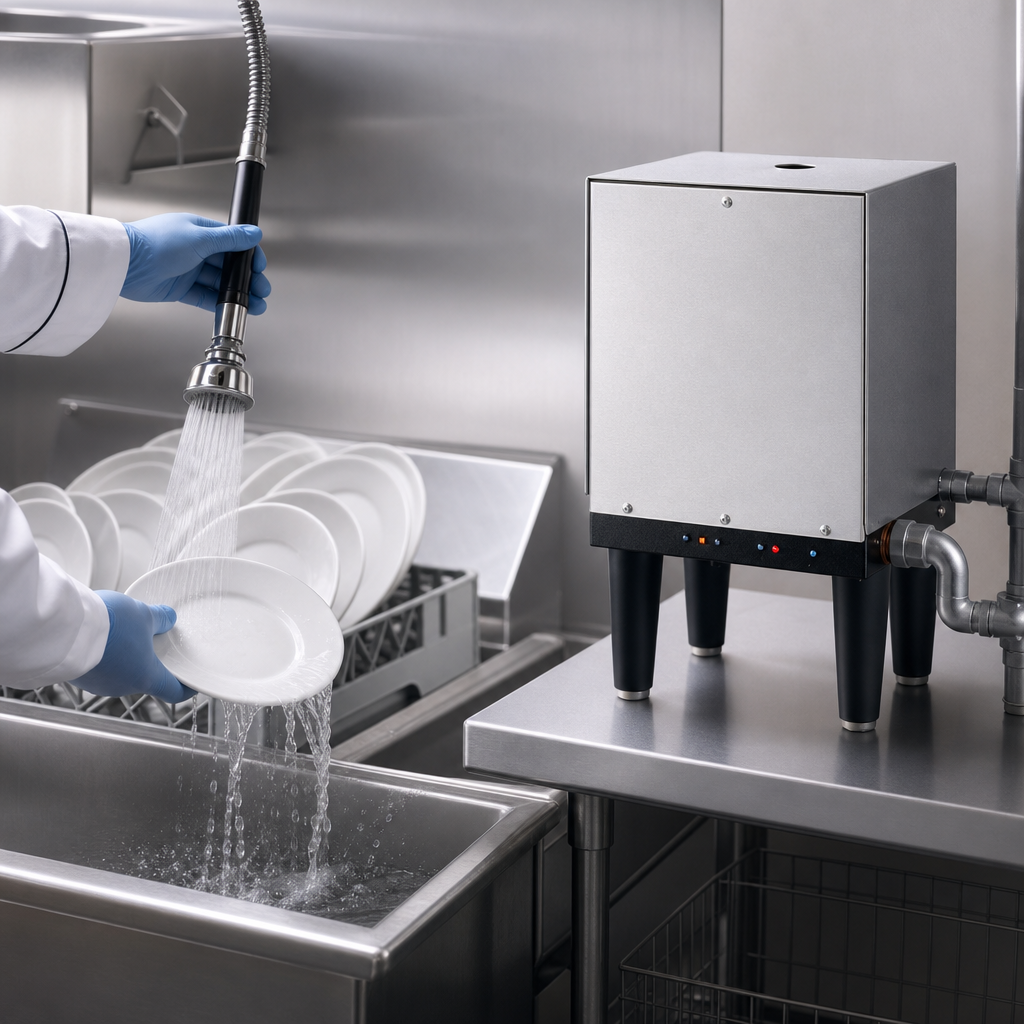

180°F Sanitizing Water Output

Supplies hot water at 180°F (82°C) for warewashing and sanitizing needs.

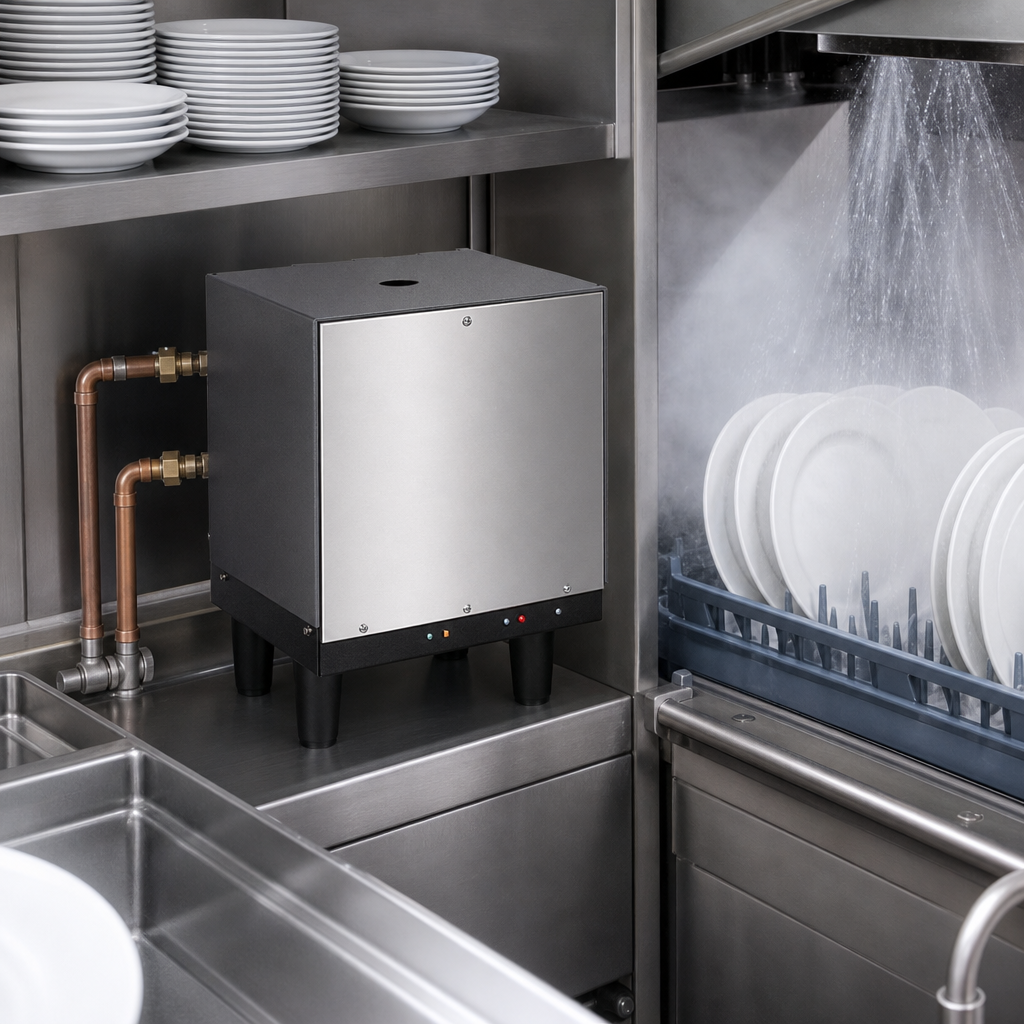

Fast Recovery

Helps the unit recover quickly to support heavy dish room demand.

3.2-Gallon Storage Capacity

Compact storage capacity sized for booster heater applications.

Stainless Steel Tank and Front Panel

Corrosion-resistant stainless steel construction on the tank and front panel.

Powder-Coated Body

Silver-gray hammertone powder-coated body with a black base for a durable finish.

Fiberglass Insulation

Helps minimize heat loss and improve thermal efficiency.

Built-In Safety Package

Includes low-water cut-off, temperature/pressure relief valve, pressure reducing valve, and two temperature/pressure gauges.

Standard 6-Inch Legs

Includes 6-inch legs for standard installation clearance.

Built-In On/Off Toggle Switch

Provides simple unit control at the heater.

3/4-Inch NPT Plumbing Connections

Includes internal plumbing with 3/4-inch NPT pipe and fittings for inlet and outlet connections.

Type Electric Booster Water Heater
Style Mini-Compact
Installation Type Freestanding
Capacity 3.2 Gallons
Material Stainless Steel
Finish Powder-Coated Silver-Gray Hammertone
Voltage 208 Volts
Watts 9.9 kW
Controls Toggle Switch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 13 Inches
Shipping Height 19 Inches
Shipping Weight 48 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It provides 180°F (82°C) water for hot water sanitizing.
The MC-10 has a 3.2-gallon storage capacity.
Yes, standard 6-inch legs are included.
Yes, the model notes that phase must be specified at the time of order and that it is not field-convertible.
Yes, incoming water above 3.0 grains of hardness per gallon must be treated and softened before use.
