Hatco IWB-S4 Steam Tables & Food Wells
Description

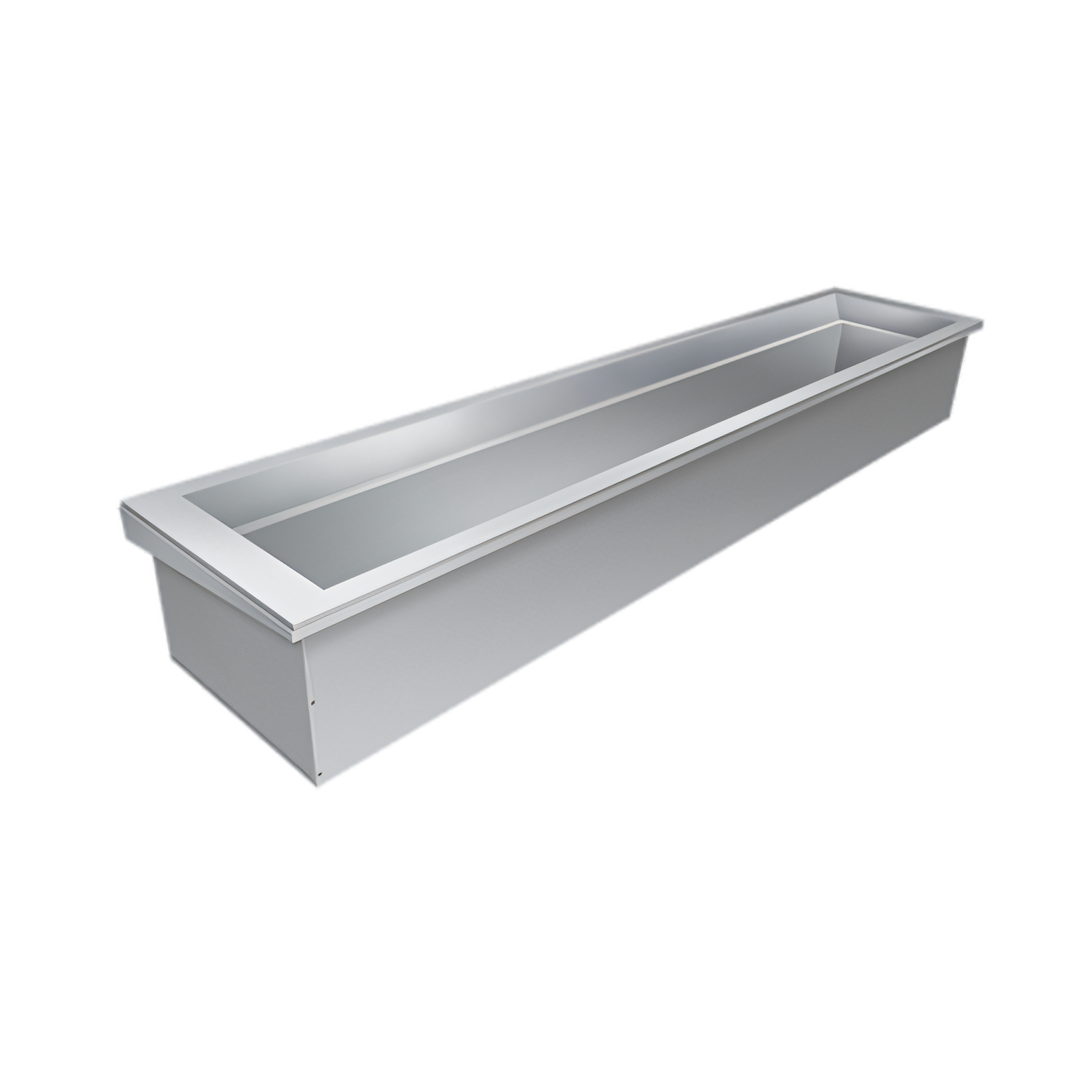

Hatco IWB-S4 Drop-In Slim Ice-Cooled Food Well – 4-Pan
90-1/4" L x 19" D • Stainless Steel • NSF • Made in USADeliver a high-capacity, no-compressor cold well that fits even the narrowest counter runs. The Hatco IWB-S4 is a full 7½ ft long, holds four full-size pans lengthwise, and keeps pre-chilled foods safely cold using ice alone—perfect for salad bars, buffets and grab-&-go lines.
Why You’ll Love It
- Slim 18.94" depth slides into tight counters without sacrificing pan capacity.
- Heavy-duty stainless interior & one-piece bezel create a seamless, easy-to-wipe surface.
- Thick side & bottom insulation lock in the cold for longer ice life and lower operating costs.
- 1" NPT brass drain with flat screen makes end-of-shift clean-up fast and clog-free.

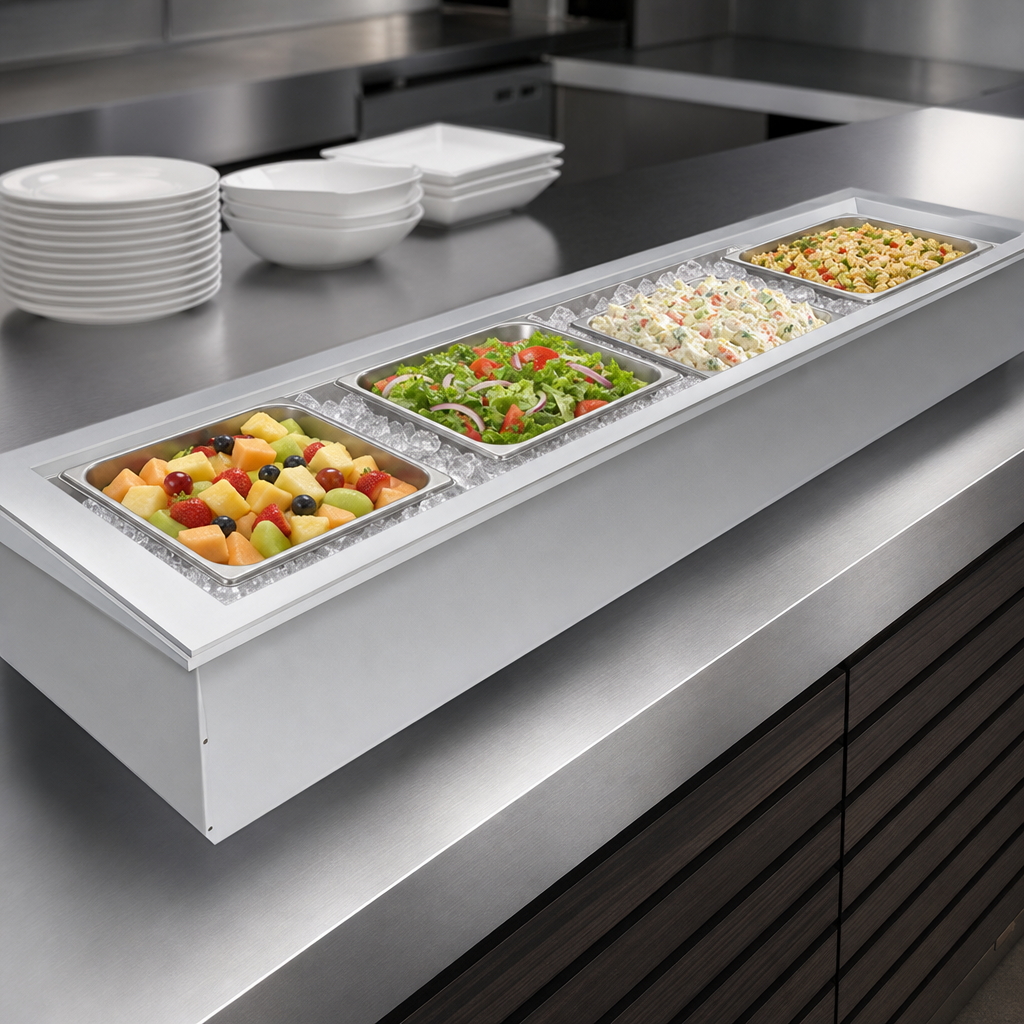

- No refrigeration or electrical hook-ups — just add ice and you’re ready to serve.
- Optional 5° Slant Kit boosts product visibility and keeps meltwater flowing to the drain.
- Factory-installed gasket option eliminates field caulking for a cleaner install.
Ideal Applications
- Self-service salad & deli bars
- Cold beverage garnish stations
- Hotel or casino buffet lines
- Convenience-store market islands
Specifications
| Model | IWB-S4 |
|---|---|
| Pan Capacity | (4) Full-size 12" × 20" hotel pans (pans not included) |
| Overall Dimensions | 90.25" W × 18.94" D × 12" H (2292 × 481 × 306 mm) |
| Required Counter Cut-Out* | 88.38" – 89.22" W × ≥17.94" D (verify with installation manual) |
| Drain | 1" NPT brass, removable flat screen |
| Construction | Stainless steel interior & bezel, aluminized steel exterior housing |
| Insulation | Foamed-in-place, high-density polyurethane |
| Electrical | None required – ice-cooled |
| Approx. Ship Weight | 202 lb (92 kg) |
| Certifications | NSF • Ecoization Naturally • Made in USA |
Optional Accessories
- 5° Slant Kit (ordered with unit only)
- Factory-installed perimeter gasket
- Perforated false bottom – hangs 3.5" below rim or rests on floor for up to 8" of ice
- 12" pan support bars for custom pan layouts
- Wire trivets (half & full size)
- Stainless steel food pans – third, half, or full size (2.5", 4" or 6" deep)
*Cut-out ranges are provided for reference only. Always use the latest Hatco installation manual for final cut-out dimensions and mounting details.
