Hatco  |  SKU: IWB-S3

Hatco IWB-S3 Steam Tables & Food Wells

$1,582.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

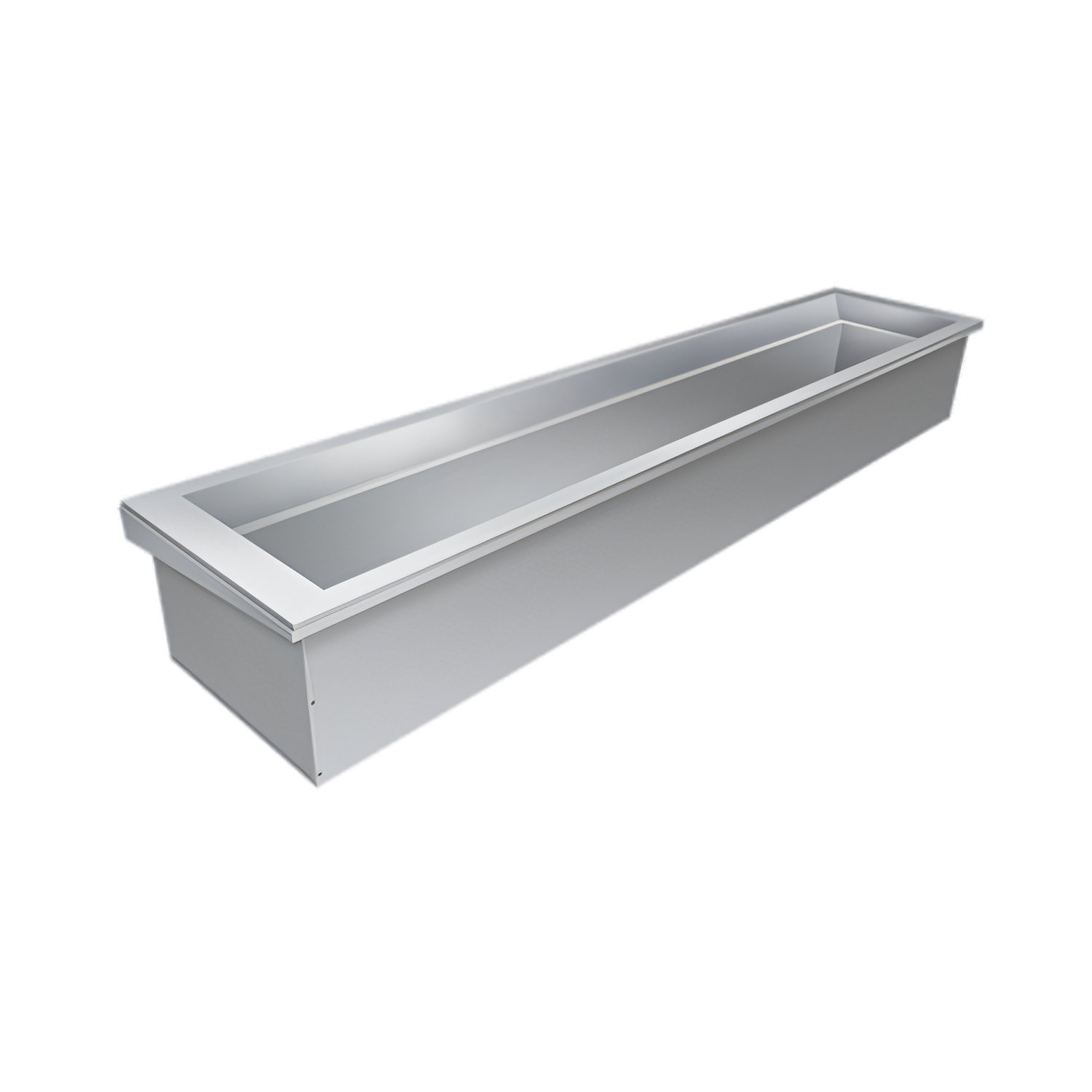

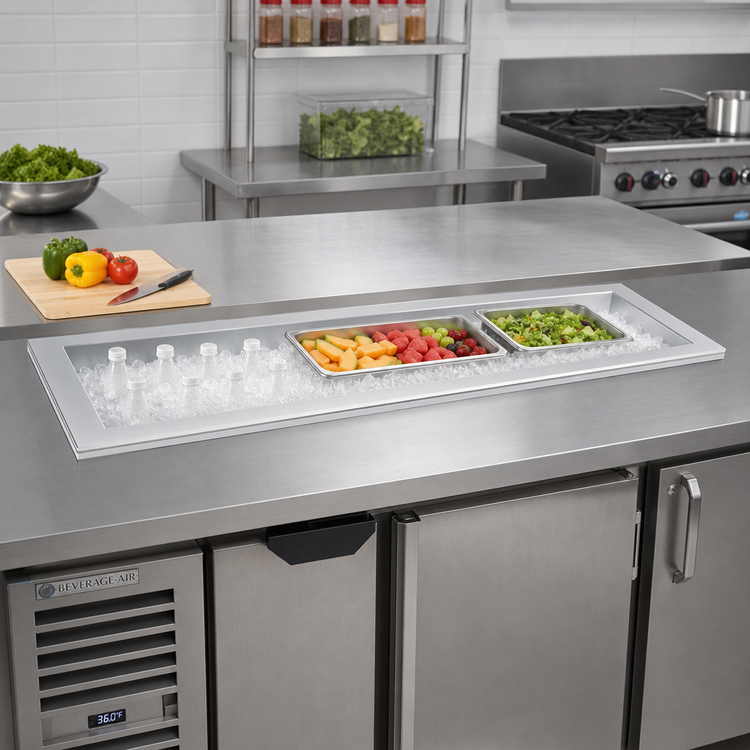

Hatco IWB-S3 Drop-In Slim Ice Well

69-3/16" L x 19" D • 3-Pan Capacity • NSF

Keep salads, toppings and cold beverages at food-safe temperatures—without any refrigeration or wiring. The Hatco IWB-S3 is a fully insulated, ice-cooled drop-in pan designed to hold three full-size 12" × 20" pans (pans not included) lengthwise, all while fitting comfortably under standard sneeze guards.

Why choose the IWB-S3?

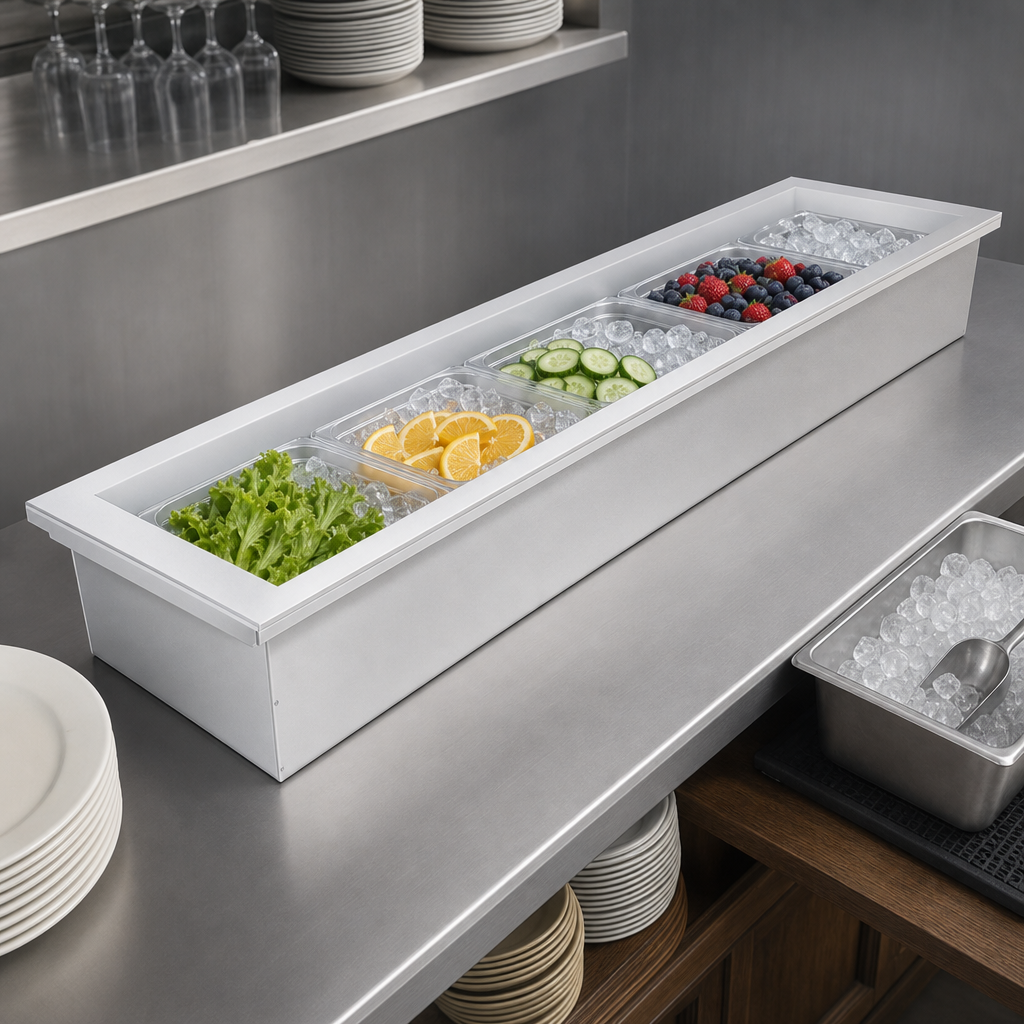

  • Ice-cooled design requires no electricity—ideal for remote or retrofit installations.
  • Slim bezel provides a clean, flush look and keeps product within easy reach.
  • Heavy insulation on sides and bottom minimizes ice melt for longer holding times.
  • Rugged 300-series stainless steel well and bezel with aluminized steel exterior housing.
  • Large 1" NPT brass drain with removable flat screen for fast, clog-free cleanup.
  • NSF Listed for sanitation compliance and Made in the USA for dependable quality.

Specifications

Model IWB-S3
Pan Capacity (3) full-size 12" × 20" food pans (not included)
Overall Dimensions 69-3/16" W × 18-15/16" D × 12" H (1757 × 481 × 306 mm)
Cutout (WxD) 67-5/16"–68-1/8" × 17-1/16"–17-15/16" (1710–1731 × 433–456 mm)
Drain Connection 1" NPT brass with flat screen
Construction Stainless steel interior & bezel; aluminized steel housing
Approx. Ship Weight 85 lb (40 kg)
Certifications NSF
Country of Origin USA

Optional add-ons

  • 5° slant kit for enhanced product visibility and drainage
  • Factory-installed gasket (eliminates the need for field-applied silicone)
  • Perforated false bottoms—hang 3.5" (89 mm) below rim or sit 8" (203 mm) from bottom
  • Pan support bars, stainless steel food pans & wire trivets

Installation must comply with local plumbing codes. Ice, food pans and accessories are sold separately.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, Made in USA

Height

12.0in

Width

69.19in

Depth

19.0in

Shipping Weight

85.0lbs

Exterior Liner

stainless steel

Interior Liner

stainless steel

Depth (front-to-back) OA

19 - 24 inches

Layout

narrow

Width (side - side) OA

67 - 72 inches

Pan Qty

3-pan

Specifications

Drop-In Slim Cold Food Unit, iced cold pan, 69-3/16"L x 19"D, (3) pan size (pans not included), insulated, bezel design, 1" brass drain with screen, stainless steel construction, NSF, Made in USA
