Hatco IWB-6 Steam Tables & Food Wells
Description

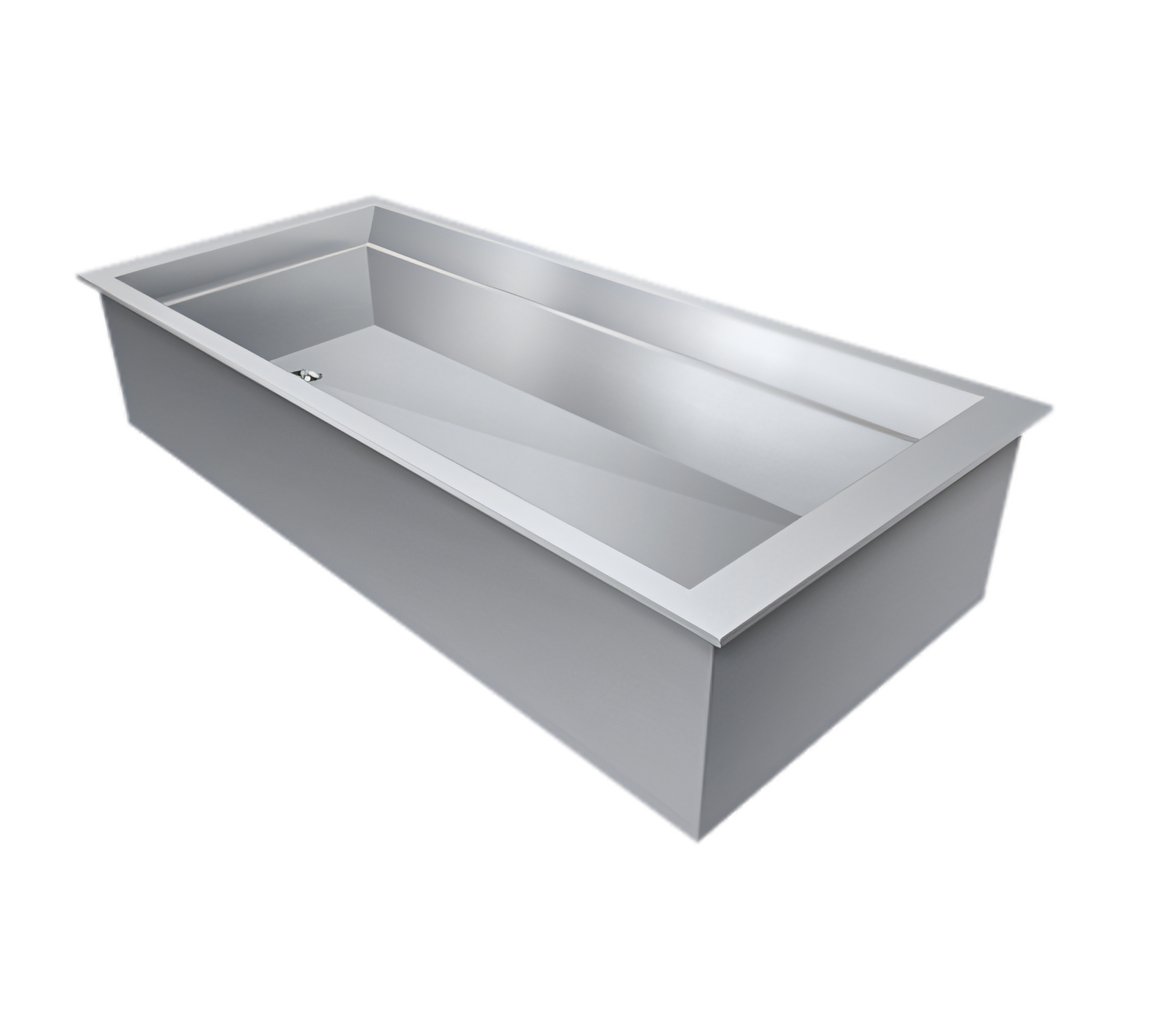

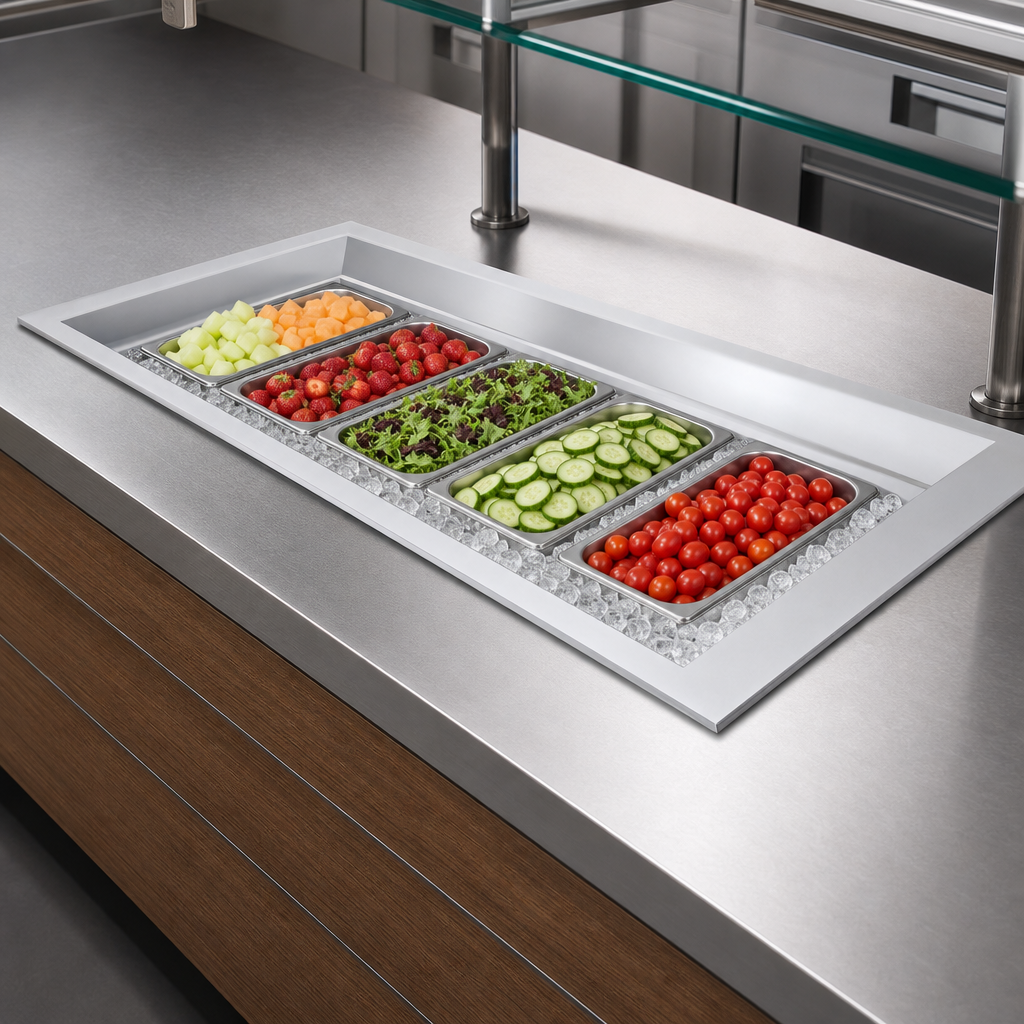

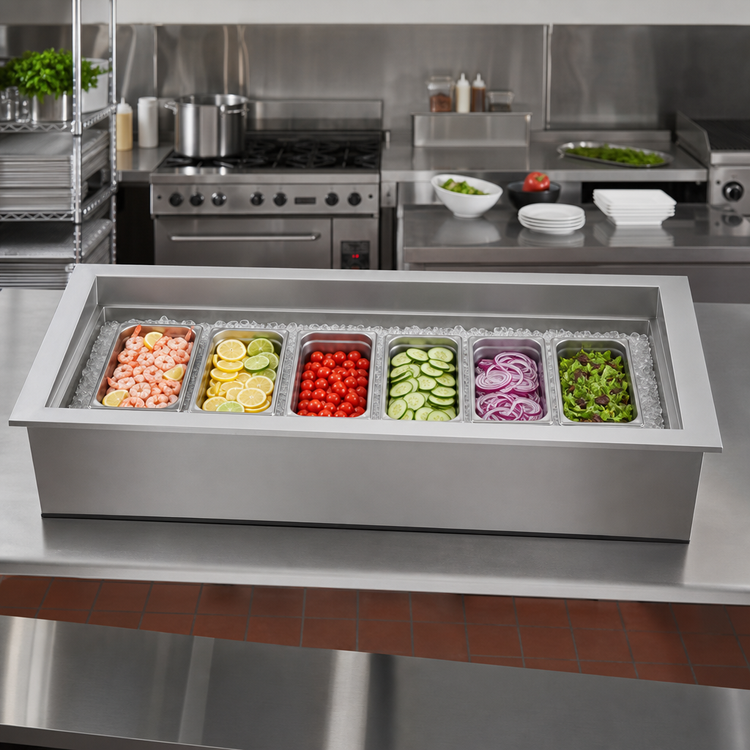

Hatco IWB-6 Drop-In Ice Well — 84" 6-Pan Cold Food Unit
Ice-cooled | Insulated | NSF ListedGive your guests perfectly chilled salads, toppings and beverages without the cost or complexity of refrigeration. The Hatco IWB-6 is an extra-long, ice-cooled well that drops seamlessly into your counter, holding six full-size 12" × 20" pans (pans sold separately) at food-safe serving temperatures.
Why operators love it
- Ice-only design — no compressors, wiring or refrigerant to service.
- Generous 84" length fits 6 full-size pans in one continuous well for a sleek, integrated look.
- High-performance side & bottom insulation delivers superior cold retention and lower ice usage.
- 1" NPT brass drain with flat screen speeds melt-water removal and makes clean-up a breeze.
- Angled interior walls improve product visibility while keeping cold air blanketing your food.
- Durable stainless steel interior and bezel withstand heavy commercial use.
- NSF listed and proudly made in the USA.
At-a-glance specs
| Model | IWB-6 |
|---|---|
| Pan capacity | 6 × Full-size 12" × 20" pans (not included) |
| Exterior dimensions | 84" W × 27" D × 12" H (2134 × 686 × 305 mm) |
| Counter cutout | Width 82.125"–83" (2086–2108 mm) | Depth 25.19"–26" (640–660 mm) |
| Drain size | 1" NPT brass drain with flat screen |
| Shipping weight | Approx. 180 lb (82 kg) |
| Construction | Stainless steel interior & bezel, aluminized steel housing, foamed-in-place insulation |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
Optional accessories
- Perforated false bottoms – hang 3.5" (89 mm) below rim or rest 8" (203 mm) from top to keep ice above the drain.
- Pan support bars – 12" & 20" lengths for custom pan layouts.
- Stainless steel food pans & wire trivets.
- 5° Slant kit for enhanced product visibility.
- Factory-installed gasket – eliminates field caulking.
Have installation questions? Our foodservice specialists are available 24/7 to help you get the perfect fit.
