Hatco IWB-5 Steam Tables & Food Wells
Description

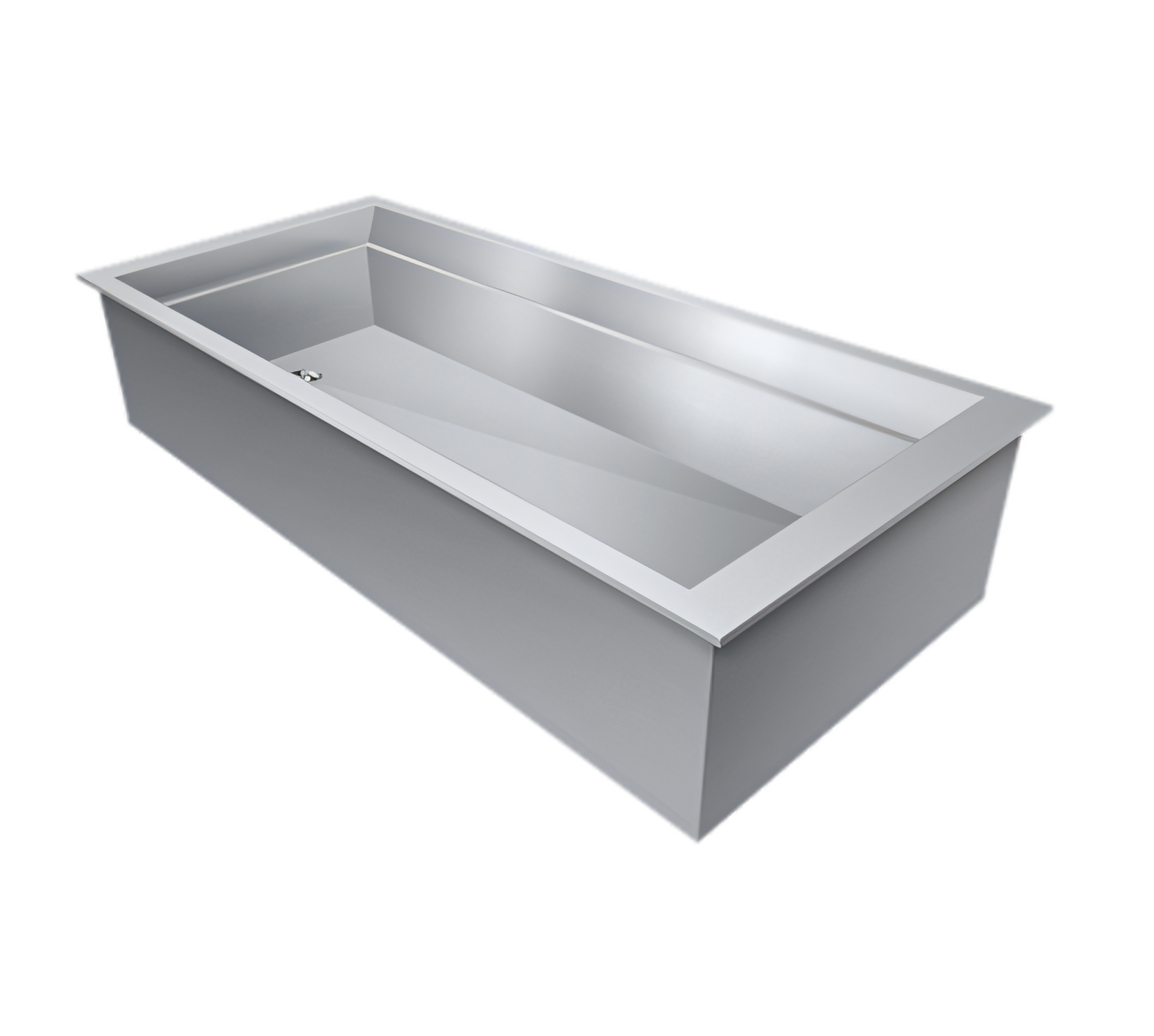

Hatco IWB-5 Drop-In Ice Well
71" L x 27" D • 5-Pan Insulated Cold Food UnitKeep salads, toppings and chilled beverages at ideal serving temperatures without expensive refrigeration. Simply add ice and the Hatco IWB-5 blankets your food in cold air, delivering reliable performance for buffets, salad bars, concessions and catering lines.
Why You’ll Love It
- Full-size, 5-pan capacity (pans sold separately).
- Thick side & bottom insulation maximises ice retention and lowers operating costs.
- 1" brass drain with flat screen speeds cleanup and resists clogging.
- All-stainless interior with matching bezel for a seamless, professional look.
- Unique angled wall design improves product visibility & access while keeping cold air over food.
- Ships fully assembled—no electrical connections required.
- NSF listed & Made in USA for proven kitchen durability.
At-a-Glance Specs
| Model | IWB-5 |
|---|---|
| Overall size (W × D × H) | 71" × 27" × 12" (1803 × 686 × 305 mm) |
| Cut-out (min–max) | 69.125"–70" W × 25.19"–26" D (1756–1778 mm × 640–660 mm) |
| Pan capacity | Five full-size 12" × 20" pans (or mixed fractional equivalents) |
| Construction | Stainless steel well & bezel with aluminised steel housing |
| Drain | 1" NPT brass drain with removable screen |
| Approx. ship weight | ≈ 110 lb (50 kg) |
| Certifications | NSF, cULus, Made in USA |
Customise Your Well (add-ons sold separately)
- Perforated false bottom—keeps ice above the drain for effortless emptying.
- Pan support bars (12" or 20") to create custom pan layouts.
- Slant kit—adds a 5° tilt for enhanced product presentation.
- Factory-installed gasket eliminates the need for silicone sealing.
- Stainless steel food pans, wire or plated trivets.
Food pans and accessories shown in photos are not included. Drain plumbing must be installed in accordance with local codes.
