Hatco  |  SKU: IWB-3

Hatco IWB-3 Steam Tables & Food Wells

$1,538.76
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

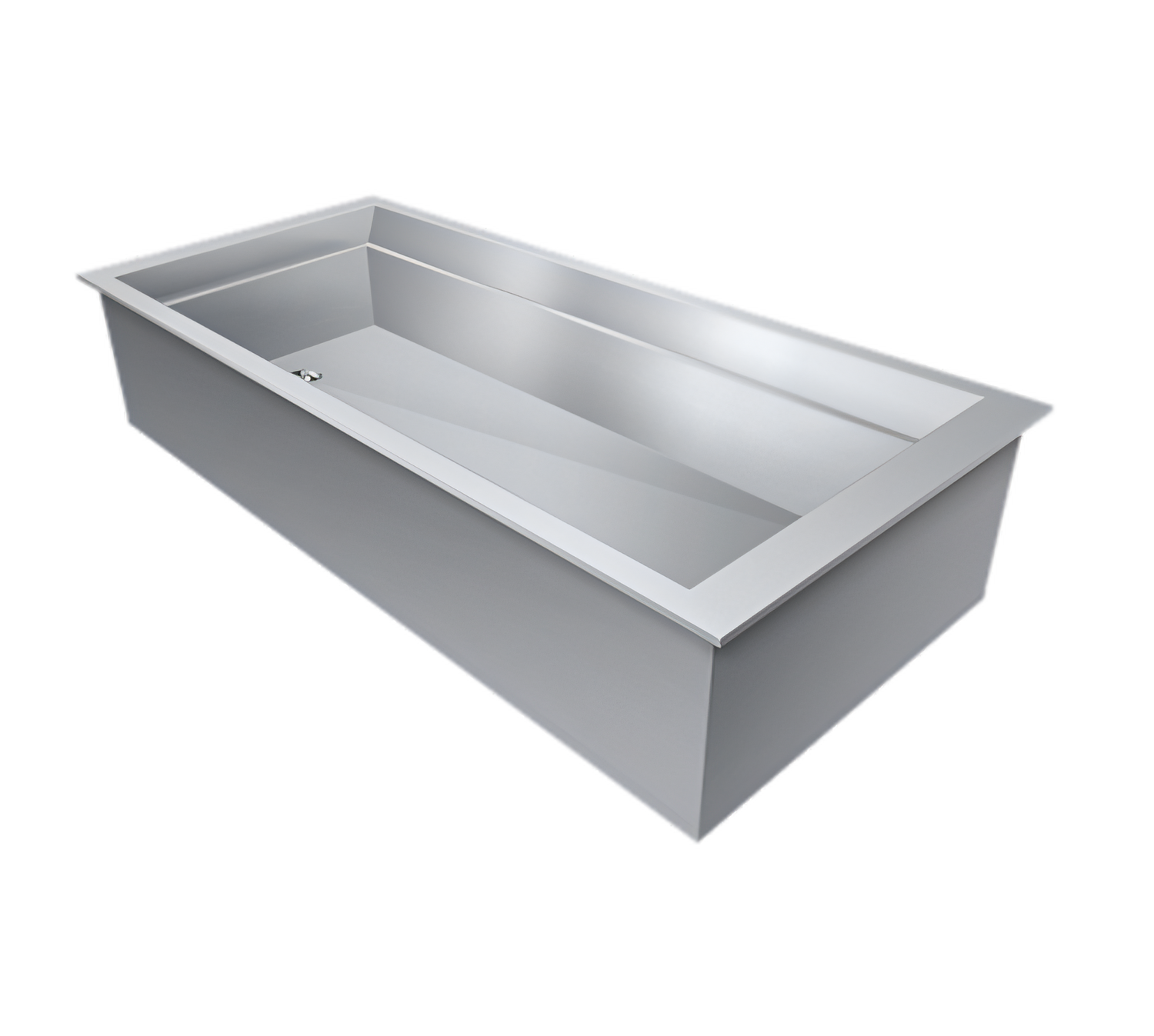

Hatco IWB-3 Drop-In Ice Well – 45"

Ice-cooled, 3-pan insulated cold food well

Keep salads, toppings and beverages crisp and food-safe without the cost or complexity of refrigeration. Simply fill the Hatco IWB-3 with ice and this fully insulated, stainless steel well will blanket your products in cold air for hours—perfect for salad bars, buffets, concessions and catered stations.

Key benefits

  • Holds three full-size 12" x 20" pans (or assorted fractional pans) – pans not included
  • All-stainless interior & bezel for a sleek, food-safe presentation
  • Thick insulation on sides & bottom maximises ice life and reduces operating costs
  • 1" NPT brass drain with flat screen speeds clean-up and resists clogging

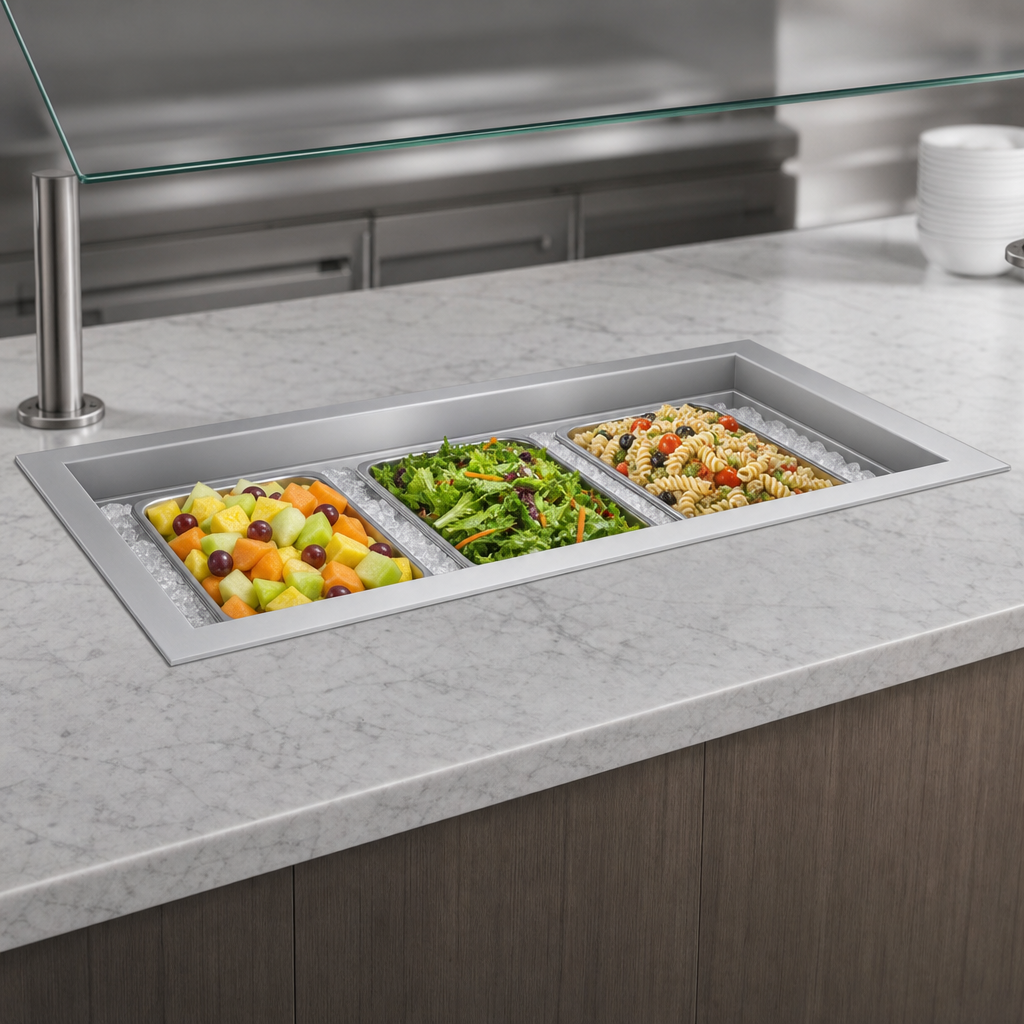

  • Bezel design drops flush into countertops for a seamless, easy-wipe installation
  • No electrical or refrigeration components – install anywhere, plug-free
  • NSF listed & Made in the USA for assured quality and compliance

Popular accessories (sold separately)

  • Perforated false bottom – raises ice above the drain for effortless melting & draining
  • Pan support bars for mixed pan layouts
  • 5° Slant kit for improved product visibility and drainage
  • Factory-installed perimeter gasket – eliminates the need for silicone sealant

Technical specifications

Model IWB-3
Pan capacity (3) full-size 12" x 20" pans (6" max depth) – pans not included
Overall dimensions (W × D × H) 45" × 27" × 12"  (1143 × 686 × 305 mm)
Recommended cut-out 43.125–44" W × 25.19–26" D  (1095–1118 × 640–660 mm)
Drain connection 1" NPT brass drain with removable flat screen
Construction Stainless steel well & bezel with insulated aluminised steel housing
Approx. ship weight 102 lb (46 kg)
Certifications NSF, Made in USA

Need a different size? Hatco Ice Wells are also available in 1-, 2-, 4-, 5- and 6-pan configurations to suit any line-up.

Important: This unit is ice-cooled only; it contains no refrigeration or electrical components. For safe food holding, replenish ice as needed and always follow local food-safety regulations.

Features & Specs

Manufacturer

Hatco

Certifications

NSF, Made in USA

Height

12.0in

Width

45.0in

Depth

27.0in

Shipping Weight

82.0lbs

Layout

straight

Pan Qty

3-pan

Depth (front-to-back) OA

25 - 30 inches

Interior Liner

stainless steel

Exterior Liner

stainless steel

Width (side - side) OA

43 - 48 inches

Specifications

Drop-In Cold Food Unit, iced cold pan, 45"L x 27"D, (3) pan size (pans not included), insulated, bezel design, 1" brass drain with screen, stainless steel construction, NSF, Made in USA
