Hatco HWBLI-FULDA Steam Tables & Food Wells
Description

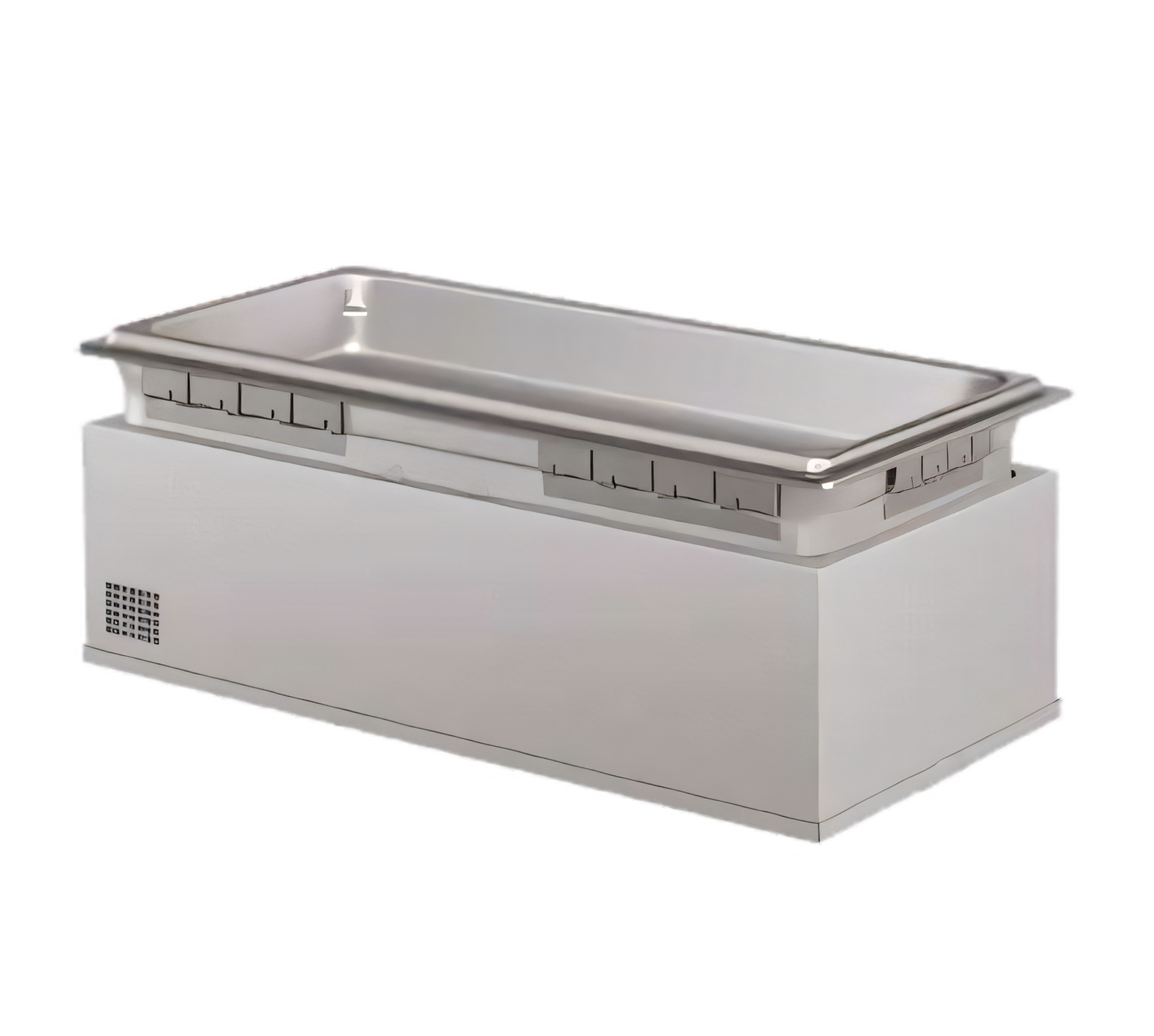

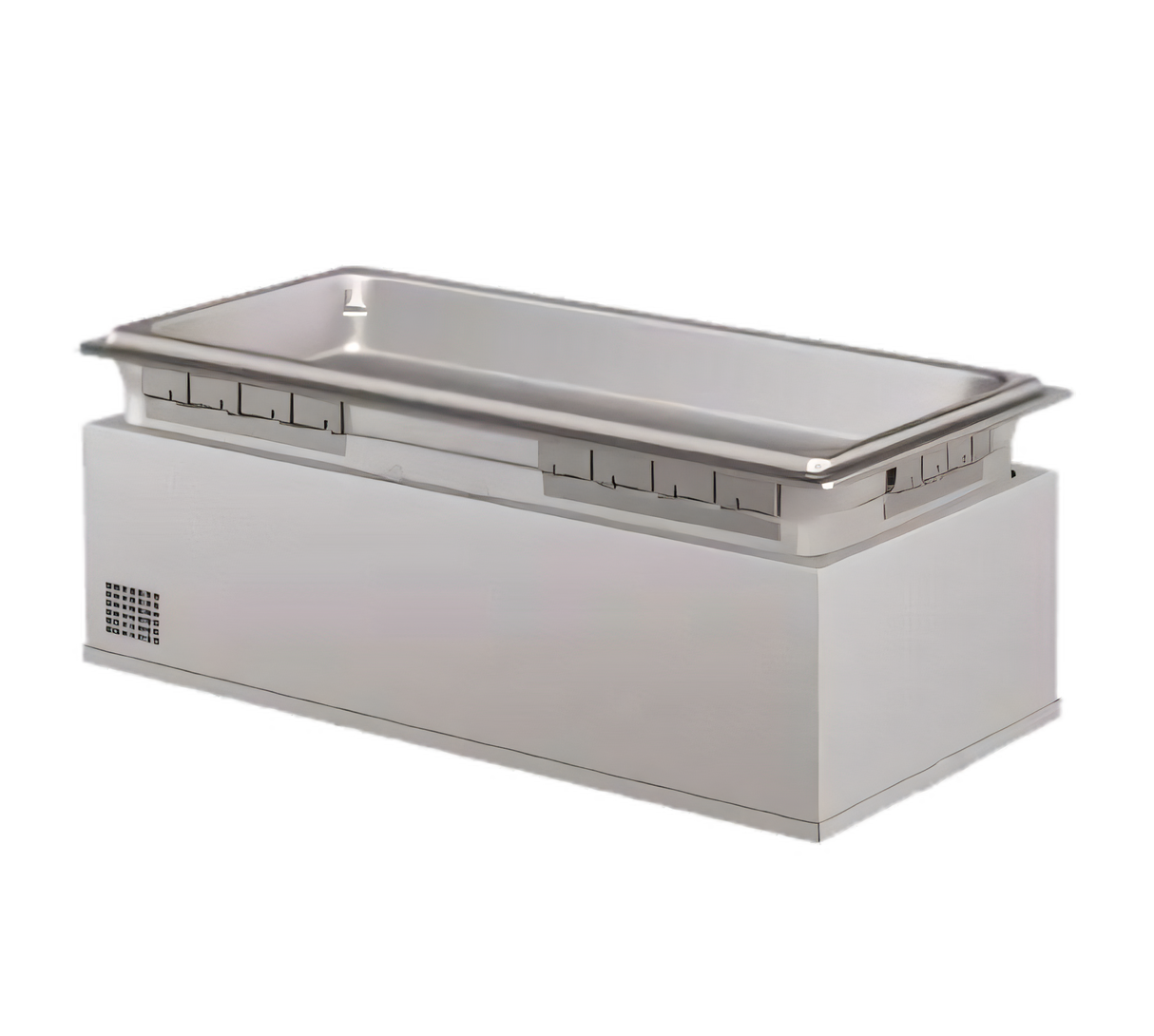

Hatco Drop-In Insulated Heated Well – Full Size, Auto-Fill, With Drain
Top-mount | Remote thermostat | CE • UL • cUL • UL EPHBuilt for high-volume buffets, cafeterias and serving lines, the Hatco HWBI-FULDA holds food at safe, ready-to-serve temperatures while slashing labor and energy costs. A fully insulated stainless-steel well, automatic water fill and oversized ¾″ drain make this unit a true workhorse that installs flush in virtually any countertop.
Key benefits
- Auto-fill system maintains the correct water level automatically—no more constant refills.
- Generous ¾″ NPT drain with flat screen speeds clean-up and resists clogs.
- Full stainless-steel construction with solid brazed joints stands up to daily commercial abuse.
- Thick side & bottom insulation delivers even heat and keeps surrounding surfaces cooler.
- Remote thermostatic control box with separate illuminated rocker switch lets you mount controls exactly where staff need them.

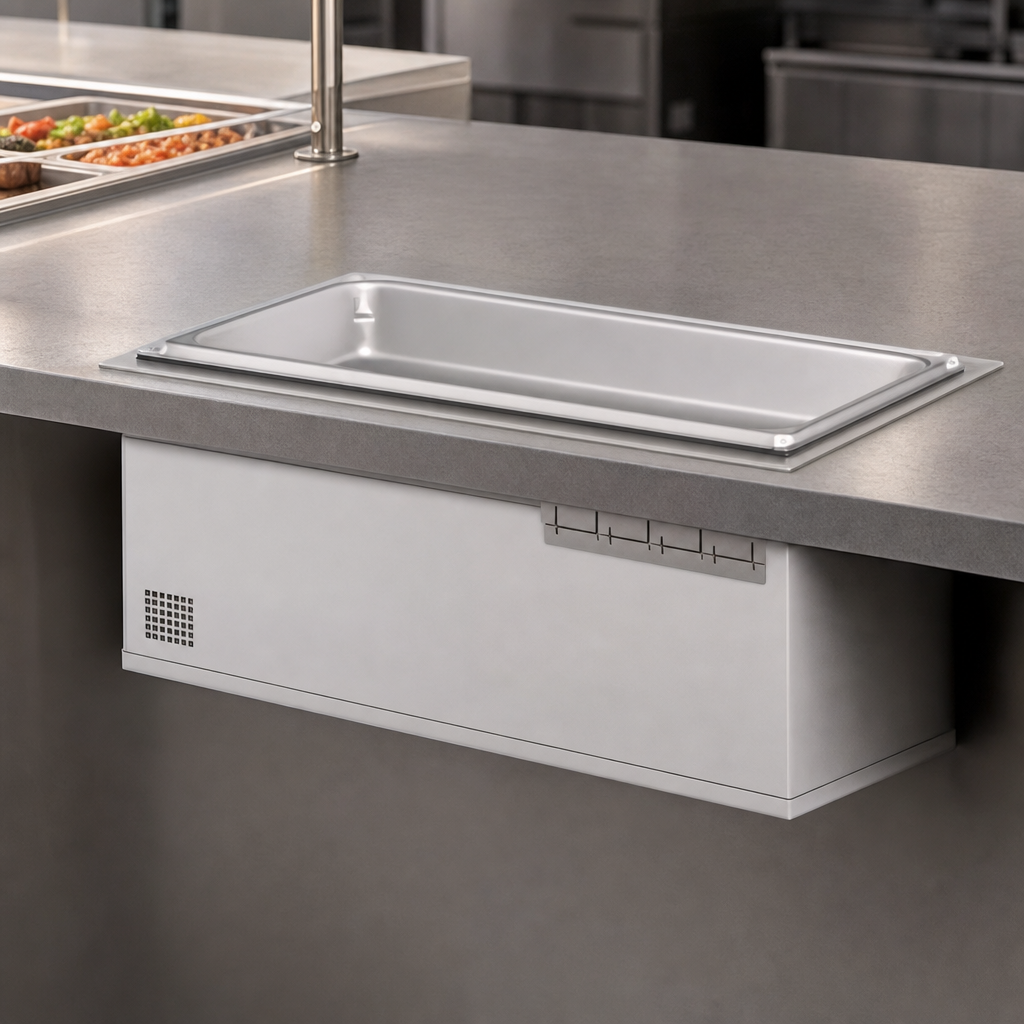

- EZ-Lock hardware simplifies drop-in installation—tighten from the top, job done.
- Accepts one standard 12 × 20 in (1/1 GN) pan up to 6 in (152 mm) deep.
- Certified safe & sanitary: CE, UL, cUL, and UL EPH Classified.
Technical specifications
| Model | HWBI-FULDA (Top-mount, Auto-Fill, With Drain) |
|---|---|
| Pan capacity | (1) full-size 12 × 20 in / 1/1 GN pan, up to 6 in (152 mm) deep |
| Overall size (W × D × H) | 13.68″ × 21.76″ × 10.34″ (347 × 553 × 263 mm) |
| Counter cut-out* | 12.75–12.94″ W × 20.75–20.94″ D (324–328 × 528–531 mm) in non-combustible tops |
| Drain connection | ¾″ NPT male, bottom exit |
| Water inlet (auto-fill) | ⅜″ OD tube with back-flow preventer (included) |
| Electrical |
120 V | 1-phase | 1215 W | 10.1 A 208–240 V models also available (5.1–5.8 A) |
| Control | Remote mechanical thermostat, 6-ft (1.8 m) capillary, separate power switch |
| Ship weight | ≈ 30 lb (14 kg) |
| Certifications | CE, UL, cUL, UL EPH Classified |
Popular accessories (sold separately)
- Stainless-steel food pans (full, half & third size)
- 3/4″ ball or gate valve kit with remote handle
- Support bars for fractional pans or round inserts
- Mounting kits for combustible or extra-thick countertops
*Cut-out sizes shown are for non-combustible countertops. For combustible tops, an optional mounting kit and larger cut-out are required.
Looking for a low-watt manual-fill version? Ask us about the HWBLI series.
