Hatco HWBLI-6MA Steam Tables & Food Wells
Description

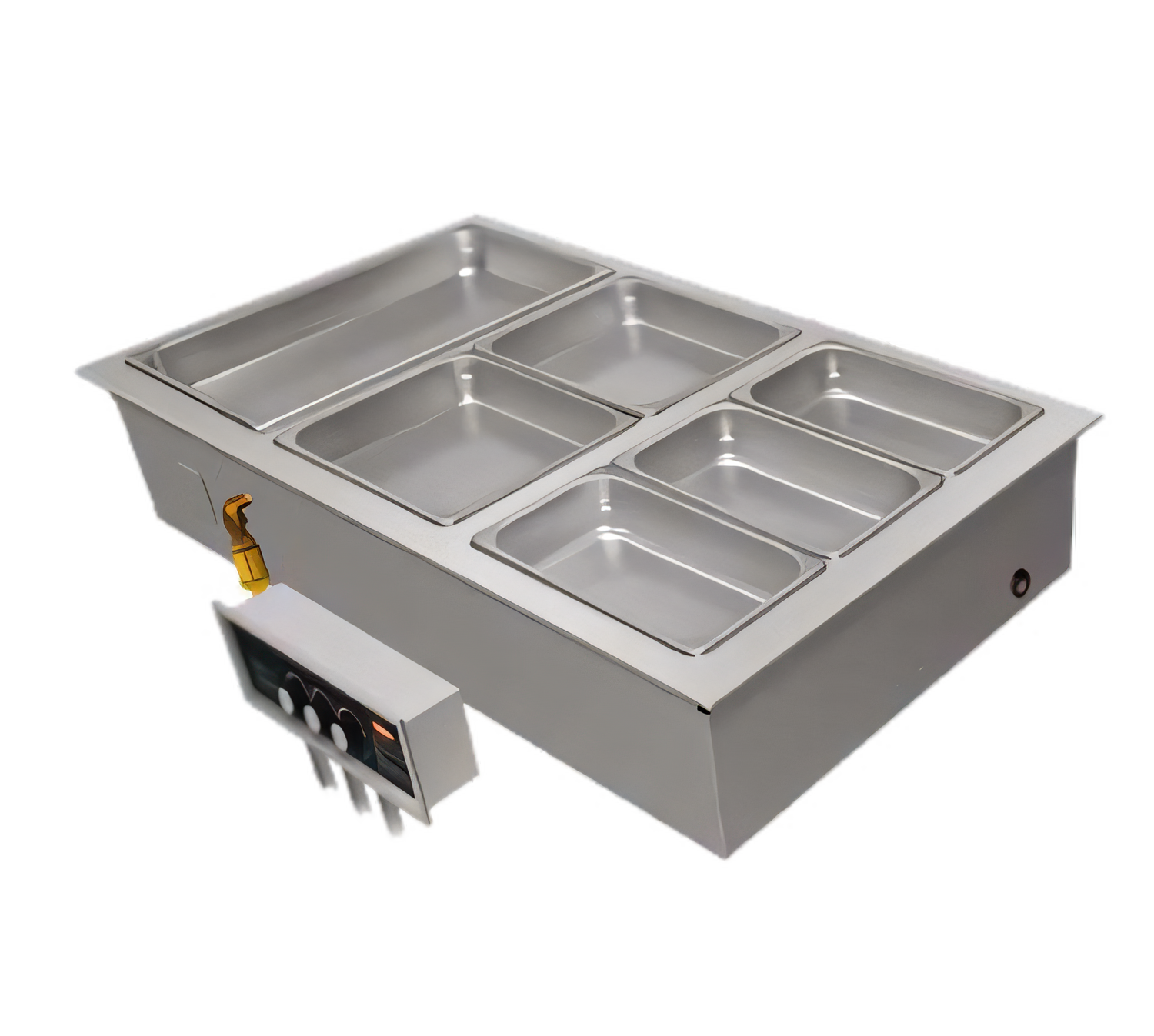

Hatco HWBI-6MA Drop-In Modular Heated Well
6-pan • Manifold drain • Auto-fill • 120 V low-wattTurn any counter into a high-volume steam table with Hatco’s flagship 6-well module. Built for heavy commercial use, the HWBI-6MA keeps entrées, sides and sauces at safe serving temperatures all day—while cutting labor, cleanup time and energy costs.
Why operators choose the HWBI-6MA
- Six full-size 12" × 20" wells in one seamless, insulated drop-in.
- Automatic water level control—no manual refilling or burnt elements.
- 1" NPT manifold drain (50 % larger) with removable flat screens for ultra-fast cleaning.
- Individual remote thermostats and lighted rocker switches for precise holding of each menu item.
- EZ-Lock hardware ships installed—drop, twist and tighten for a rock-solid fit in minutes.
- Stainless-steel wells & aluminized outer housing resist corrosion and daily abuse.
- Quick-swap design lets you replace elements or thermostats without removing the unit.
- 6-ft (1829 mm) flexible conduit gives you freedom to mount the control box where it’s most convenient.
- CE, cULus & UL EPH Classified—ready for use in the most demanding food-safety environments.
Ideal for
- Buffet & cafeteria lines
- C-stores & grab-and-go counters
- Commissaries and ghost kitchens
- Catering drop-ins & banquet set-ups
Key specifications
| Model | HWBI-6MA |
|---|---|
| Pan capacity | 6 full-size (12" × 20") steam pans |
| Overall size (W × D × H) | 85.5" × 23.63" × 9.56" (2172 × 600 × 243 mm) |
| Voltage / Phase | 120 V / 60 Hz / 1-ph (low wattage) |
| Total wattage | 4,500 W |
| Amps | 37.5 A |
| Drain connection | 1" NPT manifold, side or bottom exit (field selectable) |
| Water supply | Auto-fill ¼" NPT (recommended 20–50 psi) |
| Controls | Remote thermostat & lighted On/Off switch per well (6′ conduit) |
| Construction | Stainless-steel wells, aluminized steel housing, high-temp insulation |
| Certifications | CE • cULus • UL EPH Classified |
| Origin | Made in USA |
| Approx. ship weight | 189 lb (86 kg) |
Recommended accessories
- Swanstone® simulated-stone well covers—convert any well into a heated display shelf.
- Stainless or plated wire trivets for “dry” holding applications.
- Round-pan adapters (two 4 qt or two 7 qt insets per well).
Need a different size or voltage? Hatco’s modular line is available in 1- to 6-well configurations with your choice of individual or manifold drains, standard or low-watt elements, and single or split control boxes.
