Hatco HWBLI-6M Steam Tables & Food Wells

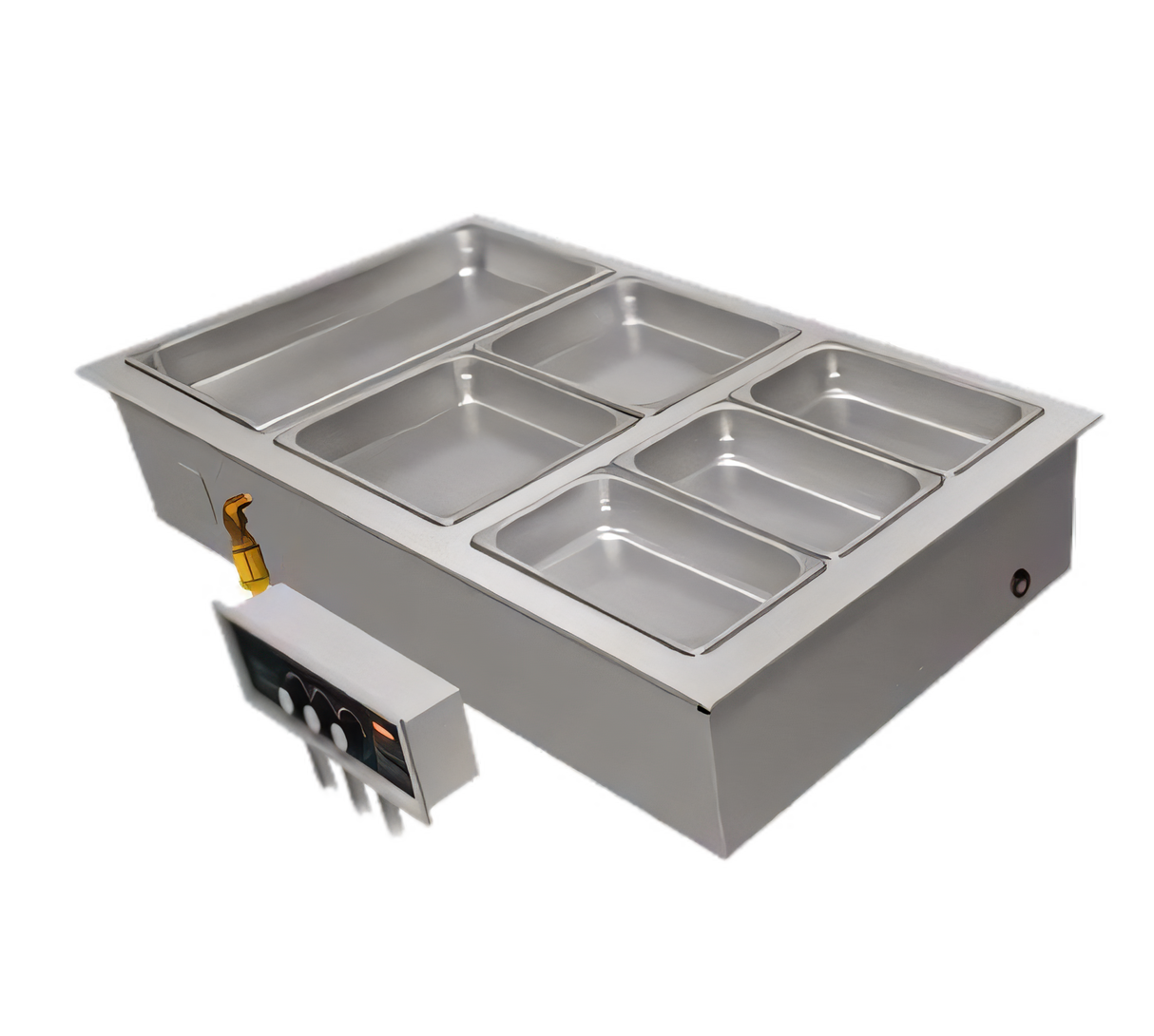

Hatco Drop-In Modular/Ganged Heated Well – 6 Pan, Low Watt

Keep entrées, sides and sauces at perfect serving temperature in one clean, continuous unit. The Hatco HWBI-6M combines six full-size insulated wells, precise individual controls and an easy-clean drain manifold—everything you need to run a high-volume buffet or cook line from a single 120 V circuit.

Why you’ll love it

• Six full-size (12″ × 20″) wells joined together in a single, top-mounted module.
• Individual remote thermostats with lighted On/Off rocker switches for pinpoint temperature control.
• Low-watt, 4,500 W design operates on standard 120 V/60/1-ph power—no special wiring required.
• 1″ NPT copper manifold drain with common shut-off makes end-of-shift cleanup fast and splash-free.
• Fully insulated wells and aluminized steel housing minimize heat loss and energy use.
• 50 % larger drain opening with flat strainer prevents clogging and keeps pans level.
• EZ-Lock™ mounting hardware secures the unit in seconds—no silicone or extra brackets needed.
• Top-side access allows quick element or thermostat replacement without pulling the unit.
• 6′ (1.8 m) flexible conduit supplied for easy placement of the control box.
• Built, tested and certified in the USA; CE, cULus and UL EPH Classified.

Ideal for

• Self-service buffets & cafeterias
• Back-of-house hot holding lines
• Banquet & catering stations
• Convenience-store food bars

Technical data

*Refer to the installation manual for complete cut-out dimensions, clearances and mounting options.
