Hatco  |  SKU: HWBLI-6DA

Hatco HWBLI-6DA Steam Tables & Food Wells

$5,549.54
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Stadium & concession solutions Parts list Owner's manual Super market & in-store solutions Catalog brochure Color chart Assembly instructions Restaurant solutions
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

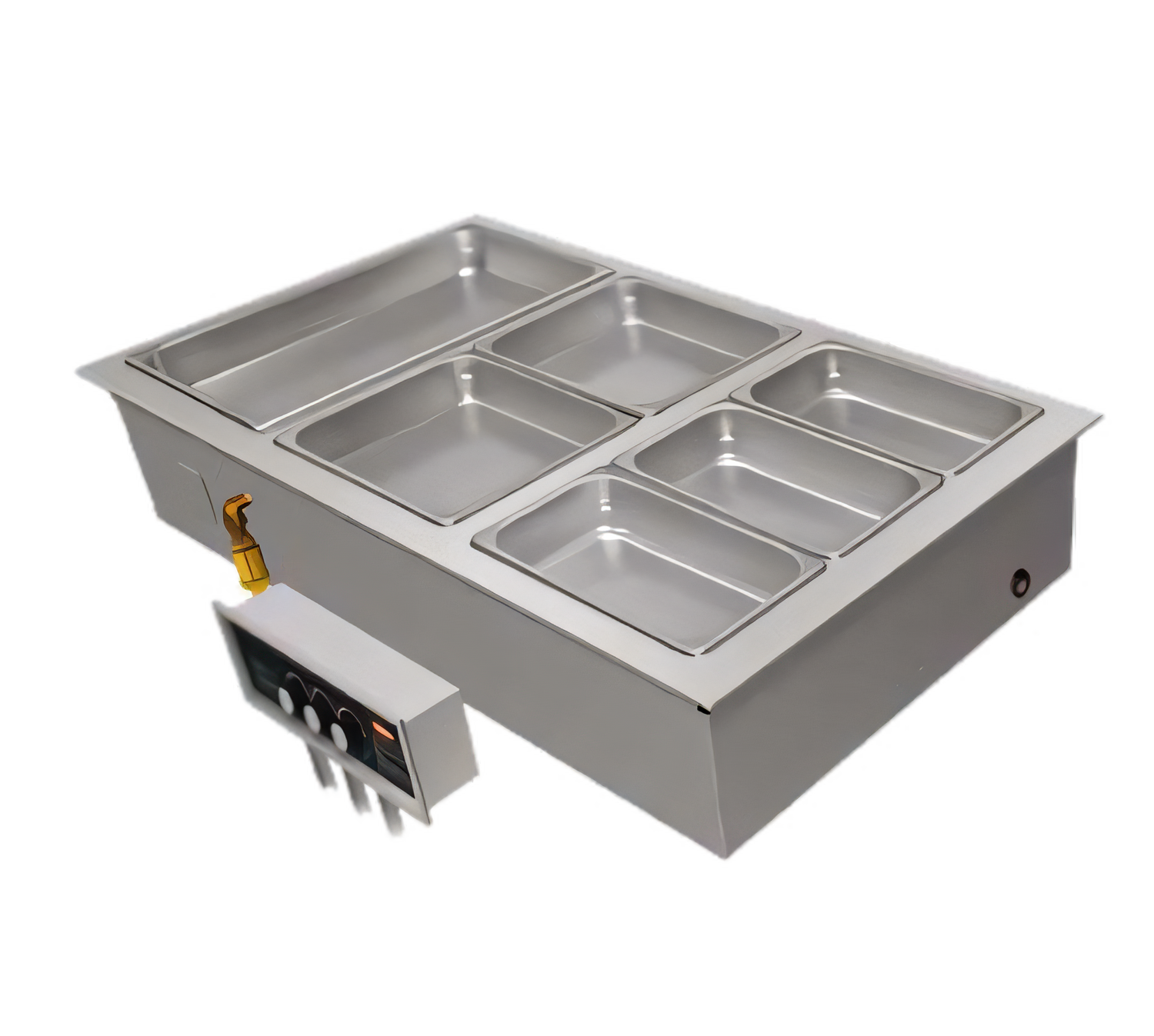

Hatco Drop-In Modular/Ganged Heated Well – 6 Pan, Auto-Fill

Model HWBI-6DA | Low-Watt 120 V | Made in USA

Turn any serving line into a high-performance steam table with Hatco’s six-pan drop-in heated well. Designed for speed, safety and precision, this top-mounted unit keeps every 12" × 20" full-size pan at perfect serving temperature while simplifying cleanup and installation.

Why You’ll Love It
  • Six individually controlled wells let you hold multiple menu items without flavor crossover.
  • Built-in auto-fill maintains water level automatically for consistent humidity and worry-free operation.
  • Oversized ¾" NPT drains with flat screens speed draining and keep pans level.
  • Lighted rocker power switch and remote thermostat for each well deliver intuitive, pinpoint control.
  • Low-watt design (4,500 W total) plugs into 120 V single phase, reducing energy costs without sacrificing performance.
  • Fully insulated, stainless & aluminized steel housing maximizes heat retention and equipment life.
  • EZ-Lock™ mounting hardware and a pre-wired 6' (1.8 m) flexible conduit cut install time to minutes.
  • Engineered & manufactured in Wisconsin, USA and backed by Hatco’s legendary 24/7 service.
Built for All-Day Holding
  • Even heat distribution eliminates hot spots and keeps food quality high for longer service windows.
  • Quick-change element and thermostat design minimizes downtime and service costs.
  • Heavy-duty brazed drain fittings stand up to busy commercial kitchens.
Specifications
Capacity 6 full-size pans (12" × 20")
Overall Dimensions 85.5" W × 23.63" D × 9.56" H (2172 × 600 × 243 mm)
Cut-Out (min/max) 84.375" – 84.312" W × 22.50" – 22.44" D
(2143 – 2141 mm × 571 – 570 mm)
Voltage / Phase 120 V / 60 Hz / 1 ph
Total Wattage 4,500 W (low wattage)
Amperage 37.5 A
Drain Individual ¾" NPT per well (left or right exit – field selectable)
Water Fill Automatic – factory-installed
Construction Stainless steel top & liners; aluminized steel body; full fiberglass insulation
Controls Remote thermostats with separate lighted power switches (6 total)
Certifications CE • cULus • UL EPH Classified
Origin Made in USA
Popular Accessories (Sold Separately)
  • Swanstone® simulated-stone well covers – convert wells to a heated shelf during off-peak hours.
  • Full-size and fractional stainless food pans & round-pan adapters.
  • External copper drain manifold with individual shut-off valves.
  • Support bars, trivets and night-covers for versatile menu setups.

For proper installation, operation and maintenance, please refer to the Hatco Installation & Operating Manual supplied with the unit.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

85.5in

Depth

23.63in

Shipping Weight

200.0lbs

Insulated or Non-Insulated

insulated

Pan Capacity

(6) full size (12" x 20")

Controls

thermostatic controls

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet or dry

Specifications

Drop-In Modular/Ganged Heated Well, with drains & auto-fill, (6) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, 4500 watts, 120v/60/1-ph (low wattage), CE, cULus, UL EPH Classified, Made in USA
