Hatco HWBLI-6 Steam Tables & Food Wells
Description

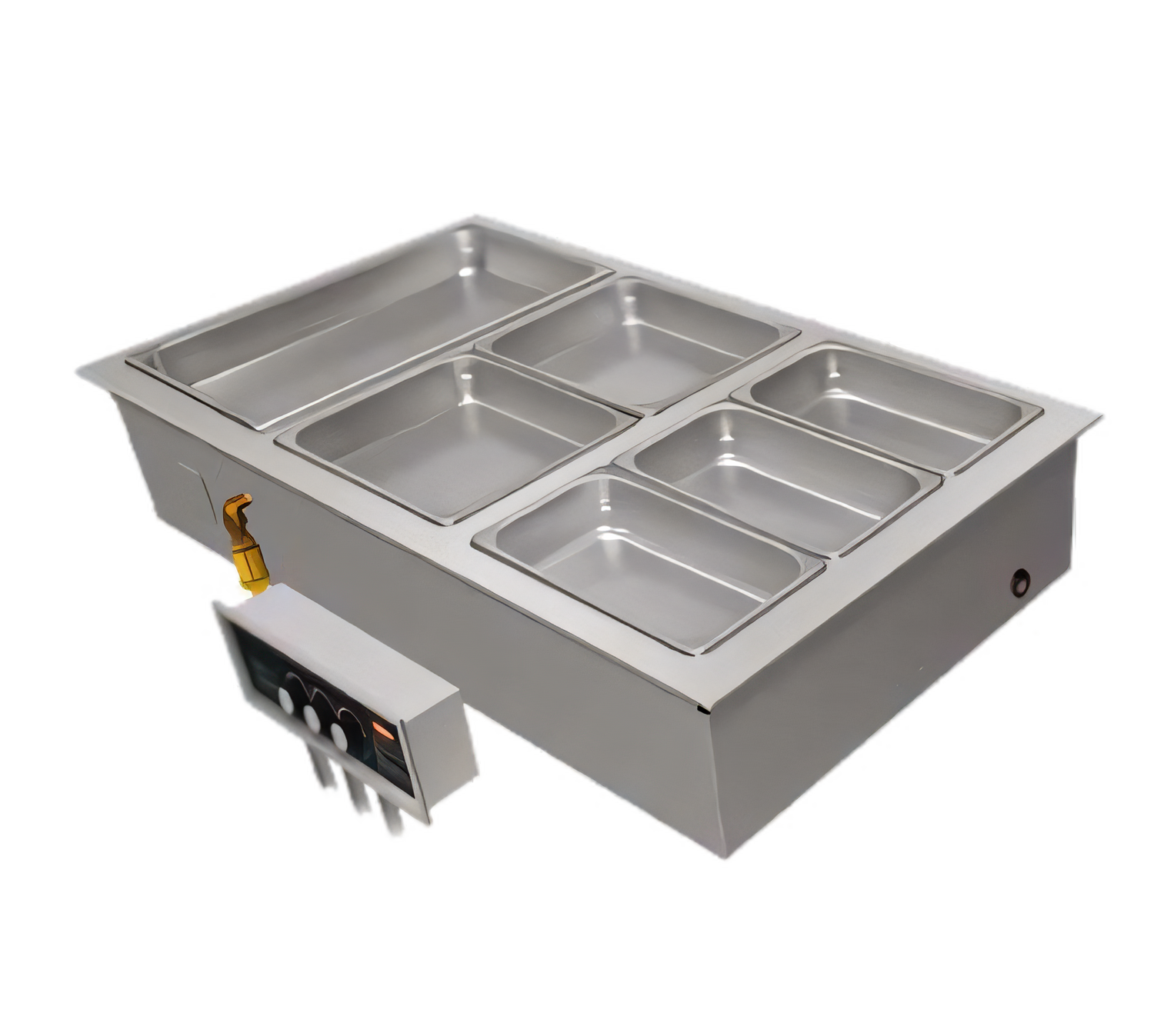

Hatco HWBLI-6 Low-Watt Modular/Ganged Drop-In Heated Well
6 full-size wells • 120 V single-phase • 4500 W total • Made in USAGive every menu item the perfect “just-served” taste and temperature with Hatco’s largest Modular/Ganged Heated Well. Six individually controlled, full-size wells are built into one seamless drop-in unit, streamlining installation while delivering the durability, accuracy and energy savings Hatco is famous for.
Key features & benefits
- Six insulated wells hold standard 12" × 20" (305 × 508 mm) pans or fractional combinations.
- Low-watt 120 V design (4500 W total) lowers energy costs while maintaining safe serving temperatures.
- Remote control box with a lighted On/Off rocker switch and precise thermostat for each well.
- Top-mount, one-piece bezel and EZ-Lock hardware for fast, flush installation into counters or serving lines.
- Stainless steel well and aluminized exterior resist corrosion and daily wear.
- Oversized flat-screen drain opening (when drain option is chosen) simplifies cleaning and keeps pans level.
- 6 ft (1829 mm) flexible conduit included—position the control box exactly where you need it.
- Field-replaceable heating elements and thermostats minimize downtime.
Where it works best
- Supermarket hot bars & deli counters
- Hotel breakfast buffets
- Catering and banquet service lines
- High-volume cafeterias & corporate dining
Technical specifications
| Pan capacity | 6 × full-size (12" × 20") |
|---|---|
| Total wattage | 4500 W (low wattage configuration) |
| Electrical | 120 V / 60 Hz / 1-phase • 37.5 A |
| Controls | Remote mount box, separate thermostat & lighted power switch per well |
| Overall dimensions | 85.5" W × 23.63" D × 9.56" H (2172 × 600 × 243 mm) |
| Mounting | Drop-in, top-mounted (surface bezel included) |
| Construction | Stainless steel wells, aluminized steel exterior |
| Shipping weight | Approx. 189 lb (86 kg) |
| Certifications | CE • cULus • UL EPH Classified |
| Country of origin | USA |
Popular accessories (sold separately)
- Swanstone® simulated-stone well covers – convert wells to a heated display shelf.
- Stainless & plated trivets for elevated pan presentation.
- Copper drain manifolds with side or bottom exit (not available on 120 V models with individual drains).
- Round-pan adapters and hinged lids for soup, chili or sauces.
- External drain valves (¾" or 1") and remote drain handles.
Need a different size, voltage or auto-fill option? Explore the full Hatco HWBI/HWBLI series or talk to a Hatco representative for a custom configuration.
