Hatco HWBLI-5M Steam Tables & Food Wells
$4,556.92
Unit price
/
Unavailable
Description

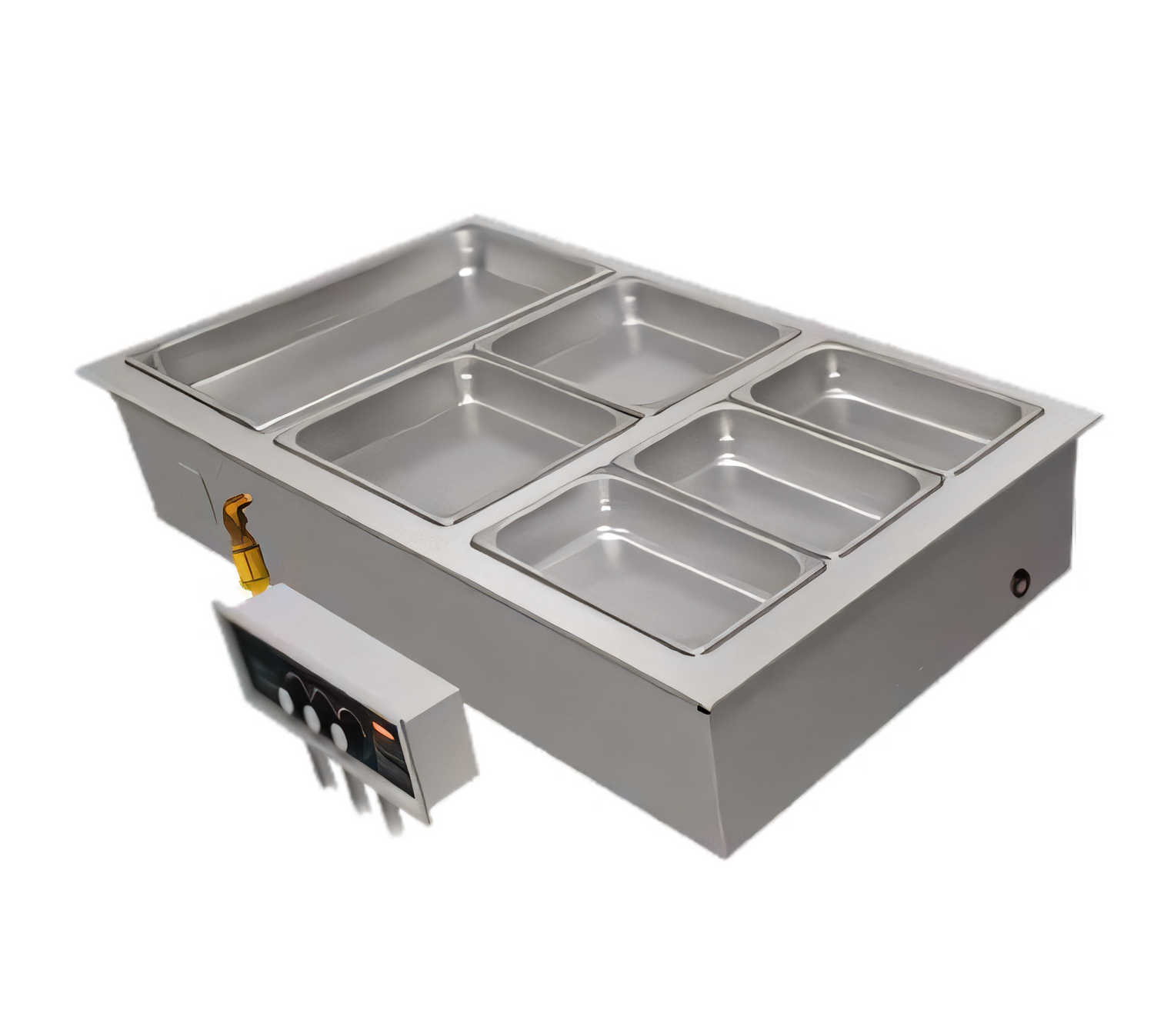

Hatco HWBI-5M Low-Watt Drop-In Modular/Ganged Heated Well
5-Pan • Manifold Drain • 120 V Single Phase • Made in USAHold more product, serve more guests, and clean up faster. The Hatco HWBI-5M combines five individually controlled heated wells into one streamlined, top-mounted module that drops straight into your counter for a professional, seamless look.
Why you’ll love it
- Five full-size (12 × 20 in) wells keep entrées, sides & sauces at safe serving temps.
- Low-watt design draws just 3,750 W total—friendly to 120 V electrical layouts.
- Remote control box gives each well its own thermostat plus lighted on/off rocker switch.
- Factory-installed 1" NPT copper manifold drain with single shut-off speeds water removal.
- EZ-Lock hardware lets one person drop-in and secure the unit in minutes.
- Fully insulated stainless & aluminized-steel housing saves energy and keeps exterior cool.
- 50 % larger flat drain screen prevents clogging and keeps pans level.
- CE, cULus & UL EPH Classified for worldwide electrical and sanitation compliance.
Perfect for
- Concession stands & stadium kiosks
- Hotel breakfast or buffet lines
- Super-market hot bars & deli service
- Catered banquets & mobile serving counters
Technical specifications
| Model | HWBI-5M (Low-Watt) |
|---|---|
| Pan capacity | (5) full-size 12 × 20 in steam-table pans |
| Overall dimensions | 71.5" W × 23.63" D × 9.56" H (1,816 × 600 × 243 mm) |
| Counter cut-out (EZ-Lock) | Min. 70.375" W × 22.5" D (1,787 × 571 mm) |
| Wattage | 3,750 W total (≈ 750 W / well) |
| Electrical | 120 V • 60 Hz • 1-Ph • 31.3 A Hard-wired; includes 6' (1.8 m) flexible conduit |
| Drain | 1" NPT copper manifold, side exit (field reversible) |
| Controls | Remote box with (5) thermostats & lighted power switches |
| Construction | Stainless steel top flange, aluminized-steel body, full fiberglass insulation |
| Certifications | CE • cULus • UL EPH Classified |
| Country of origin | Made in USA |
What’s included
- 6' (1.8 m) flexible conduit for quick hook-up
- EZ-Lock drop-in mounting hardware
- Flat stainless drain screen & single shut-off valve
- Installation & operation manual
Looking for well covers, food pans or sneeze-guard solutions? Explore our full line of Hatco accessories.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, UL EPH Classified, Made in USA
Height
9.63in
Width
71.5in
Depth
23.63in
Shipping Weight
166.0lbs
Pan Capacity
(5) full size (12" x 20")
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
wet or dry
Drain
with drain
Specifications
Drop-In Modular/Ganged Heated Well, with manifold drains, (5) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, 3750 watts, 120v/60/1-ph (low wattage), CE, cULus, UL EPH Classified, Made in USA
