Hatco HWBLI-5D Steam Tables & Food Wells
Description

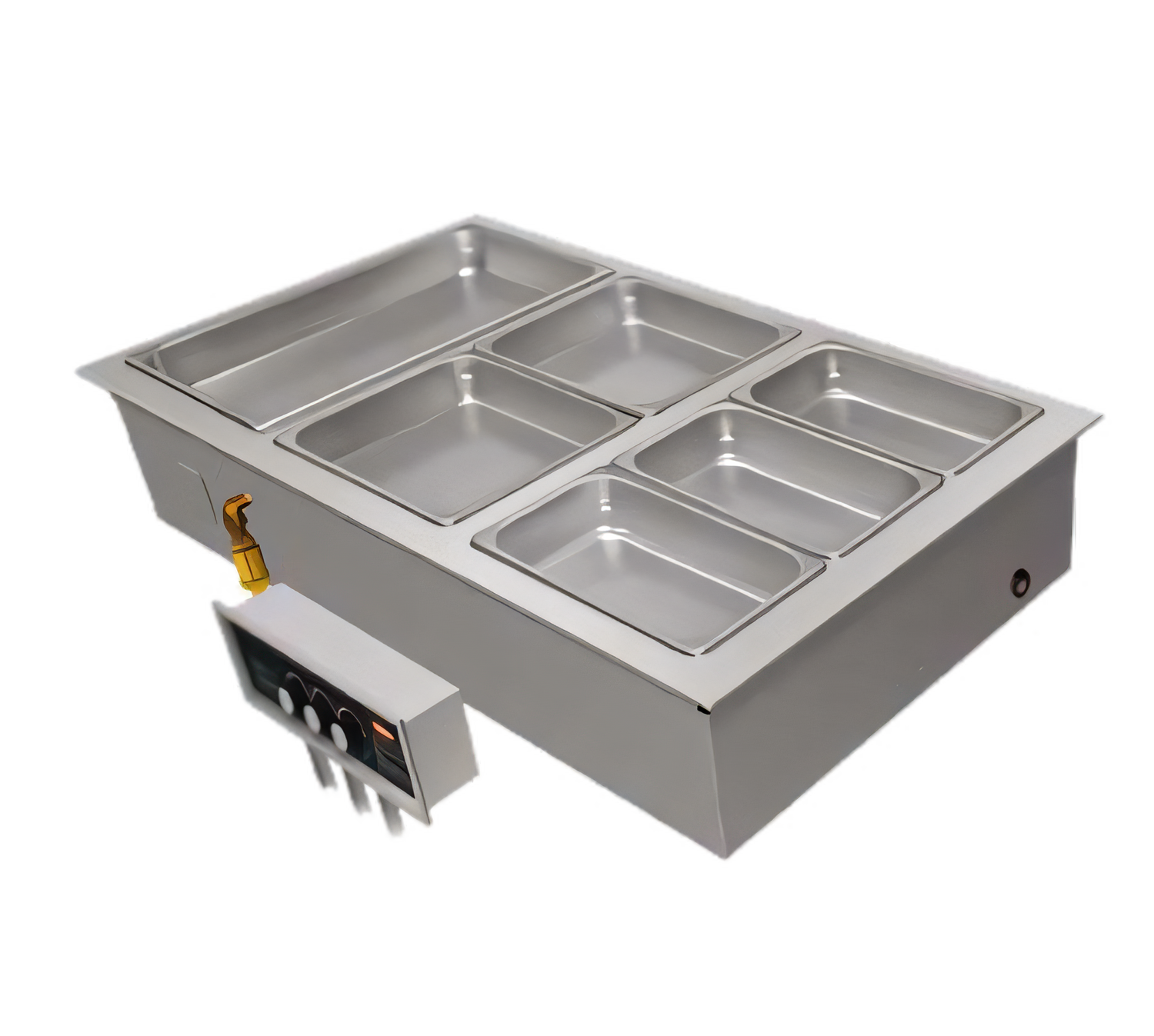

Hatco HWBI-5D Low-Watt Modular Drop-In Heated Well – 5 Pan, 120 V
With individual drains & remote thermostatic controlsGive every item on your hot bar the perfect holding environment with Hatco’s five-well modular heated well. Built for demanding food-service operations, the HWBI-5D keeps entrées and sides at safe serving temperatures without sacrificing food quality or countertop space.
Key advantages
- Five full-size (12 × 20 in) wells in one seamless drop-in module – ready for high-volume service.
- Low-watt 120 V design (3,750 W total) lets you plug into existing single-phase power systems.
- Remote thermostats with separate lighted On/Off rocker switches give every well its own precise temperature control.
- Individual ¾ in NPT drains are 50 % larger than standard, include flat screens and keep pans level for quick clean-up.
- EZ-Lock™ mounting hardware speeds up installation—just drop in, twist and tighten.
- Fully insulated stainless-steel wells and aluminized steel exterior maximize efficiency and durability.
- Six-foot (1829 mm) flexible conduit allows convenient placement of the control box.
- Field-replacable heating elements and thermostats minimize downtime.
- cULus, CE & UL EPH Classified for global safety and sanitation peace of mind.
- Proudly engineered and manufactured in the USA.
Applications
- Buffets & self-serve hot bars
- Supermarket deli lines
- Catering & banquet service lines
- Back-of-house holding stations
Specifications
| Model | HWBI-5D (Low Watt) |
|---|---|
| Pan capacity | 5 × full-size steam table pans (12 × 20 in) |
| Overall dimensions | 71.5 in W × 23.63 in D × 9.56 in H (1816 × 600 × 243 mm) |
| Mounting style | Top-mounted drop-in with EZ-Lock tabs |
| Construction | Stainless-steel wells, aluminized steel housing, fiberglass insulation |
| Controls | Five remote thermostats, each with lighted rocker power switch |
| Drainage | Individual ¾ in NPT drains with flat screens |
| Electrical | 120 V / 60 Hz / 1-ph – 3,750 W – 31.3 A Hard-wired; 6 ft (1.8 m) conduit supplied |
| Certifications | cULus, CE, UL EPH Classified |
| Country of origin | Made in USA |
| Warranty | 24/7 parts & service assistance (see Hatco warranty for details) |
Need matching food pans, covers or manifolds? Ask our team about Hatco’s full line of accessories designed specifically for HWBI wells.
