Hatco HWBLI-5 Steam Tables & Food Wells
Description

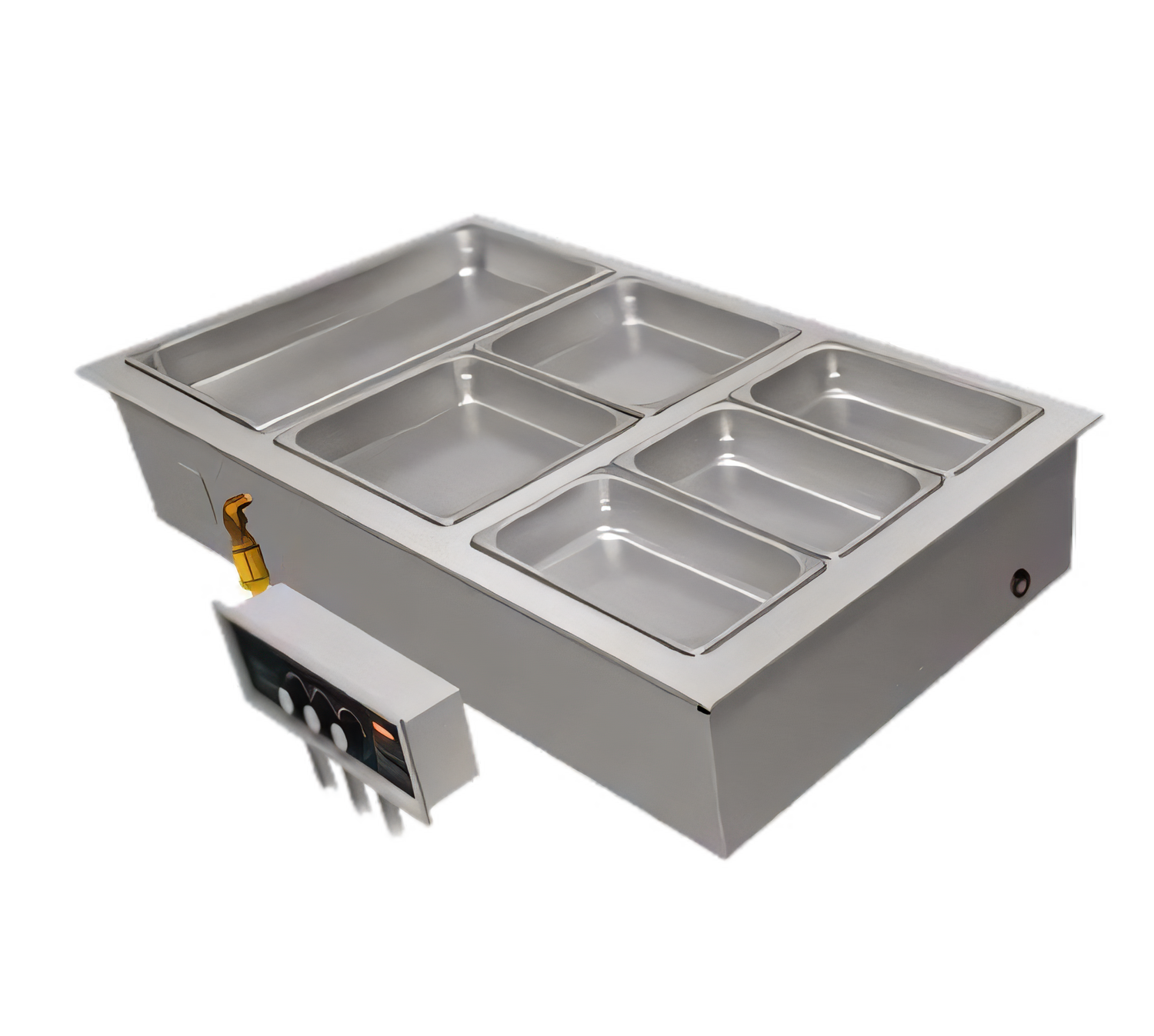

Hatco HWBI-5 Low-Watt Drop-In Modular Heated Well
Five-Pan • Insulated • 120 V / 3,750 W • Made in USAConsolidate your steam table into one seamless module. Hatco’s insulated HWBI-5 keeps five full-size pans of food hot, fresh and HACCP-safe while fitting cleanly into a single counter cut-out—saving space, installation time and energy.
Key advantages

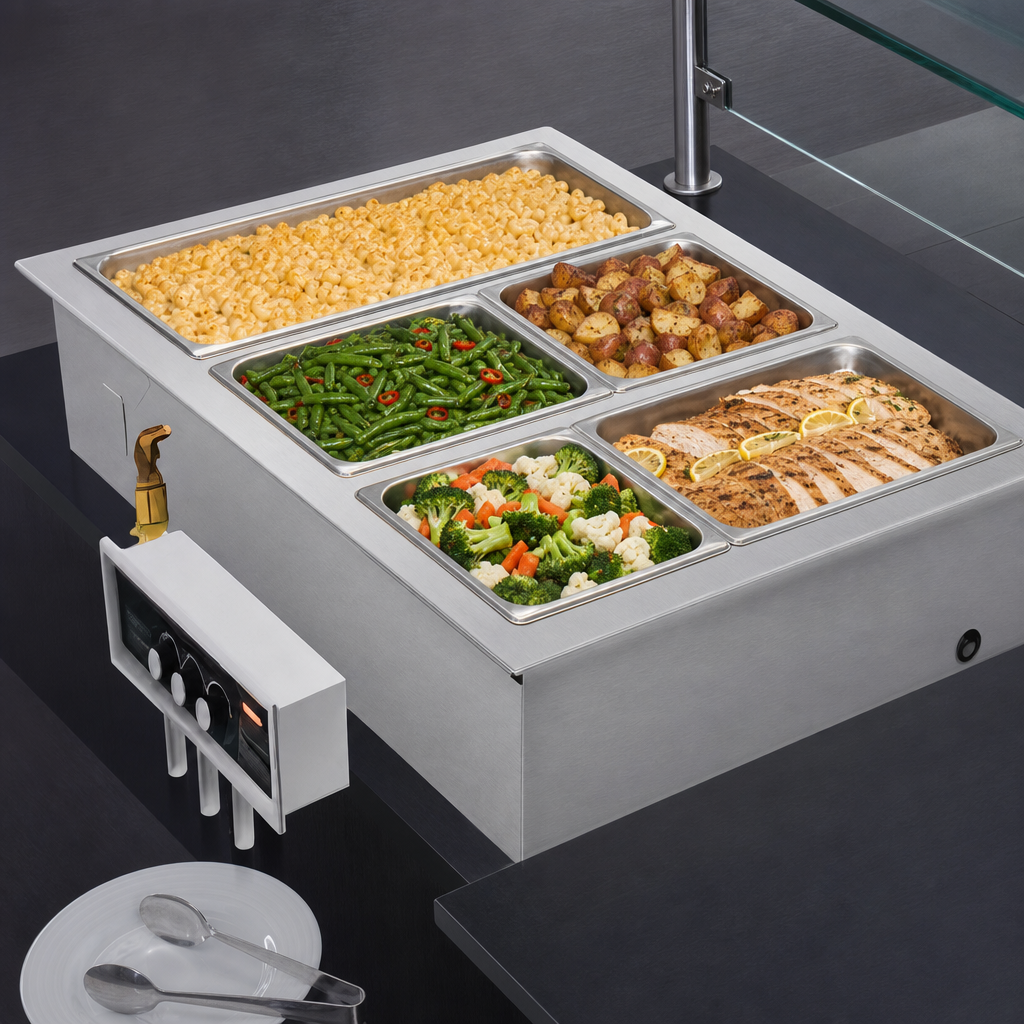

- Five individual 12 × 20 in. wells grouped in one rugged housing.
- Factory insulation plus aluminized outer body reduce heat loss and cabinet temperatures.
- Remote control box provides a lighted ON/OFF rocker switch and thermostatic dial for each well.
- Low-watt design draws just 31.3 A on a standard 120 V single-phase circuit.
- 50 % larger flat-screen drain* speeds cleaning and keeps pans level.
- EZ-Lock hardware and 6 ft (1.8 m) flexible conduit make drop-in mounting fast and tidy.
- Field-replaceable elements and thermostats minimize downtime.
- Stainless well liner with solid-brazed joints stands up to daily commercial use.
- Certified to CE, cULus and UL EPH (NSF/ANSI 4) standards.
*Drain assemblies are optional on 120 V low-watt units—order separately if required.
Serve it your way
The HWBI-5 accepts standard full-size pans, fractional pans, or Hatco adapter bars and round insets (4 qt / 7 qt). Add Swanstone® simulated-stone covers to convert the well into a heated shelf for overnight staging or merchandising.
Technical specifications
| Model | HWBI-5 (Low-Watt, Insulated) |
|---|---|
| Pan capacity | (5) full-size, 12 × 20 in. (305 × 508 mm) |
| Overall dimensions | 71.5 × 23.63 × 9.56 in. (1,816 × 600 × 243 mm) |
| Mounting | Top-mount (EZ-Lock) |
| Electrical | 120 V / 60 Hz / 1-phase, 3,750 W, 31.3 A (hard-wire connection) |
| Controls | Remote mechanical thermostat & illuminated power switch per well |
| Construction | Stainless-steel well liner, aluminized & stainless housing, factory insulation |
| Drain | Not included; ¾ in. or 1 in. NPT side/bottom drain kits optional |
| Approvals | CE • cULus • UL EPH Classified |
| Ship weight | ≈ 167 lb (76 kg) |
| Origin | Made in USA |
Recommended accessories
- Copper or stainless drain manifolds with individual shut-off valves
- Swanstone® stone-look well covers (Night Sky, Gray Granite, Bermuda Sand)
- Adapter bars & trivets for fractional pans or 4/7-qt round inset pans
- Remote drain handle for ¾ in. drains
Built for performance and backed by Hatco’s 24/7 service network, the HWBI-5 delivers the reliable hot-food holding your operation demands.
