Hatco HWBLI-4DA Steam Tables & Food Wells
Description

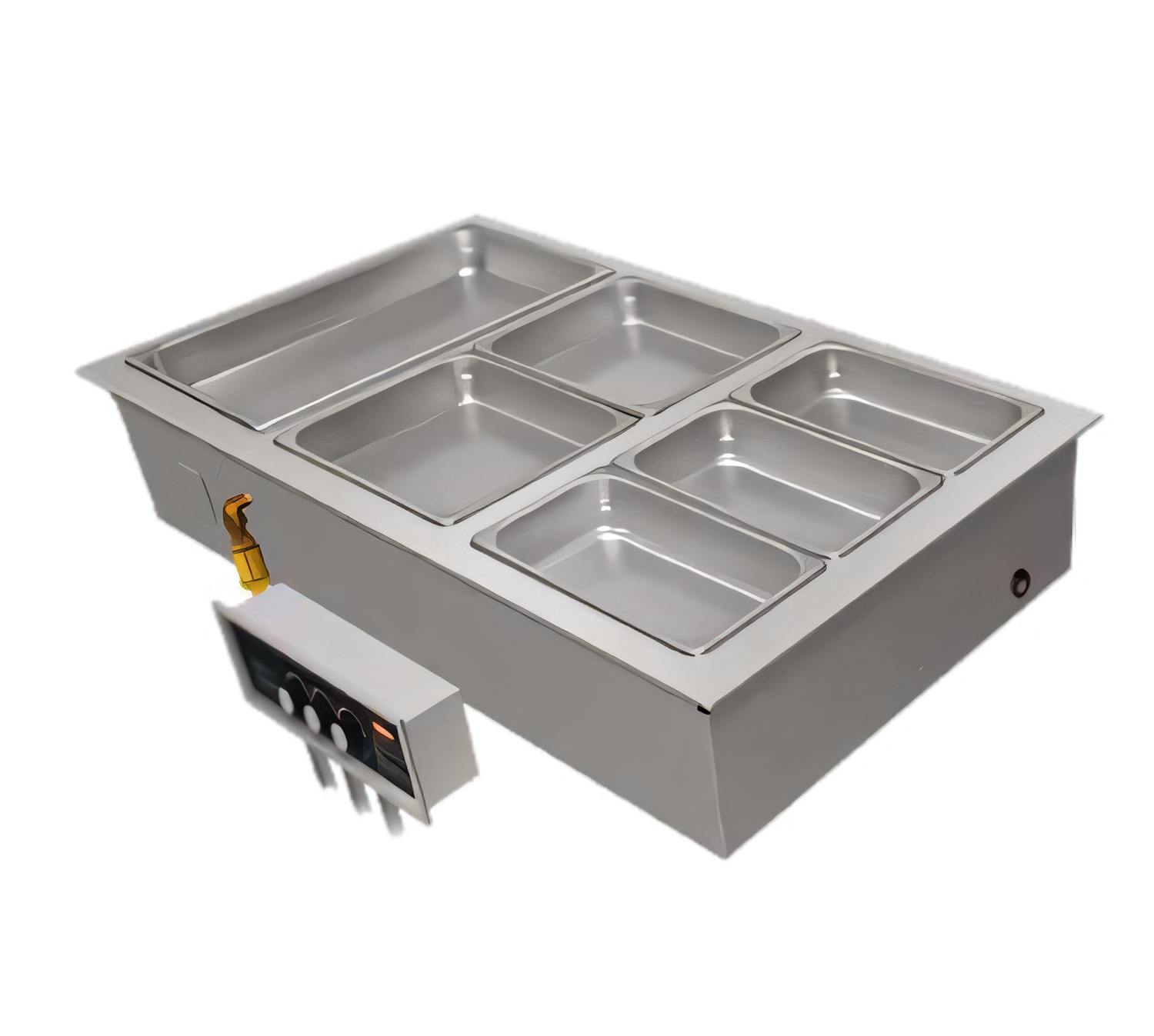

Hatco HWBI-4DA Low-Watt Drop-In Heated Well – 4 Pan, Auto-Fill & Drain, 120 V
Four individually-controlled wells, ready for effortless buffet serviceBuild a dependable, great-looking steam table in one simple cut-out. The Hatco HWBI-4DA combines four fully-insulated, full-size wells with automatic water fill, oversized drains, and remote controls—delivering precise, 24/7 holding performance in a single, Made-in-USA module that drops straight into your counter.
Key advantages
- 4-pan capacity – accepts four 12" × 20" hotel pans (or fractional pans with adapters).
- Individual temperature dials for each well plus separate lighted power switches.
- Auto-fill system keeps water at the correct level automatically, protecting elements and cutting labor.
- Large 1" NPT drain manifold with flat strainers speeds cleanup and prevents pan wobble.
- Energy-saving low-watt design – only 3000 W total at 120 V/1-ph (≈25 A).
- EZ-Lock mounting and a factory-installed 6' (1829 mm) flexible conduit make installation fast and tidy.

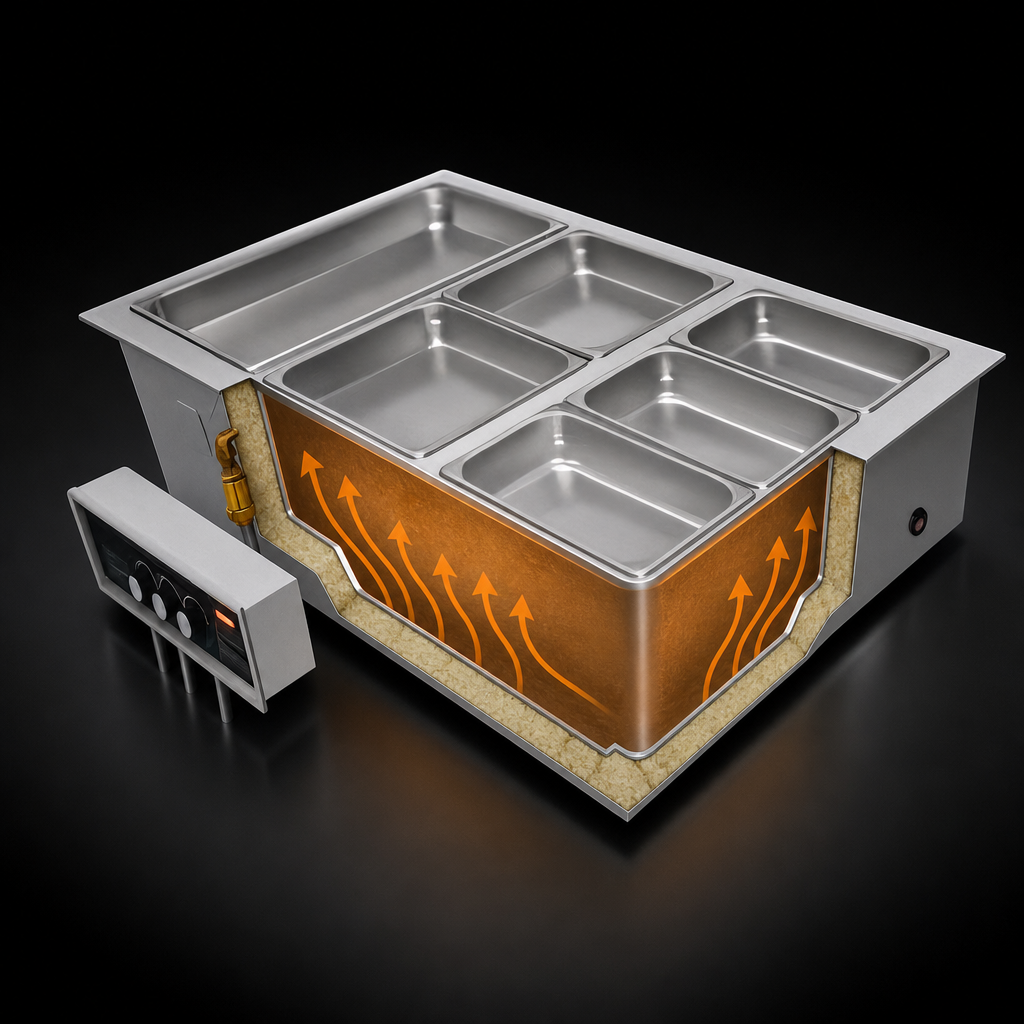

- Stainless steel wells & aluminized outer housing stand up to daily commercial use.
- Wet or dry operation with high-limit protection for worry-free holding.
- Agency listed – CE, cULus, UL EPH Classified for sanitation.
- Built in Wisconsin, USA and backed by Hatco’s renowned 24/7 service network.

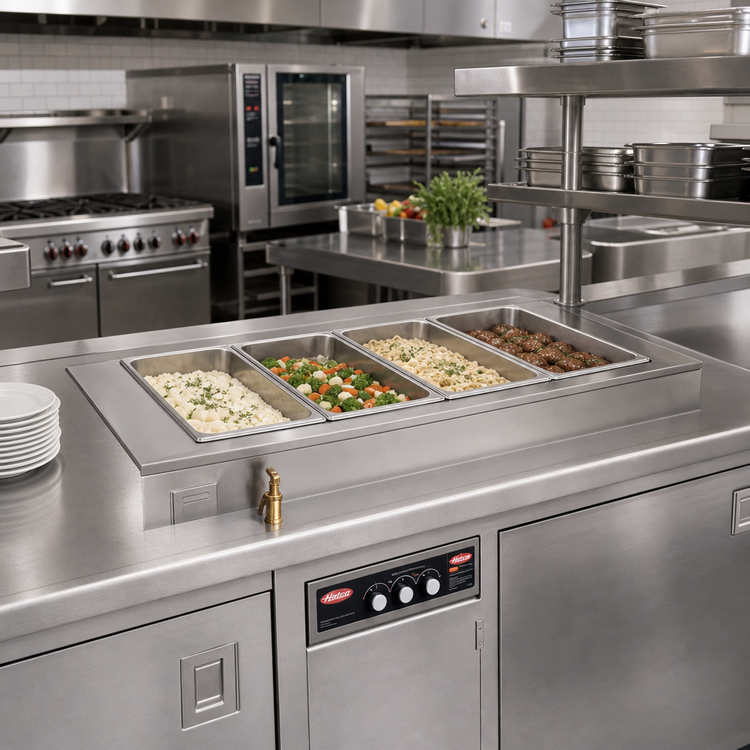

Ideal applications
- Self-serve buffets & hotel breakfast bars
- Supermarket delis & grab-and-go islands
- Cafeterias, schools, & corporate dining
- Convenience stores & concession stands
Technical details
| Model | HWBI-4DA (Low Watt) |
|---|---|
| Pan capacity | 4 × full-size (12" × 20") |
| Total wattage | 3000 W |
| Electrical | 120 V / 60 Hz / 1-phase | 25 A (hard-wired) |
| Controls | Remote mechanical thermostats (one per well) with individual illuminated rocker switches |
| Temperature range | Up to 200 °F (93 °C) holding |
| Auto-fill connection | ¼" NPT water inlet with back-flow preventer & low-water sensor |
| Drain | Integrated 1" NPT copper manifold with field-selectable left/right side outlet |
| Overall dimensions | 43.5" W × 23.6" D × 9.6" H (1105 × 600 × 243 mm) |
| Minimum cut-out | 42.375" W × 22.25" D (1076 × 565 mm) |
| Shipping weight | ≈ 167 lb (76 kg) |
| Construction | Type 304 stainless steel wells, aluminized steel housing, solid-brazed drain fittings |
| Listings | CE, cULus, UL EPH Classified |
| Origin | Made in USA |
What’s included
- HWBI-4DA drop-in heated well module
- Remote control box with 6' (1829 mm) conduit
- EZ-Lock mounting hardware
- Installation & operation manual
Popular add-ons (sold separately)
- Swanstone® simulated-stone well covers (convert wells to heated shelf when not in use)
- Stainless steel or plated wire trivets
- Adapter bars for fractional or round pans
- Manual or ball valves for drain outlet
Pans, water and drain fittings external to the unit are not included. Always verify electrical and cut-out requirements with your licensed installer prior to purchase.
