Hatco HWBLI-4D Steam Tables & Food Wells
Description

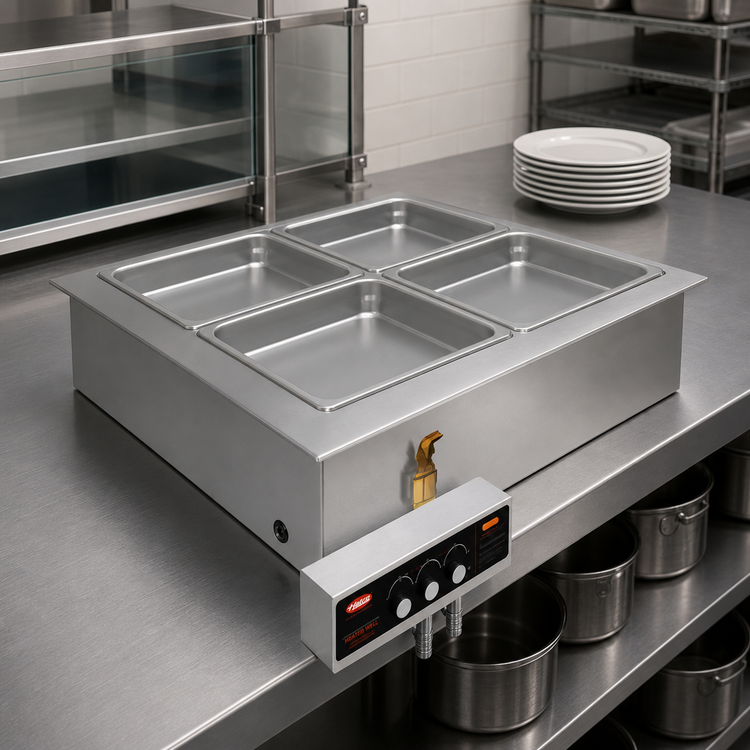

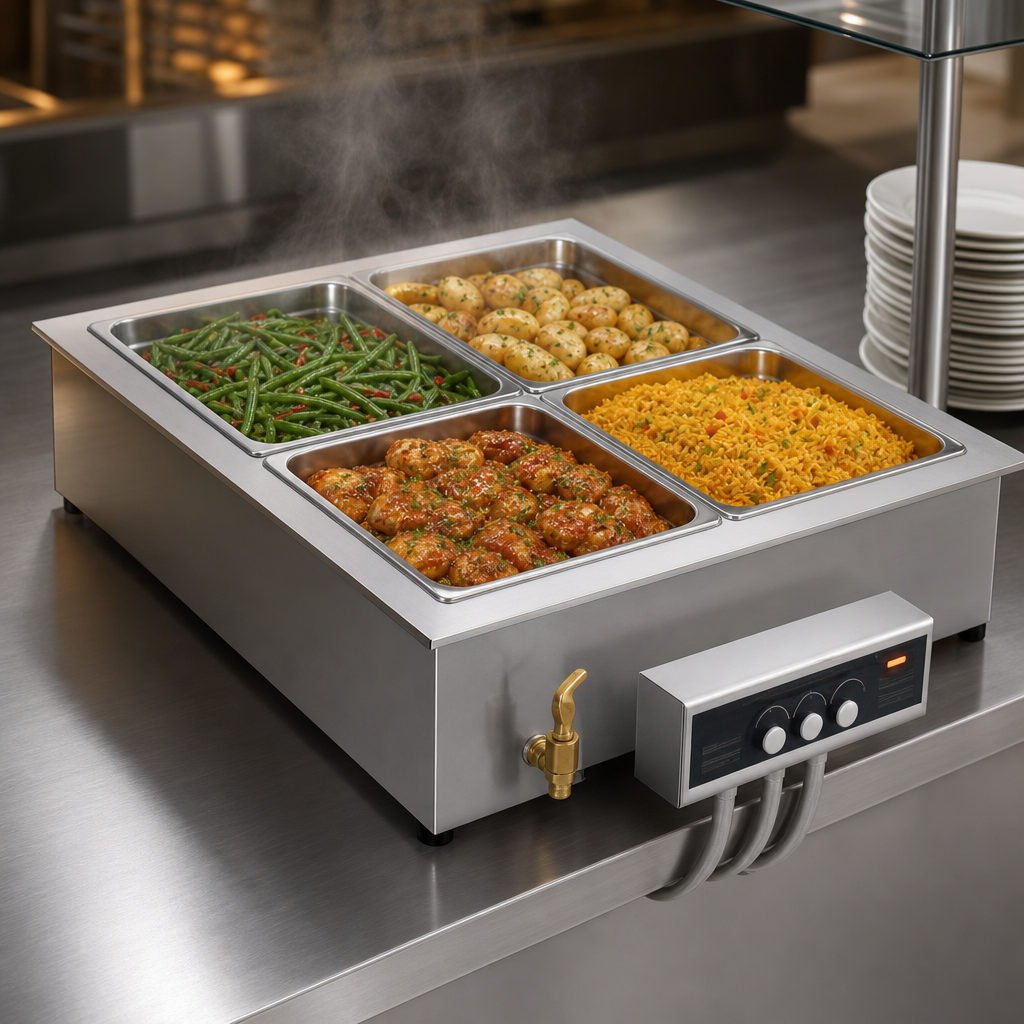

Hatco Drop-In Modular/Ganged Heated Well – 4 Pan With Drains
Model HWBI-4D • Low-Watt • 120 V / 60 Hz / 1-PhaseServe every dish at its best. The Hatco HWBI-4D combines four individually controlled heated wells into one sleek, top-mounted module that drops neatly into your counter, keeps food at safe serving temperatures, and speeds clean-up when the rush is over.
Key Benefits
- Independent remote thermostat & lighted rocker switch for each well delivers pinpoint temperature control.
- Low-watt, 3 000 W design operates on a single 120 V circuit—ideal where power is limited.
- Oversized ¾″ NPT drains with flat strainers empty wells fast while keeping pans level.
- EZ-Lock™ mounting hardware and 6 ft (1.8 m) pre-wired conduit slash installation time.
- Fully insulated stainless-steel/aluminized housing reduces energy loss and keeps countertops cool.
- Field-replaceable elements and thermostats can be swapped out from the top in minutes.
Product Specifications
| Pan Capacity | (4) Full-size 12″ × 20″ (305 × 508 mm) |
|---|---|
| Overall Dimensions | 57.5″ W × 23.63″ D × 9.56″ H (1 461 × 600 × 243 mm) |
| Mounting Style | Insulated, top-mounted drop-in |
| Total Wattage | 3 000 W (low wattage) |
| Electrical | 120 V • 60 Hz • 1-Phase (hard-wired) |
| Controls | Remote panel—separate thermostat & power switch per well |
| Drainage | Individual ¾″ NPT drains per well |
| Construction | 18 ga stainless-steel bezel & aluminized steel body with brazed drain fittings |
| Certifications | CE • cULus • UL EPH Classified |
| Origin | Made in the USA |
Perfect For
- Stadium & arena concessions
- Self-service buffets & salad bars
- Hotel breakfast lines
- Catering and banquets
Optional Accessories
- Swanstone® simulated-stone well covers (1- or 2-pan) for use as a heated shelf.
- Full-, half-, or third-size stainless-steel food pans in 2.5″, 4″, or 6″ depths.
- Plated or stainless wire trivets to elevate pans for dry holding.
- External copper drain manifold with individual shut-off valves.
Looking for auto-fill, three-phase, or other configurations? Hatco offers 1- to 6-pan models with a wide range of voltages, controls, and mounting options—just ask!
