Description

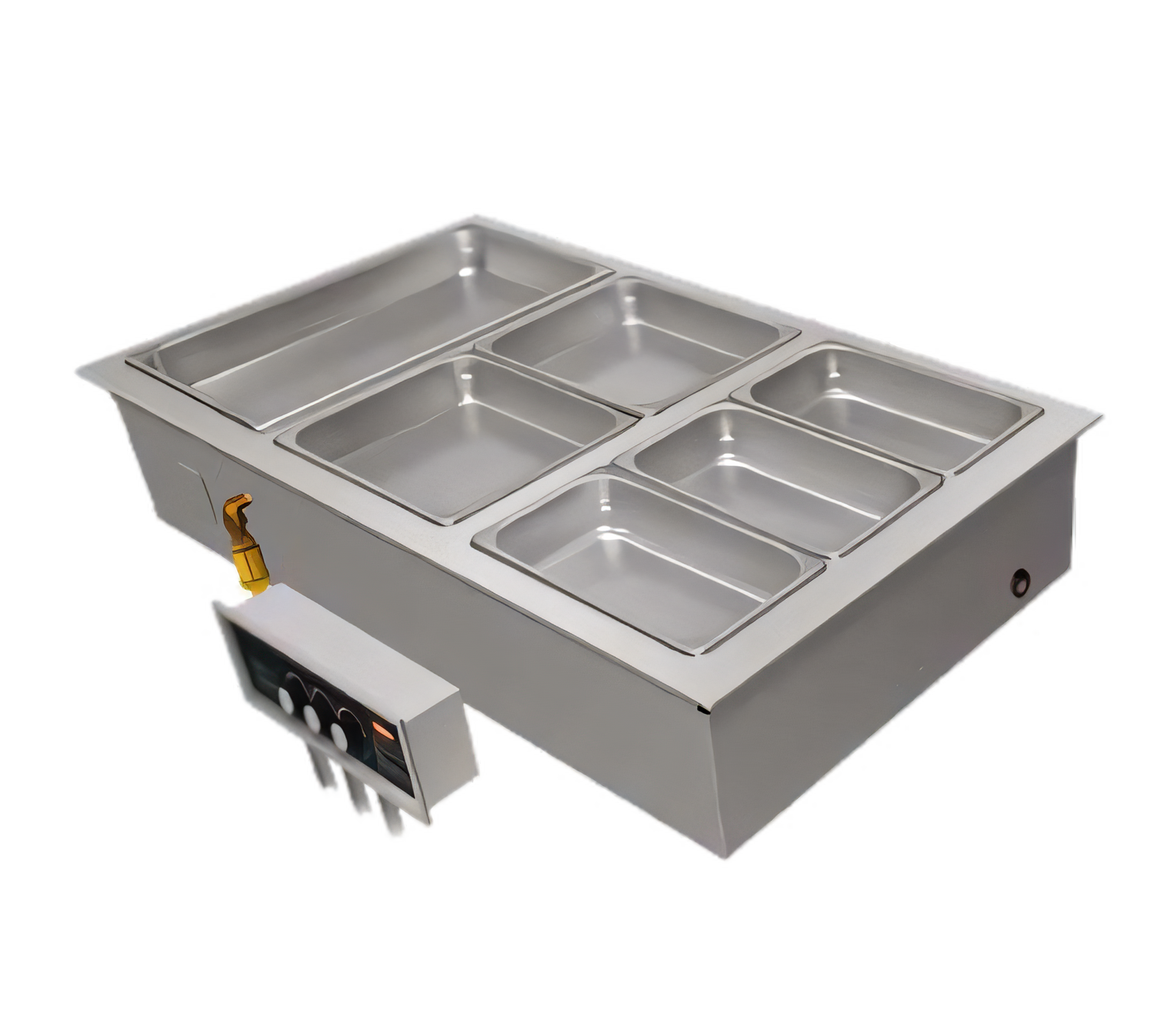

Hatco HWBI-3M Drop-In Modular Heated Well

3-Well | Low Watt 120 V | Manifold Drain

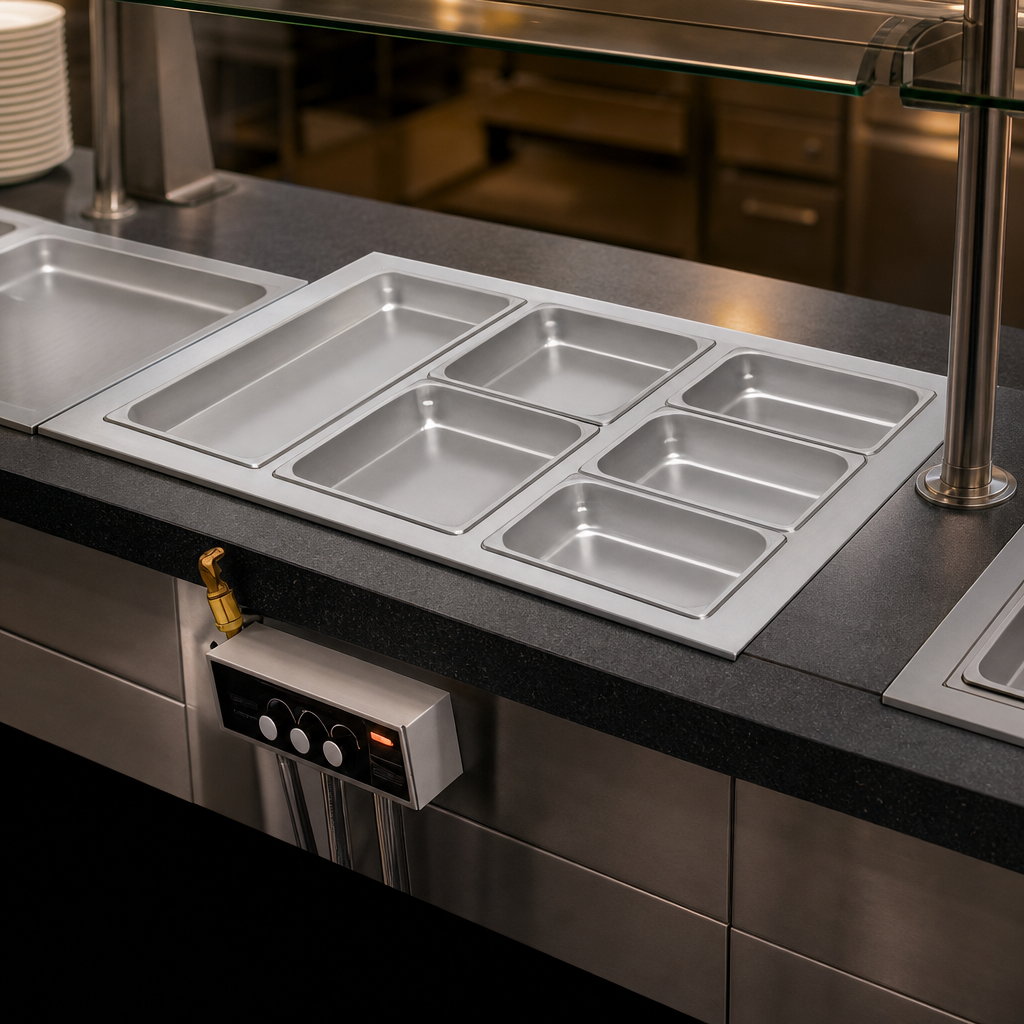

Give your serving line the professional edge with Hatco’s three-well modular warmer. Engineered for long-lasting temperature accuracy, the HWBI-3M installs flush inside the counter for a seamless, easy-to-clean presentation while keeping every entrée, side or sauce hot, fresh and food-safe.

Why you’ll love it

  • Holds three full-size (12 × 20 in) pans or fractional combinations.
  • Low-watt package draws just 2250 W (≈ 750 W per well) on a single 120 V / 60 Hz circuit.
  • Remote thermostat with lighted On/Off rocker for quick, precise adjustments.
  • Fully insulated, top-mounted design keeps heat in the food—not in your counter.
  • 1 in copper manifold drain with flat stainless screen empties all wells through one connection, speeding cleanup.
  • EZ-Lock mounting hardware ships standard—drops in, locks tight, no messy sealants required.
  • Durable stainless-steel liner and aluminized exterior stand up to daily commercial use.
  • Field-replaceable elements and thermostats minimize downtime and service costs.

Technical details

Pan capacity 3 × full-size steam table pans (or fractional equivalents)
Overall dimensions ≈ 43.5 in W × 23.6 in D × 9.6 in H
Recommended cut-out Min. 42.4 in W × 22.25 in D (verify with spec sheet)
Electrical 2250 W | 18.8 A | 120 V | 1-phase | 60 Hz
Controls Remote thermostatic dial  •  Separate illuminated power switch
Drain Factory-brazed 1 in NPT copper manifold (side exit)
Construction Stainless-steel well liner, aluminized steel housing, full insulation
Certifications CE  •  cULus  •  UL EPH Classified
Origin Made in USA

Perfect for

  • Buffets & carving stations
  • QSR & fast-casual build-outs
  • C-stores, delis & cafeterias
  • Catering and banqueting lines

Matching pan covers, round-pan adapters, support bars and other Hatco accessories are available to customise your well.

Installation note: Electrical and countertop cut-out requirements vary by site. Always consult the current Hatco specification sheet and a qualified professional before fabricating counters or connecting power.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

9.63in

Width

43.5in

Depth

23.63in

Shipping Weight

105.0lbs

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet or dry

Style

individual pans

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Controls

thermostatic controls

Specifications

Drop-In Modular/Ganged Heated Well, with manifold drains, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, 2250 watts, 120v/60/1-ph (low wattage), CE, cULus, UL EPH Classified, Made in USA
