Hatco HWBLI-3DA Steam Tables & Food Wells
Description

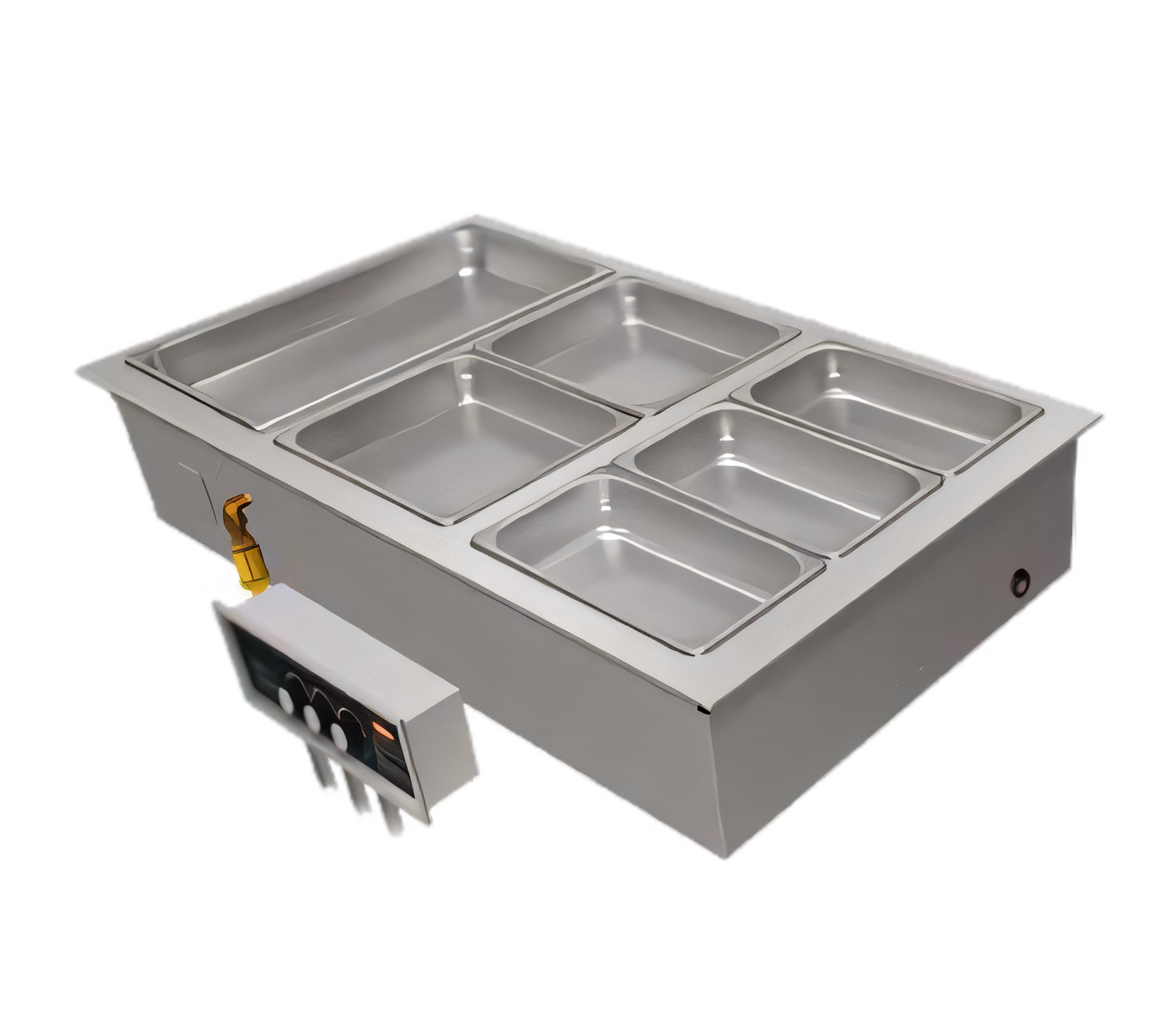

Hatco Drop-In Modular Heated Well – 3 Pan, Auto-Fill (120 V)
Model HWBI-3DA | Low Watt | With Individual DrainsGive every dish the just-made taste your guests expect. Hatco’s 3-pan drop-in heated well delivers precise holding temperatures, automatic water management and fast clean-up – all in a single, seamless module that drops straight into your counter.
Why You’ll Love It
- 3 full-size (12 × 20 in) wells grouped in one insulated, top-mounted unit.
- Auto-fill system maintains the correct water level and protects elements from burn-out.
- Oversized ¾ in NPT drains with flat strainers speed daily cleaning and keep pans level.
- Individual remote thermostats with separate lighted power switches for pinpoint control.
- Low-watt design draws just 2250 W on a standard 120 V/60/1 circuit – no high-voltage hook-up required.
- Stainless steel wells and aluminized outer housing resist corrosion and warping.
- EZ-Lock hardware lets you drop, lock and go – no messy silicone needed.
- CE, cULus & UL EPH Classified; proudly made in the USA.
Made for Busy Lines Like Yours
- Buffets & Steam Tables
- Supermarket Hot Bars
- Hotel Breakfast Service
- School & Corporate Cafeterias
- Catering & Mobile Serving Stations
Technical Specifications
| Pan Capacity | 3 full-size pans (GN 1/1) |
|---|---|
| Overall Dimensions | 43.5 ″ W × 23.63 ″ D × 9.56 ″ H (1105 × 600 × 243 mm) |
| Mounting | Top-mounted, insulated; EZ-Lock brackets included |
| Construction | Stainless steel wells with aluminized steel exterior |
| Controls | Remote mechanical thermostats (one per well) + lighted rocker power switches |
| Heat Output | 2250 W total (low watt configuration) |
| Electrical | 120 V / 60 Hz / 1-Ph • 18.8 A • 6 ft (1829 mm) pre-wired conduit |
| Water Management | Auto-fill with low-water protection + individual ¾ in drains |
| Certifications | CE • cULus • UL EPH Classified |
| Country of Origin | Made in USA |
Looking for matching bezels, gaskets or pan covers? Ask our team about factory-fit accessories that create a flawless, food-safe counter surface.
