Hatco  |  SKU: HWBL-43DA

Hatco HWBL-43DA Steam Tables & Food Wells

$1,129.29
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Assembly instructions Parts list Owner's manual
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

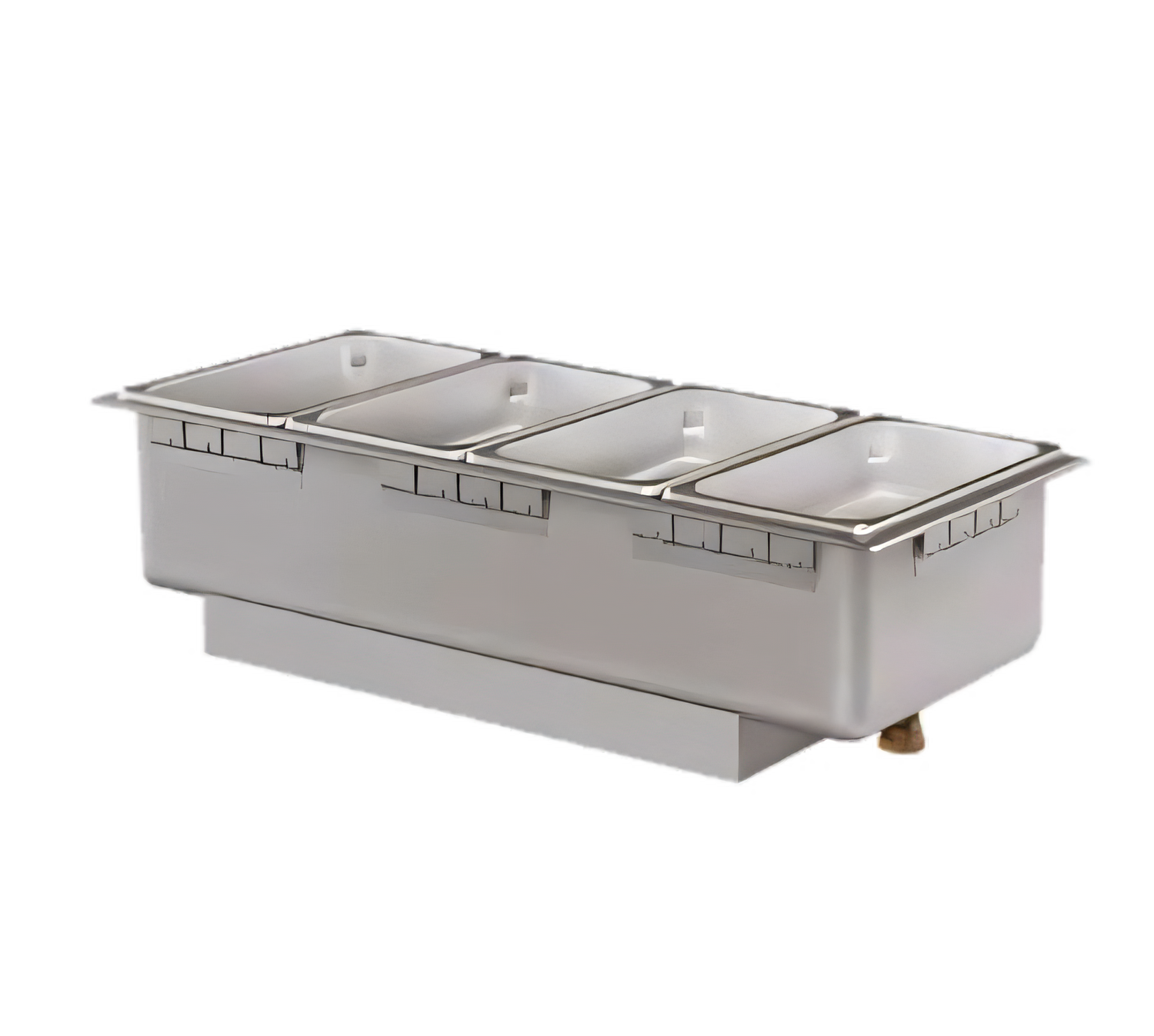

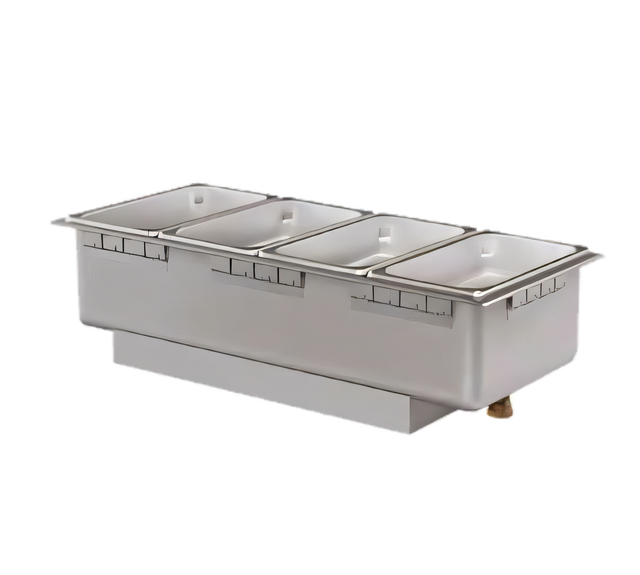

Hatco 4/3-Size Drop-In Heated Well – Drain & Auto-Fill (Low Watt)

Holds four 1/3-size pans • Remote thermostat control • UL, cUL, UL-EPH & CE listed

Give your serving line a compact, worry-free hot holding solution. Hatco’s low-wattage 4/3-size Drop-In Heated Well keeps foods at safe, appetizing temperatures while its automatic water-level control cuts daily labor and protects the element from burn-out.

Why You’ll Love It

  • Built to fit four 1/3-size hotel pans (or equivalent fractional pan combinations).

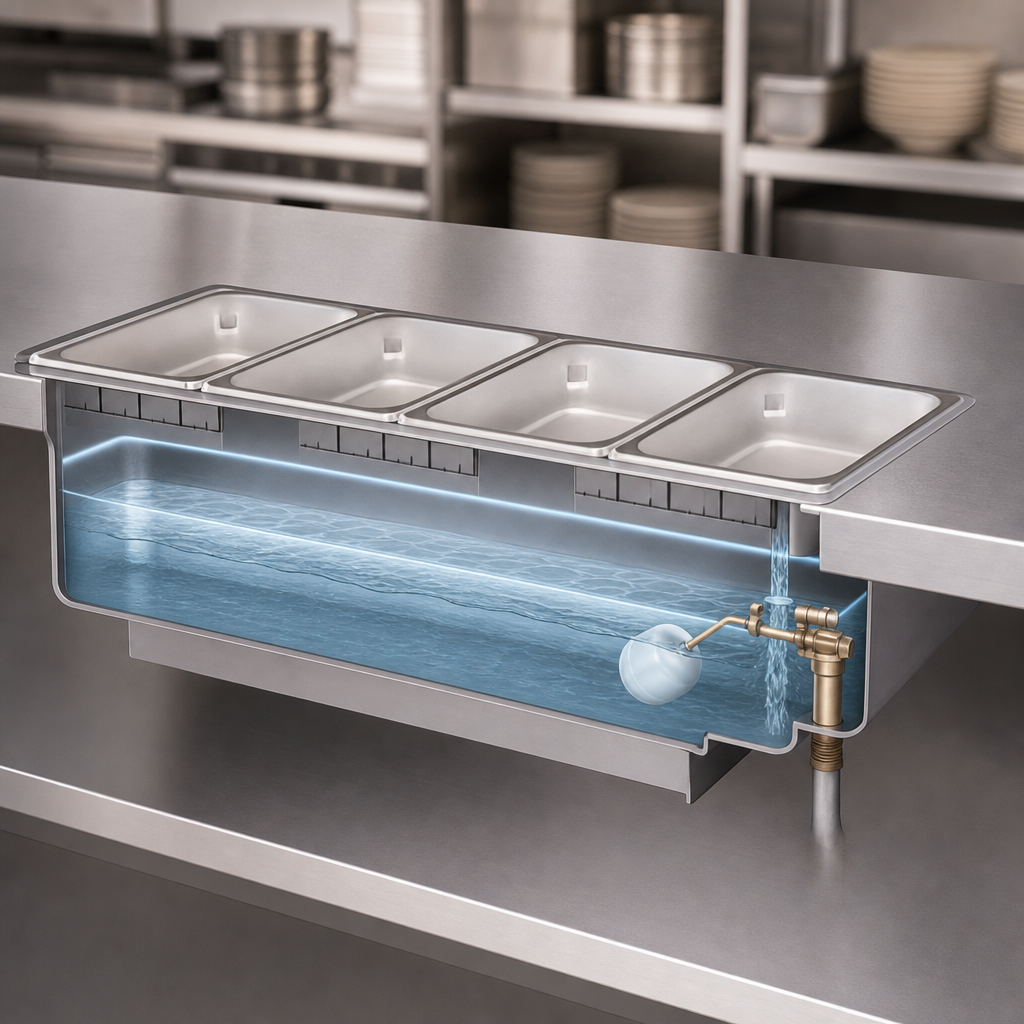

  • Auto-Fill system automatically adds water as needed—no more constant monitoring.
  • Low-watt, 750 W element (120 V) delivers energy-efficient temperature holding.
  • Remote control box with lighted ON/OFF rocker switch and accurate thermostat dial.
  • Oversized ¾" drain with flat strainer speeds water changes and end-of-shift cleanup.
  • Heavy-gauge stainless steel construction resists corrosion and wipes clean fast.
  • Top-mount EZ-lock design simplifies drop-in installation.
  • Quick-service access to element & thermostat keeps downtime to a minimum.
  • Meets the toughest standards—UL, cUL, UL EPH Classified and CE.

At a Glance

Pan Capacity (4) 1/3-size pans, up to 6" (152 mm) deep
Overall Dimensions (W × D × H) 13.58" × 28.58" × 9.42"
(345 × 726 × 239 mm)
Counter Cut-Out
(non-combustible)		 12.687–12.938" W × 27.687–28" D
(323–328 × 704–711 mm)
Electrical 120 V / 60 Hz / 1-phase
750 W • 6.3 A (hard-wire connection)
Control Box Conduit 36" (914 mm) flexible conduit  •  72" (1829 mm) optional
Drain ¾" NPT with removable flat strainer
Auto-Fill Components Low-water sensor, back-flow preventer & solenoid valve (factory installed)
Construction Stainless & aluminized steel housing • Metal-sheathed heating element
Ship Weight Approx. 27 lb (12 kg)

Perfect For

  • Buffets & cafeteria lines
  • Hotel breakfast bars
  • Supermarket hot cases
  • C-stores & delis

Factory-Available Accessories

  • ¾" ball or gate valve kits for the drain
  • Stainless steel pans (⅓, ½ or full size; 2.5", 4" & 6" depths)
  • Round-pan adapter for two 11-qt inserts with matching lids
  • Wire trivets and support bars
  • Designer color bezel for control box
  • Combustible-countertop mounting kit

Need multiple wells or a custom control style? Contact us—Hatco will build the perfect configuration for your line.

Features & Specs

Manufacturer

Hatco

Certifications

UL, UL EPH Classified

Height

9.42in

Width

13.63in

Depth

28.63in

Shipping Weight

36.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Pan Capacity

(1) 4/3 size (12" x 27")

Construction

stainless steel construction

Specifications

Drop-In Heated Well, with drain & auto-fill, rectangular, (4) 1/3 size pan cap., top mounted, remote thermostat with separate power switch, stainless steel construction (low wattage), CE, cUL, UL, UL EPH Classified
