Hatco  |  SKU: HWBI43-6DA

Hatco HWBI43-6DA Steam Tables & Food Wells

$6,260.66
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Catalog brochure Owner's manual Parts list
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

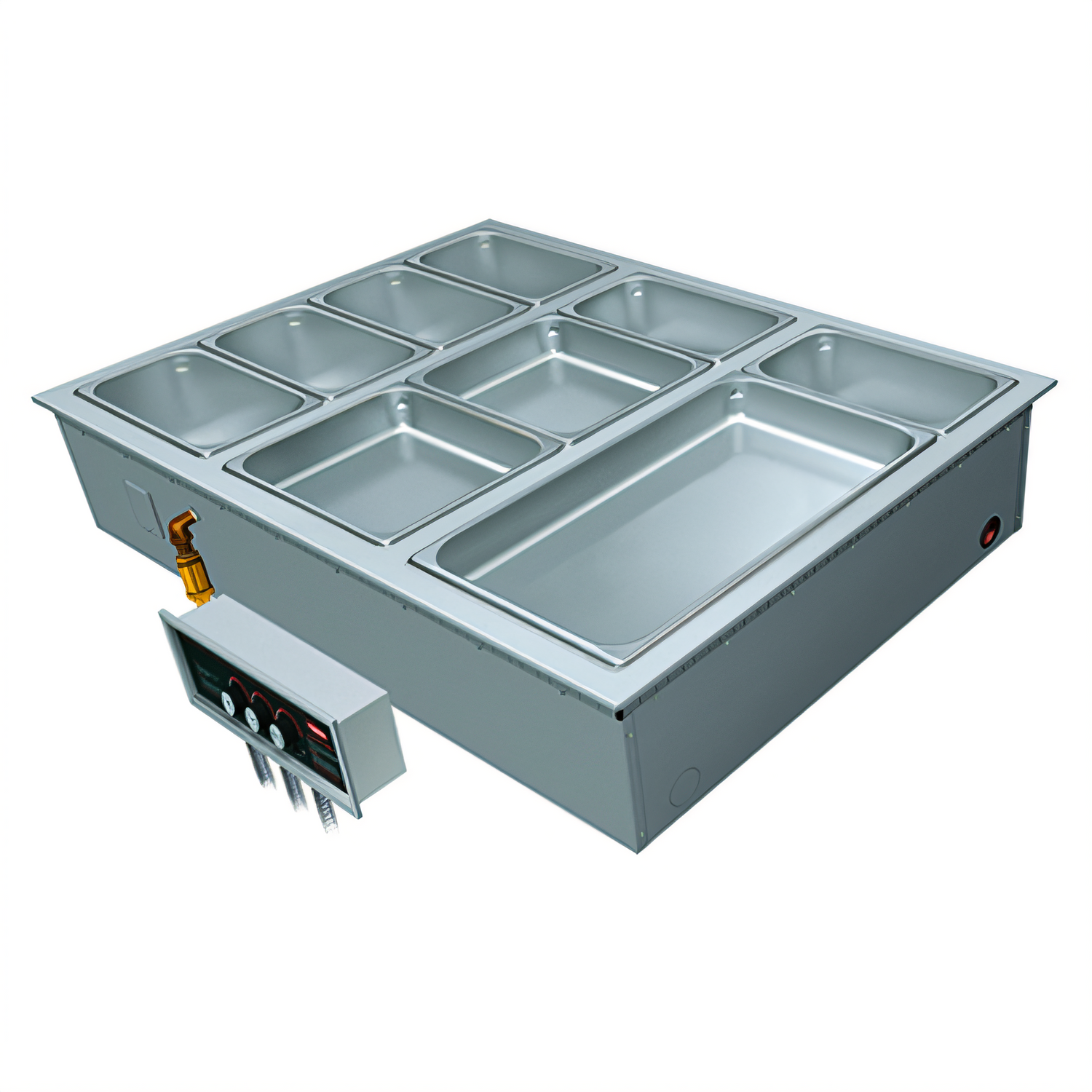

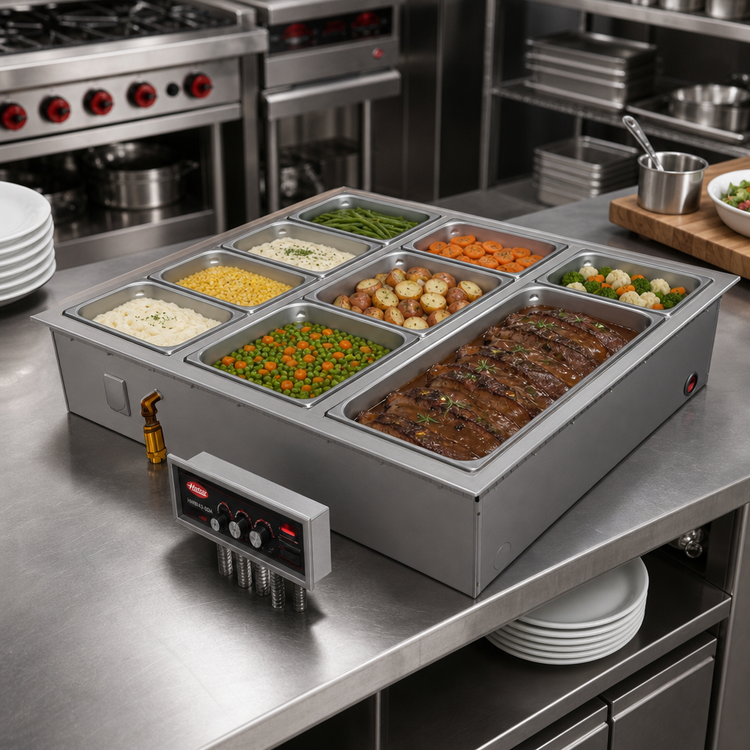

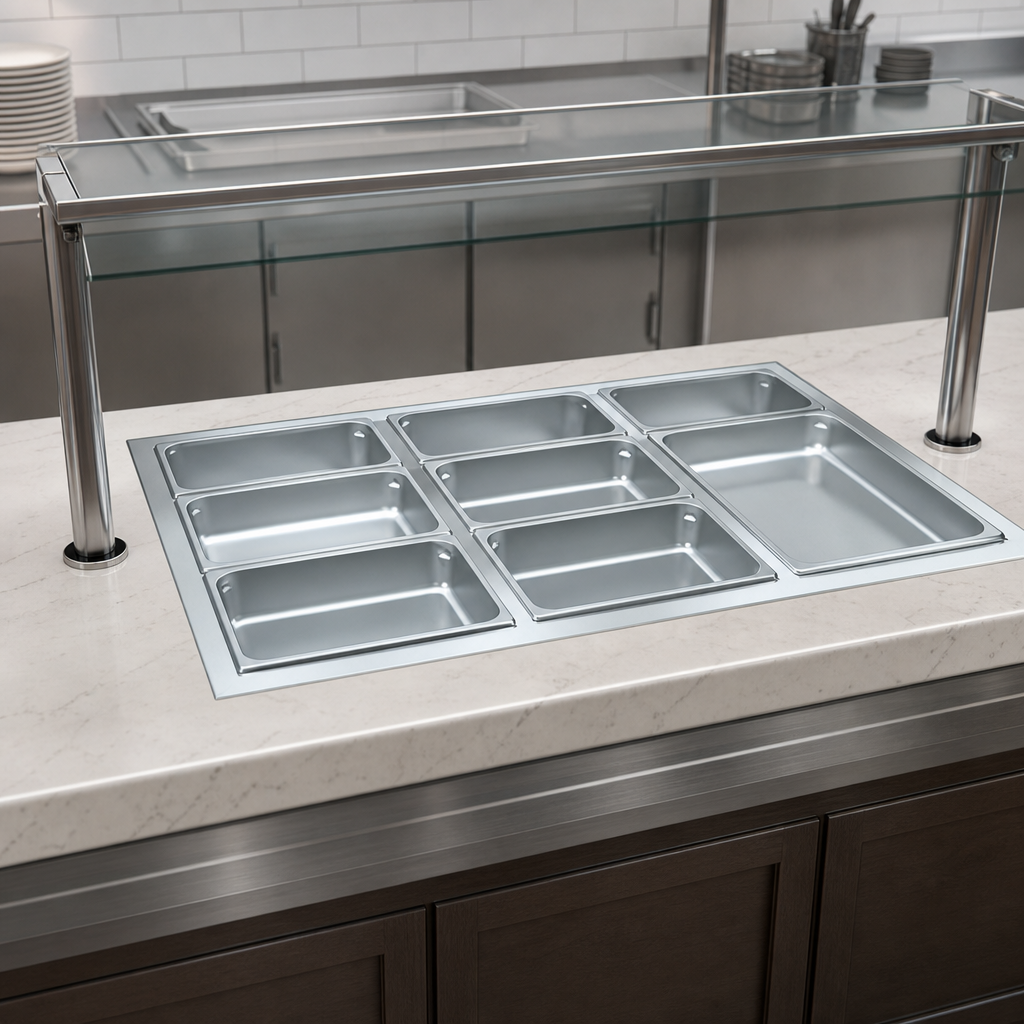

Hatco HWBI43-6DA Drop-In Modular/Ganged 4/3-Size Heated Well – 6 Wells, Drain & Auto-Fill

High-capacity, individually-controlled wells that keep every entrée hot, fresh and ready for service.

Replace bulky steam tables with one seamless drop-in module. The Hatco HWBI43-6DA delivers the performance you expect from six separate heated wells—complete with automatic water management, oversized drains and precision thermostat control—while installing as a single, top-mount unit for a clean, built-in look.

Stand-Out Features
  • Six insulated 4/3-size wells, each 9.62″ deep to hold up to four 1⁄3-size pans (or equivalent).
  • Auto-fill system keeps water at the ideal level and prevents element burnout.
  • 50 % larger ¾″ drains with flat-screen strainers speed clean-up and keep pans level; connected to a 1″ copper manifold.
  • Individual remote thermostatic dials (0–200 °F) with separate lighted on/off rocker switches for every well.
  • EZ-Locking™ hardware and factory-installed gasket make one-person, silicone-free installation fast and easy.
  • Durable stainless-steel top and aluminized-steel body with solid-brazed joints—built to thrive in busy kitchens.
  • Tool-less element/thermostat replacement minimises downtime and service costs.
  • Includes 6 ft (1829 mm) flexible conduit for convenient control-box placement.
  • Third-party certified: cULus, CE & UL EPH Classified (NSF/ANSI 4).
  • Proudly Made in the USA and supported by Hatco’s 24/7 parts & service network.
Flexible Pan Configurations (per well)
  • 4 × 1⁄3-size pans (2½″ deep)
  • 2 × 1⁄2-size + 1 × 1⁄3-size pan
  • 1 × full-size + 1 × 1⁄3-size pan
Specifications
Model HWBI43-6DA (Drain & Auto-Fill)
Overall Dimensions 85.5″ W × 30.375″ D × 9.62″ H
(2172 × 772 × 244 mm)
Countertop Cut-Out * Width 84.19–84.37″ (2139–2143 mm)
Depth 29.18–29.44″ (742–748 mm)
Number of Wells 6 insulated 4/3-size wells
Total Pan Capacity Up to 24 × 1⁄3-size pans (4 per well) or equivalent
Electrical 208 V or 240 V, single or 3-phase, field-wired
Heating Power ≈ 7,215–7,582 W (voltage-dependent)
Water Management Automatic fill with low-water sensor & back-flow preventer
Drain ¾″ NPT individual drains to 1″ copper manifold
Construction Stainless-steel top, aluminized-steel housing, fully insulated
Certifications CE, cULus, UL EPH Classified (NSF/ANSI 4)
Approx. Ship Weight ≈ 214 lb (97 kg)

*Always confirm cut-out and electrical requirements from the factory spec sheet before fabrication.

Installation required: Unit ships without cord or plug and must be hard-wired by a qualified electrician. Water supply, drain and countertop cut-out are also required.
The Hatco Advantage
  • Over 70 years of innovation in food-holding equipment
  • Engineered & manufactured in Milwaukee, Wisconsin
  • Backed by a global network of authorised service partners

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

85.5in

Depth

30.38in

Shipping Weight

217.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Pan Capacity

(6) 4/3 size (12" x 27")

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with drain & autofill, (6) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
