Hatco HWBI43-5MA Steam Tables & Food Wells
Description

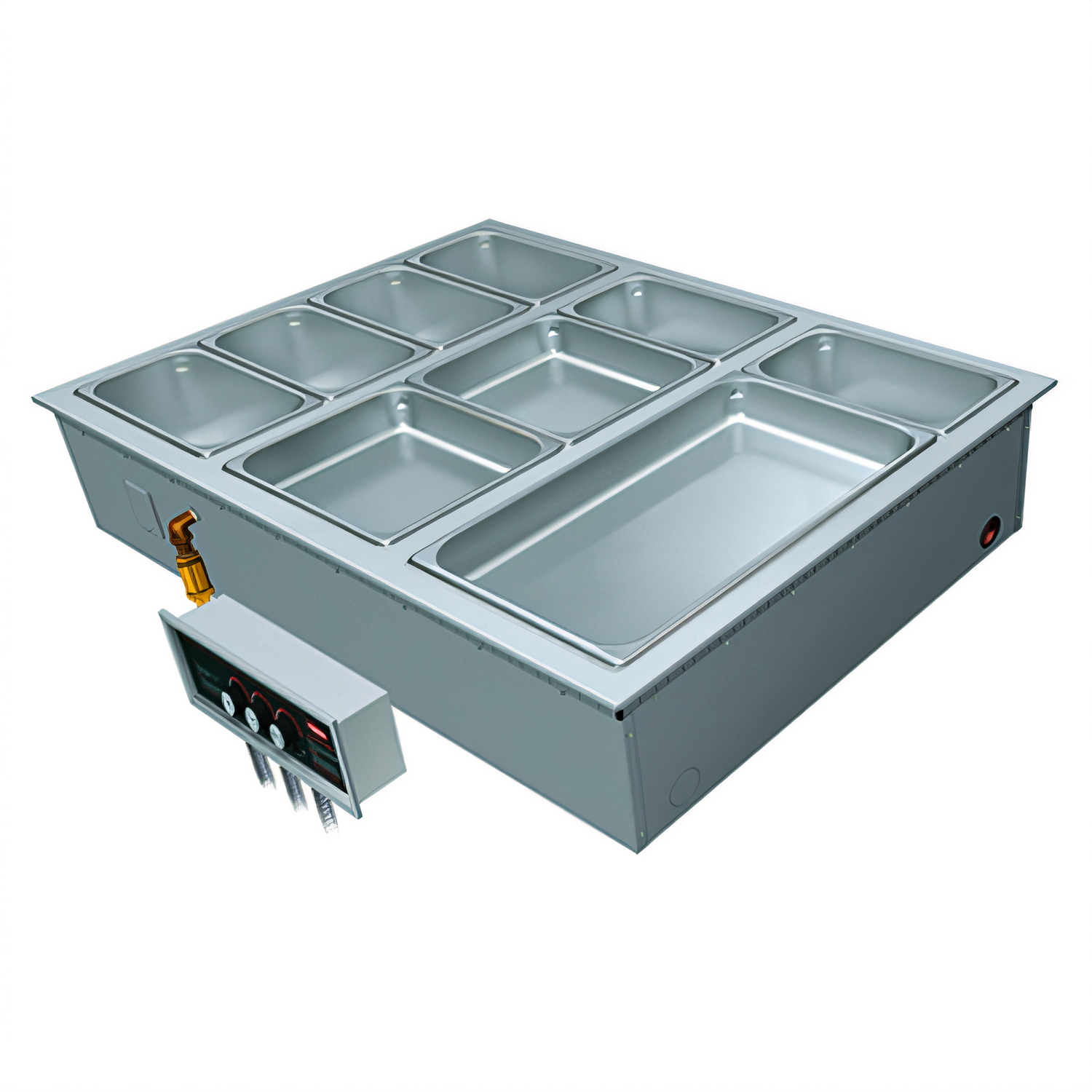

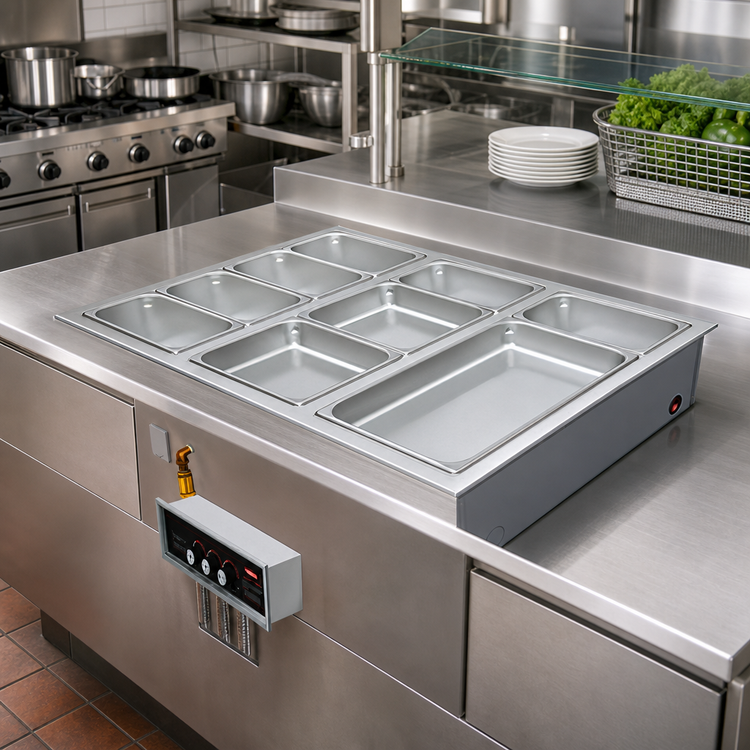

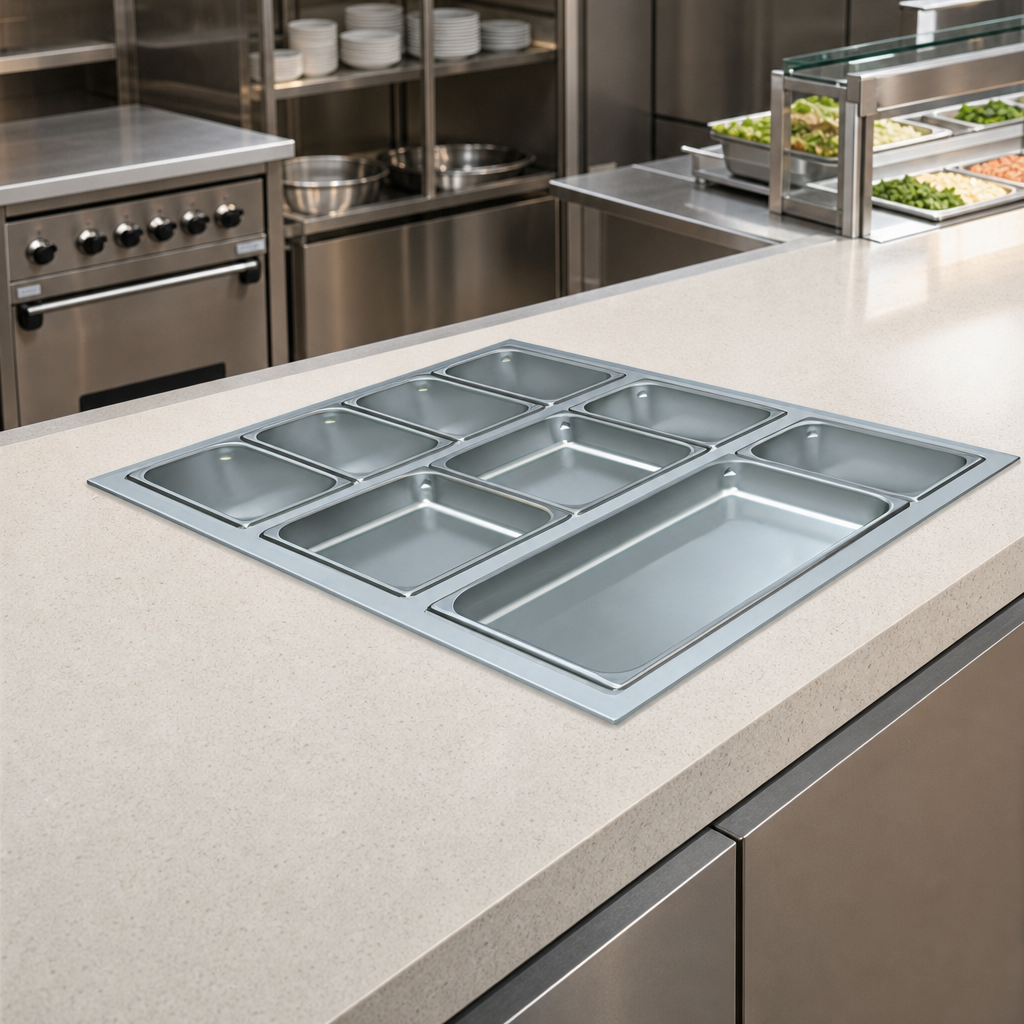

Hatco HWBI43-5DA Drop-In Modular/Ganged Heated Well
5 x 4/3-Size Wells • Auto-Fill & Manifold Drain • Made in USACreate a full-size steam table in a single cut-out. Hatco’s HWBI43-5DA gives you five individually controlled, insulated wells that keep menu favourites hot, fresh and food-safe—while its automatic water fill and high-capacity manifold drain slash daily labour.
Key advantages
- Five 4/3-size wells, each deep enough to hold 4 third-size pans for unbeatable menu flexibility.
- Remote mechanical controls—one lighted rocker switch and thermostat dial per well.
- Auto-Fill maintains water level automatically; low-water sensor protects heating elements.
- 1" NPT manifold drain with 50 % larger outlet and flat screen accelerates clean-up.
- EZ Locking hardware lets a single installer secure the unit from above the counter.
- Rugged stainless-steel well liners with aluminized steel exterior for long service life.
- Separate thermostatic control per well keeps food safely above 140 °F without overcooking.
- CE, cULus & UL EPH Classified for global compliance—proudly Made in the USA.
Specification snapshot
| Model | HWBI43-5DA |
|---|---|
| Pan capacity | 5 x 4/3-size wells (each accommodates up to four ⅓-size pans) |
| Overall dimensions | 71.5" W × 30.38" D × 9.62" H (1816 × 772 × 244 mm) |
| Mounting style | Top-mount drop-in with factory-installed gasket |
| Drain | 1" NPT copper manifold drain, side exit, flat strainer included |
| Water system | Automatic fill with back-flow preventer & hose |
| Controls | Remote dial thermostat & lighted ON/OFF rocker (one set per well) |
| Electrical | 208–240 V, 1 or 3 ph, 6 015 W (NEMA 6-50P for single-phase unit) |
| Approx. ship weight | ≈ 197 lb / 89 kg |
| Certifications | CE, cULus, UL EPH Classified |
| Country of origin | United States |
Ideal for
- Buffet lines, cafeterias & all-you-care-to-eat venues
- Supermarket delis & prepared-food islands
- High-volume QSR or convenience-store hot hold stations
- Catering kitchens seeking fast install & precise holding
Looking for a different size, digital controls or split control boxes? The Hatco HWBI43 series is available in 1- to 6-well configurations—ask us for details.
