Hatco HWBI43-5M Steam Tables & Food Wells
Description
Hatco 5-Well Drop-In Modular / Ganged Heated Well
Model HWBI43-5 (with 1" manifold drain)Give your serving line a seamless, high-capacity upgrade with Hatco’s insulated, top-mounted 5-well module. Each 4/3-size rectangular well is individually controlled to keep entrées and sides hot, fresh and food-safe – all in one Made-in-USA package that installs in minutes.
Why You’ll Love It
- Hold more, longer: deeper wells deliver longer holding times and fit up to 4 third-size pans each.
- Independent precision: a remote thermostat dial and separate lighted rocker switch for every well.
- 1" manifold drain: single exit point speeds cleanup; 50 % larger opening with flat screen stops clogs & keeps pans level.
- EZ-Lock mounting: built-in hardware locks the unit tight to the countertop from above – no tools underneath.
- Built to last: fully insulated stainless-steel well with aluminized steel housing and solid-brazed joints.
- Service-friendly: heating element or thermostat can be swapped out without removing the entire unit.
- Compliant & safe: CE, cULus, and UL EPH Classified for sanitation.

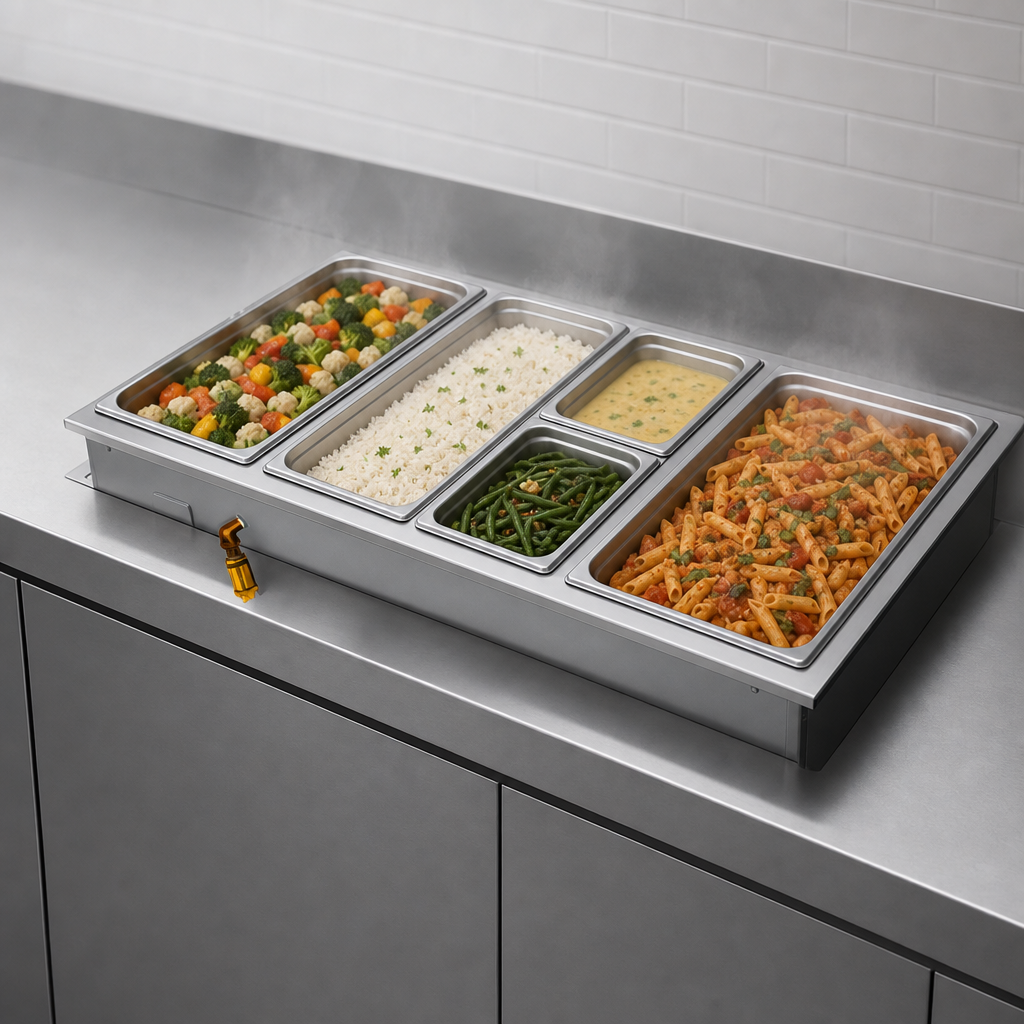

Pan Configurations (per well)
Mix and match to suit the menu – all pans sold separately.
- 4 × 1/3-size pans
- 2 × 1/2-size pans + 1 × 1/3-size pan
- 1 × full-size pan + 1 × 1/3-size pan
Specifications
| Overall Dimensions (W × D × H) | 71.5" × 30.375" × 9.62" (1816 × 772 × 244 mm) |
|---|---|
| Number of Wells / Size | 5 wells | 4/3-size rectangular, fully insulated |
| Controls | Remote mechanical thermostats (one per well) with lighted on/off rocker switches |
| Drain System | 1" NPT manifold drain – single side or bottom exit (field selectable) |
| Electrical | 208 – 240 V, single- or three-phase | 6015 W (max) Factory-installed 6' (1829 mm) flexible conduit |
| Construction | Stainless-steel well, aluminized steel exterior, solid-brazed fittings |
| Agency Listings | CE • cULus • UL EPH Classified |
| Country of Origin | Made in USA |
| Approx. Ship Weight | ~200 lb (91 kg) |
What’s in the Box
- Hatco HWBI43-5 modular heated well with 1" manifold drain
- EZ-Lock installation hardware
- 6' flexible conduit with remote control box
- Installation & operating manual
Need fewer or more wells, auto-fill, or alternate voltages? Browse the full Hatco HWBI43 series or chat with us for a custom quote.
