Hatco  |  SKU: HWBI43-5D

Hatco HWBI43-5D Steam Tables & Food Wells

$4,634.18
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Owner's manual Parts list
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

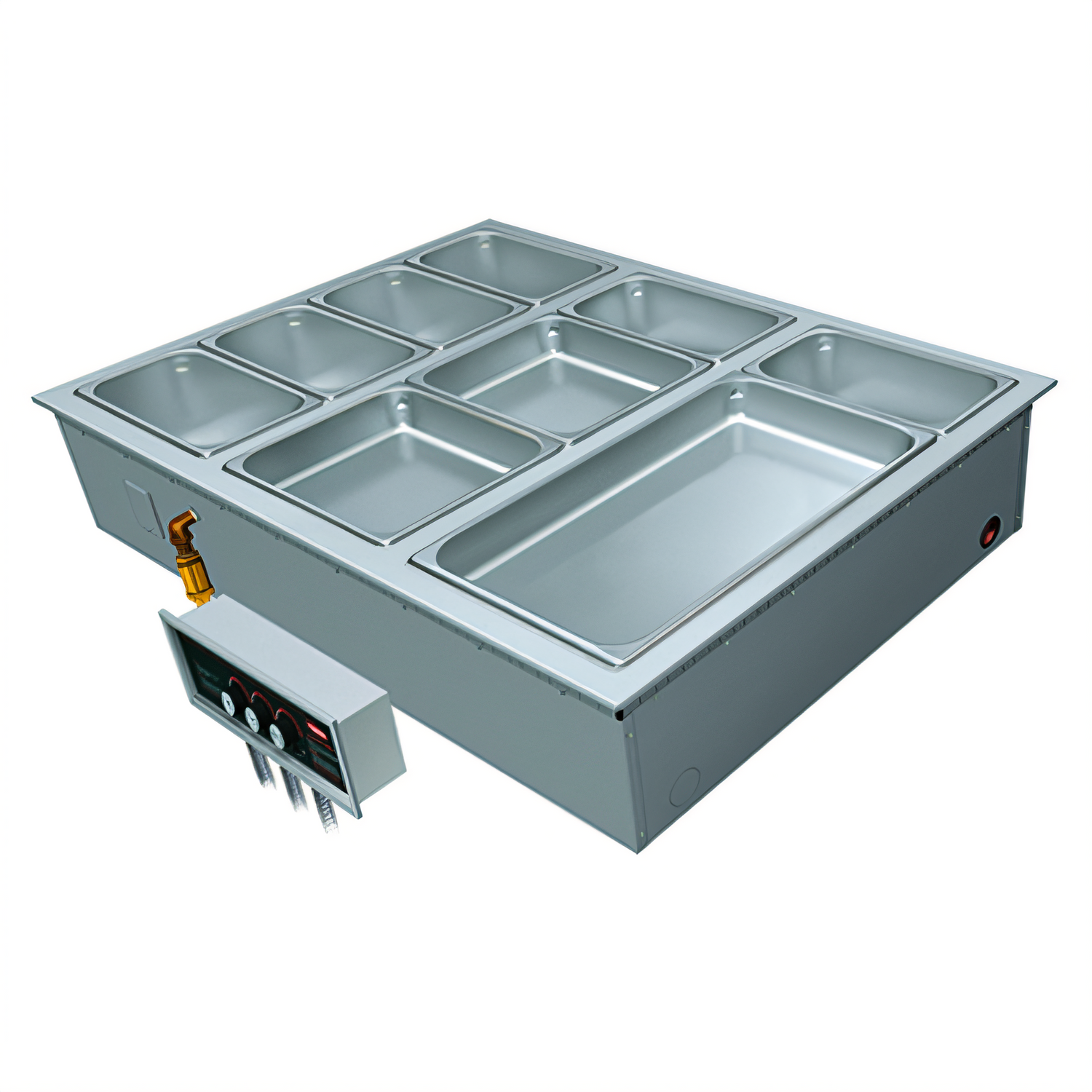

Hatco HWBI43-5D Drop-In 5-Well Heated Holding Unit

Modular/Ganged 4⁄3-size wells with drains & remote mechanical controls

Give every menu item the “just-plated” taste and appearance it deserves. The Hatco HWBI43-5D is a fully–insulated, top-mounted steam table that combines five independently controlled 4⁄3-size wells, an extra-large drain system and Hatco’s legendary build quality into one seamless drop-in module.

Why You’ll Love It
  • 5 individual 4⁄3-size wells — each holds 4 third-size pans or popular pan combinations (2 × ½-size + ⅓-size, or 1 × full-size + ⅓-size).
  • Remote mechanical thermostat dial with separate lighted On/Off rocker switch for each well.
  • EZ-Locking hardware drops, twists and locks the unit in place for ultra-fast installation.
  • Extra-deep, fully insulated design delivers longer holding times and more accurate temperatures.
  • 50 % larger ¾" NPT drains with flat strainers make clean-up quick and keep pans perfectly level.
  • All-stainless steel top & liner with aluminized steel exterior — heavy-duty, brazed and built to last.
  • 6' (1829 mm) flexible conduit lets you locate the control box exactly where you want it.
  • Certified & compliant: CE, cULus, UL EPH Classified (ANSI/NSF 4).
  • Proudly Made in the USA and backed by Hatco’s 24/7 service network.
At-a-Glance Specs
Model HWBI43-5D (with individual drains)
Pan Capacity 5 × 4⁄3-size wells (up to 20 third-size pans total)
Overall Dimensions (W × D × H) 71.5" × 30.38" × 9.62" (1816 × 772 × 244 mm)
Countertop Cut-out 70.19–70.37" W × 29.19–29.44" D (1783–1788 mm × 742–748 mm)
Drain Connection ¾" NPT per well, flat stainless screens included
Electrical 208 V or 240 V, 1-phase standard
6,015 W @ 208 V (≈ 28.9 A)
Other voltages & 3-phase wiring available at order
Control Box Remote, single consolidated box with 5 thermostats & rocker switches
Shipping Weight ≈ 197 lb (89 kg)
Certifications CE • cULus • UL EPH Classified
Need adapter bars, pans, lids or a drain manifold? Ask our team — we stock the full range of Hatco accessories for a perfect fit.
Installation note: Unit must be hard-wired by a licensed electrician. Follow local codes and Hatco’s Installation & Operating Manual.

Features & Specs

Manufacturer

Hatco

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

9.62in

Width

71.5in

Depth

30.38in

Shipping Weight

186.0lbs

Pan Capacity

(5) 4/3 size (12" x 27")

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet or dry

Drain

with drain

Specifications

Drop-In Modular/Ganged Heated Well, with drain, (5) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
