Hatco HWBI43-5 Steam Tables & Food Wells
Description

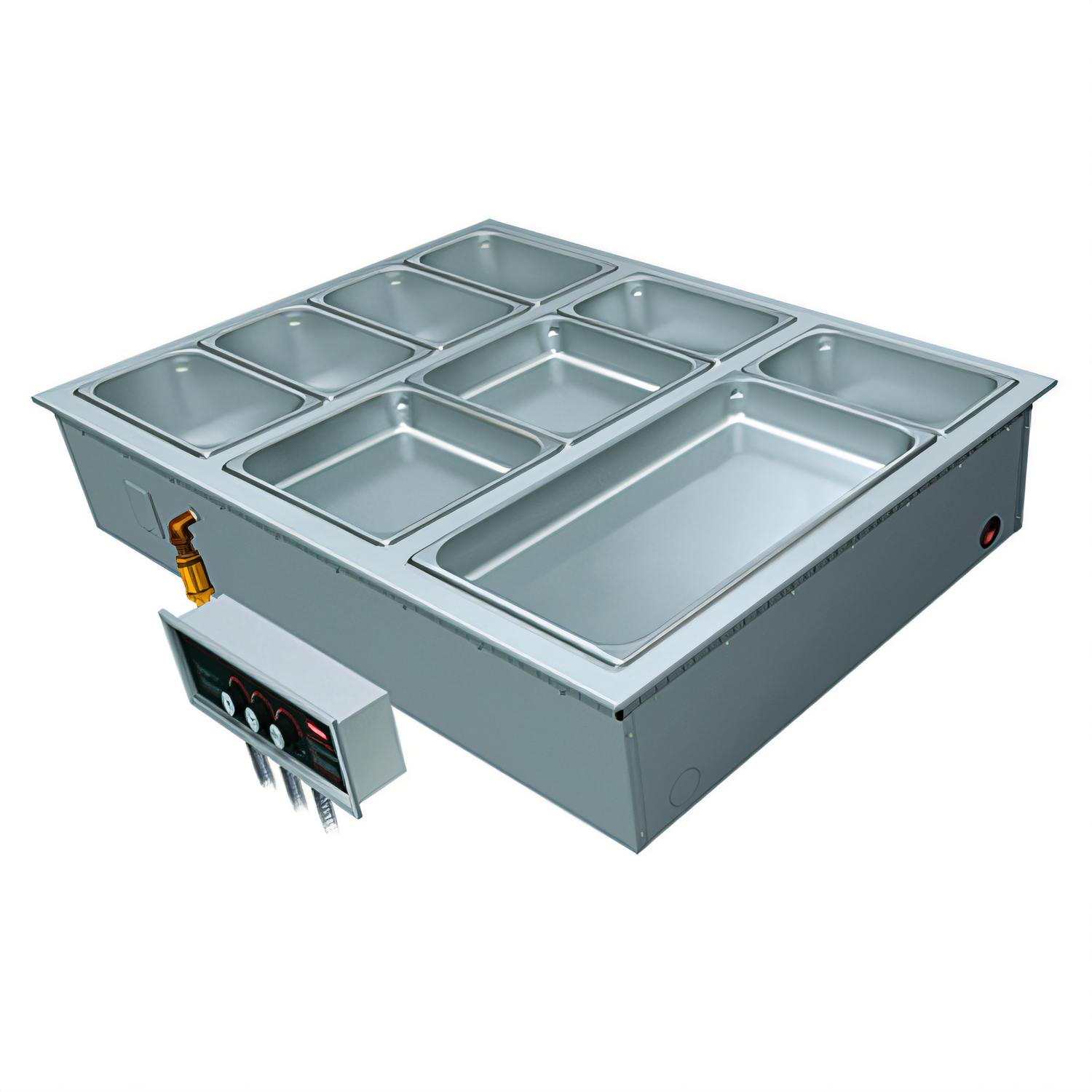

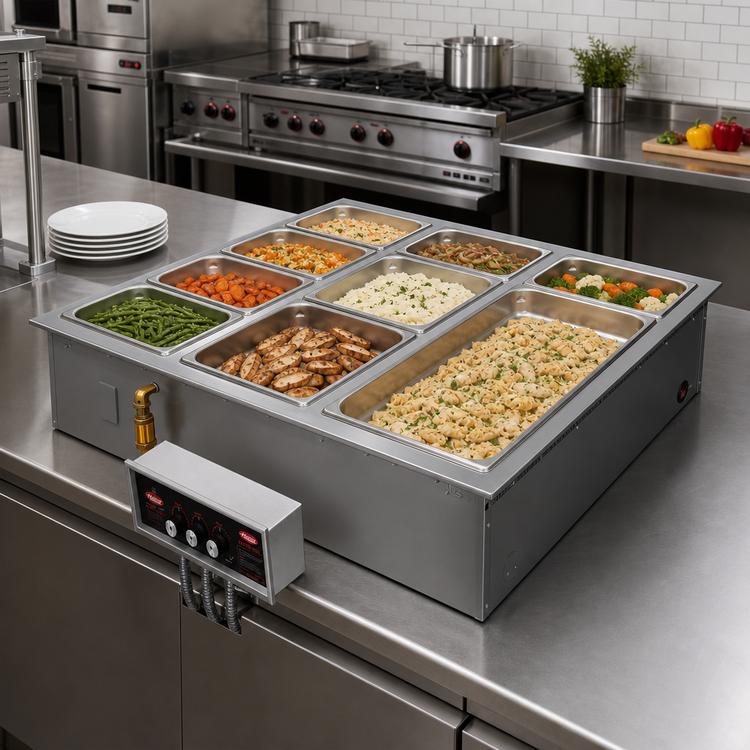

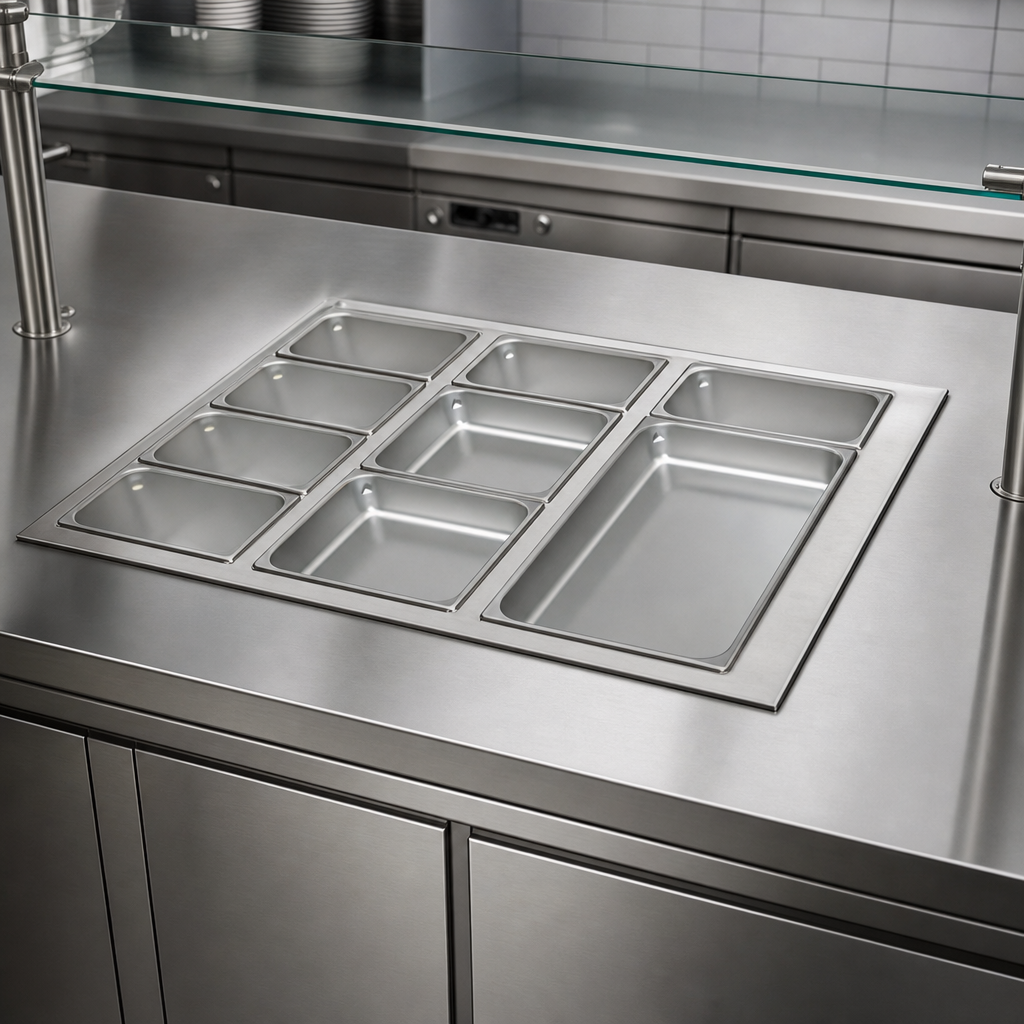

Hatco HWBI43-5 Drop-In Modular / Ganged Heated Well
5-Well • 4/3-Size • Insulated Top-MountBuild a full five-well steam table into a single countertop opening. The Hatco HWBI43-5 gives every well an independent thermostat for precise temperatures and longer hold times—perfect for buffets, cafeterias and grab-&-go stations that refuse to compromise on food quality.
Why you’ll love it
- Five insulated 4/3-size wells—each fits 4 × ⅓-size pans (or the equivalent in ½- or full-size pans).
- Remote thermostat dial with separate lighted ON/OFF rocker switch for intuitive operation.
- EZ-Locking hardware secures the unit in seconds—no silicone bead or extra fasteners required.
- 50 % larger flat-screen drain (optional) speeds cleanup and keeps pans level.
- Durable stainless-steel top flange with aluminized steel body stands up to daily commercial use.
- cULus, UL EPH Classified & CE listed—fully compliant for open-kitchen installation.
- Proudly Made in the USA for dependable, long-term service.
At-a-glance specs
| Model | HWBI43-5 |
|---|---|
| Wells / Capacity | 5 wells • 4 ⅓-size pans per well (20 total) |
| Overall size (W × D × H) | 71.5 in × 30.375 in × 9.62 in (1816 mm × 772 mm × 244 mm) |
| Counter cut-out | 70.19–70.37 in W × 29.19–29.44 in D (1783–1788 mm × 742–748 mm) |
| Voltage options | 208 V or 240 V • Single- or Three-phase |
| Watts | 6015 W |
| Amps @ 208 V | 28.9 A (1 Ø) • 20.1 A (3 Ø) |
| Amps @ 240 V | 25.1 A (1 Ø) • 17.4 A (3 Ø) |
| Ship weight | ≈ 197 lb (89 kg) |
| Construction | Stainless steel top • Aluminized steel body |
| Certifications | cULus • UL EPH • CE |
| Origin | Made in USA |
Perfect for
- Buffet & self-service lines
- Supermarket delis & prepared-food islands
- Institutional & corporate cafeterias
- Ghost-kitchen pass-through counters
Popular add-ons (sold separately)
- ⅓-, ½- and full-size stainless steel pans
- 11 qt (10 L) round pans with hinged or notched lids
- Copper drain manifold kits (side- or bottom-exit)
- Stainless wire trivets & support bars
Need help selecting voltage, drains or accessories? Contact our team and we’ll configure the perfect Hatco drop-in for your operation.
