Hatco HWBI43-4DA Steam Tables & Food Wells
Description

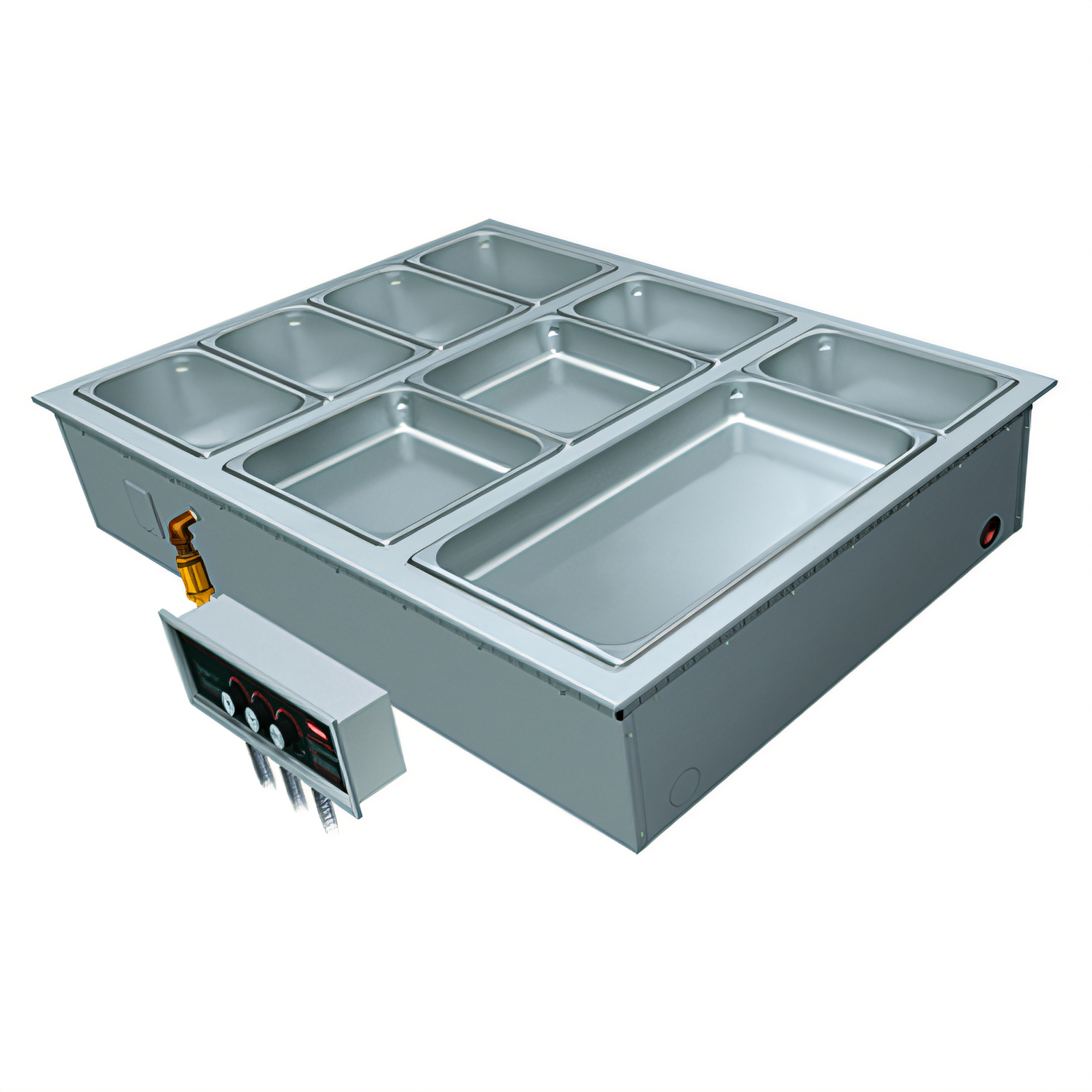

Hatco HWBI43-4DA Drop-In 4-Well Modular Heated Well
4/3-size wells • Auto-fill & ¾" drains • Remote controls • Made in USAGive every dish the perfect hold with Hatco’s fully-insulated, ganged heated well. The HWBI43-4DA delivers precise, individual temperature control across four independent wells while its automatic fill system, oversized drains and EZ-Lock installation turn everyday operation into a one-person job.
Key advantages
- Four 4/3-size wells – each accommodates up to four 1/3-size pans, two 1/2 pans plus a 1/3, or one full-size pan plus a 1/3.
- Auto-fill maintains the proper water level automatically and includes a low-water sensor for element protection.
- 50 % larger ¾" NPT drains with flat strainers speed clean-up and keep pans level.
- Remote mechanical thermostat dial and illuminated On/Off rocker switch for each well let you fine-tune temps without disturbing the serving line.
- Deep, fully insulated well design extends holding times and maximizes energy efficiency.
- EZ-Locking top-mount hardware drops in from above—no under-counter bracing required.
- Rugged stainless-steel well, aluminized steel exterior and solid-brazed fittings built for years of heavy food-service use.
- CE, cULus & UL EPH Classified. Manufactured in Milwaukee, Wisconsin.
Ideal for
- Cafeterias & self-service buffets
- Fast-casual & QSR make-lines
- Hotel breakfast bars & banquets
- High-volume catering or commissary kitchens
Technical specifications
| Model | HWBI43-4DA (4 wells, auto-fill & ¾" drains) |
|---|---|
| Overall dimensions | 57.5" W × 30.38" D × 9.62" H (1461 × 772 × 244 mm) |
| Counter cut-out | 56.19–56.37" W × 29.18–29.44" D (1426–1432 × 742–748 mm) |
| Capacity | Up to 16 third-size pans total (4 per well) |
| Electrical | 208 V or 240 V, 1-phase, 4.8 kW (23.2 A @ 208 V / 20.1 A @ 240 V). 3-phase wiring available at order. |
| Water inlet (auto-fill) | ½" NPT cold-water connection with supplied hose |
| Drain | Individual ¾" NPT drains; optional copper manifold with shut-off valves |
| Controls | Remote thermostat (0–200 °F / 93 °C) & lighted rocker switch per well, 6' (1829 mm) flexible conduit |
| Construction | Stainless steel wells, aluminized steel housing, full fiberglass insulation |
| Certifications | CE • cULus • UL EPH Classified (NSF/ANSI 4) |
| Approx. ship weight | ≈ 166 lb (75 kg) |
Optional accessories
- Stainless-steel food pans (full-, half- & third-size; 2.5", 4" & 6" depths)
- 11 qt (10 L) round pans with solid or notched lids
- Adaptor kit for two 11 qt round pans per well
- Wire trivets to elevate pans
- Copper drain manifold with individual shut-off valves
- Ball or gate valves (¾" or 1")
- Factory-installed perimeter gasket – no silicone needed
Need a different voltage, split control boxes or special drain configuration? Please let us know before ordering—many options must be specified at the factory.
